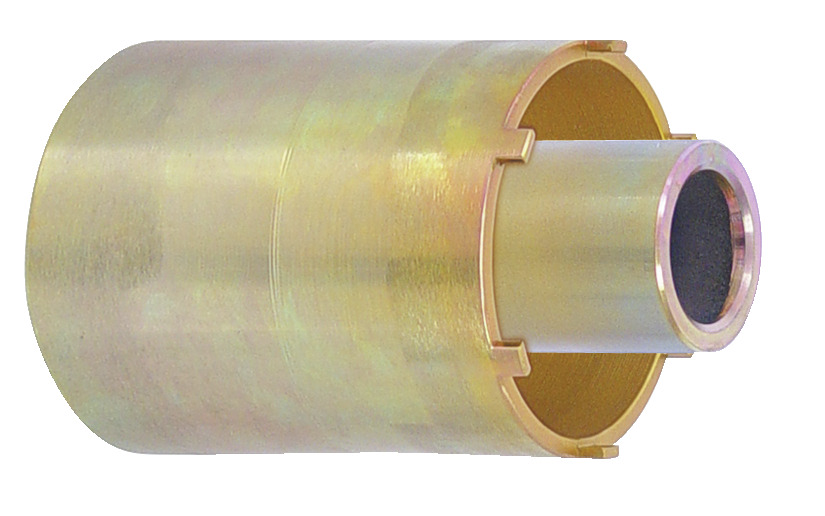

6-Pin Lock Nut Socket with Guide Tube, Ø 117mm

6-Pin Lock Nut Socket with Guide Tube, Ø 117mm
KL-1020-38

1919202

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Suitable for Mercedes vehicles with locknut A 946 356 02 26, for example ACTROS rear axles HL/ HL8.

Especially suitable for unscrewing and tightening the fastening nuts for example on the front or rear axle as well as on the gearbox or differential flange.
Modular System: Allows base tool and guide tubes to be combined universally (observe connection thread).
Advantages:
• High time and cost savings.
• Universally applicable.

We also recommend

KL-4007-411
Swivel Head Breaker Bar, 3/4", 980mm

2941554

Technical data

Diameter milled slot of piston rod

117 mm

Drive connector square [inch]

3/4"

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Agriculture

Customs tariff number

82055980

Outer Ø, guide tube

60 mm

suitable for axle type

Mercedes HL/ HL8

suitable for vehicle model

Mercedes Actros

Outer diameter

124,5 mm

Type

with Guide Tube

Number of cones

Journal width

9,8 mm

Reach

compliant

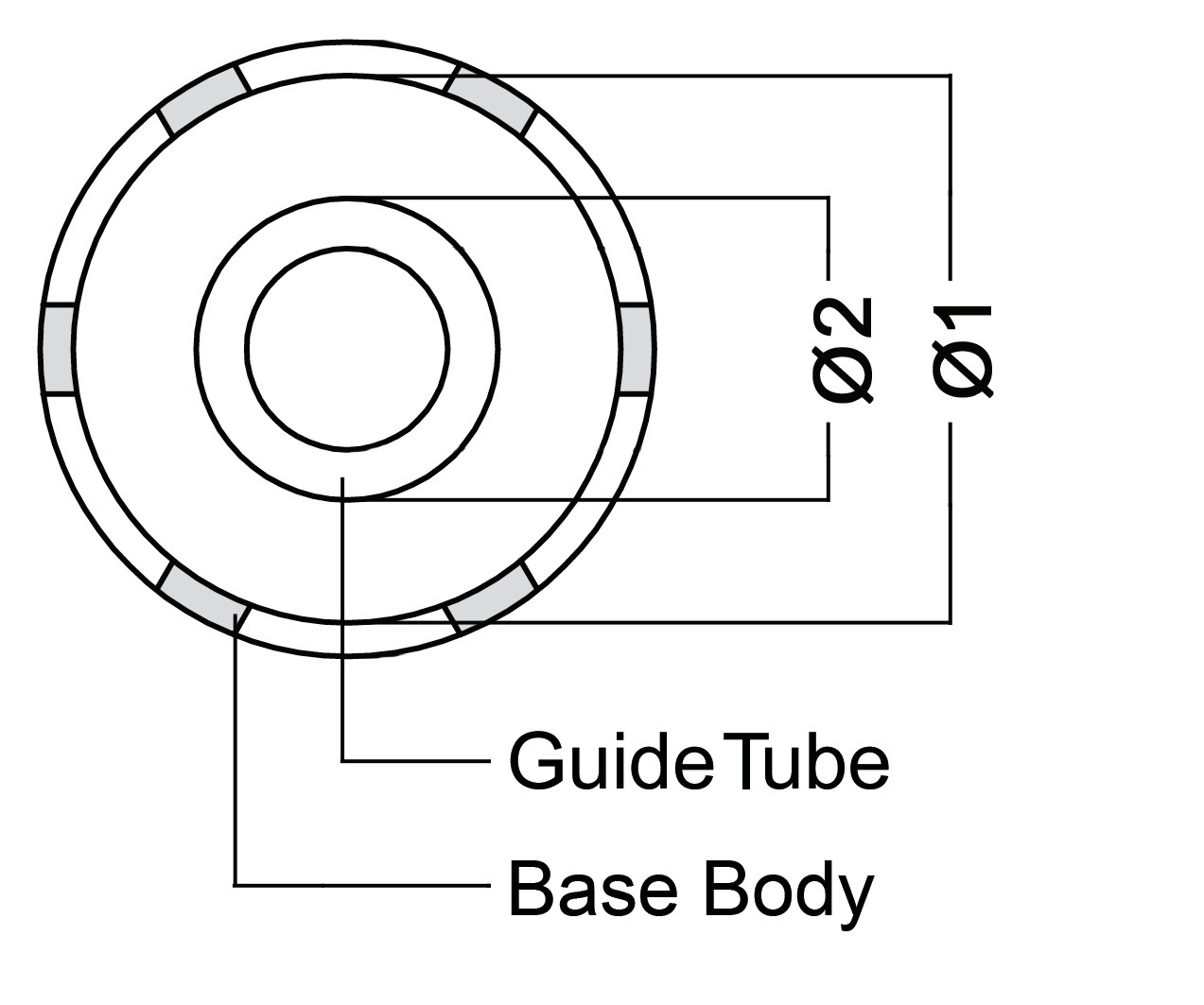

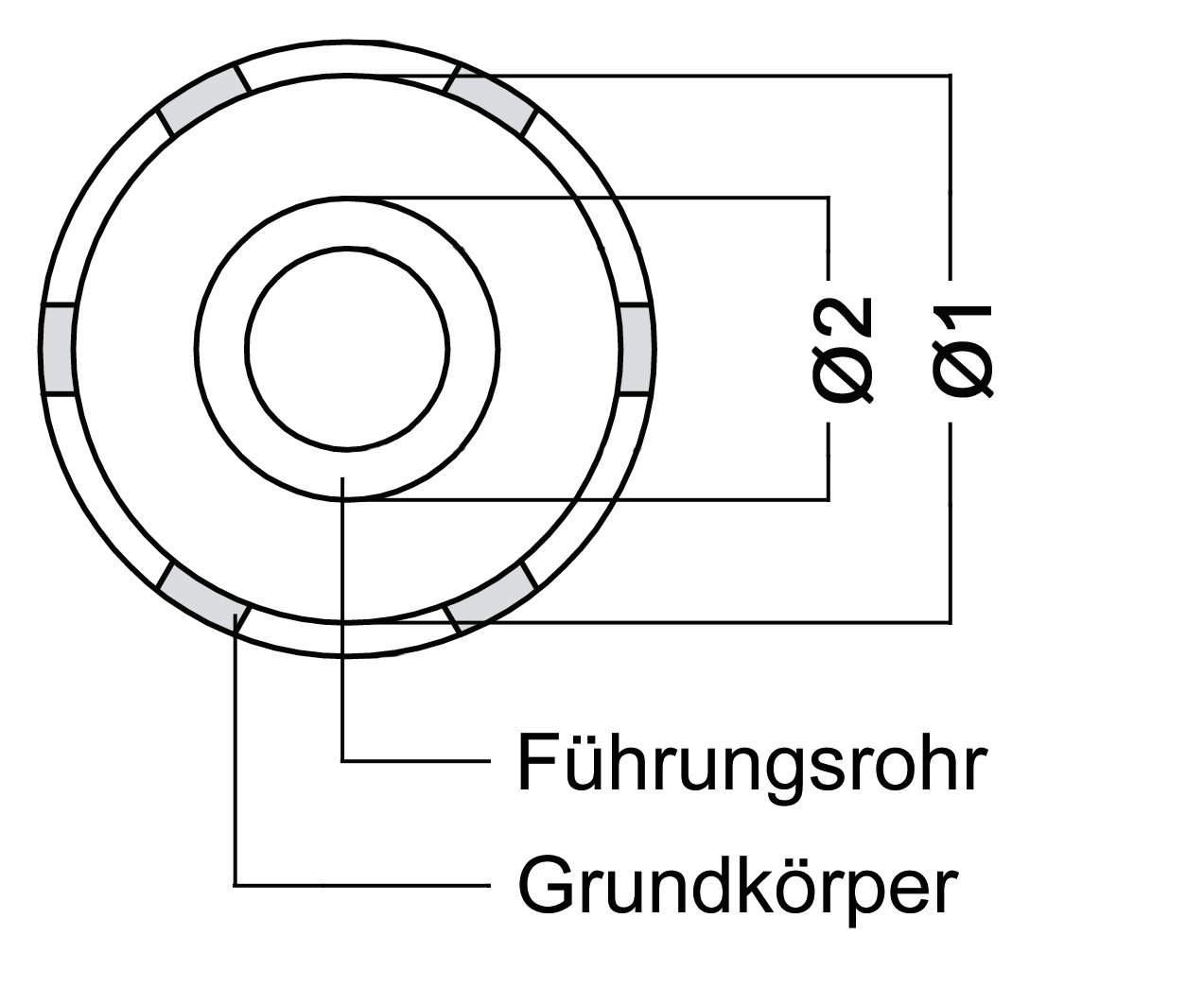

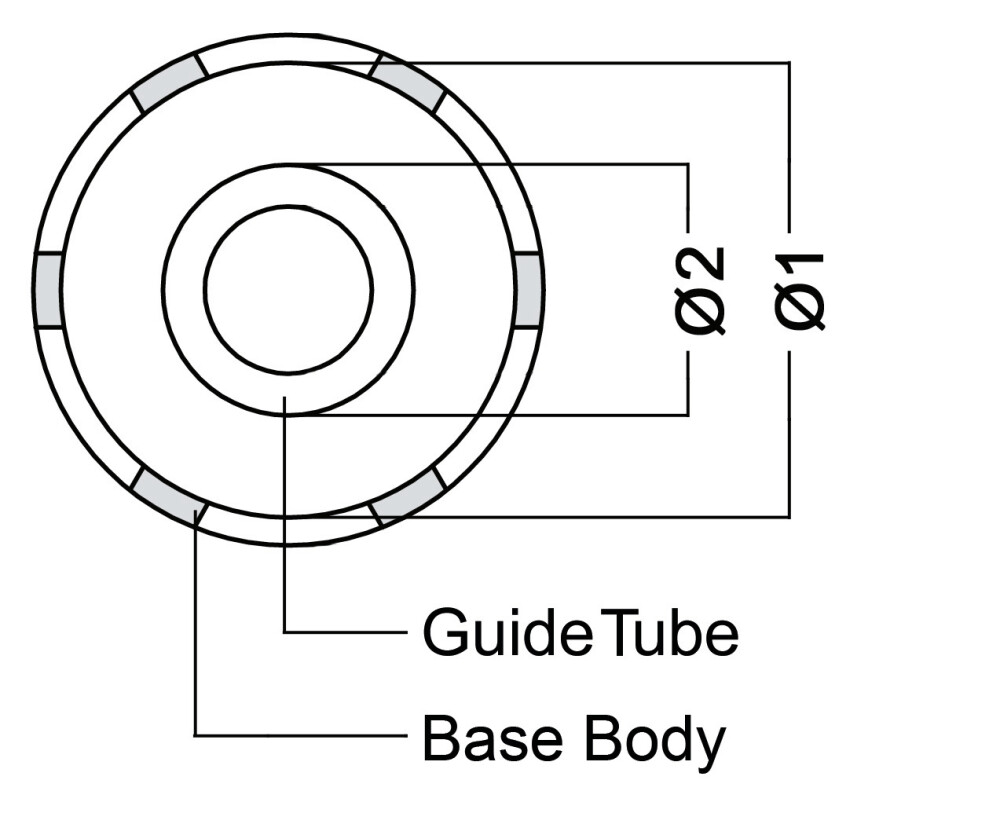

Parts list (Text)

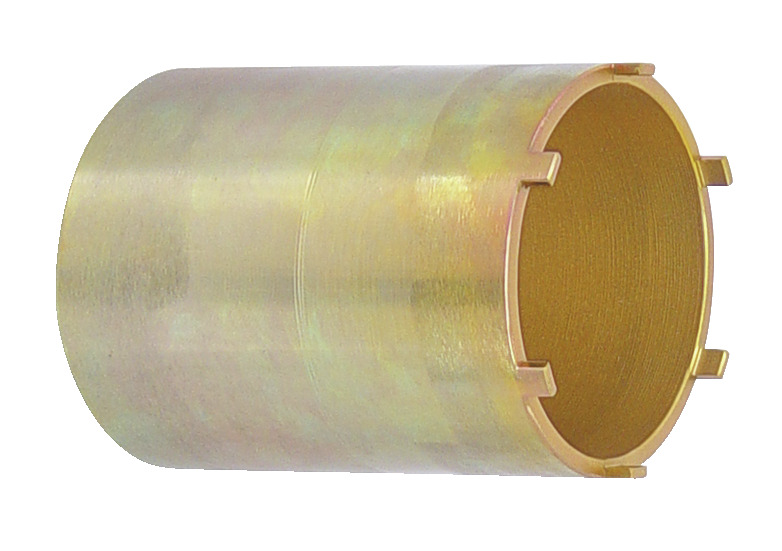

1x KL-1020-380 - Base body Guide tube

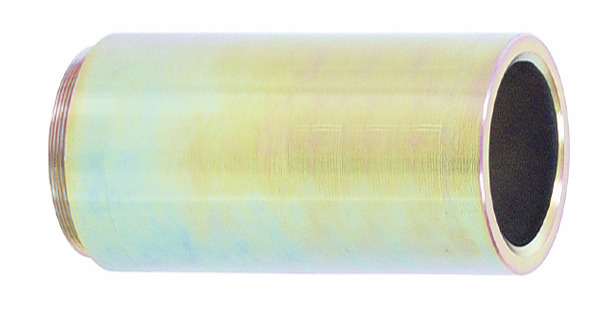

1x KL-1020-3911 - Guide tube

Weight

6,8 kg

Short text

Suitable for Mercedes vehicles with locknut A 946 356 02 26.

• For unscrewing and tightening the fastening nuts

• For example on the front or rear axle as well as on the gearbox or differential flange

• Various base bodies and guide tubes can be combined

Manufacturer spare part number

Mercedes: A 946 356 02 26

to be used as (OEM)

W 748 589 00 07 00

EAN

4046459043287

Manual - KL-1020-..Serie_DE230716.pdf Manual - KL-1020-..Serie_EN230716.pdf
