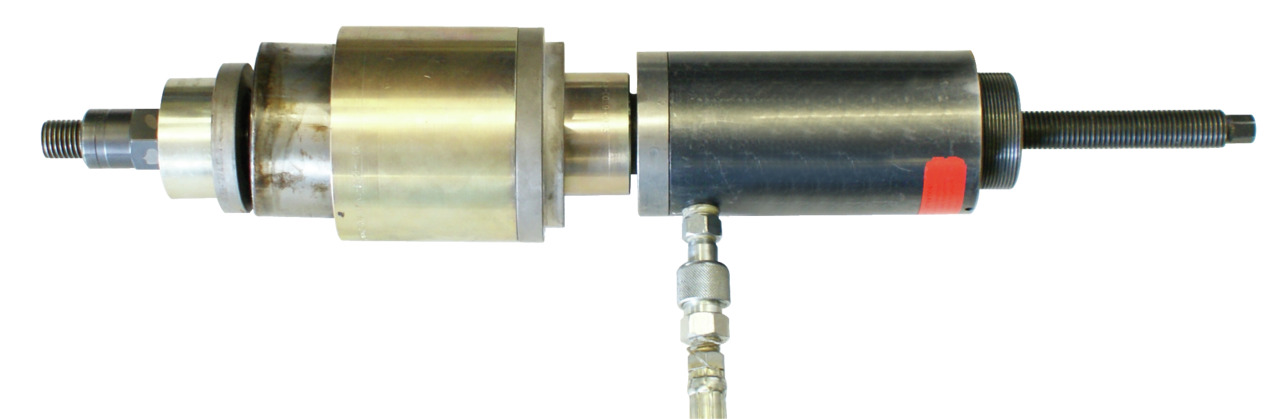

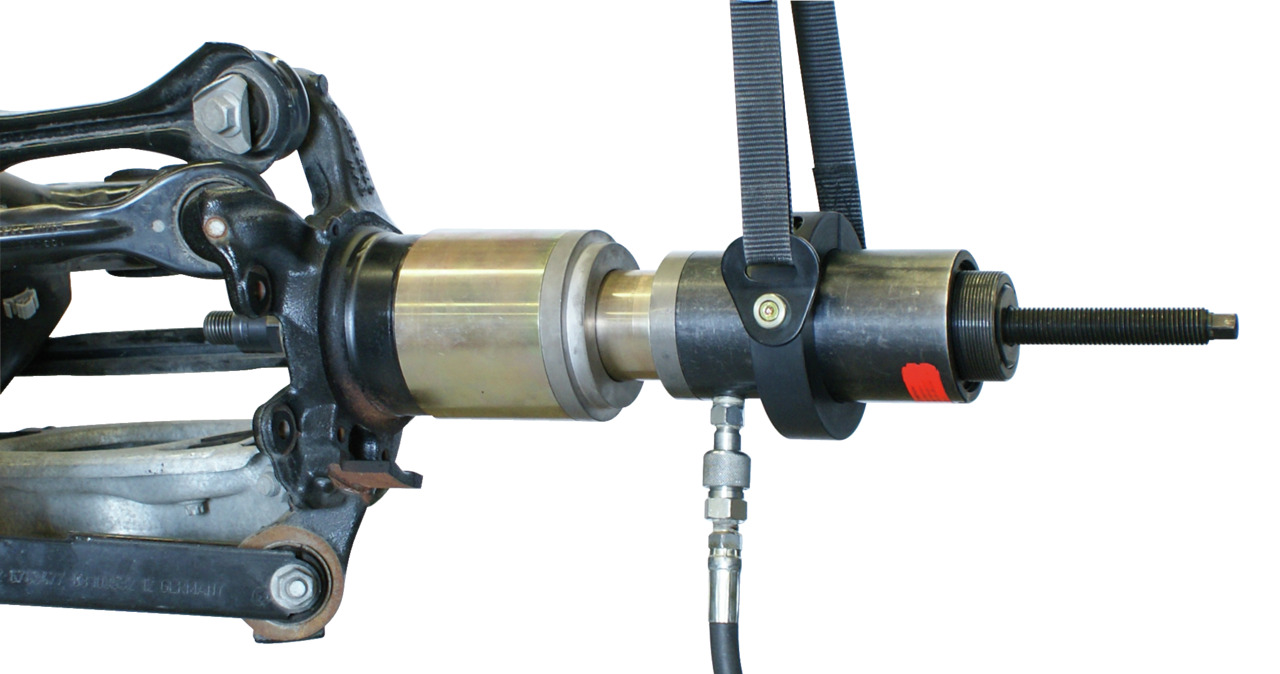

This adaptor is needed to retain the various KL-0039-.. and KL-0043-.. pressure-/support sleeves if these are to be used with the hydraulic cylinder KL-0040-2500. (Connection thread: M42x2)
Technical data
Diameter milled slot of piston rod
20,5 mm
Contents (Qty of pieces)
1
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Agriculture
Drive type
hydraulic
Customs tariff number
82055980
Total length
50 mm
Outer diameter
60 mm
Mounting diameter
46mm
Internal thread
M42x2
Short text
• For mounting the pressure / support sleeves KL-0039-.. or KL-0043-..
• In connection with the hydraulic cylinder KL-0040-2500
