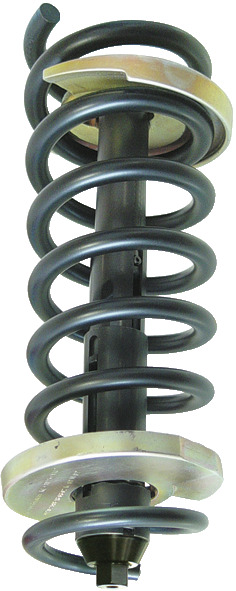

Especially suitable for Mercedes rear axle M-Class (W164).
With an anti-rotation profile to prevent the pressure plates from twisting. Stops the pressure plates and avoids a turning of the pressure plates when tensioning them or when they are in a compressed position. No unscrewing of the compressed spring.
Technical data
Contents (Qty of pieces)
2
Size
1.5
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Spring Ø, inner (min.)
76 mm
Spring Ø, outer (max.)
125 mm
Customs tariff number
82055980
suitable for vehicle model
Mercedes M-Klasse II (W164)
Pitch
9 mm
Parts list (Text)

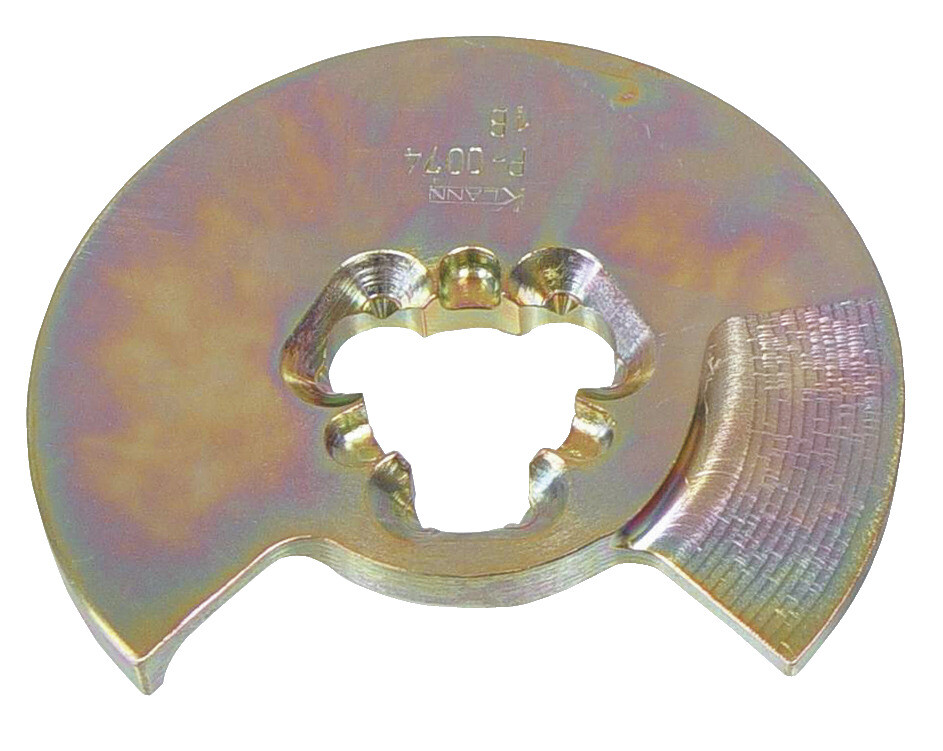

1x KL-0025-1701 - Pressure plate size 1.5 with lock

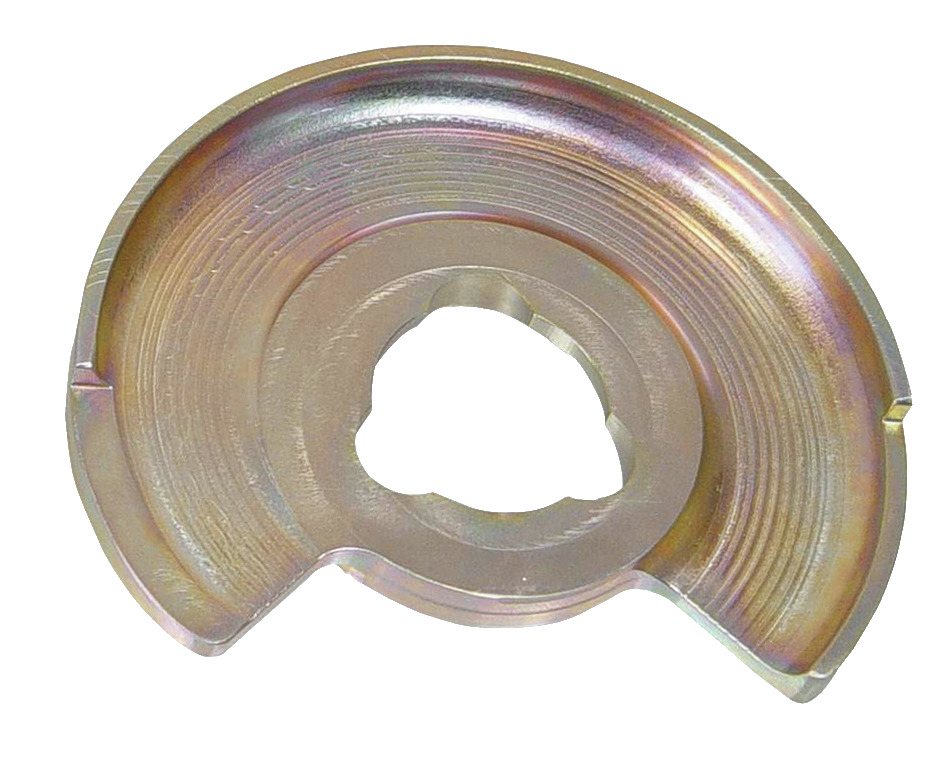

1x KL-0025-1702 - Pressure plate size 1.5 with corrugated profile
