Product

Counter-Holding Tool, VW-Audi
KL-0184-025

2816075

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Fits with VW-Audi, Seat, Škoda vehicles with 1.8 and 2.0 TSI/ TFSI engines.

Installed in, for example, VW Golf, Eos, Jetta, Passat, Passat CC, Scirocco, Sharan, Tiguan; Audi A3, A4, A5, Q5, TT; Seat Toledo, Altea/Altea XL, Exeo, Leon; Škoda Octavia II, Superb II, Yeti.

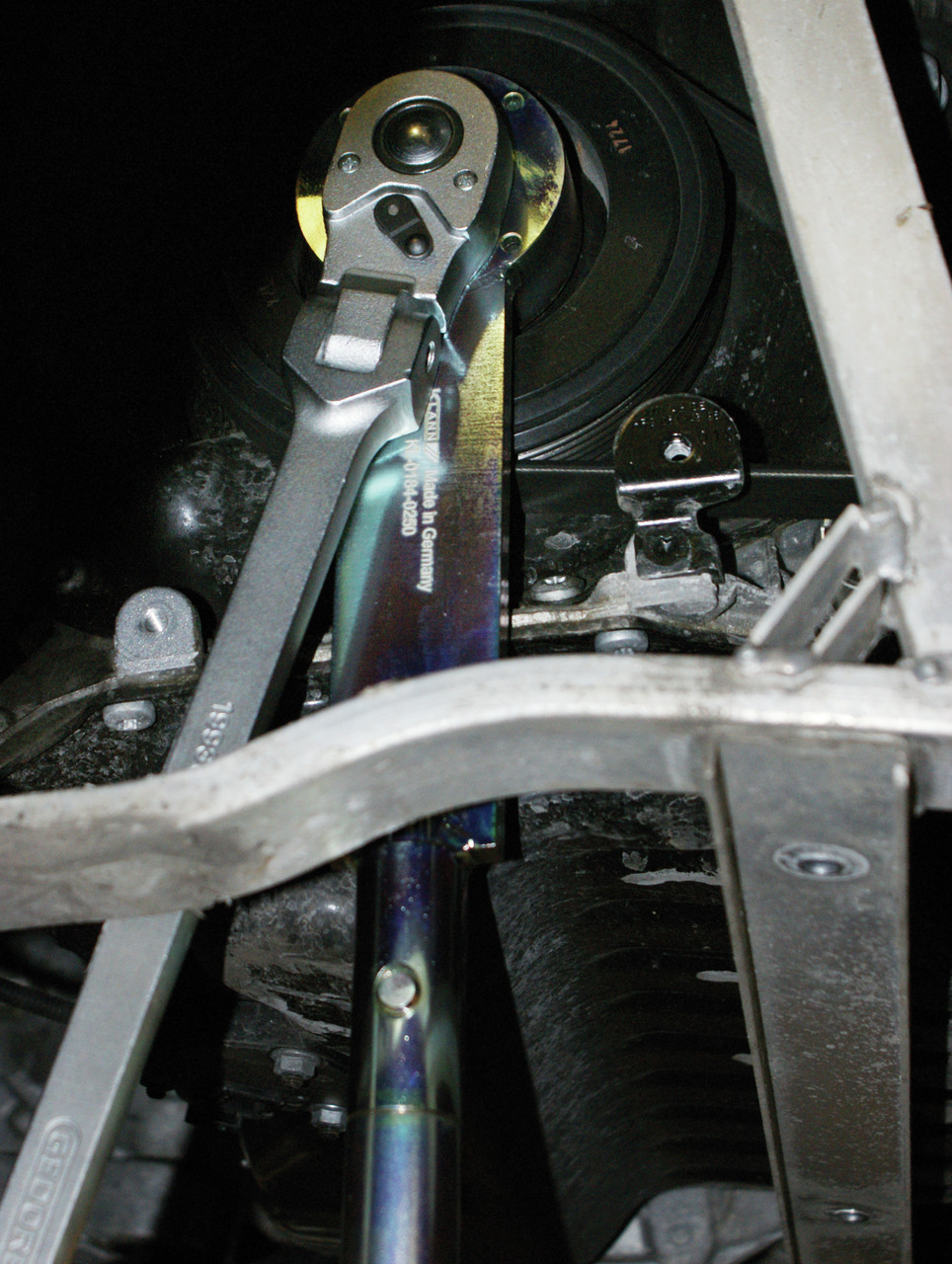

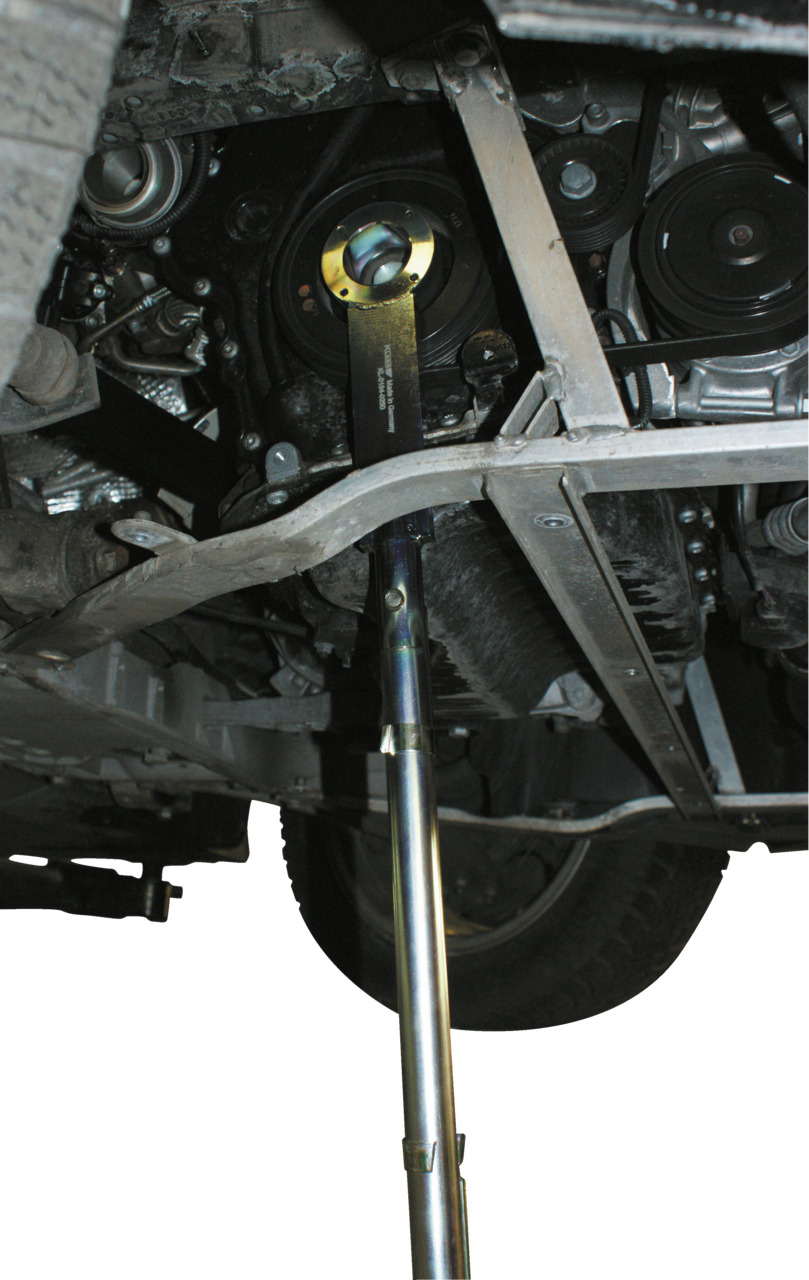

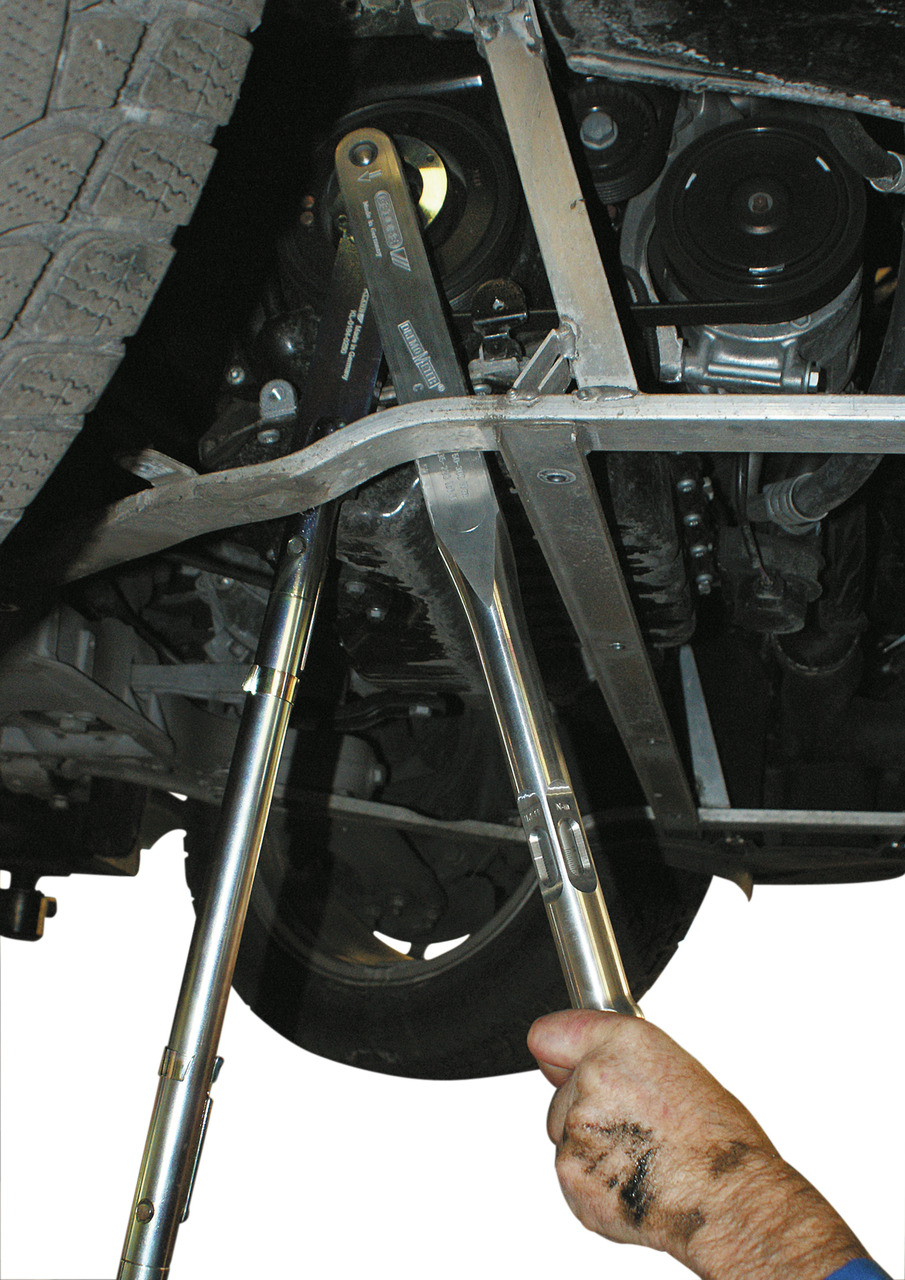

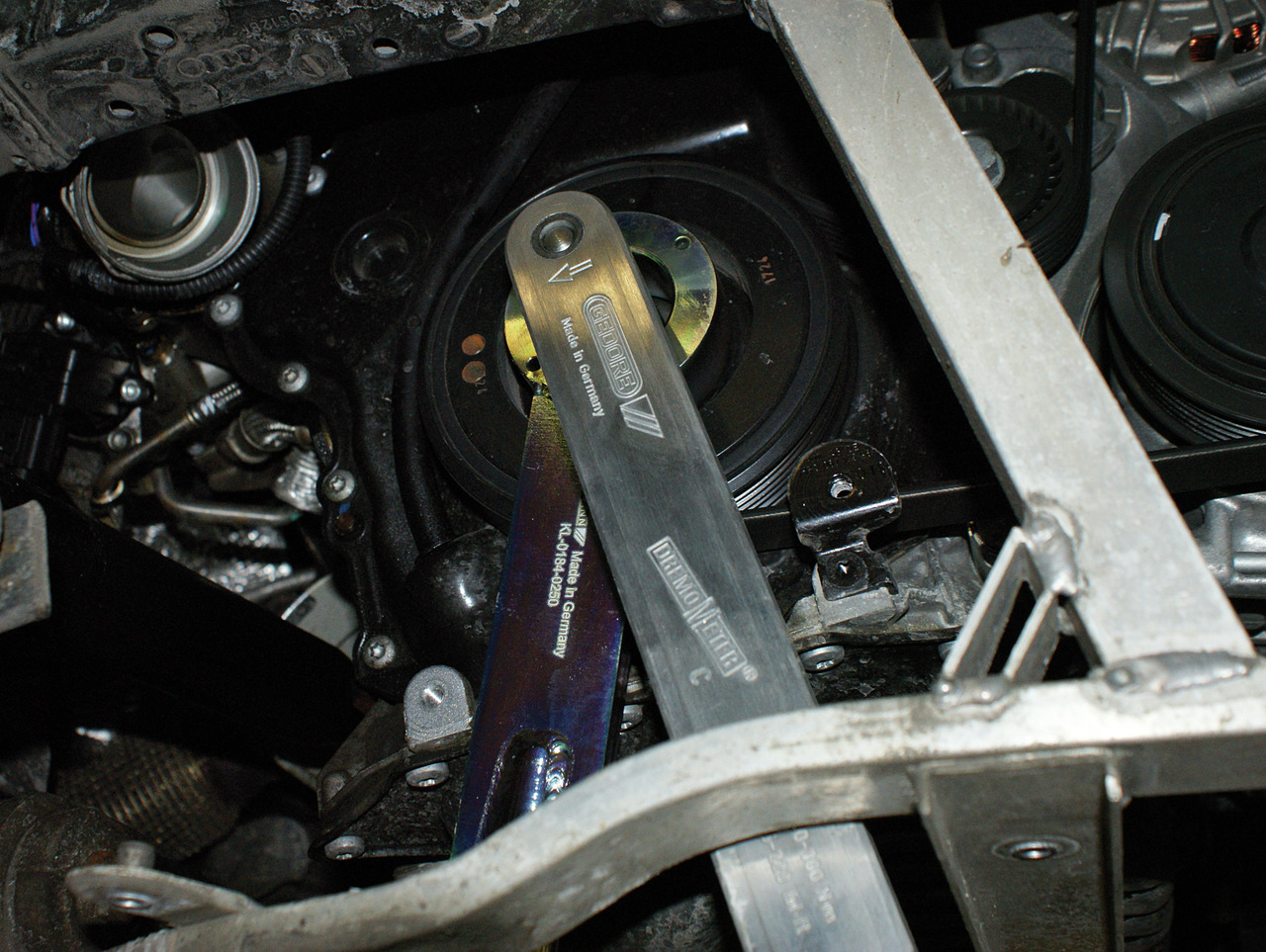

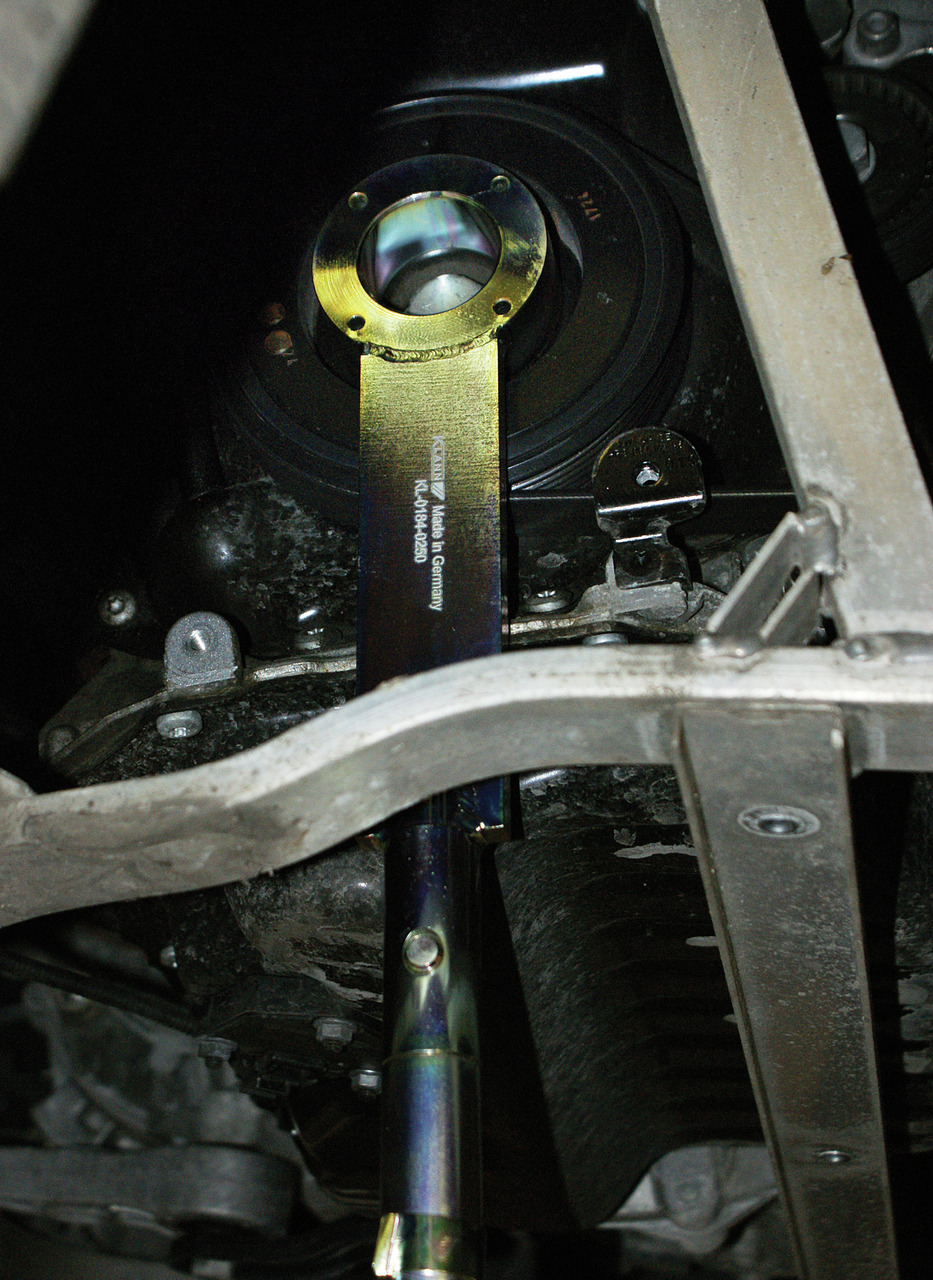

This tool is used to counter-hold the crankshaft pulley while loosening and tightening the crankshaft central screw.

We also recommend

KL-0184-0102
Extension tube

2814390

KL-0184-0103
Folding Spring Bolt

2814544

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

for motor type

Petrol

Customs tariff number

82055980

suitable for vehicle model

Audi A3

Audi A4

Audi A5 (F5)

Audi Q5 (8R)

Audi TT

Seat Altea / XL (5P)

Seat Exeo (3R)

Seat Leon II (1P)

Seat Leon III (5F)

Seat Toledo III (5P)

Skoda Octavia II (1Z)

Skoda Superb II (3T)

Skoda Yeti (5L)

VW Eos (1F)

VW Golf / Golf Plus V (1K / 5M / 52)

VW Golf IV (1E / 1J)

VW Golf VI (51 / 5K / AJ)

VW Jetta III (1K)

VW Jetta IV (16 / AV)

VW Passat / CC B6 (3C / 35)

VW Passat / CC B7 (35 / 36)

VW Scirocco III (13)

VW Sharan II (7N)

VW Tiguan I (5N)

suitable for motor

VW-Audi 2.0 TSI

VW-Audi 2.0 TFSI

VW-Audi 1.8 TSI

VW-Audi 1.8 TFSI

Length basic tool

276 mm

Length Extension

400 mm

Length of extension tube with protection handle

403 mm

Length assembled

980 mm

Parts list (Text)

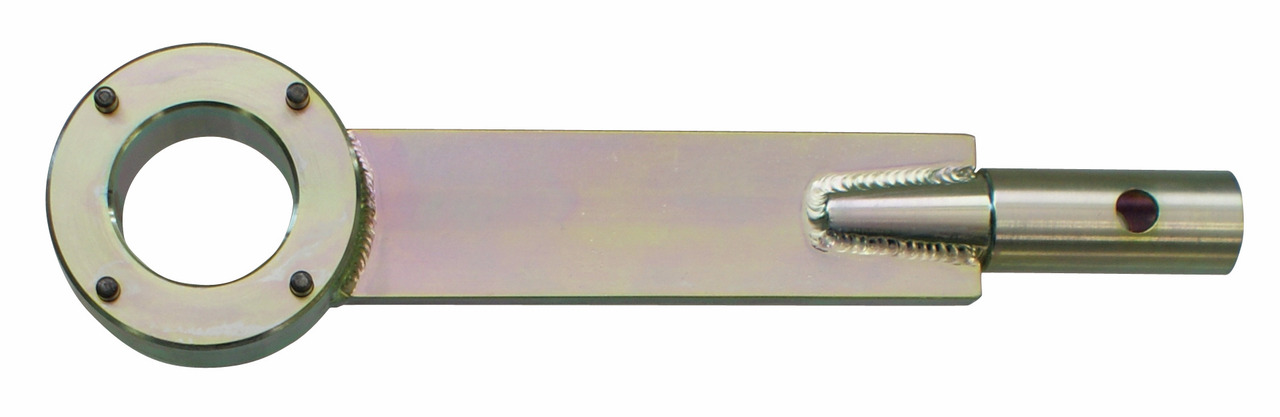

1x KL-0184-0250 - Counter holding spanner, base tool with pins

1x KL-0184-0101 - Extension tube with protective handle

1x KL-0184-0102 - Extension tube

2x KL-0184-0103 - Spring hinge pin

Weight

3,3 kg

Short text

Fits with VW-Audi, Seat, Škoda vehicles with 1.8 and 2.0 TSI/ TFSI engines.

• For counter holding the flywheel vibration damper

• For unscrewing and tightening the central crankshaft

Motorcodes

VW-Audi: BYT, BZB, CABA, CABB, CABD, CAWA, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CCZD, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA, CETA, CFKA, CGYA, CJSA, CJSB.

to be used as (OEM)

T10355

EAN

4046459136958

Manual - KL-0184-021_022_025_DE231105.pdf Manual - KL-0184-021_022_025_EN231105.pdf Manual - KL-0184-021_022_025_FR231105.pdf
