Suitable for VW, Seat, Škoda 1.0, 1.2 6V and 1.2 12V 3 cylinder petrol engines with single or double camshaft. Installed in VW Polo, Fox; Seat Arosa, Ibiza, Cordoba and Škoda Fabia, Roomster etc.

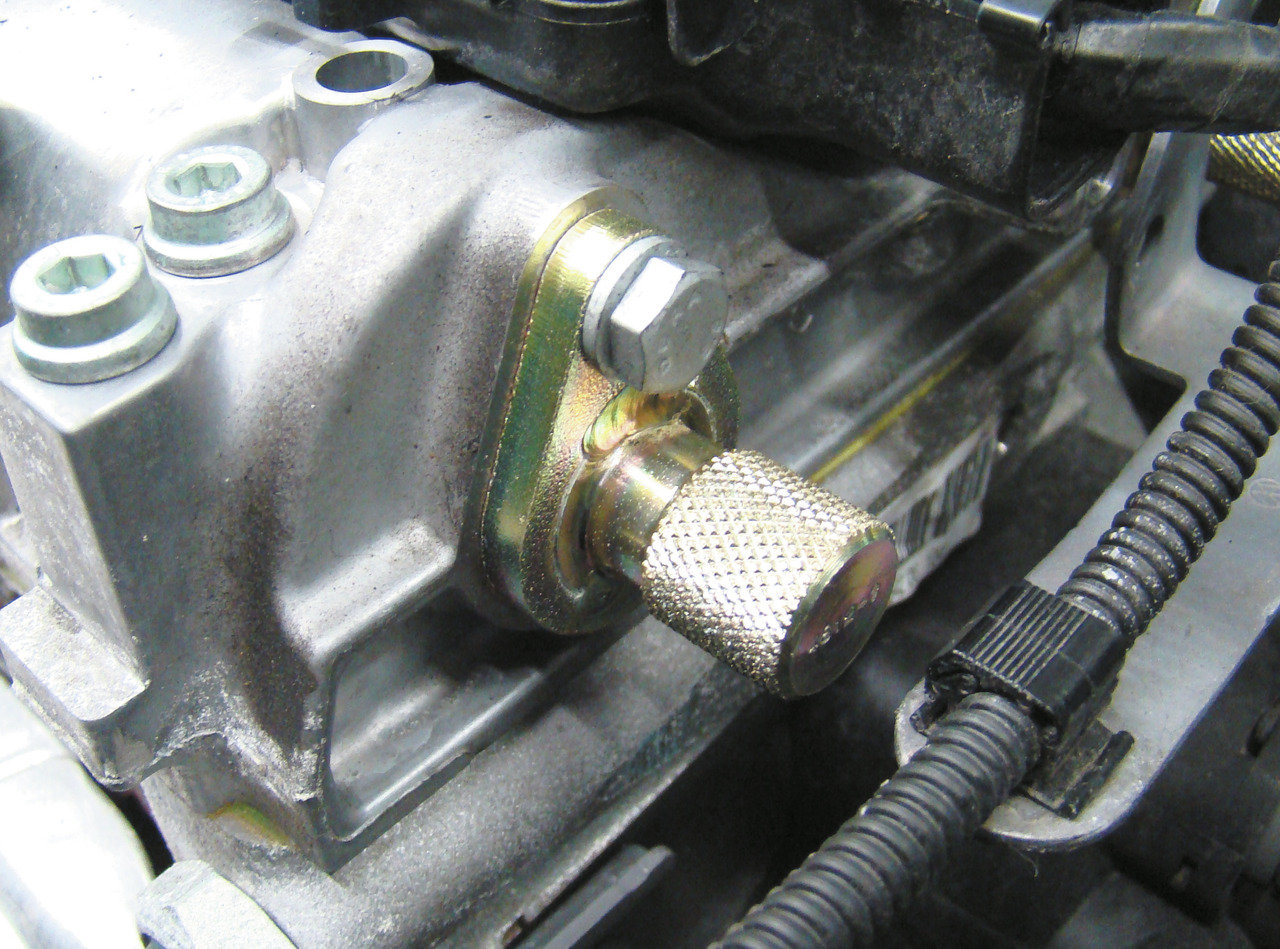

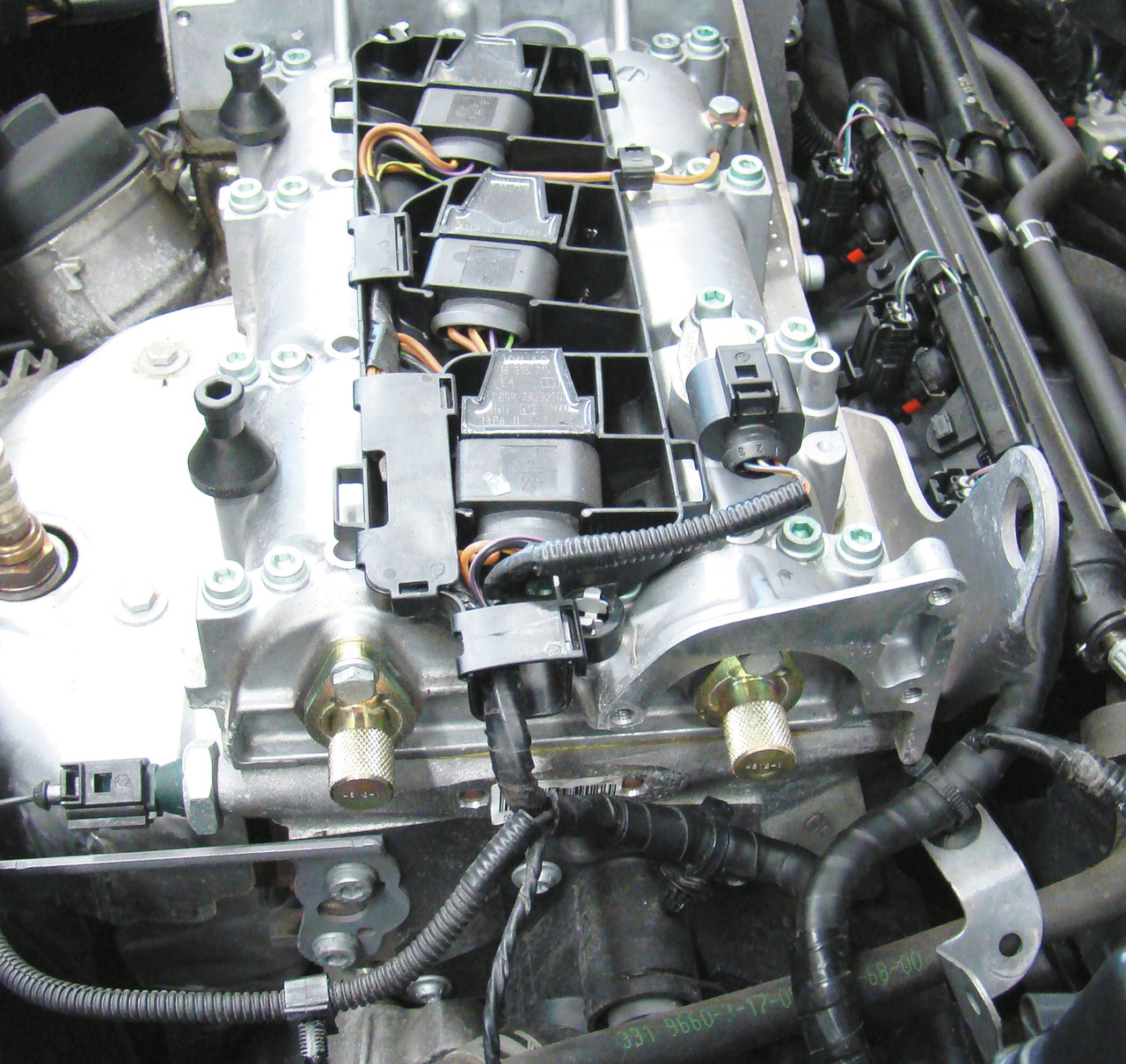

This tool set is designed for the locking of camshafts, crankshaft and timing chain tensioner. An indispensable tool set when replacing a timing chain or performing an engine repair.
Technical data
Contents (Qty of pieces)
6
VDE certified
No
1000 V insulated
No
Target groups
Automotive
for motor type
Petrol
Customs tariff number
82055980
suitable for vehicle model
Seat Arosa (6H)
Seat Cordoba II (6L)
Seat Ibiza III (6L)
Seat Ibiza IV (6J / 6P)
Skoda Fabia I (6Y)
Skoda Fabia II (54)
Skoda Roomster (5J)
VW Fox (5Z)
VW Polo IV (9N / 9A)
VW Polo V (60 / 61 / 6R / 6C)
suitable for motor
VW 1.0 6V
VW 1.2 12V
VW 1.2 6V
Total depth
197 mm
Total width
120 mm
Total height
45 mm
Storage
in a case

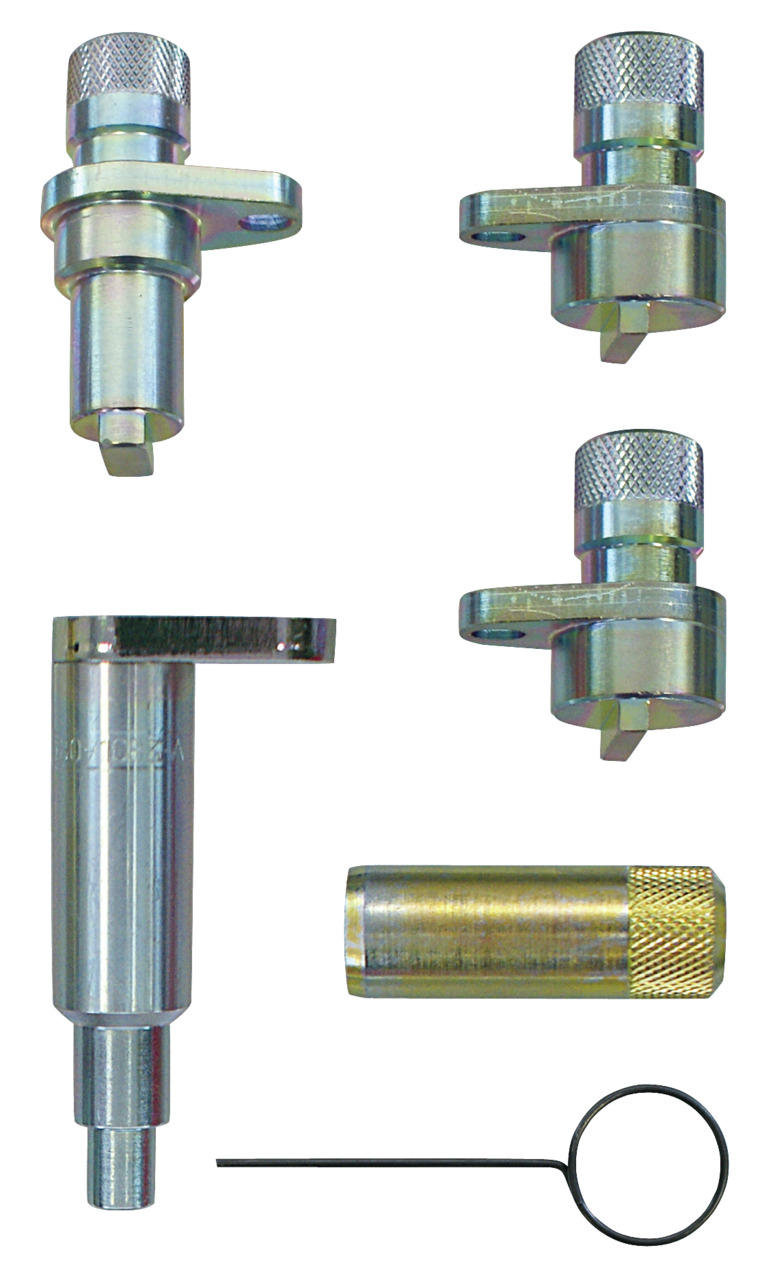

Parts list (Text)

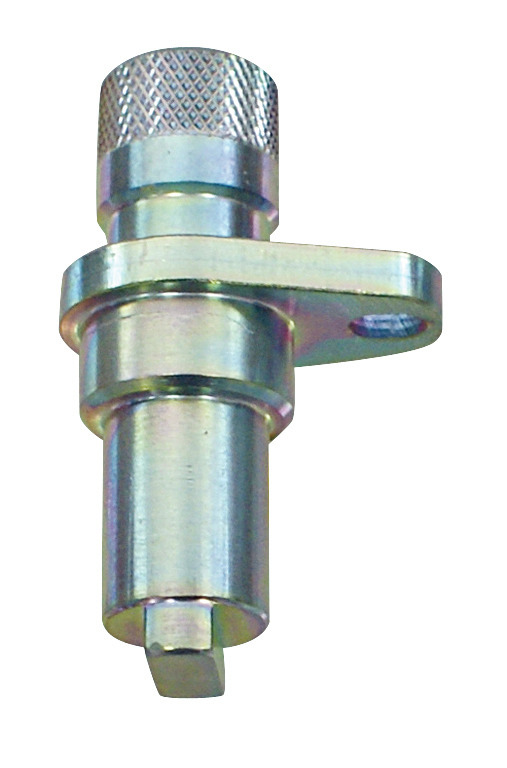

1x KL-0280-1081 B - Camshaft locking mandrel

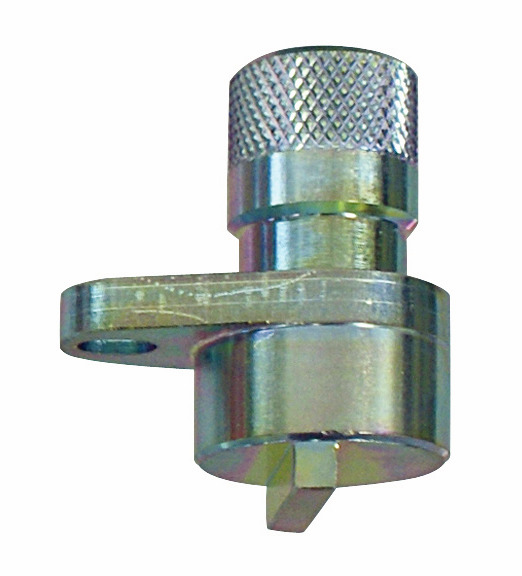

2x KL-0280-1082 B - Camshaft locking mandrel
1x KL-0280-1083 A - Crankshaft locking mandrel

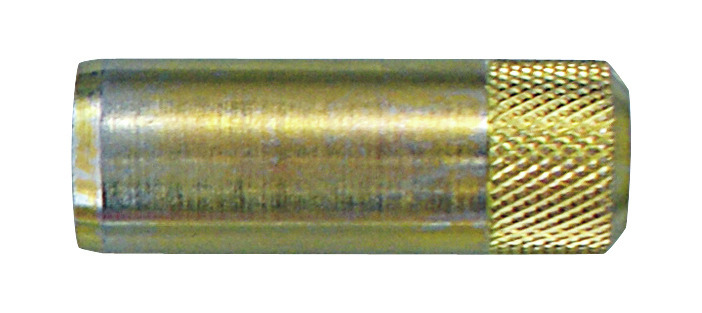

1x KL-0280-1084 B - Locking mandrel with a diameter of 18 mm
1x KL-0180-3026 - Locking pin with a diameter of 2.6 mm

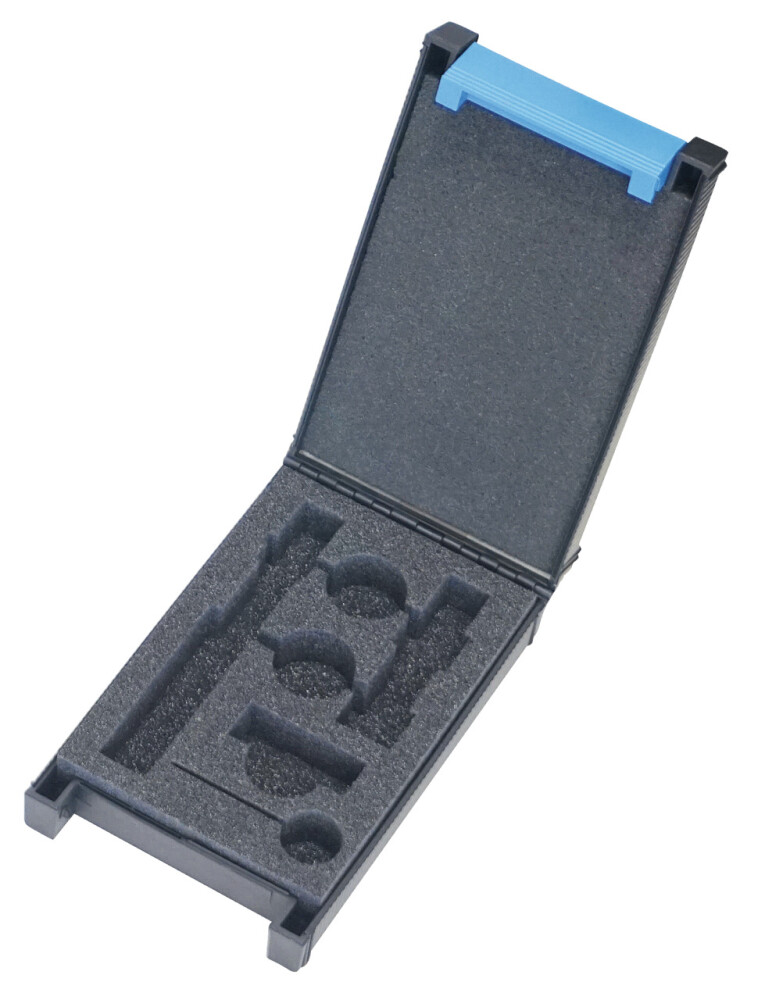

1x KL-0280-1089 - Plastic case
Short text
Suitable for VW, Seat, Škoda 1.0, 1.2 6V and 1.2 12V 3 cylinder petrol engines with single or double camshaft.
• For locking of the camshafts, crankshaft, and the timing belt tensioning unit
