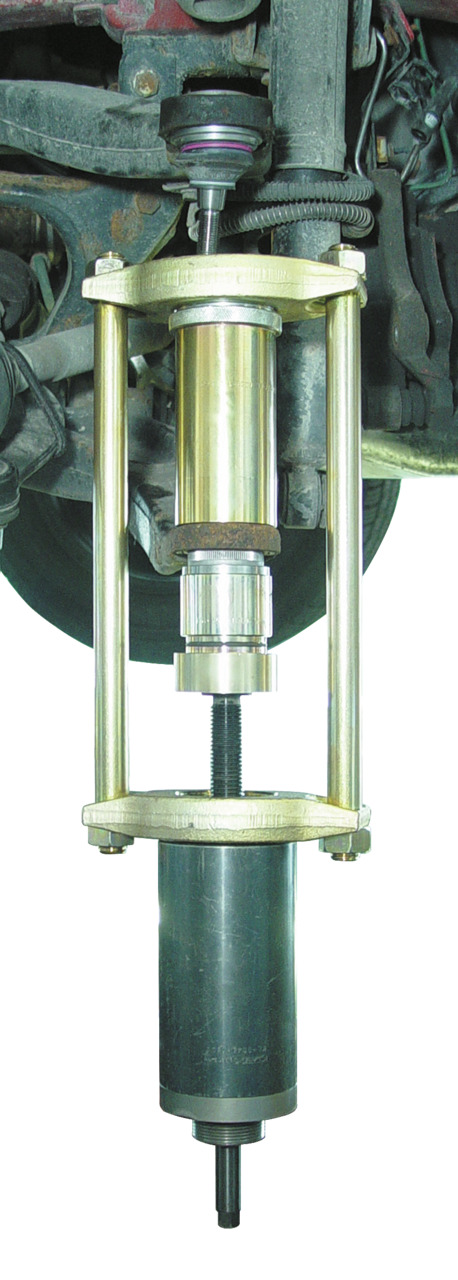

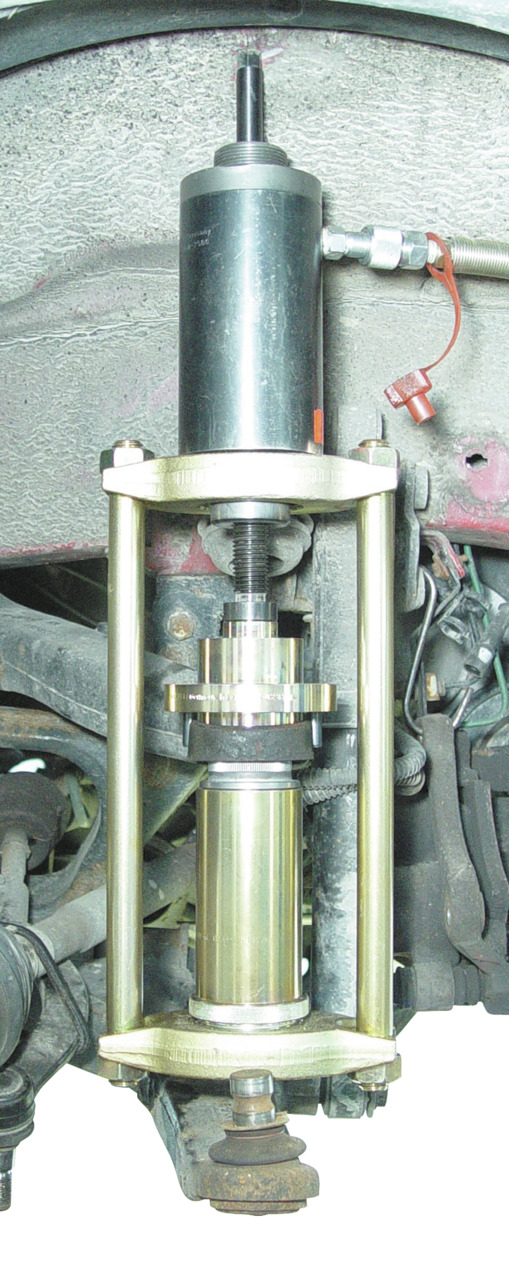

Enables an easy, quick and secure forcing out and forcing in of bushings, bearings, suspension joints, etc. Due to its use with the extensive pressure / support sleeve assortment of the KL-0039 series, the press frame is universally applicable. The press frame is suitable for a mechanical as well as for a hydraulic use.
Technical data
Contents (Qty of pieces)
11
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Agriculture
Drive type
hydraulic
mechanical
Customs tariff number
82055980
Load (max.)
12 t
Length, inside (press frame) 2
350
Width, inside (press frame)
115
Length, inside (press frame)
275
Cylinder mounting thread
2¼"-14 UNS
Total depth
305 mm
Total width
445 mm
Total height
115 mm
Parts list (Text)

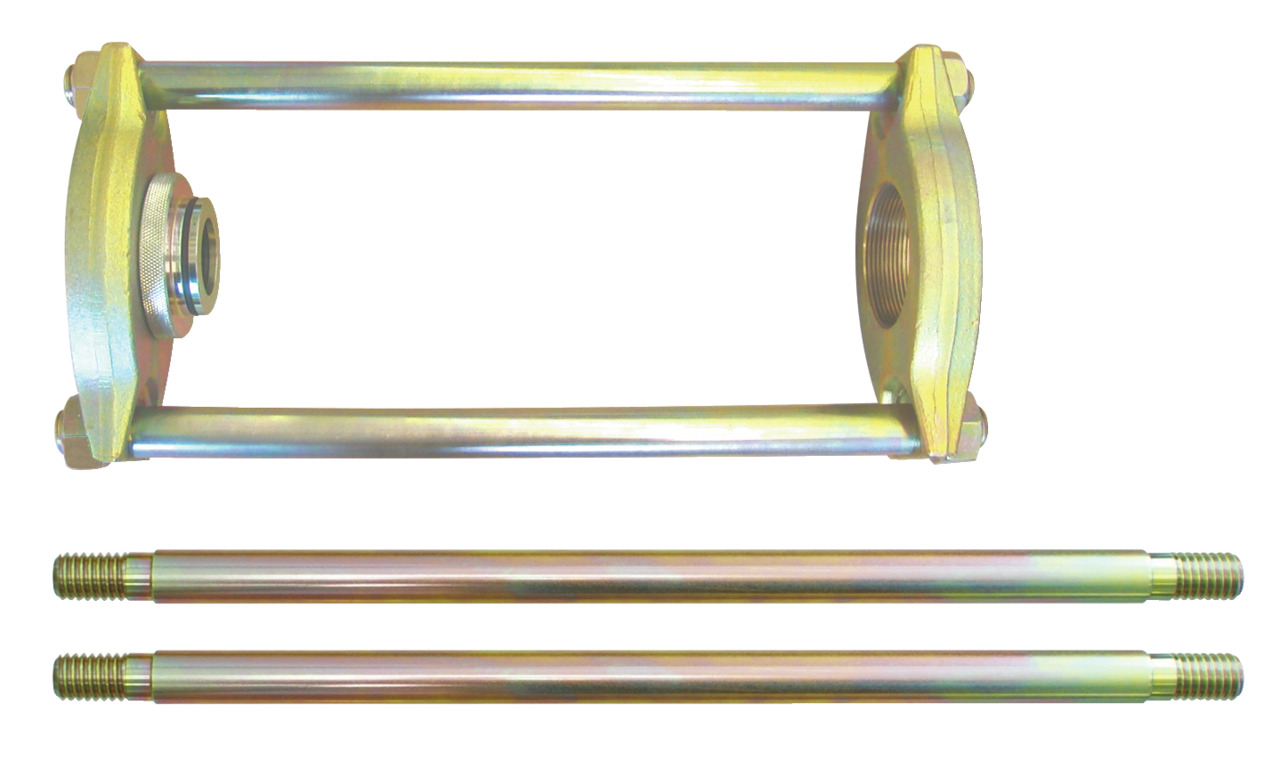

1x KL-0039-1140 - Press frame light short

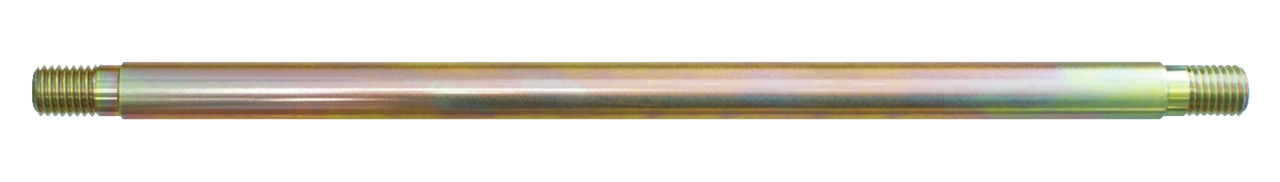

2x KL-0039-1153 - Tie rod M18, 375 mm long
1x KL-4999-1318 - Insert press frame set
Weight
8,1 kg
Short text
• Universally applicable with pressure / support sleeves of the KL-0039 series
• For forcing out and forcing in of bushings, bearings, suspension joints, etc.
