Locking Tool Set, PSA (1.4 - 2.2 HDI)
KL-1380-26 KC

2916371

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Suitable for PSA Citroën, Peugeot, Lancia, Ford, Volvo and Fiat 1.4, 1.6, 2.0 and 2.2 HDI diesel engines, e.g. Peugeot Boxer II, Expert I/II, Expert III, Partner/Partner Origin/Ranch I/II, RCZ, Boxer II, 206+, Bipper, Partner III, Expert III, Partner III, Partner/Partner Origin/Ranch I/II, 107, 206, 206 CC, 207, 207 CC, 307, 307 CC, 308, 308 CC, 406, 406 Coupe, 407, 508, 607, 807, 1007, 3008, 4007, 5008; Citroën Berlingo III, Berlingo/Berlingo First I/II, C1, C2, C3 I/II/First/Classic, C3 III, C3 Picasso, C3 Pluriel, C4, C4 II, C4 Picasso/Grand Picasso, C5, C5 II, C5 III, C6, C8, C-Crosser, Dispatch/Jumpy III, DS3, DS4, Nemo, Relay/Jumper II, Xsara II, Xsara Picasso; Fiat Ducato, Scudo, Ulysse; Lancia Phedra; Ford Scudo, C-MAX, Fiesta, Focus, Focus C-MAX, Fusion, Grand C-MAX, Mondeo; Mazda 2, 3, 5 and Volvo C30, S40, S60, S80, V50, V70.

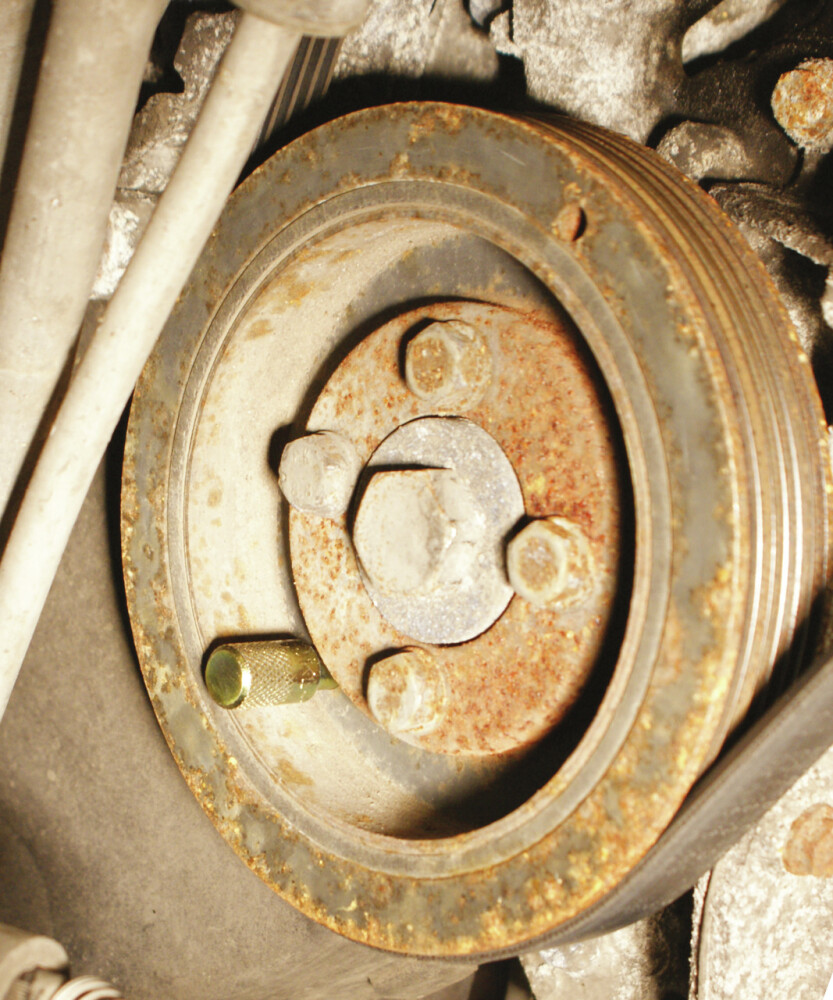

For locking/positioning the camshaft, crankshaft, injection pump shaft and flywheel. The kit also contains tools for adjusting the timing belt tensioner and for holding the belt in position.
Required when changing the timing belt or repairing the engine.

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

for motor type

Diesel

Customs tariff number

82055980

suitable for vehicle model

Citroen Berlingo / First I (MF / GJK / GFK)

Citroen Berlingo II (B9)

Citroen Berlingo III (ER / EC)

Citroen C1 I (PM / PN)

Citroen C2 (JM)

Citroen C3 I (FC / FN)

Citroen C3 Pluriel (HB)

Citroen C3 II (SC)

Citroen C3 Picasso (SH)

Citroen C3 III (SX)

Citroen C4 II (NC)

Citroen C4 Picasso I (UD)

Citroen C4 Grand Picasso I (UA)

Citroen C5 III (RD / RW)

Citroen C6 (TD)

Citroen C8 (EA / EB)

Citroen C-Crosser (VU / VV)

Citroen Jumpy / Dispatch III (V)

Citroen DS3 (SA / SB)

Citroen DS4 / DS4 Crossback (NX)

Citroen Nemo

Citroen Relay / Jumper II

Citroen Xsara (N0 / N1 / N2)

Citroen Xsara Picasso (N68)

Ford Grand C-Max / C-Max II (CB7 / CEU / DXA)

Ford Fiesta

Ford Focus

Ford C-Max / Focus C-Max I (DM2)

Ford Fusion (JU)

Ford Mondeo

Lancia Phedra (179)

Mazda 2

Mazda 3

Mazda 5

Peugeot 1007 (KM)

Peugeot 107 (PM / PN)

Peugeot 206 (2A / 2C / 2D / 2E / 2K / 2L / 2M)

Peugeot 207 (WA / WC / WD / WK)

Peugeot 3008 I (0U)

Peugeot 307 (3A / 3B / 3C / 3E / 3H)

Peugeot 308 I (4A / 4B / 4C / 4E / 4H)

Peugeot 4007 (VU / VV)

Peugeot 406 (8B / 8C / 8E / 8F)

Peugeot 407 (6C / 6D / 6E)

Peugeot 807 (EB)

Peugeot Bipper (AA)

Peugeot Boxer II (250)

Peugeot Expert I (222 / 223 / 224)

Peugeot Expert II (VF3A / VF3U / VF3X)

Peugeot Expert III (V)

Peugeot Partner III (K9)

Peugeot RCZ

Volvo C30 (533)

Volvo S40 II (544)

Volvo S60 II (134)

Volvo S80 II (124)

Volvo V50 (545)

Volvo V70 III (135)

suitable for motor

PSA 1.4 HDi

PSA 1.6 HDi

PSA 2.0 HDI

PSA 2.2 HDI

Total depth

295 mm

Total width

395 mm

Total height

106 mm

Storage

in a case

Parts list (Text)

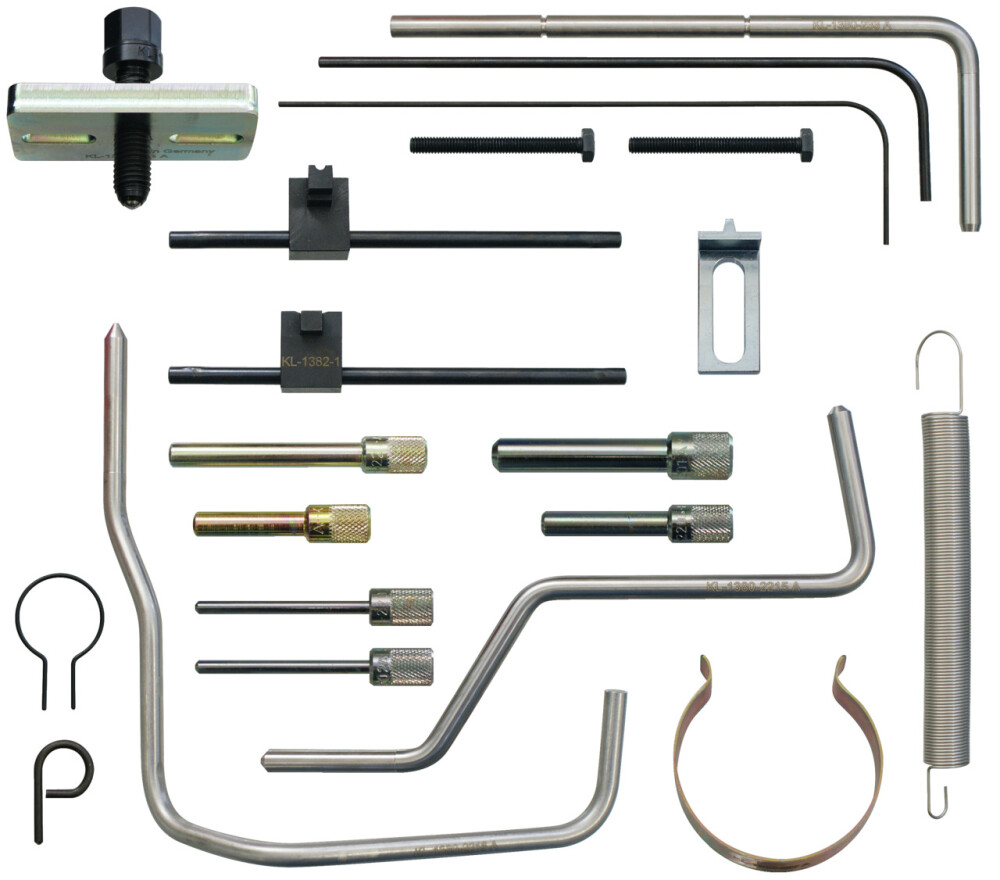

1x KL-1380-2215 A - Locking mandrel angled

1x KL-1380-2216 A - Locking mandrel angled

1x KL-1380-2219 A - Locking mandrel with a diameter of 7.9 mm

1x KL-1380-2220 A - Locking mandrel with a diameter of 7.9 mm

1x KL-1380-2228 A - Locking pin tensioning pulley

1x KL-1380-231 A - Blocking tool flywheel

1x KL-1380-233 A - Locking mandrel with a diameter of 7.7 mm, angled

1x KL-1380-234 A - Puller for crankshaft

1x KL-1380-237 A - Toothed belt holding clamp

1x KL-1380-2601 A - Locking tool crankshaft

1x KL-1380-2602 A - Locking tool crankshaft with a diameter of 2 mm

1x KL-1380-2603 - Locking mandrel with a diameter of 4 mm, angled

1x KL-1382-1 - Toothed belt wrench

1x KL-1382-2 - Toothed belt socket spanner

1x KL-0680-2201 A - Locking mandrel with a diameter of 11 mm

2x KL-0680-2202 A - Locking mandrel with a diameter of 4.5 mm

1x KL-0680-2203 B - Locking mandrel with a diameter of 8 mm

1x KL-1380-2690 A - Plastic case

Weight

2,2 kg

Short text

Suitable for Citroën, Peugeot, Lancia, Ford, Volvo, Fiat 1.4, 1.6, 2.0 and 2.2 HDI diesel engines.

• For locking the camshaft, crankshaft, injection pump shaft and the flywheel

• For adjusting the toothed belt tensioning unit

• For holding the toothed belt

Motorcodes

Citroën/Fiat/Peugeot/PSA: 4HK, 4HL, 4HN, 4HP, 4HR, 4HS, 4HT, 4HW, 4HX, 4HY, 4HZ, 8HP, 8HR, 8HS, 8HT, 8HV, 8HW, 8HX, 8HZ, 9HF, 9HH, 9HJ, 9HL, 9HM, 9HN, 9HP, 9HR, 9HS, 9HT, 9HU, 9HV, 9HW, 9HX, 9HY, 9HZ, AHY, AHZ, DV4C, DV4TD, DV4TED, DV4TED4, DV6ATED4, DV6AUTED4, DV6BTED4, DV6BUTED4, DV6C, DV6D, DV6DTED, DV6DU, DV6ETED, DV6TED4, DV6TED4B, DV6TED4BU, DV6UC, DV6UTED4, DW10ATED, DW10ATED/L3, DW10ATED4, DW10ATED4/L4, DW10ATED4/L44H, DW10BTED, DW10BTED/L3, DW10BTED4, DW10C, DW10CTED4, DW10CTED4, DW10JATED4, DW10UTD, DW10UTED4, DW12ATED, DW12ATED4/L4, DW12BTED4, DW12CTED4, DW12MTED4, DW12TED4, DW12TED4/L4, DW12UTED, H02, RHC, RHD, RHE, RHE, RHF, RHG, RHH, RHJ, RHK, RHL, RHM, RHR, RHS, RHT, RHV, RHW, RHX, RHY, RHY, RHZ.

Volvo: D4162T, D4162T DRIVe, D4164T, D4164T DRIVe.

Ford/Mazda: F6JA, F6JB, F6JC, F6JD, G8DA, G8DB, G8DD, GPDA, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MZ-CD 1.6 Y6, T1BA, T1BB, T1BC, TZJA, Y6.

Predecessor article

KL-1380-26 KB

2899132

to be used as (OEM)

0188-D

0188-F

0188-M

0188-X

0188-Y

0288-D

LDV104

1.870.827.000

0153N

1.860.863.000

5711-TA

7014-TN

7017-TR

7104-TJ

9044-T

9766.98

9767.34

18G 1632

2.000.023.200

0132-AJ1

0134-AF

0153-AL

0178-A

EAN

4046459141990

Manual - 1380-26KCd140704.pdf Manual - 1380-26KCe140704.pdf Manual - 1380-26KCf140704.pdf

Locking Tool Set, PSA (1.4 - 2.2 HDI)KL-1380-26 KC

2916371

Description

Technical data

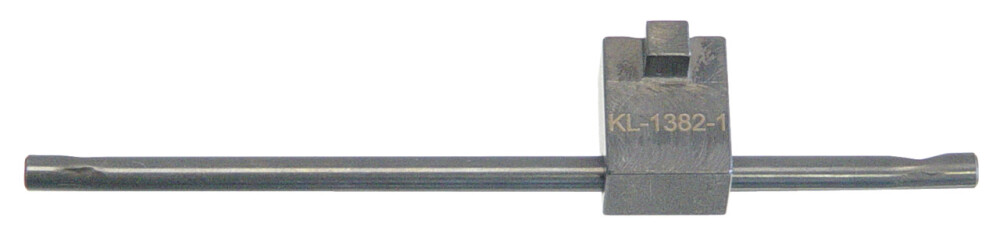

KL-1382-1 Timing Belt Tensioner Wrench, Peugeot

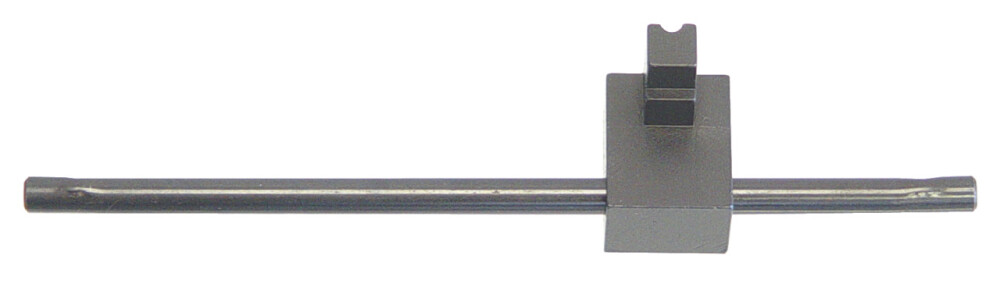

KL-1382-2 Timing Belt Tensioner Wrench, Peugeot

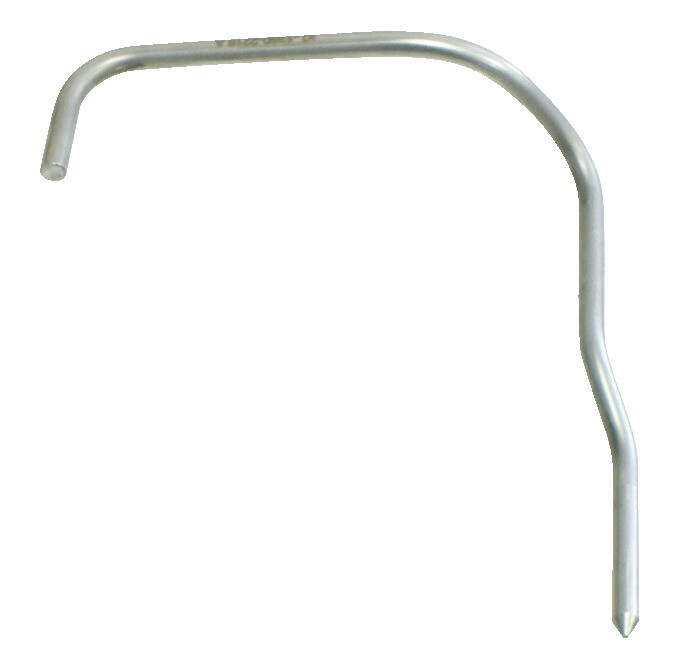

KL-1380-2216 A Locking Pin, Flywheel, angled, Ø 7,9mm

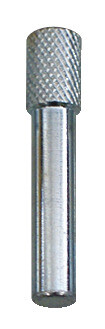

KL-1380-2219 A Locking Pin, Camshaft, Ø 7.9mm, PSA

KL-1380-2228 A Retaining Pin, Tension Pulley, Ø 3mm, PSA

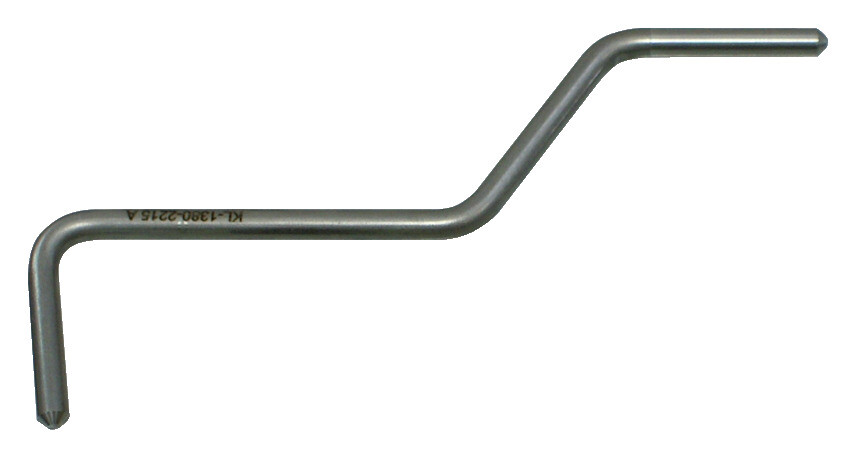

KL-1380-2215 A Locking Pin, Flywheel, angled, Ø 7.9mm, PSA

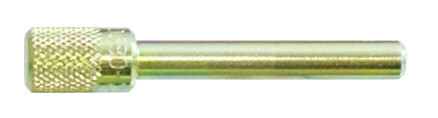

KL-1380-2220 A Locking Pin, Camshaft, Ø 7.9mm, PSA

KL-1380-231 A Locking Tool, Flywheel

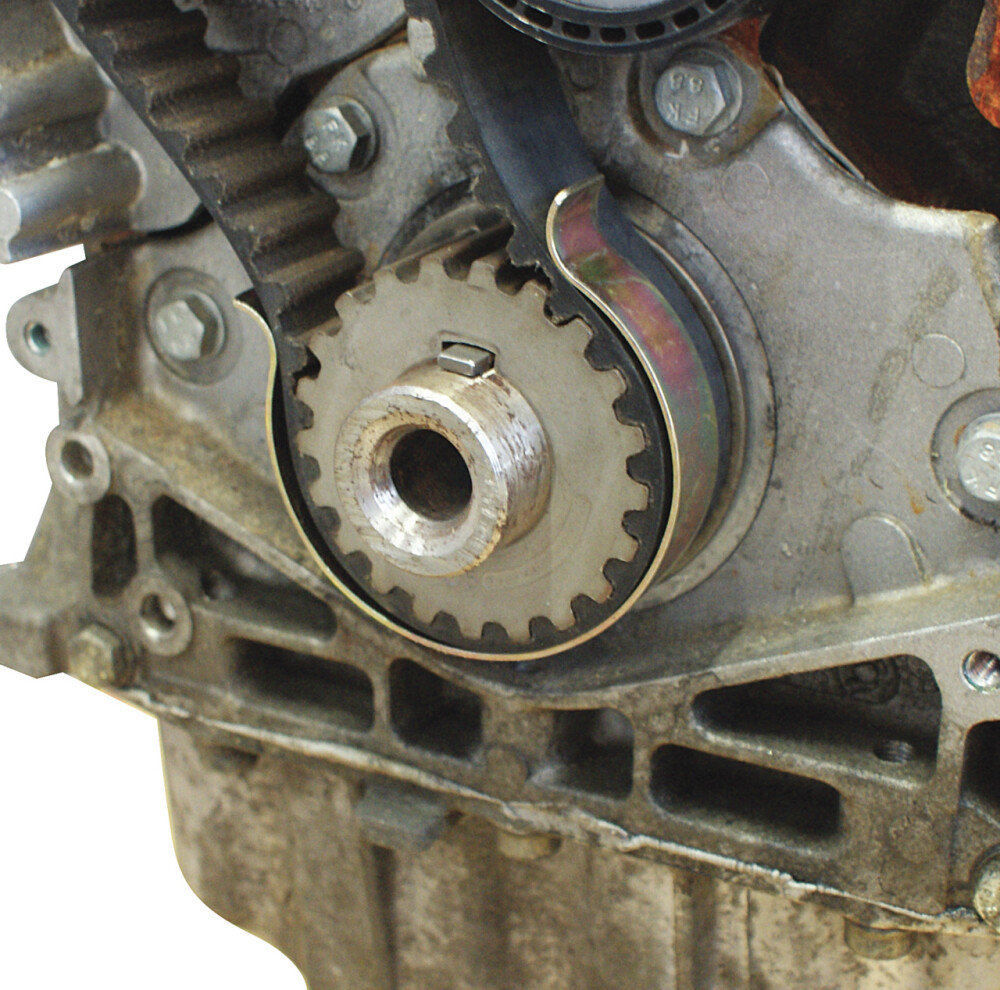

KL-1380-237 A Retaining Clip, Timing Belt, PSA

KL-0680-2201 A Locking Pin, Flywheel, Ø 11mm

KL-0680-2202 A Locking Pin, Crankshaft, Ø 4,5mm

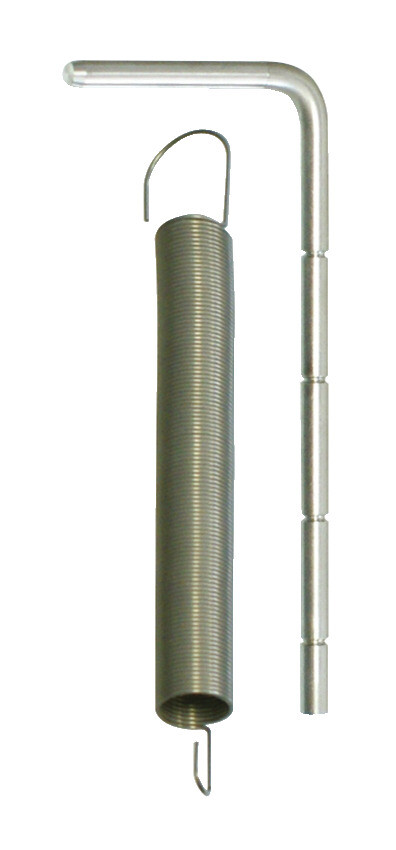

KL-1380-233 A Locking Pin, Crankshaft, Ø 7.7mm, PSA

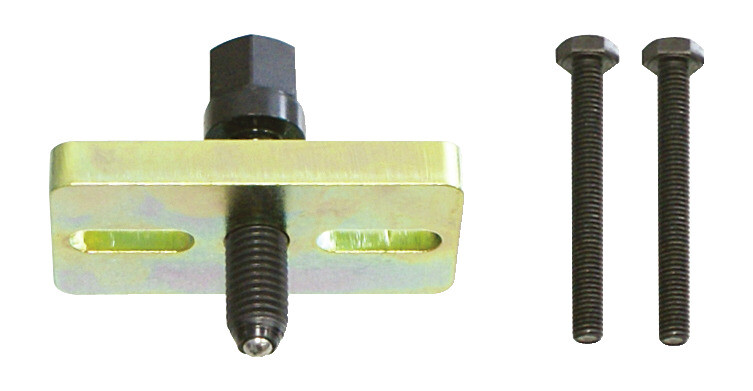

KL-1380-234 A Puller, Crankshaft Pulley, PSA

KL-1380-2601 A Locking Tool, Crankshaft, PSA

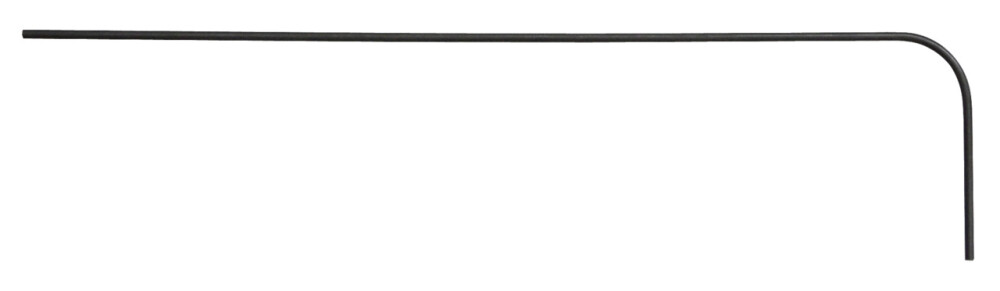

KL-1380-2602 A Locking Pin, Crankshaft, PSA

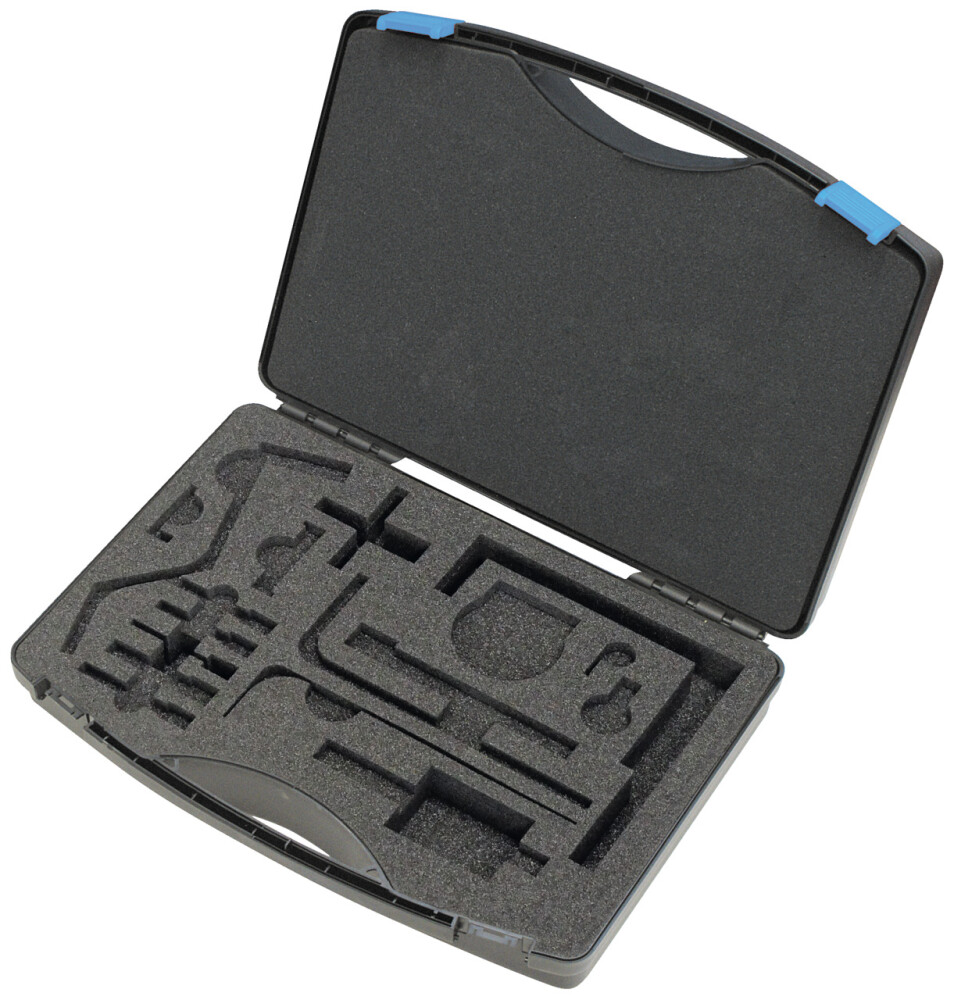

KL-1380-2690 A Plastic Storage Case with Foam Insert (empty)

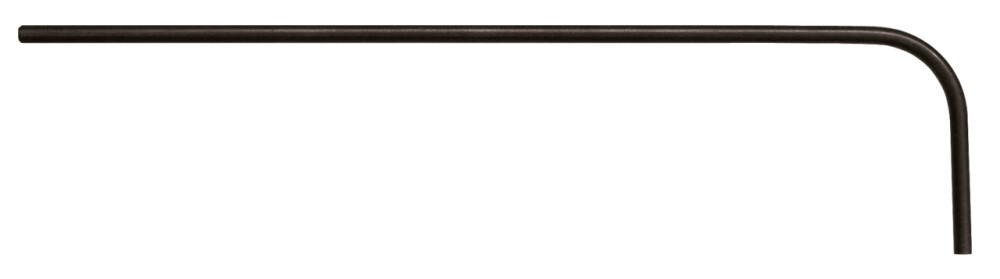

KL-1380-2603 Locking Pin, Tension Pulley, angled, Ø 4mm, PSA
