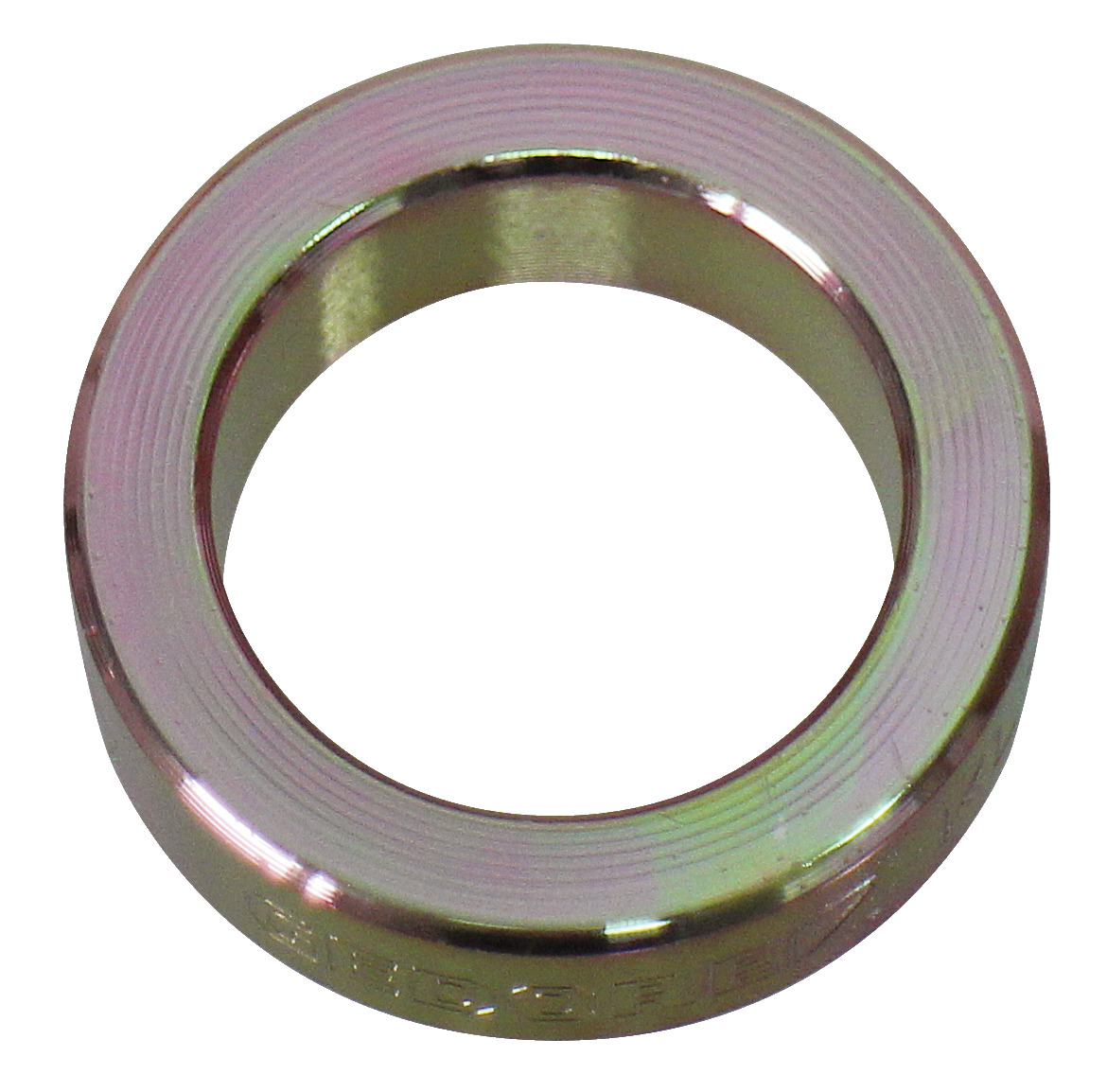

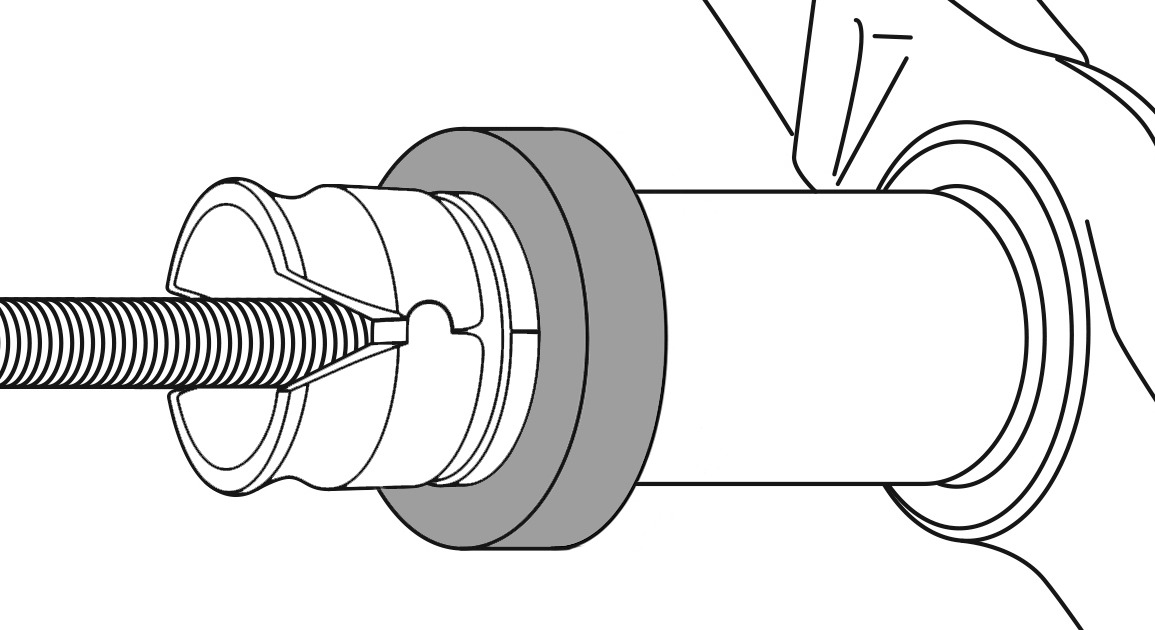

The retaining ring is required when a quick-clamping nut with M16 or M20 mounting thread shall be used without mounting adapter KL-0039-1011 or a suitable sleeve of the KL-0039 series. It prevents the quick-clamping nut from opening involuntarily.
Technical data
Diameter milled slot of piston rod
30 mm
Contents (Qty of pieces)
1
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Agriculture
Drive type
hydraulic
mechanical
Customs tariff number
82055980
Total length
10 mm
Outer diameter
40 mm
Short text
Suitable for quick-clamping M16 or M20.
• For securing the quick-clamping nut against opening involuntarily
• Required if the quick-clamping nut is not secured by means of a suitable adapter or sleeve
