Pair of Pressure Plates size 0A
KL-0033-16
3279642
Universally suitable.
Especially suitable for Mercedes-Benz E-Class (W211, W212), C-Class (W204), GLA (X156), GLK (X204); Ford Focus II (MK2); BMW 1 Series (E81); VW Passat (B8/3G).
• Enables the quick and safe removal and installation of suspension springs
• Only in combination with KL-0033-10
BMW: 33 53 6 767 342; 33 53 6 767 344; 33 53 6 767 343; 33 53 6 767 345; 33 53 6 767 347; 33 53 6 767 346; 33 53 6 767 348; 33 53 6 767 349; 33 53 6 768 250; 33 53 6 768 251; 33 53 6 768 252; 33 53 6 768 253; 33 53 6 772 442; 33 53 6 773 596; 33 53 6 773 597; 33 53 6 773 598; 33 53 6 773 599; 33 53 6 776 932; 33 53 6 764 391; 33 53 6 764 392; 33 53 6 764 393; 33 53 6 772 439; 33 53 6 772 440; 33 53 6 767 336; 33 53 6 767 337; 33 53 6 767 338; 33 53 6 767 339; 33 53 6 767 340
Ford: 1423077; 6M5Y-5560-BAA; 1318104; 1335393; 4M51-5560-AEB; 4M51-5560-AFB; 1335392; 1318103; 1445948; 1431811; 1406518; 4M51 5B669 BEE; 1381919
Mercedes: A 211 324 05 04; A 211 324 07 04; A 211 324 06 04; A 211 324 02 04; A 211 324 08 04; A 212 324 01 04; A 212 324 04 04; A 204 324 05 04; A 204 324 03 04; A 204 324 04 04; A 204 324 06 04; A 204 324 07 04
VW: 3Q0 511 115 AH; 3Q0 511 115 AJ; 3Q0 511 115 AK; 3Q0 511 115 M
BMW 1er (E81 / E82 / E87 / E88)
BMW 3er (E90 / E91 / E92 / E93)
Ford Focus II (DA / DB / DH / DP / DS)
Mercedes C-Klasse III (C/S/W204)
Mercedes CLK II (A/C209)
Mercedes CLS I (C219)
Mercedes E-Klasse III (S/W211)
Mercedes E-Klasse IV (A/C207 / S/W212)
Mercedes GLA I (X156)
Mercedes GLK (X204)
VW Passat B8 (3G / CB)

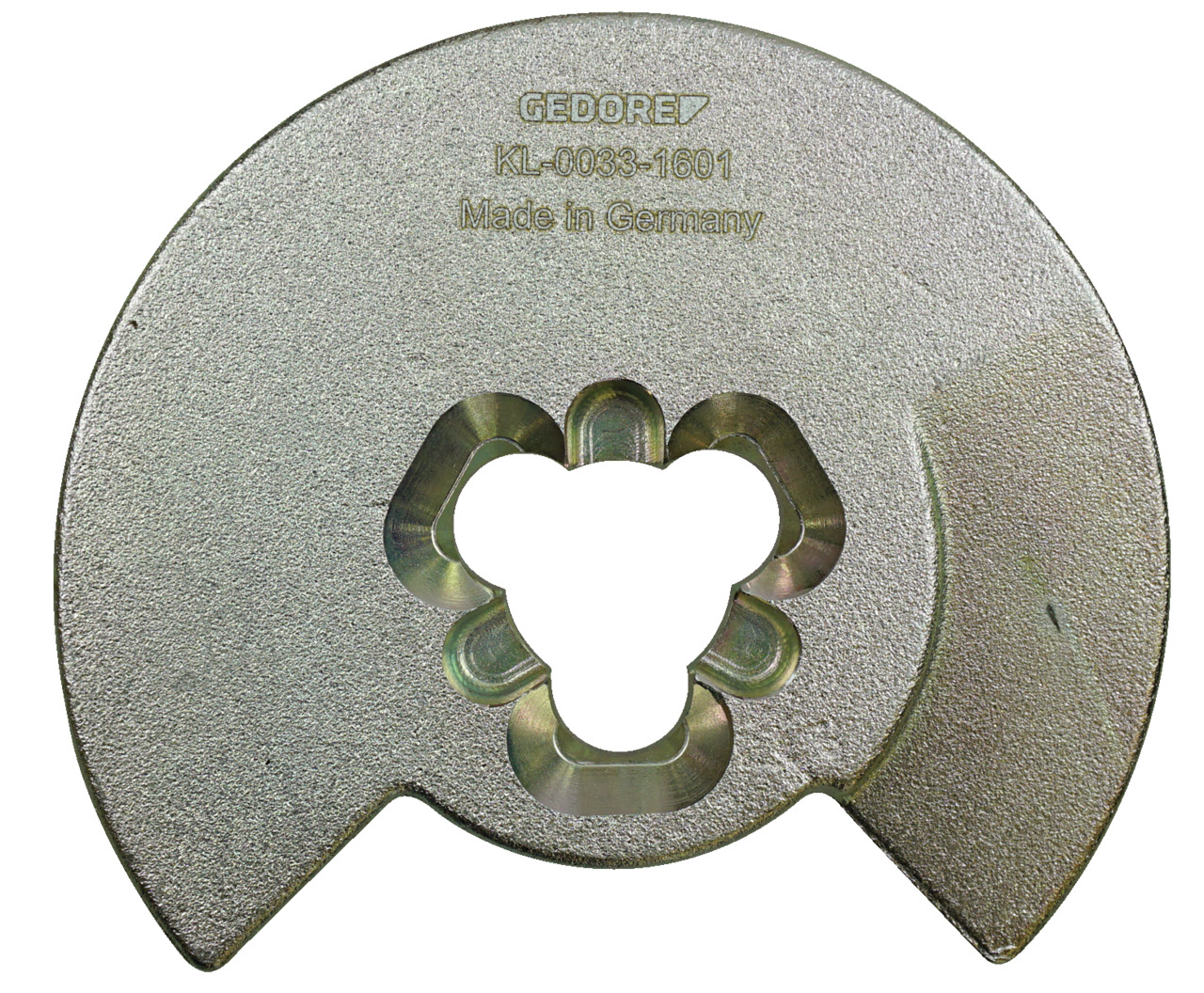

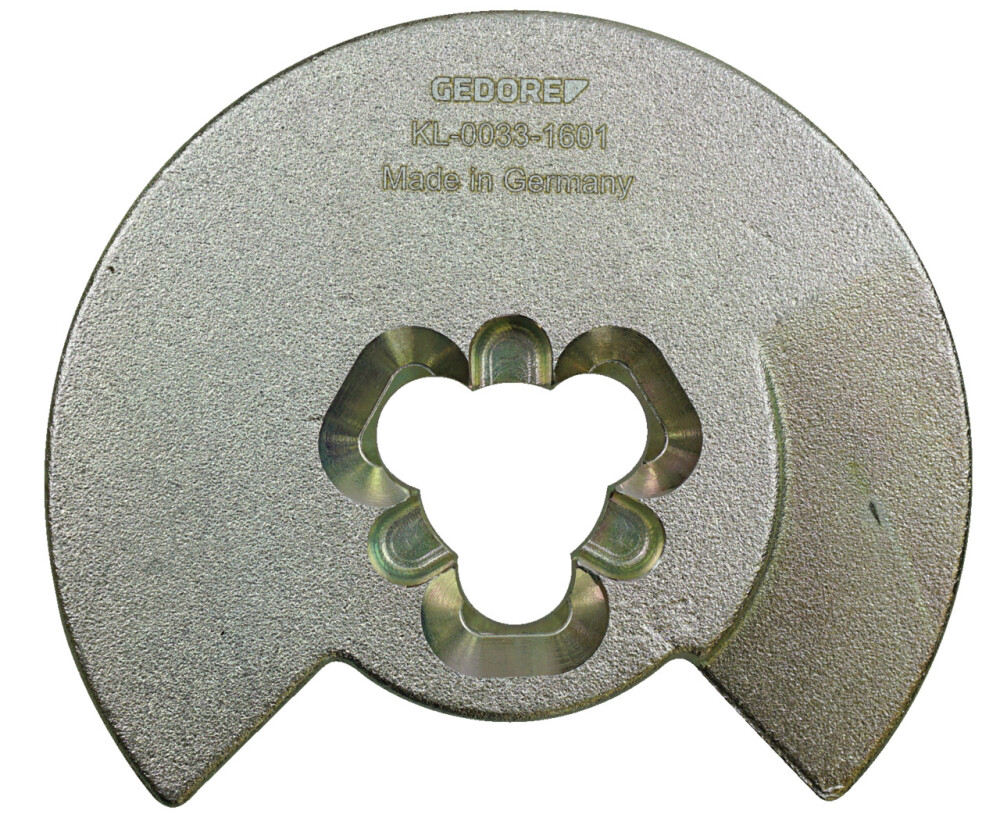

1x KL-0033-1601 - Pressure plate size 0A with lock

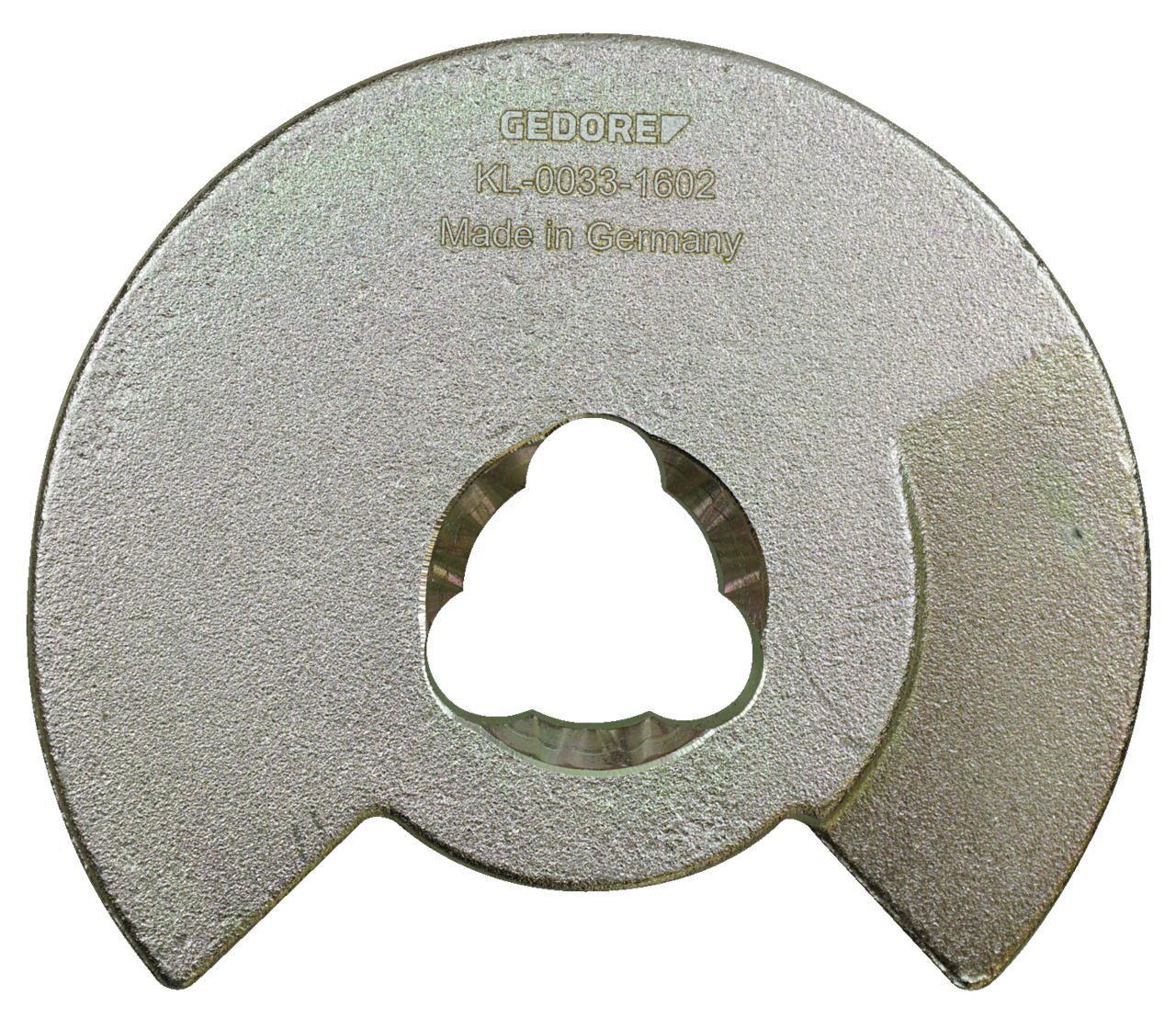

1x KL-0033-1602 - Pressure plate size 0A with corrugated profile
- Description
- Technical data
- Manual
- Spare parts
- Cross selling
Description
Universal fit.
Fits particularly Mercedes-Benz E Class (W211, W212), C Class (W204 rear axle), GLA (X156), GLK (X204); Ford Focus II (MK2); BMW 1 Series (E81); VW Passat (B8/3G).

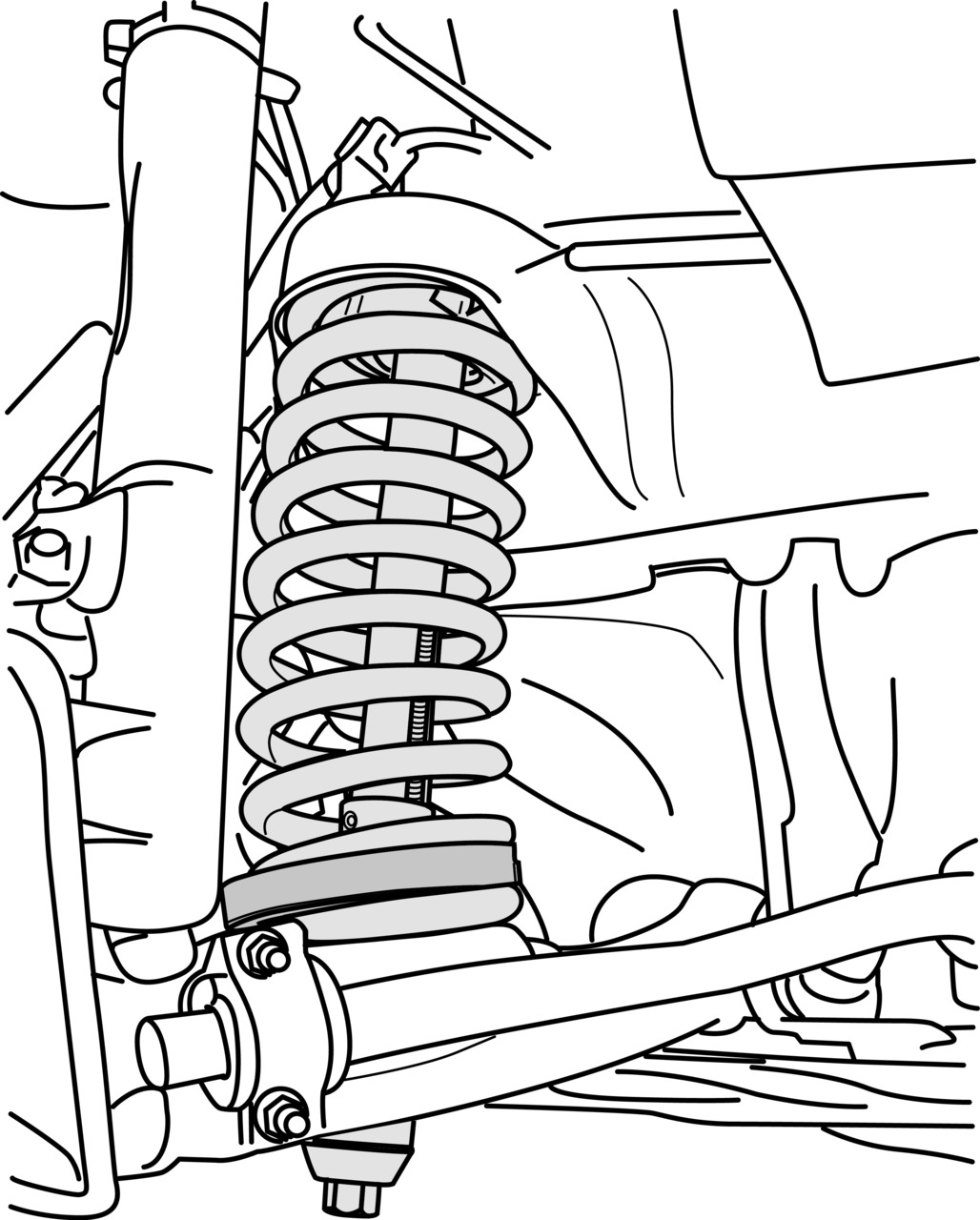

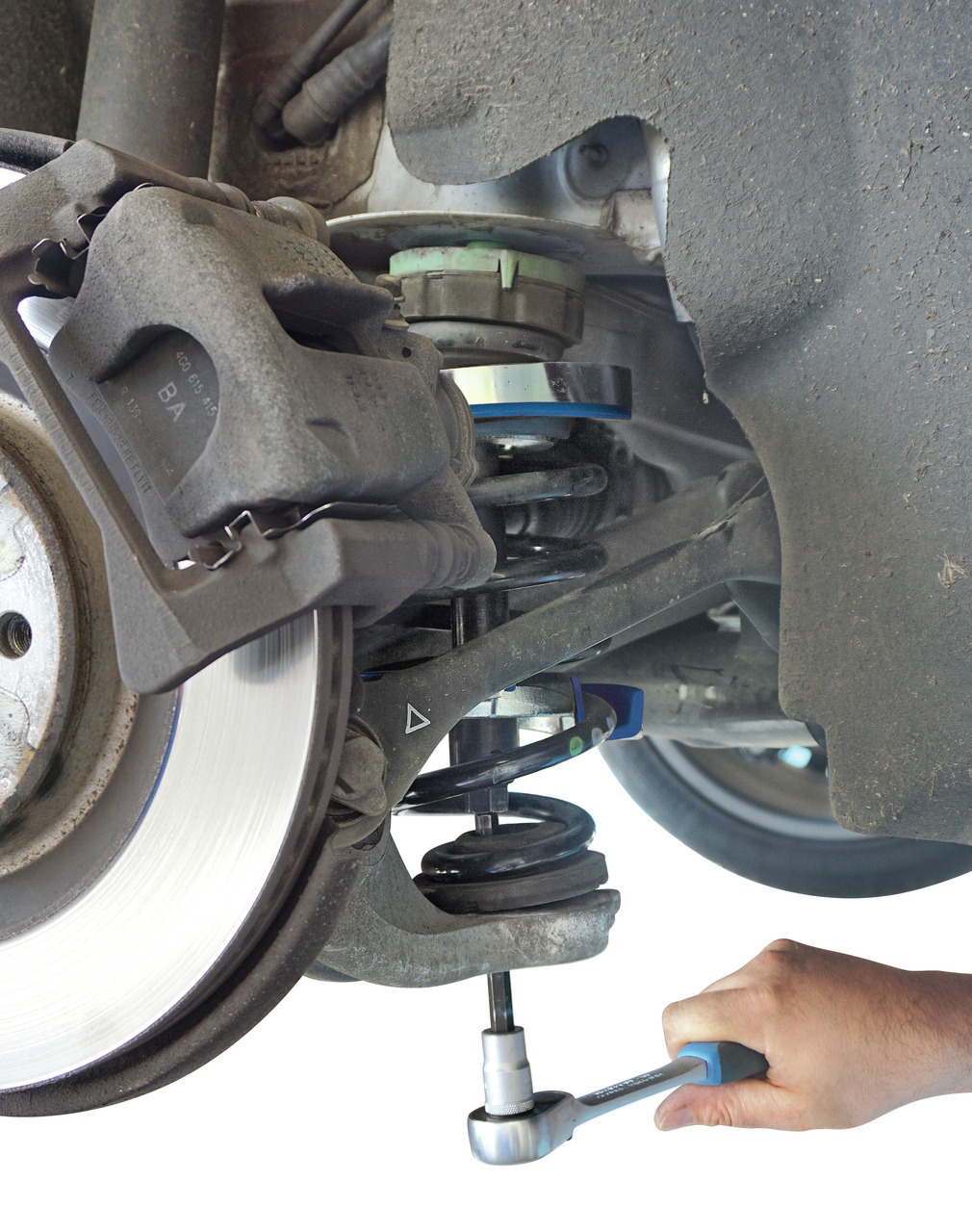

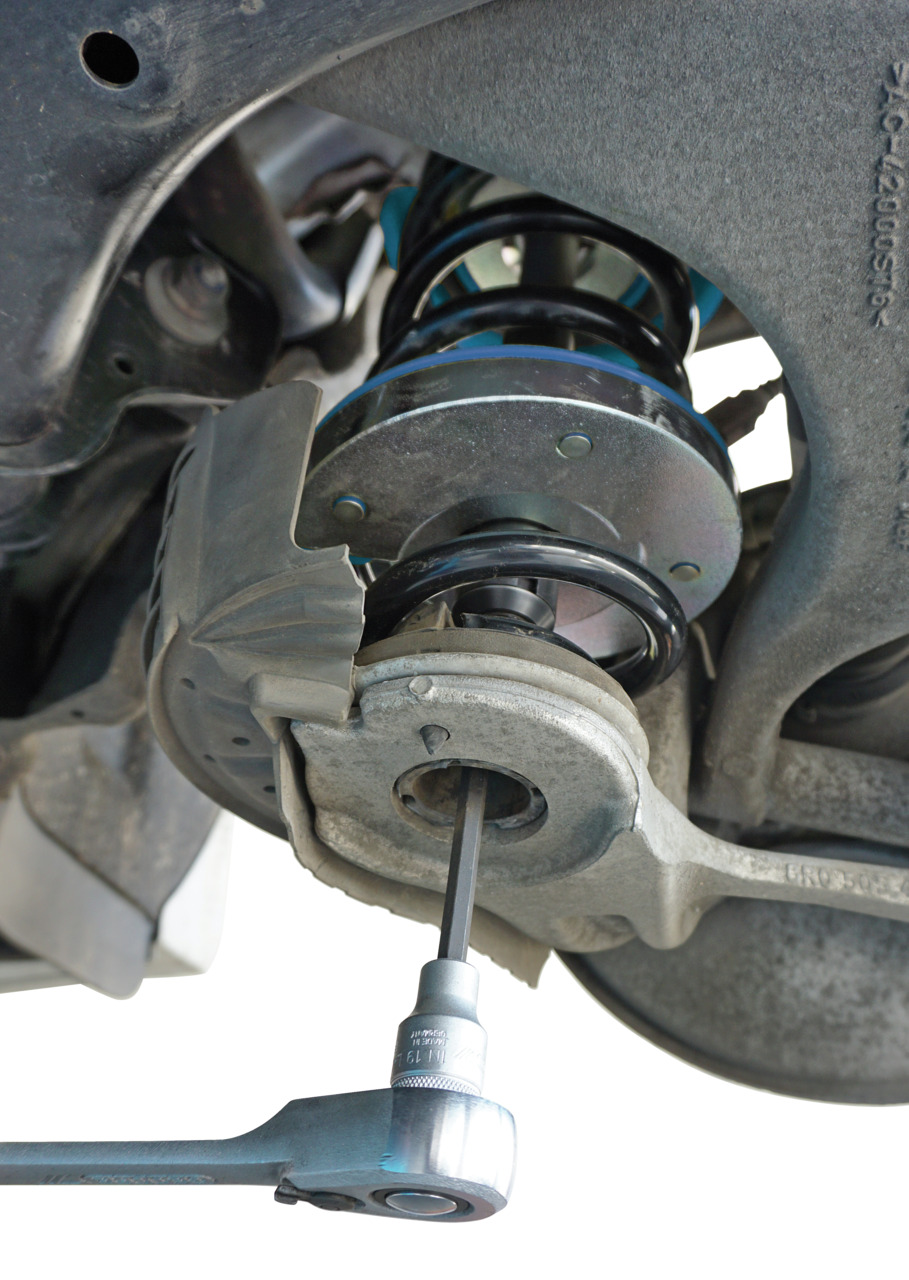

The pair of pressure plates, in conjunction with the necessary accessories, enables the quick and safe removal and installation of suspension springs on transverse and trailing arm axles directly on the vehicle.
The unique 3-point safety lock and the special wave profile prevent the pressure plates from twisting in relation to each other when the spring is tensioned, thus preventing the spring from jumping out.
