Automotive

Construction and commercial vehicles

Ford Transit

Ford Tourneo

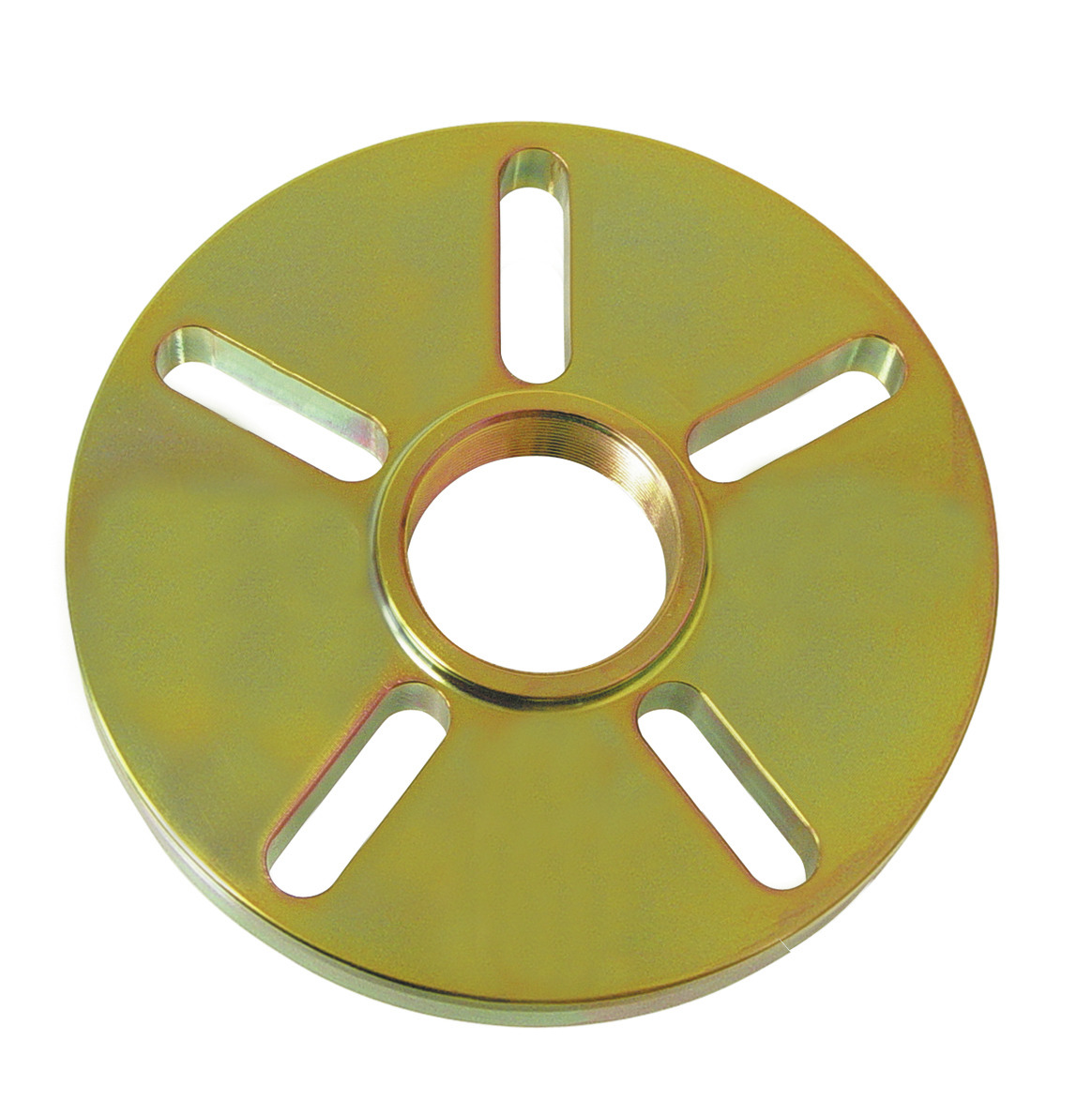

1x KL-0174-330 - Hole disc size 3 (5-hole)

1x KL-0040-2812-5 - Thrust nut M24

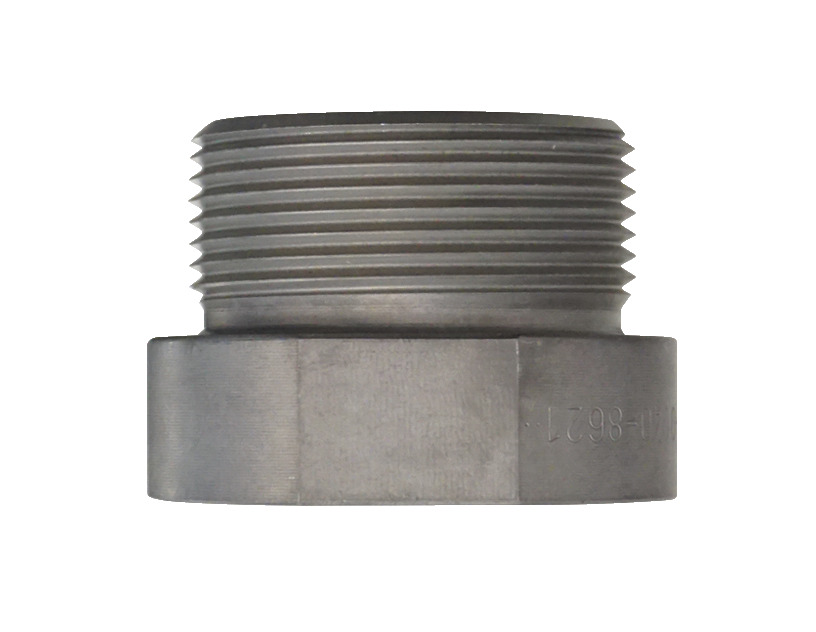

1x KL-0040-8621 - Thrust adapter

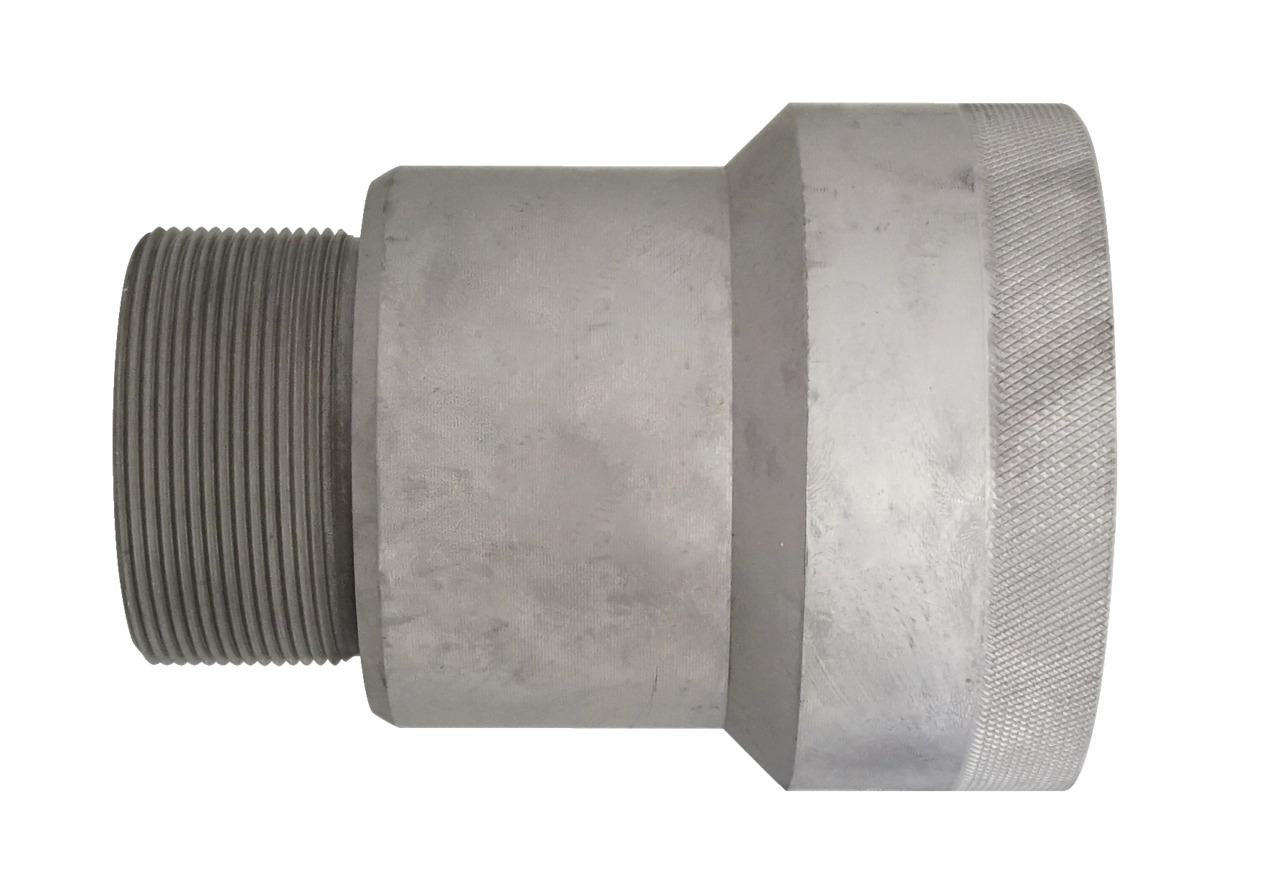

1x KL-0174-572 - Adapter 2 1/4" to 2 3/4"

5x KL-0174-764 A - Draw bolt type M, M14x1.5 mm

5x KL-0174-701 - Hexagon collar nut M14

5x KL-0186-9000-3 - Cap screw M10 x 75 mm

Suitable for the front axle of Ford Transit/Tourneo (model year 2006-2014 / from 2014-..) with rear-wheel drive (bolt circle Ø at brake disc bolting: 97.5 and 111 mm).

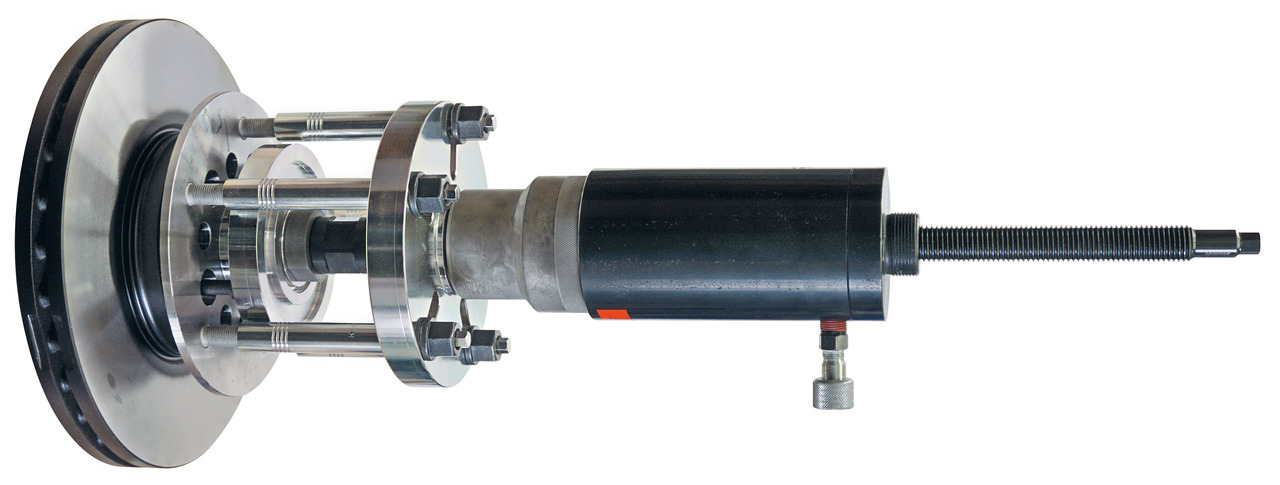

• Enables the removal of the bolted wheel bearing unit with wheel hub and brake disc

• Enables the removal and pressing in of the wheel hub on the wheel bearing unit

Advantages:

• Also for closed wheel bearings

• No removal and installation of the wheel bearing housing

• No wheel alignment necessary

Ford: 1810251; 1810257; 2128328; 2167069; BK31-2C300-BB; BK312C300BB; BK31-2C300-BC; BK312C300BC; KTBK31-1K018-BB; KTBK311K018BB; 1842994; BK21-1125-BC; 1763885; BK21-1125-BB; 1867728; 2110010; 2110008; 2256036; 1842633; BK21-1125-AC; 1763884; BK21-1125-AB; 2110200; 2256034; 1867729; 2110014; BK21-1125-DA; BK21-1125-AD
