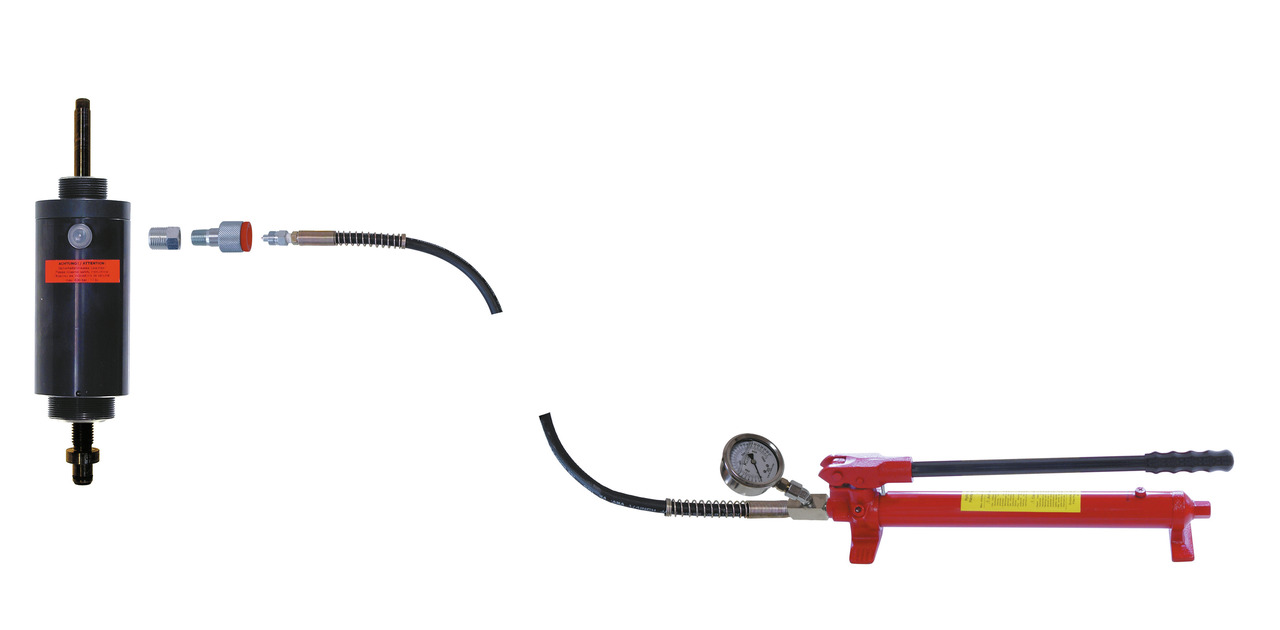

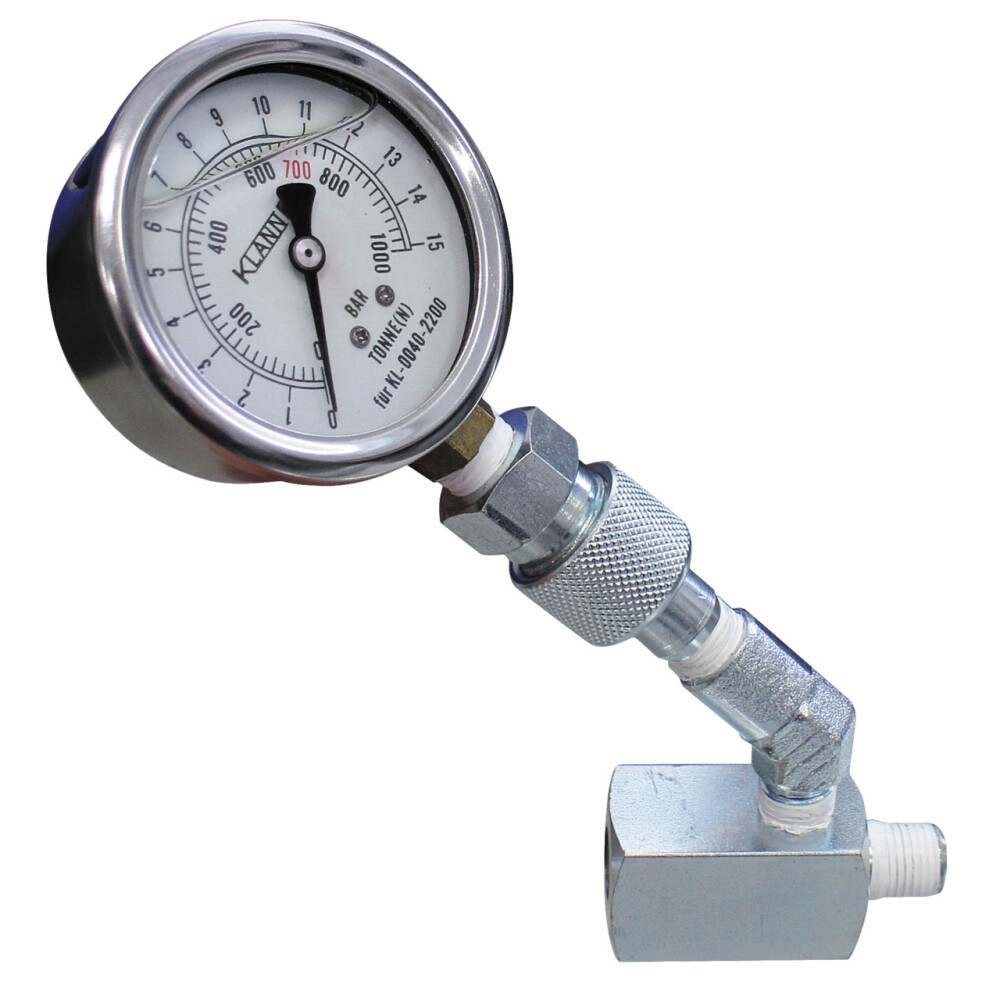

The hydraulic hand pump KL-0215-32 M22 can be used as a drive for the hydraulic cylinder KL-0040-2200. By means of the pressure gauge included in the kit with an additional ton scale that is matched to our 10 t hydraulic cylinder, the hydraulic pressure and the required force can be controlled while working.
Technical data
Contents (Qty of pieces)
4
Working pressure (max.).
700,0 bar
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Agriculture
Drive type
manual
Customs tariff number
84131900

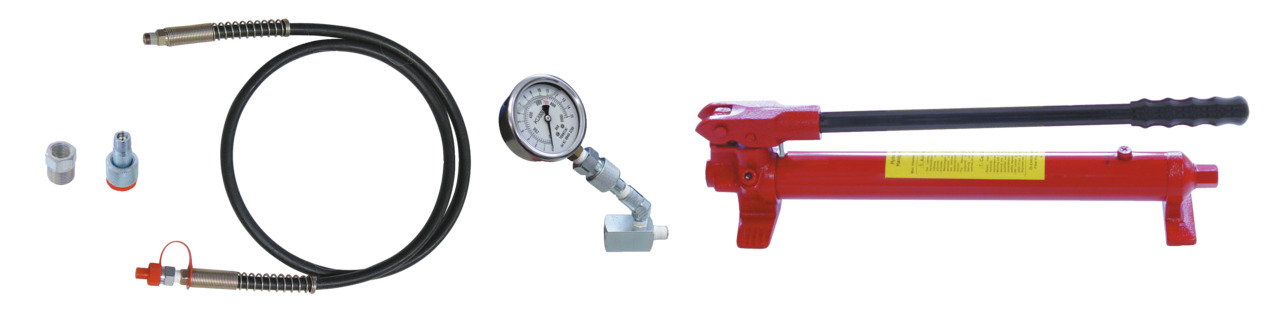

Parts list (Text)
1x KL-0215-33 - Hydraulic hand pump without hose
1x KL-0215-31 - Hydraulic hose 1,8 m with clutch half hose side
1x KL-0215-322 - Clutch half cylinder side 1/4" NPT
