Glow Plug Tool Kit, universal
KL-0132-56 KC

3451933

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Universally suitable for diesel engines (D / DI / DTI / TD / TDI / CDI / CRDi / CDTi / JTD / EcoBlue) with M8x1 and M10x1 glow plug thread. Installed on e.g. with VW-Audi, BMW, Mini, Mercedes, Fiat, Ford, Opel, Renault, Peugeot, Mazda, Hyundai, Honda, Kia, Nissan Renault, Toyota and many more.

Thanks to vehicle-specific guide sleeves, particularly suitable for BMW (M47, N47, B47, N57); Mercedes (OM611, OM612, OM613, OM639, OM640, OM642, OM646, OM647, OM648, OM651 CDI); VW-Audi (2.5, 2.7, 3.0 V6 TDI); Ford (2. 0 EcoBlue); Fiat, Alfa, Lancia, Citroën, Peugeot, PSA, IVECO (1.3, 2.3, 3.0 JTD/HDI, F1A, F1C, F30DT, 169A1.000, 169A5.000, 188A8. 000, 188A9.000, 199A2.000, 199A3.000, 199A9.000, 199B1.000, 199B2.000, 199B4.000, 223A9.000, 263A2.000); Fiat, (1.3 JTD).

Provides a quick and professional repair solution for torn glow plugs on the cylinder head.
For precise boring out of the glow plug, removal of the glow plug element and recutting of the glow plug mounting thread.
No need to dismantle or replace the cylinder head.
Quick boring out of the glow plug using special core drills.
Easy removal of the glow plug element using an extraction tool.
Simple recutting of the glow plug thread using a tap.
Precise centring and exact drilling depth thanks to vehicle-specific guide sleeves.
Can also be used universally without guide sleeves for diesel engines with M8x1 and M10x1 mounting threads.
Foam insert provides additional space for glow plug spanners, reamers and thread repair kits.

Technical data

Contents (Qty of pieces)

for thread (metric)

M8x1

M10x1

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

for motor type

Diesel

Customs tariff number

82055980

suitable for motor

Fiat 1.3 JTD

Ford 2.0 EcoBlue

PSA 1.3 JTD

PSA 1.3 HDI

PSA 2.3 JTD

PSA 2.3 HDI

PSA 3.0 JTD

PSA 3.0 HDI

VW 2.5 V6 TDI

VW 2.7 V6 TDI

VW 3.0 V6 TDI

Total depth

402 mm

Total width

494 mm

Total height

116 mm

Storage

in a case

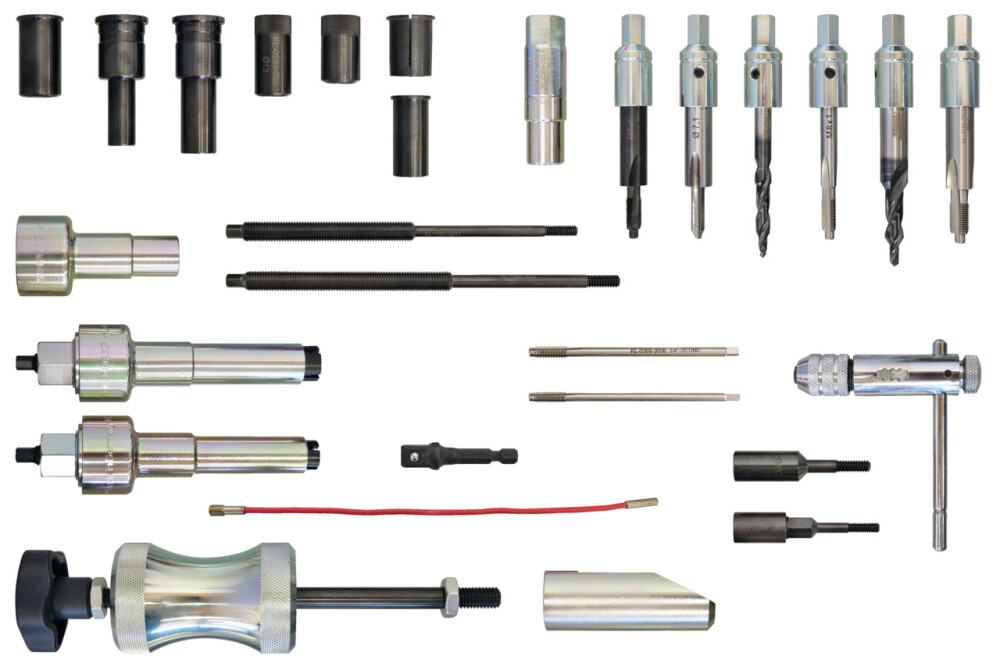

Parts list (Text)

1x KL-0049-100 A - Slide hammer

1x KL-0126-221 - Flexible magnetic lifter

1x KL-0132-5201 - Guide sleeve for Mercedes

1x KL-0132-5202 - Puller bolt, 1/4"-20 UNC

1x KL-0132-5501 - Puller bolt No. 12-24 UNC

1x KL-0132-5502 A - Pilot drill, Ø 4/7mm

1x KL-0132-5503 - Screw tap, M8x1

1x KL-0132-5504 - Guide sleeve, Fiat

1x KL-0132-5505 - Guide sleeve, Mercedes

1x KL-0283-7003 - Guide sleeve, Ø 13mm

1x KL-0283-7004 - Guide sleeve, BMW

1x KL-0283-7005 - Guide sleeve, VW

1x KL-0283-7021 A - Pilot drill, Ø 4.8/9mm

1x KL-0283-7022 - Screw tap, M10x1

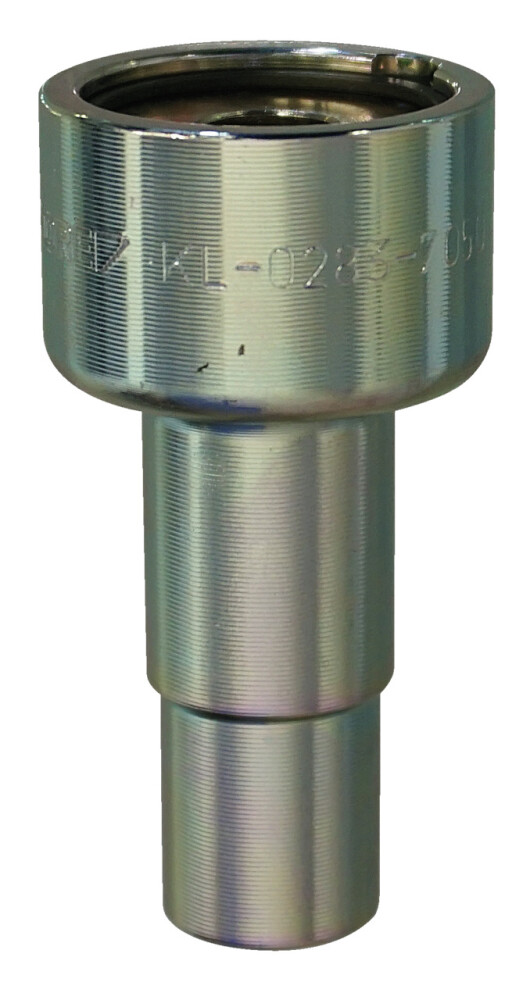

1x KL-0283-7050 - Puller (base tool)

1x KL-0369-201 A - Glow plug removal tool

1x KL-0369-202 - Glow plug removal tool

1x KL-0369-300 A - Roller-Type stud removal socket

1x KL-0369-3015 - Centring sleeve, long

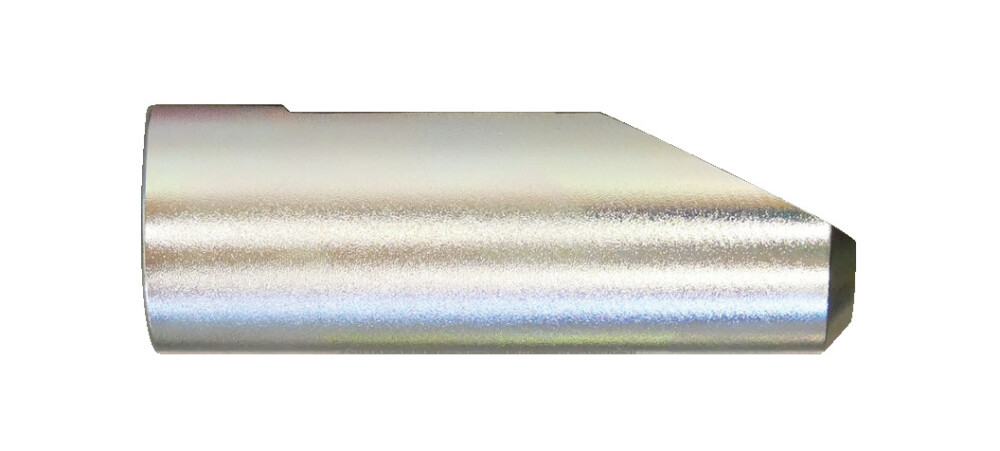

1x KL-0369-3031 B - Base body, 75mm

1x KL-0369-3056 - Screw tap, 1/4"-20 UNC

1x KL-0369-306 - Tap wrench

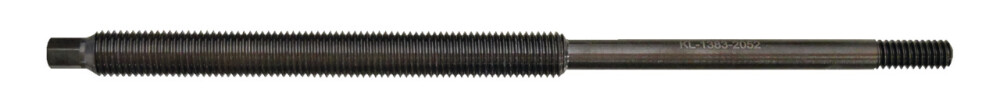

1x KL-1383-2052 - Puller bolt, 1/4"-20 UNC

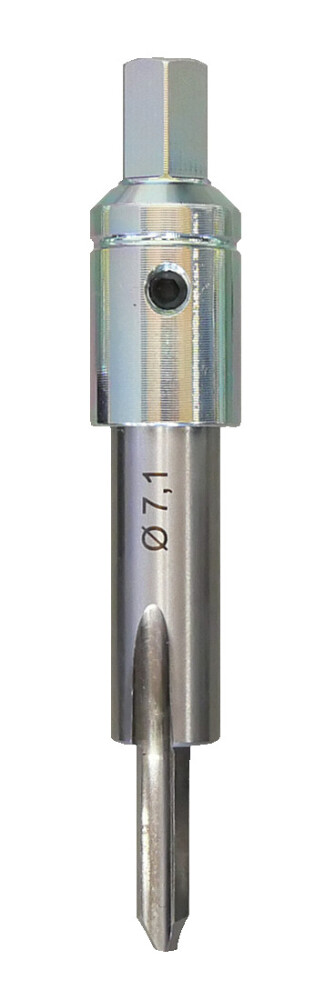

1x KL-1383-2231 - Pilot drill, Ø 7.1mm

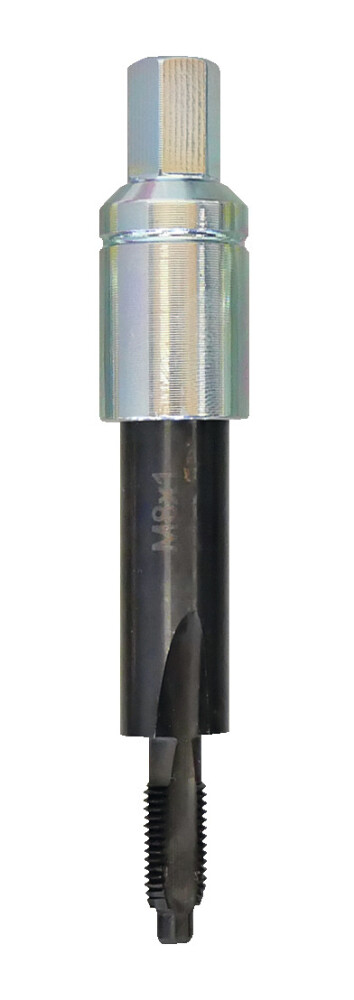

1x KL-1383-2232 - Screw tap, M8x1

1x KL-1383-2241 - Screw tap, Nr.12-24 UNC

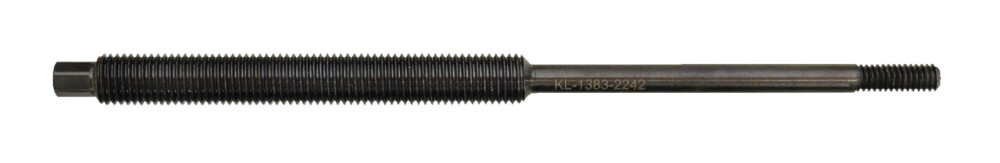

1x KL-1383-2242 - Puller bolt, Nr.12-24 UNC

1x KL-4007-2510 - Adaptor

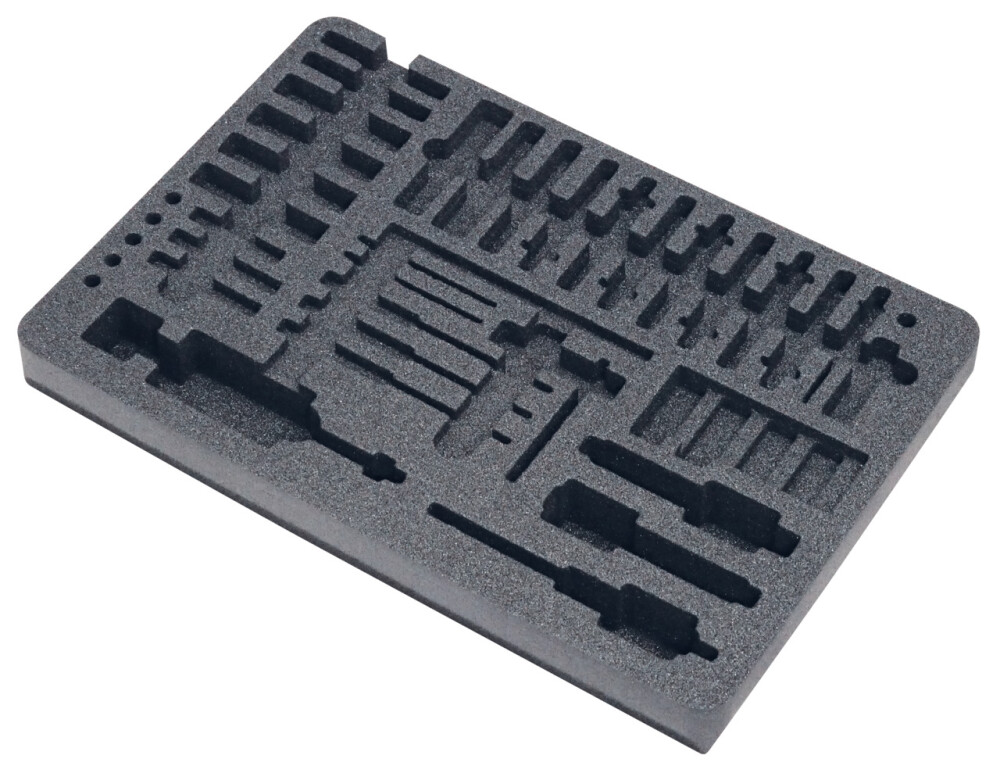

1x KL-0132-5692 A - Foam insert

1x KL-4990-9472 - Plastic storage case

Weight

5 kg

Short text

Fits universally for diesel engines with M8x1 and M10x1 glow plug thread.

• Professional repair solution for torn glow plugs on the cylinder head

• For precise boring out the glow plug

• For pulling out the glow plug element

• For recutting the thread on the cylinder head

• No need to remove or replace the cylinder head

• Quick and precise work

Motorcodes

BMW: M47, N47, B47, N57.

Mercedes: OM611, OM612, OM613, OM639, OM640, OM642, OM646, OM647, OM648, OM651.

Fiat/PSA/Iveco: F1A, F1C, F30DT, 169A1.000, 169A5.000, 188A8.000, 188A9.000, 199A2.000, 199A3.000, 199A9.000, 199B1.000, 199B2.000, 199B4.000, 223A9.000, 263A2.000.

Predecessor article

KL-0132-56 EB

3256820

EAN

4046459196945
