Description
Universally applicable for vehicles with 6/12/24 Volt LEAD, GEL, AGM, EFB and LITHIUM batteries. For example installed in motorcycles, cars, commercial vehicles, vans, buses, construction machinery, agricultural machinery, boats, ride-on mowers and many more.
For a fast, professional checking and logging of the status of battery, generator and starter system.

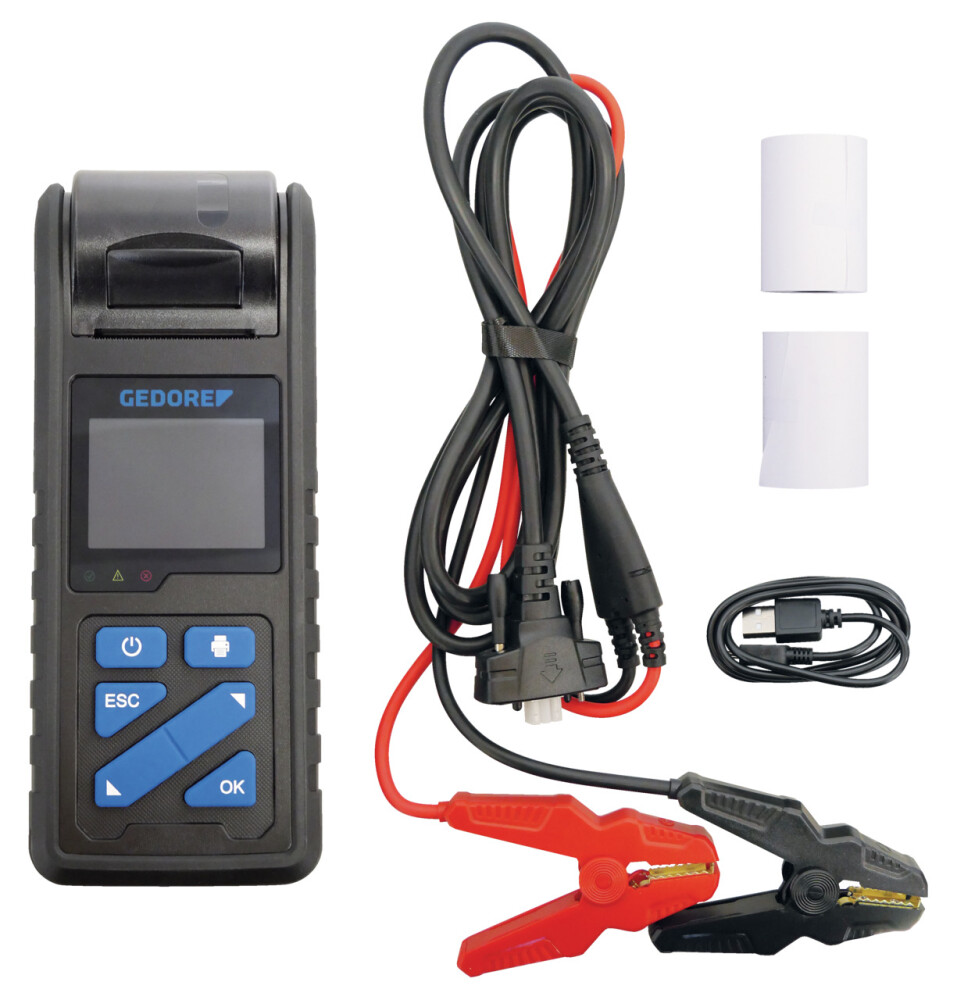

Professional 3-in-1 battery tester with integrated test log output.
1. Testing the battery: Voltage (V), cold test current (A), internal resistance (mΩ), charging and battery status (%)
2. Testing the generator: Ripple of the rectifier diode (mV), no-load voltage and load voltage (V)
3. Testing the starter system: Min/max start voltage (V) and starting time (ms)
Menu-guided operation and test results within seconds.
Illuminated 3.2“ LCD colour display with high-quality keypad.
Testing of battery in assembled or disassembled state.
Test result output even with deeply discharged batteries by means of integrated rechargeable
battery.

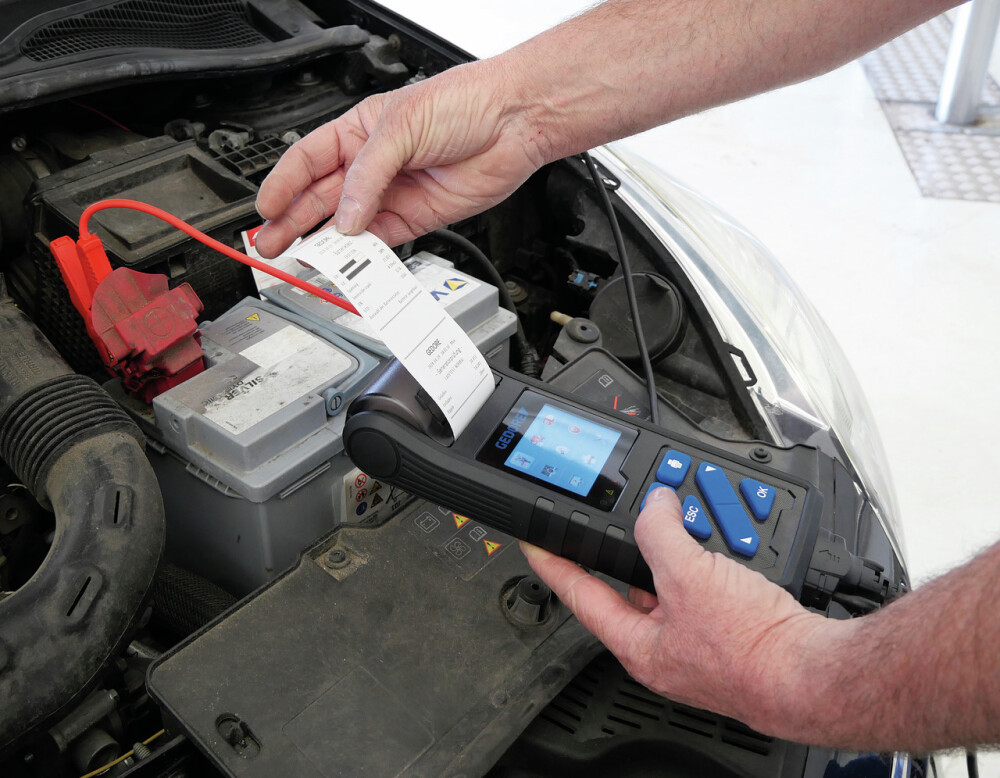

Real-time monitoring inside the vehicle by means of 2.50 m long measuring line.
Supports 9 battery standards according to EN, DIN, IEC, SAE, CA, CCA, BCI, MCA and JIS
standards.
Fully insulated crocodile clips and integrated reverse polarity protection.
Simple menu-guided operation in 13 languages.
Sturdy and impact resistant housing with circumferential rubber edge.
Test log output via integrated thermal printer.
Tested and certified according to CE / RoHS.
