These jaws are designed to be used in conjunction with the spring compressors KL-0015, KL-0013, KL-0014, and KL-2000. Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged.
Technical data
Contents (Qty of pieces)
2
Size
1B
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Spring Ø, inner (min.)
90 mm
Spring Ø, outer (max.)
145 mm
Customs tariff number
82057000
suitable for vehicle model
Audi A8
Type
with Protective Insert
Parts list (Text)

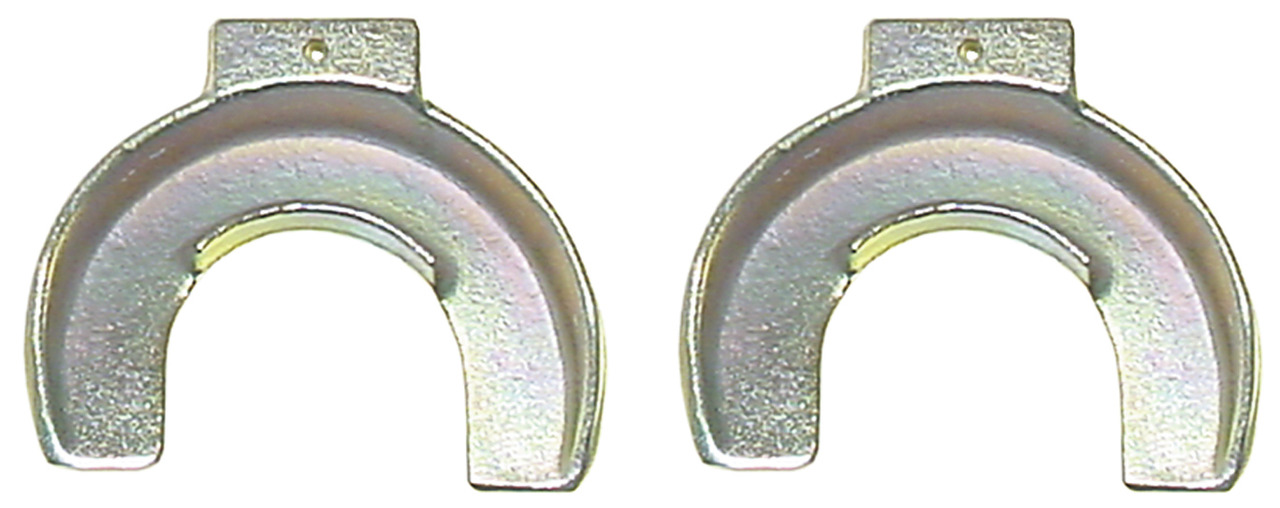

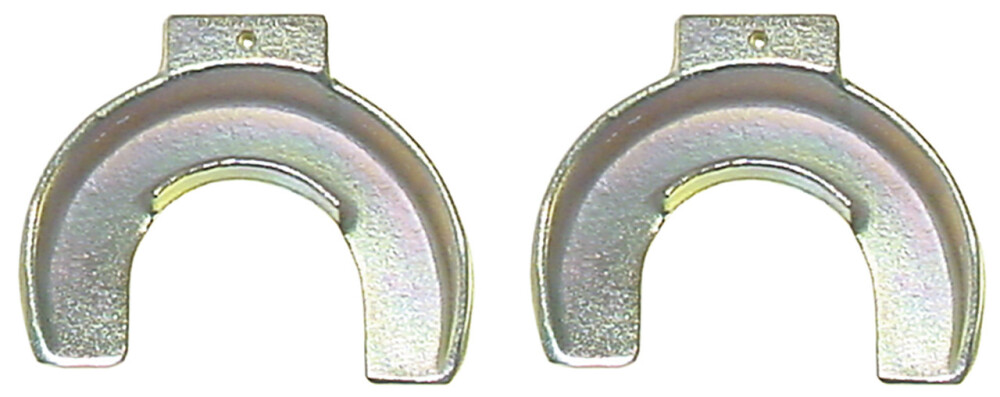

1x KL-1514 - Spring retainer pair size 1B

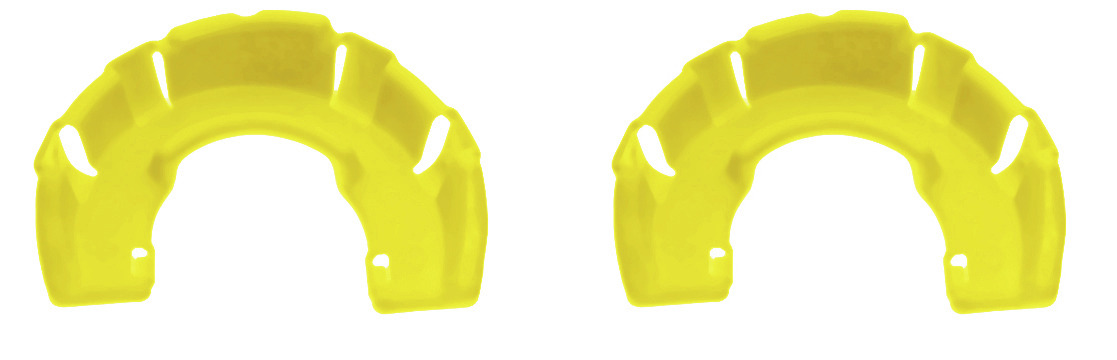

1x KL-1514-S - Protective insert pair size 1B
Weight
2,1 kg
Short text
Suitable for Audi A8 front axle.
• For replacing right-hand coil screws and shock absorbers
• With anti-slip and surface protecting protective inserts
• Only in combination with compressor cylinder KL-0015-100 (KL-0015 SP) or KL-2000-100 (KL-2000 SP)
