As an example: Front axle: Audi A1 (8X), A4 (8K), A5 (8T), Q5 (8R); etc. Rear axle: Audi A8; etc.
These jaws are designed to be used in conjunction with the spring compressors KL-0015, KL-0013, KL-0014, and KL-2000. Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged.
Technical data
Contents (Qty of pieces)
2
Size
1A
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Spring Ø, inner (min.)
90 mm
Spring Ø, outer (max.)
145 mm
Customs tariff number
82057000
suitable for vehicle model
Audi A1 (8X)
Audi A4 B8 (8K)
Audi A5 (8T / 8F)
Audi A6 C7 (4G)
Audi A7 (4G)
Audi A8
Audi Q5 (8R)
Seat Ibiza IV (6J / 6P)
Type
with Protective Insert
Parts list (Text)

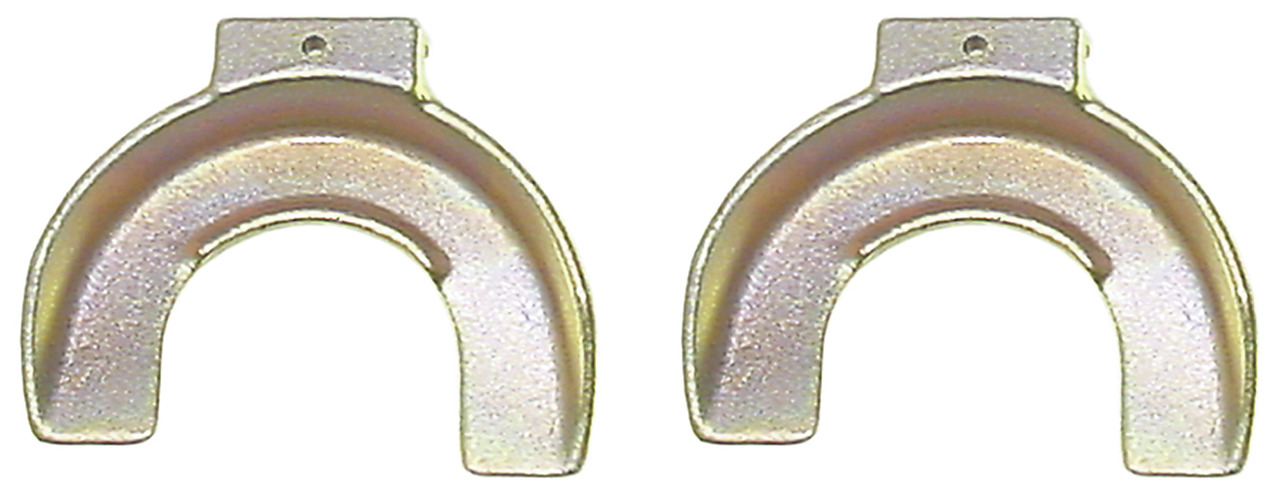

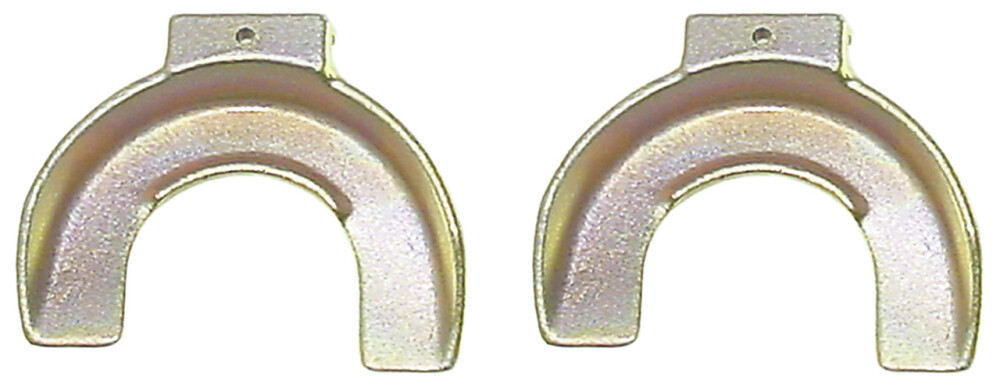

1x KL-1512 - Spring retainer pair size 1A

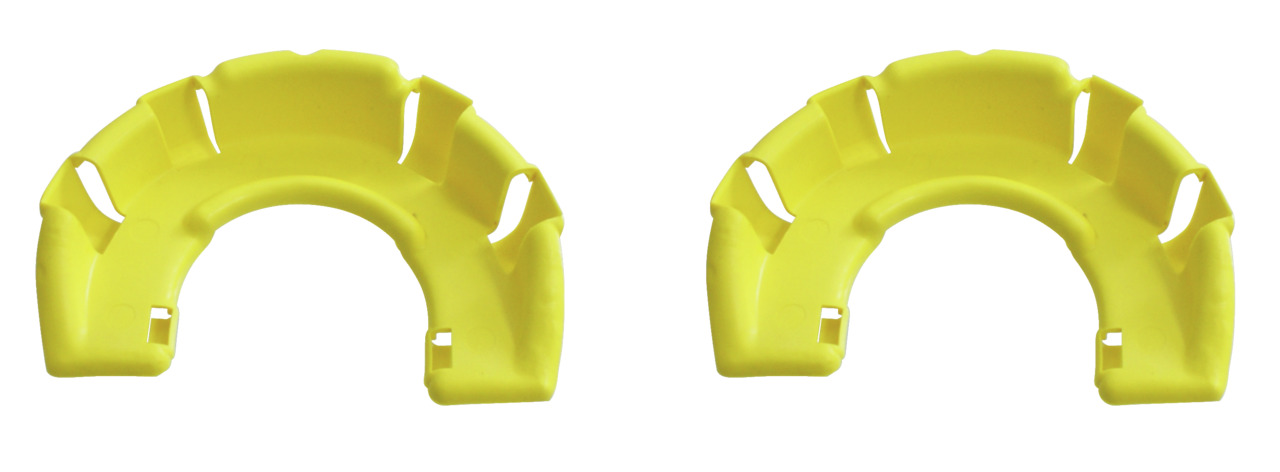

1x KL-1512-S - Protective insert pair size 1A
Weight
2,4 kg
Short text
Universally suitable.
• For replacing right-hand coil screws and shock absorbers
• With anti-slip and surface protecting protective inserts
• Only in connection with compressor cylinder KL-0015-100 (KL-0015 SP) or KL-2000-100 (KL-2000 SP)
