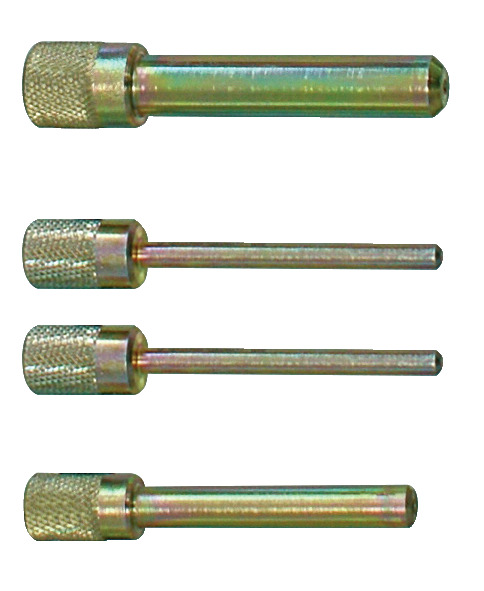

1x KL-0680-2201 A - Locking mandrel with a diameter of 11 mm

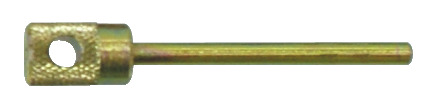

2x KL-0680-2202 A - Locking mandrel with a diameter of 4.5 mm

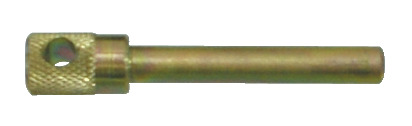

1x KL-0680-2203 B - Locking mandrel with a diameter of 8 mm

1x KL-4990-2001 - Plastic case

Suitable for Citroën 1.4, 1.4 Hdi, 1.6 Hdi, 2.0; Fiat 1.6 JTD; Ford 1.4 TDCi, 1.6 TDCi; Mazda 1.4 TDCi, 1.6 D, 1.6 MZ-CD; Peugeot 1.4 Hdi, 1.6 Hdi; Suzuki 1.4 DDiS; Toyota 1.0 VVT, 1.4 Di, 1.4 HDI; Volvo 1.6 D diesel engines.

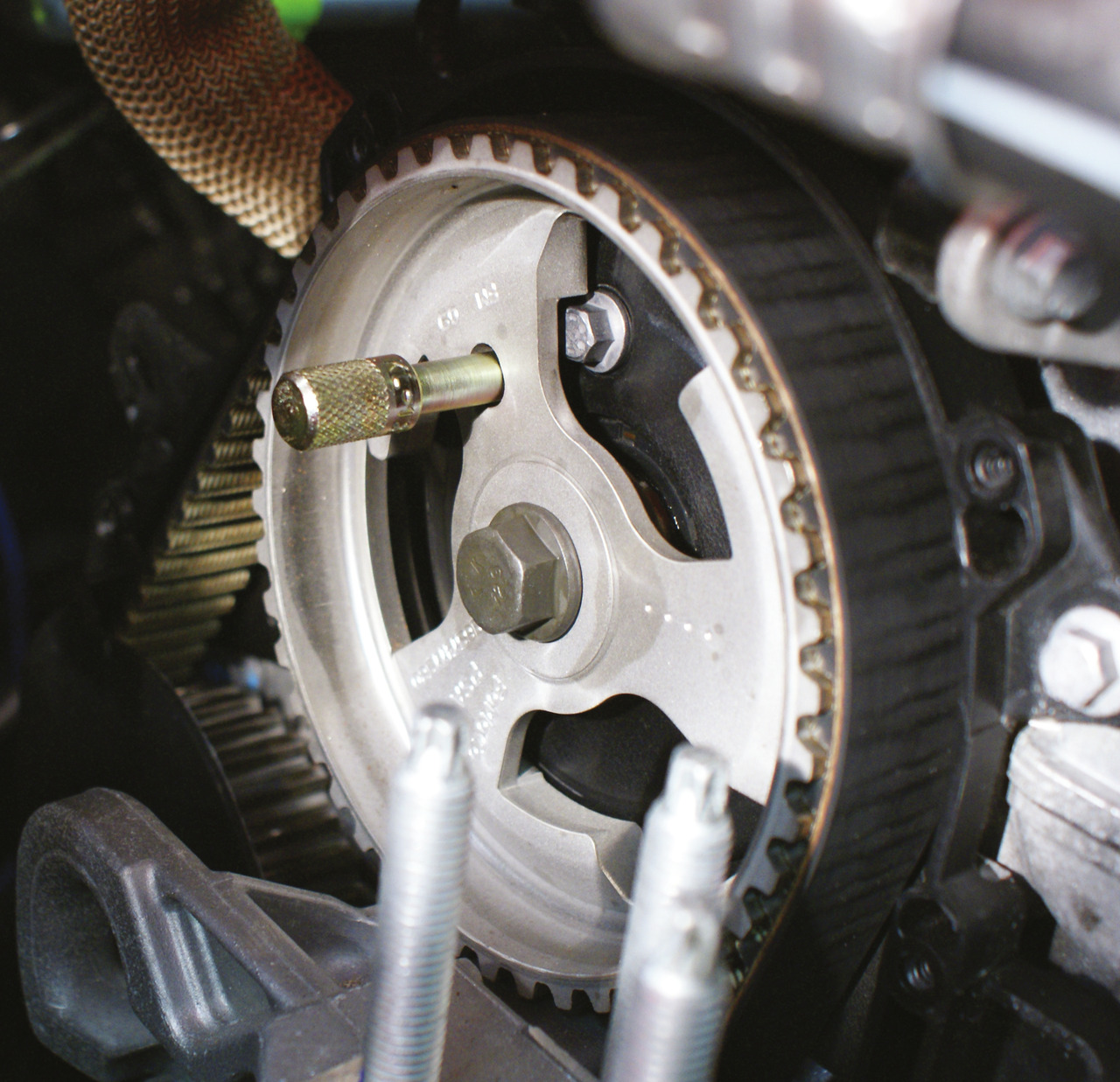

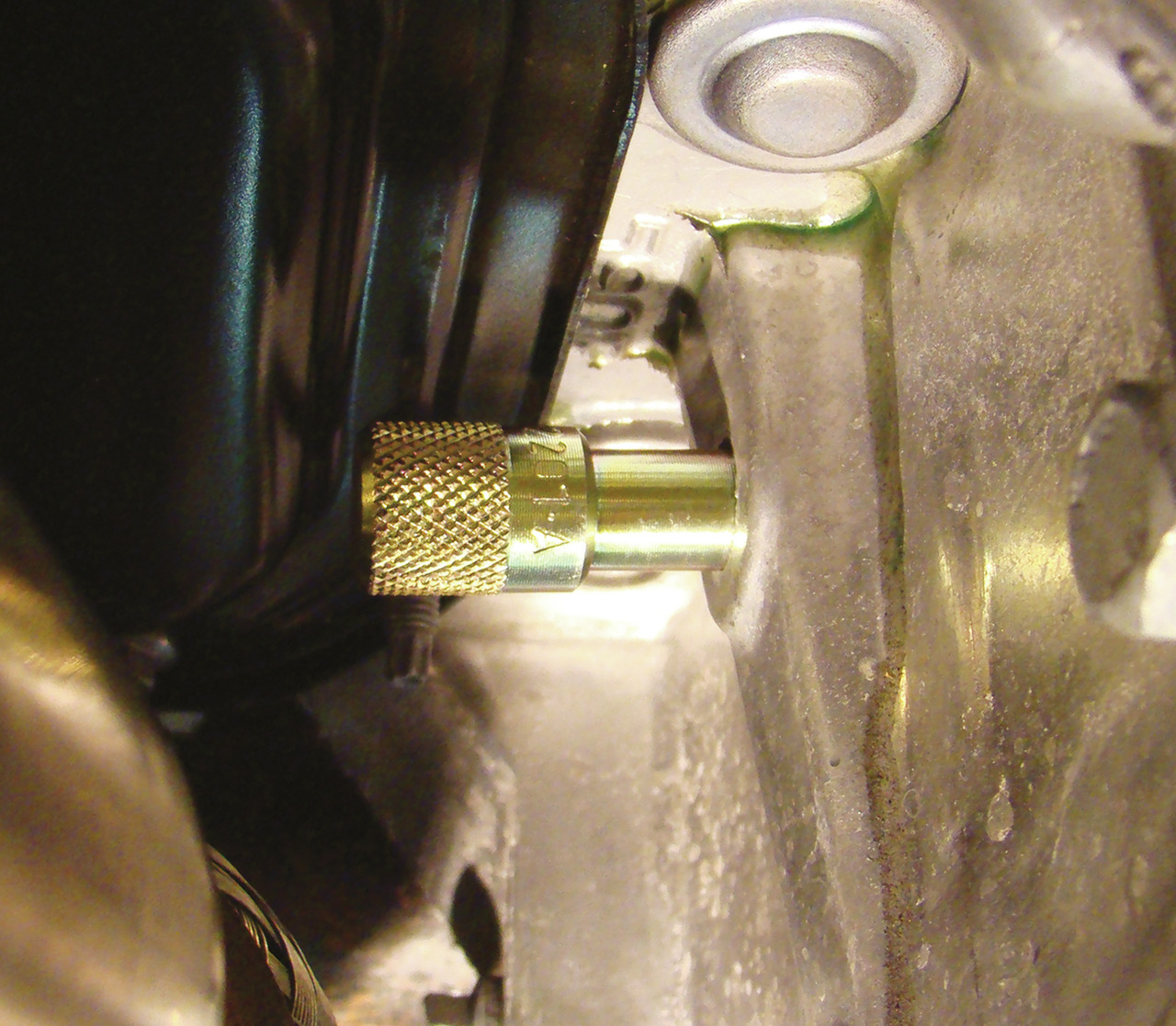

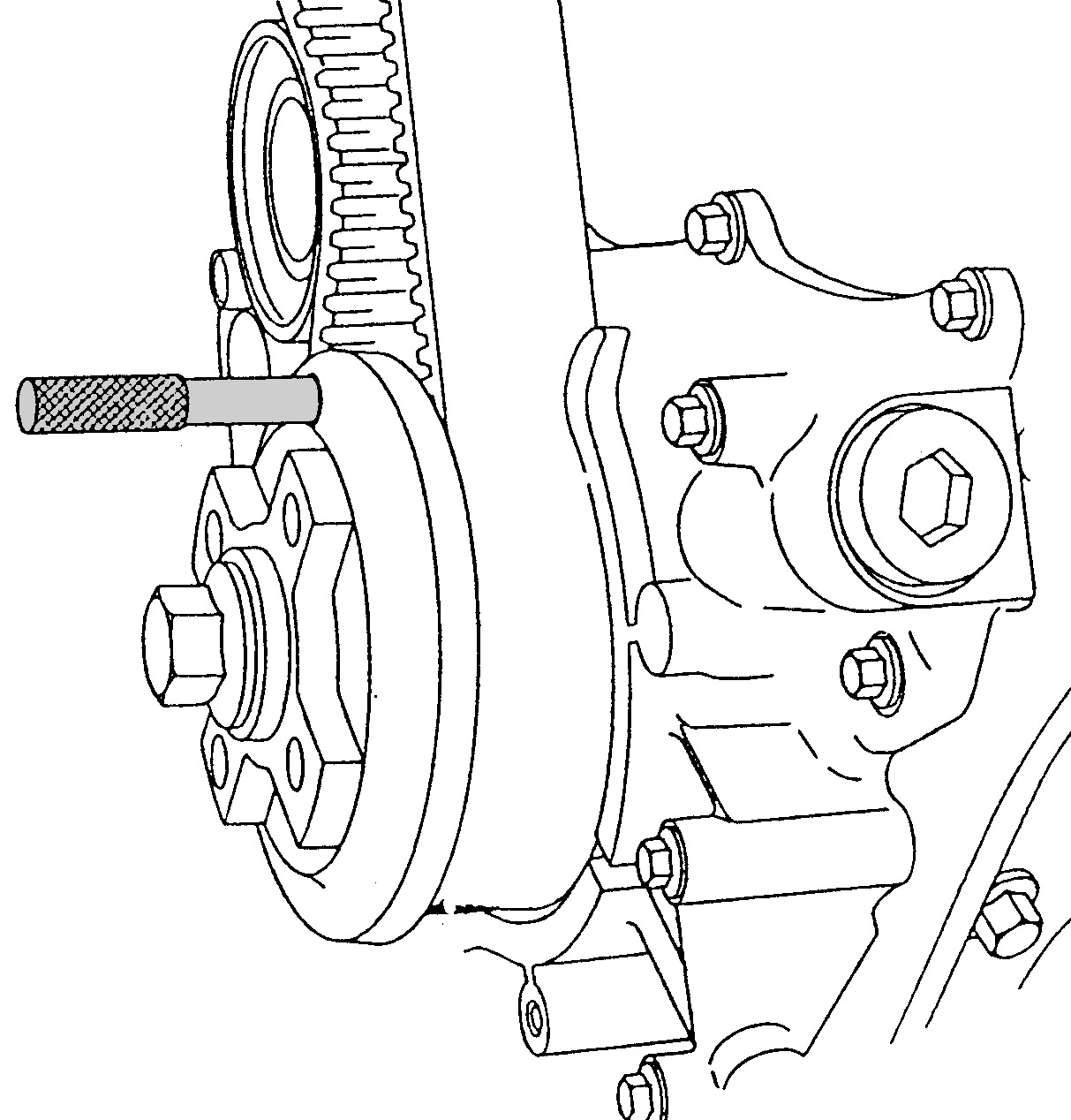

• Locking the camshaft, injection pump shaft and flywheel.

Citroën/Peugeot/PSA/Suzuki: 8HP, 8HR, 8HS, 8HT, 8HV, 8HW, 8HX, 8HY, 8HZ, 9HF, 9HH, 9HJ, 9HL, 9HM, 9HN, 9HP, 9HR, 9HS, 9HT, 9HU, 9HV, 9HW, 9HX, 9HY, 9HZ, DV4C, DV4TD, DV4TED, DV4TED4, DV6, DV6C, DV6ATED4, DV6AUTED4, DV6BTED4, DV6BUTED4, DV6D, DV6DTED, DV6DU, DV6ETED, DV6TED4, DV6TED4B, DV6TED4BU, DV6UC, DV6UTED4.

Volvo: D4162T, D4164T.

Ford: F6J4, F6JA, F6JB, F6JC, F6JD, G8DA, G8DB, G8DD, GPDA, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, T1BA, T1BB, T1BC, TZJA.

Mazda: MZ-CD 1.6, Y6.

2.000.022.500

303-732

2.000.023.000

303-734

2.000.023.100

2.000.023.200

303-735

999-7122

999-7169

999-7233

21-260

21-262

21-263

49 JE02 018

49 JE02 020

49 JE02 021

0194-A

0194-B

0194-C
