Wheel Bearing Tool Set, Ford Transit
KL-0040-860

2372290

Suitable for the front axle of Ford Transit/Tourneo (My. 2000-2006 / 2006-2014 / from 2014-..) with front as well as all-wheel drive (bolt circle-Ø at brake disc bolts 97,5 and 111 mm).

• For removing the bolted wheel bearing unit with wheel hub and brake disc

• For removing and pressing in the wheel hub on the wheel bearing unit

Advantages:

• No removal and installation of the wheel bearing housing

• No wheel alignment necessary

Hydraulic drive (28 t): KL-0040-2800 - Hydraulic cylinder 28 t KL-0215-35 M28 - Hydraulic pump KL-0040-2812-1 - Pull / thrust spindle M24x590 KL-0040-2812-2 - Clamping nut hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump KL-0039-1920-1 - Pull spindle M20x590 KL-0041-3812 - Clamping nut

Ford: 4395257; 4041427; 1456667; 1473008; 1520371; 1568654; 1C1J-1125-A2D; 1C1J-1125-AB; 1C1J-1125-AC; 1C1J-1125-AD; 1C1W-1125-AB; 4041428; 1387781; 1568640; 1738815; YC1J-1125-B2B; YC1W-1125-B1A; YC1W-1125-B1B; YC1W-1125-BA; 1201300; 1C1J-1K018-AA; 1C1J1K018AA; 4052783; 1371394; 1503290; 6C11-1125-B1B; 1547061; 6C11-1125-BB; 6C11-1125-AB; 1371393; 1503287; 1546747; 6C11-1125-A1B; 1370437; 1377907; 6C11-1K018-AA; 6C111K018AA; 6C11-2B663-AA; 6C112B663AA; 1371400; 1377908; 6C11-1K018-BA; 6C111K018BA; 6C11-2B663-BA; 6C112B663BA

Ford Tourneo

Ford Transit

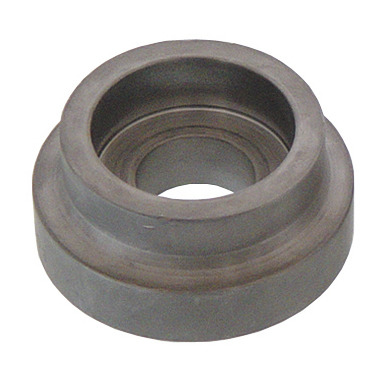

1x KL-0040-8601 - Pressure disc Ø 77 mm

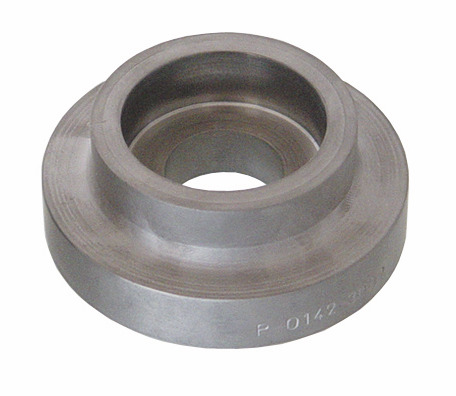

1x KL-0040-8602 - Pressure disc Ø 68 mm

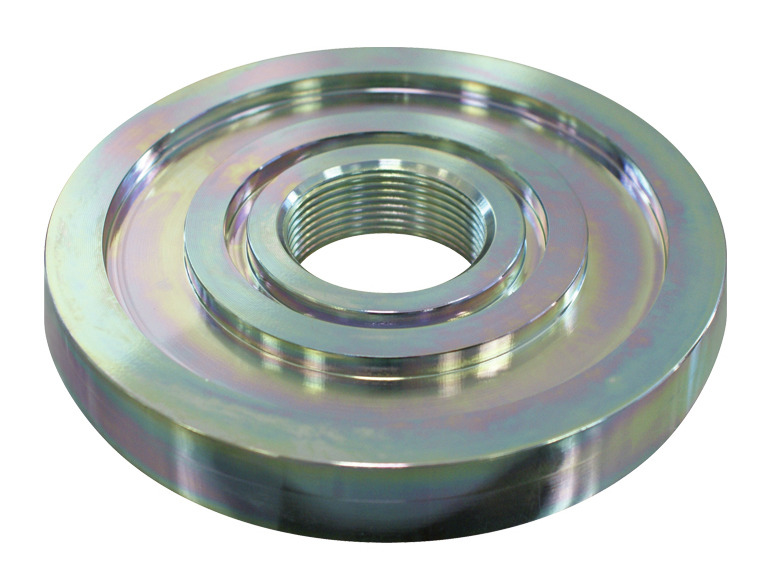

1x KL-0040-8501 A - Pressure ring

5x KL-0039-1823-4 - Cylinder screw M10 x 120

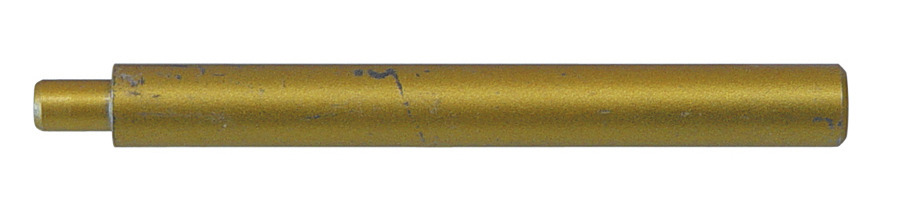

5x KL-0040-8503 - Dorn

  • Description
  • Accessoires
  • Technical data
  • Manual
  • Spare parts
  • Cross selling

Description

Fits with the front axle on Ford Transit/Tourneo (2000-2006 / 2006-2014 / 2014 onwards) with front and all-wheel drive and a hole circle diameter of 97.5 mm and 111 mm of the brake disc fastening screws.

The wheel bearing tool set enables quick and professional removal of the bolted wheel bearing unit with wheel hub and brake disc on the front axle, as well as subsequent removal and insertion of the wheel hub on the wheel bearing unit.
For example, this is required when replacing the wheel bearing and brake discs, as these are located behind the wheel hub.
All work can be carried out directly on the vehicle within a few minutes.
A time-consuming removal and installation of the wheel bearing housing as well as a resulting wheel alignment is not necessary.
