Fits universally for, e.g. VW-Audi, BMW, Mercedes, Nissan, Renault, etc.
If the thread in the cylinder head is damaged, special threaded inserts (internal thread M8x1) can be inserted with the aid of the thread repair kit KL-0132-53 K.
Technical data
Drive connector square [inch]
3/8"
Contents (Qty of pieces)
14
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Customs tariff number
82055980
Thread dimension
M8x1
Total depth
197 mm
Total width
120 mm
Total height
45 mm
Storage
in a case

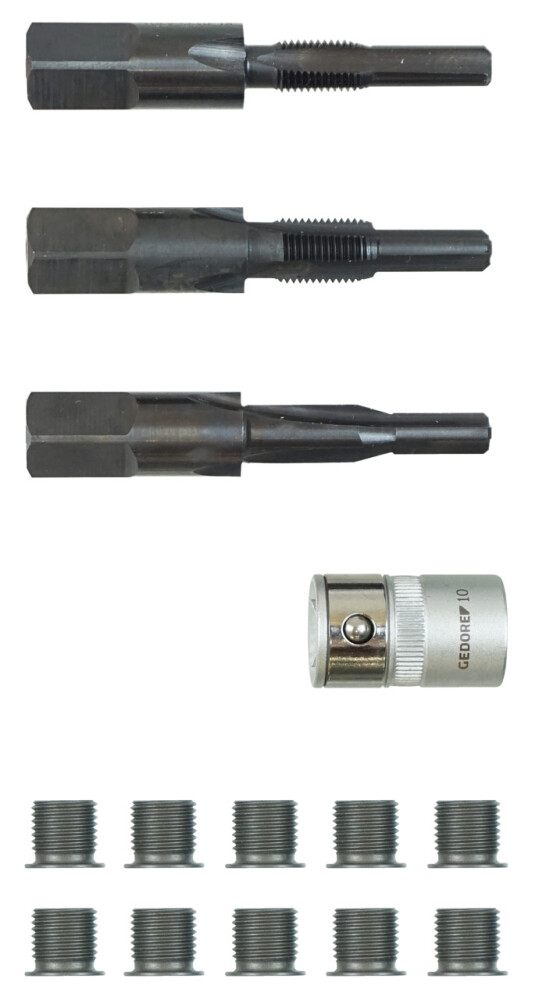

Parts list (Text)

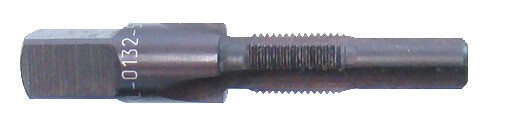

1x KL-0132-5301 - Thread cleaner M8x1

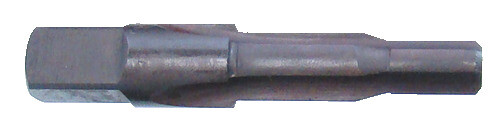

1x KL-0132-5302 - Special drill for thread inserts M8x1

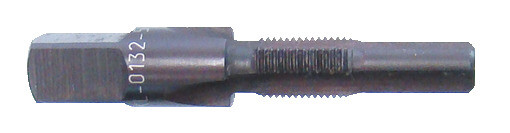

1x KL-0132-5303 - Special tap for thread inserts M8x1
1x KL-0132-123 - Square bit holder 10 mm (waf), 3/8" drive

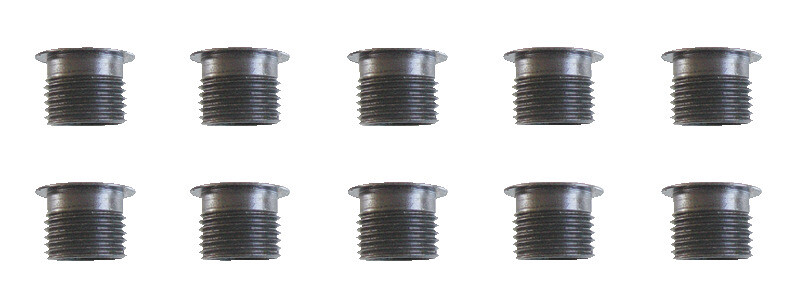

1x KL-0132-5304 - Thread inserts M8x1, 10 mm long (10 pieces)

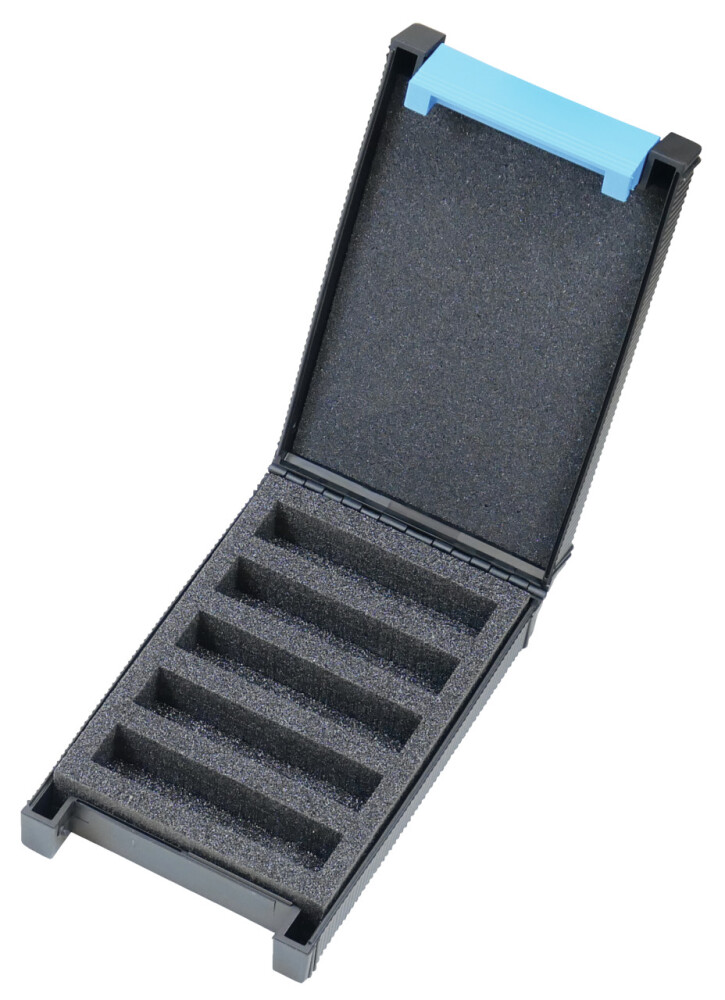

1x KL-0132-1290 - Plastic case
Short text
Suitable for glow plug thread M8x1, e.g. for VW-Audi, BMW, Mercedes, Nissan, Renault, etc.

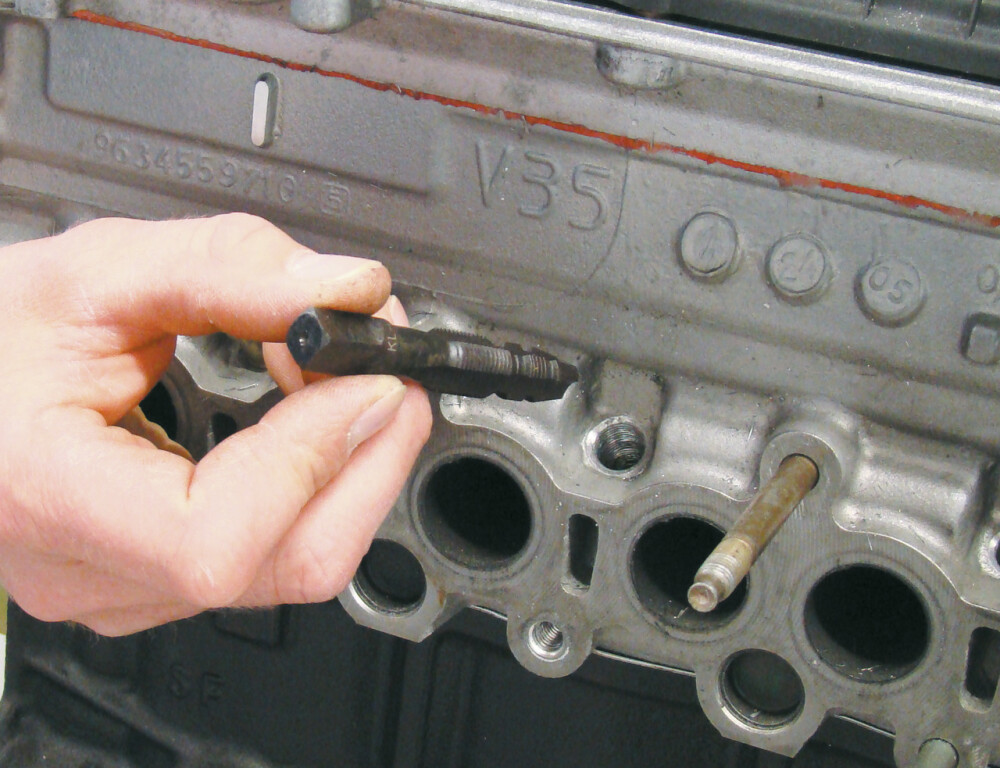

• For professional cleaning or repair of glow plug mounting threads

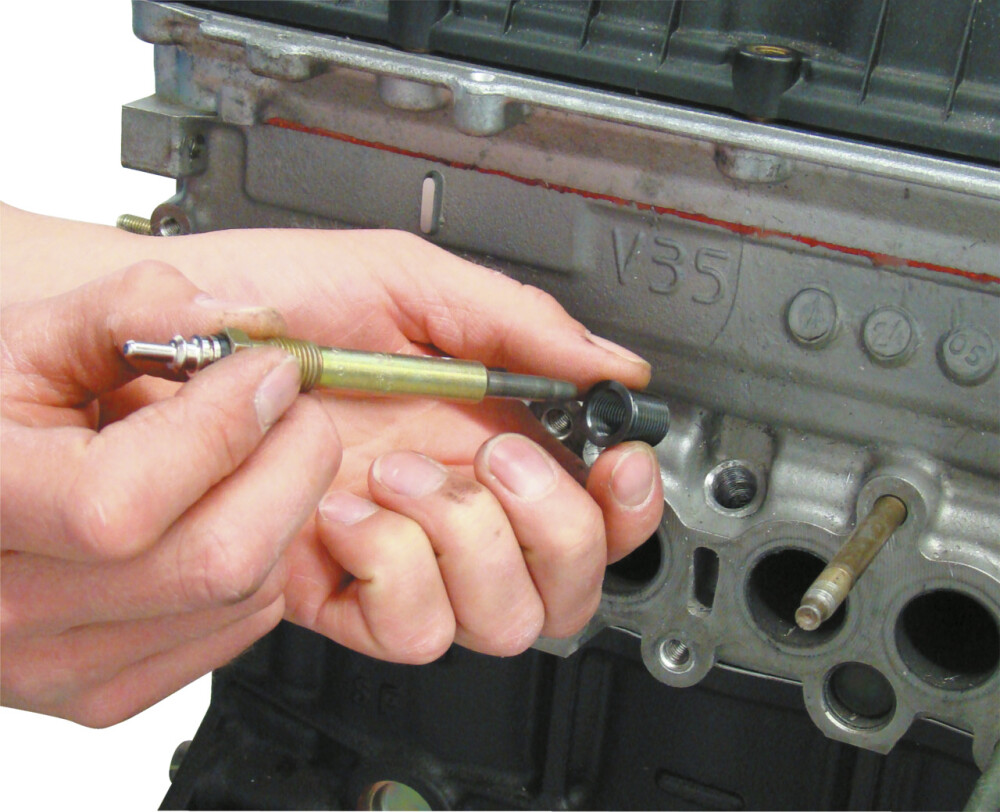

• The mounting thread can be expanded to M10x1 and adapted with a thread insert
