Suitable for diesel engines on Opel 1.7 + 3.0 CDTi and Renault 3.0 dCi (V-engines: engine removal may be necessary for space reasons) For example, installed on Opel Astra H, Astra J, Meriva B, Zafira B, Vectra C, Signum; Renault: Espace (IV), Vel Satis.
By using the support bolt kit, the injector extractor - KL-0186-14 EA also fits the above-mentioned engines.
Technical data
Contents (Qty of pieces)
8
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Drive type
hydraulic
mechanical
Required accessories
KL-0186-14 EA - Injector extractor kit, if necessary supplementary kit (injector) - KL-0186-128.. required.
for motor type
Diesel
Customs tariff number
82055980
Length (exchange pin)
25 mm
suitable for vehicle model
Opel Astra H (A04)
Opel Astra J (P10)
Opel Meriva B (S10)
Opel Signum CC (Z03)
Opel Vectra C (Z02)
Opel Zafira B (A05)
Renault Espace IV (JK0/1)
Renault Vel Satis (BJ0)
suitable for motor
Opel 1.7 CDTI
Opel 3.0 CDTI
Renault 3.0 DCI
Total length
129 mm
Distance range
85 mm
Length assembled
139 mm
Mounting thread
M6
Parts list (Text)

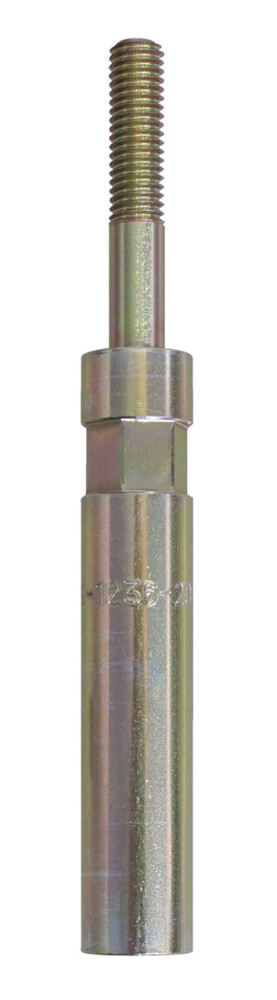

4x KL-0186-1236-20 - Support bolt 129 mm
4x KL-0186-1235-2 - Grub screw M6 x 25 mm
Short text
Suitable for diesel engines on Opel 1.7 + 3.0 CDTi and Renault 3.0 dCi.
• For the use of injector puller KL-0186-14 EA with the above mentioned engines
