Fits Opel and Fiat 1.3 common rail diesel engines. For example, installed on Opel Agila, Corsa C, Corsa D, Meriva A, Meriva B, Tigra B; Fiat Punto (188), Idea (135), Doblò (223), Doblò (263).
By using the support bolt kit, the injector extractor - KL-0186-14 EA also fits the above-mentioned engines.
Technical data
Contents (Qty of pieces)
8
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Drive type
hydraulic
mechanical
Required accessories
KL-0186-14 EA - Injector extractor kit, if necessary supplementary kit (injector) - KL-0186-128.. required.
for motor type
Diesel
Customs tariff number
82055980
Length (exchange pin)
55 mm
suitable for vehicle model
Fiat Doblo I (119 / 223)
Fiat Doblo II (263)
Fiat Idea (350)
Fiat Punto (188)
Opel Agila A (H00)
Opel Agila B (H08)
Opel Corsa C (X01)
Opel Corsa D (S07)
Opel Meriva A (X03)
Opel Meriva B (S10)
Opel Tigra TwinTop (X04)
suitable for motor
Fiat 1.3 JTD
Opel 1.3 Common-Rail Diesel
Total length
132,5 mm
Distance range
88,5 mm
Length assembled
172,5 mm
Mounting thread
M7
Parts list (Text)

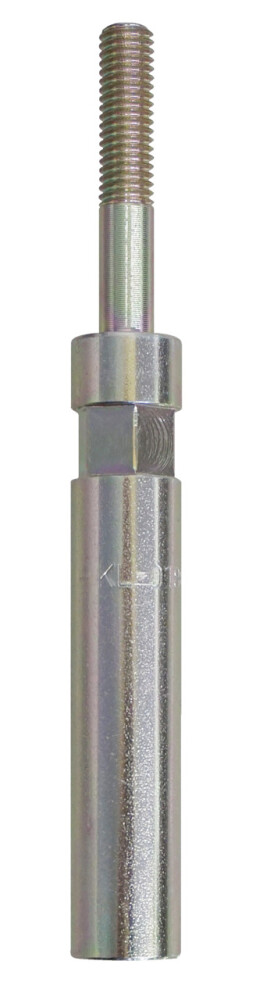

4x KL-0186-1239-10 - Support bolt 132.5 mm
4x KL-0186-1235-6 - Grub screw M7 x 55 mm
Short text
Fits Opel and Fiat 1.3 common rail diesel engines.
• For the use of injector puller KL-0186-14 EA with the above mentioned engines
