Especially suitable for ball joints on the pitman arm on Mercedes-Benz or Setra buses, e.g. MB Travego RHD L (O 580) and Setra S 417 UL. (Fork opening a=42 mm)

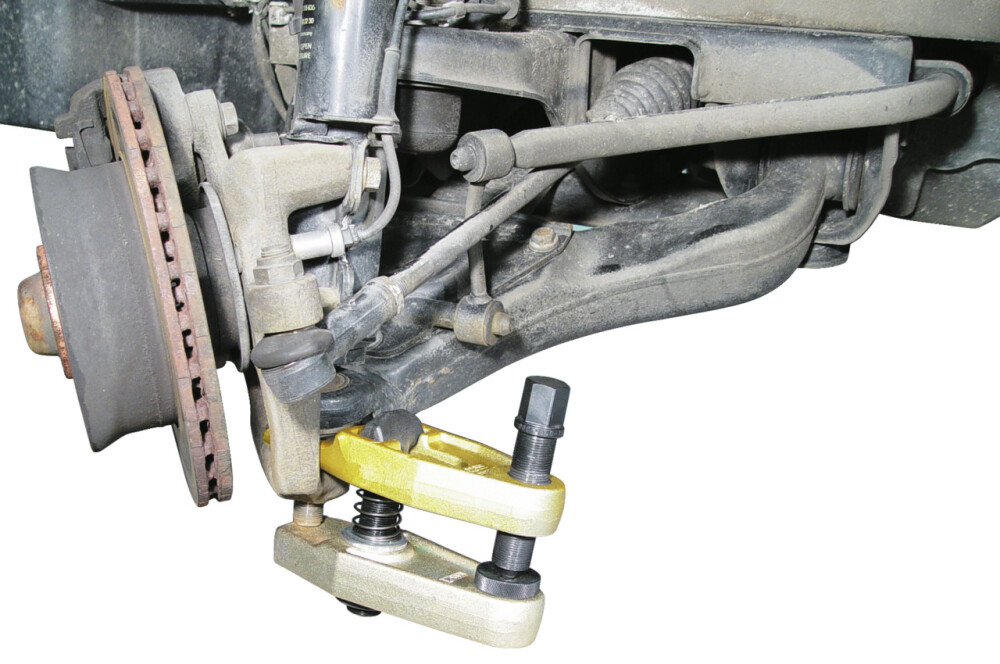

The KL-0165-36 ball joint extractor is the ideal tool for separating ball joint connections in suspension and steering systems.
Technical data
Spindle thread size
M24x1,5 x 135
Contents (Qty of pieces)
4
Size
Gr. 3
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Agriculture
Customs tariff number
82055980
suitable for vehicle model
MAN Bus A21
Total length
200 mm
Fork opening
40 mm
Width across flats
24 mm
Fork width
80 mm
Parts list (Text)
1x KL-0165-300 - Basic tool without fork (spindle M24x1.5)

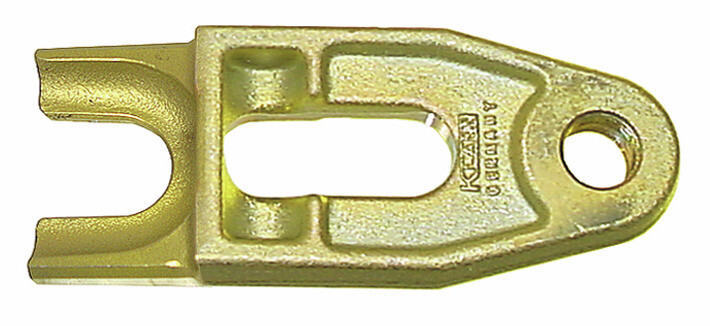

1x KL-0165-3601 - Fork - a=40 mm - e=80 mm - d=200 mm
Weight
5,6 kg
Short text
Suitable for the push-rod at the deflection lever of the front axle at MAN bus A21.
• For breaking ball joint connections on axle and steering systems
