Especially suitable for ball joints on the pitman arm on Mercedes-Benz or Setra buses, e.g. MB Travego RHD L (O 580) and Setra S 417 UL. (Fork opening a=42 mm)

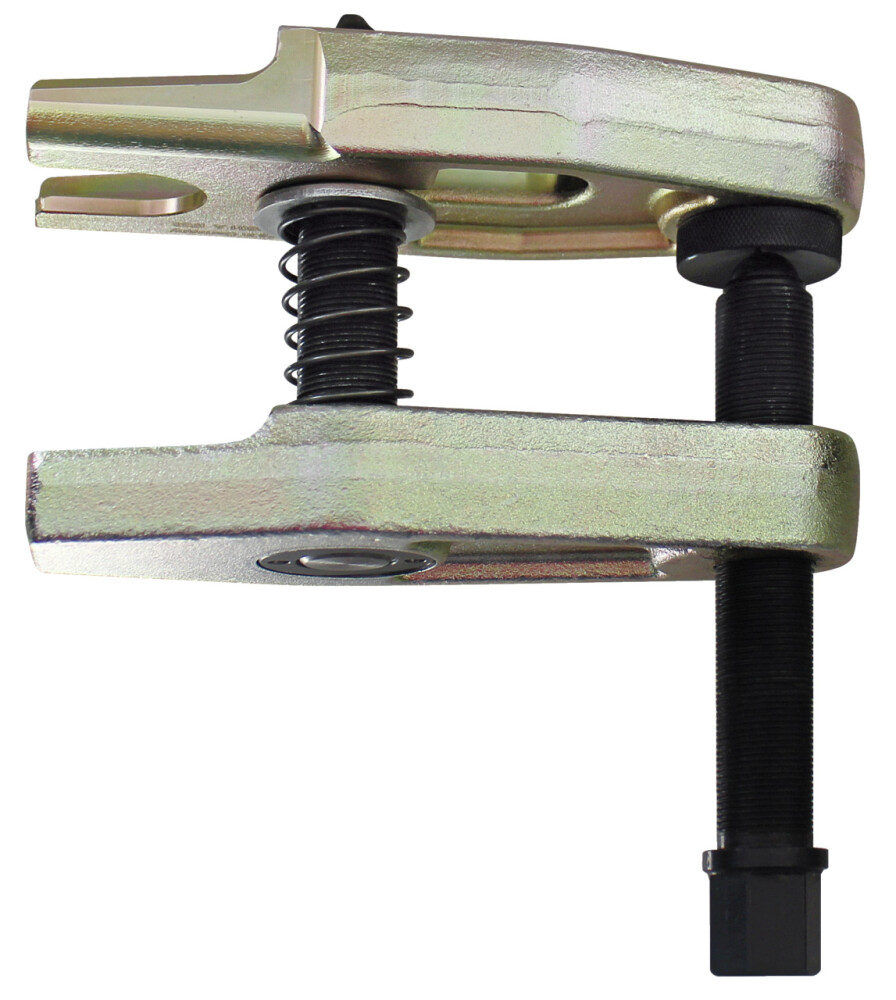

The KL-0165-37 ball joint extractor is the ideal tool for separating ball joint connections in axle/suspension and steering systems.
Technical data
Spindle thread size
M24x1,5 x 135
Contents (Qty of pieces)
4
Size
Gr. 3
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Agriculture
Customs tariff number
82055980
suitable for vehicle model
Mercedes Bus
Mercedes Travego (O 580)
Setra S 417 UL
Total length
200 mm

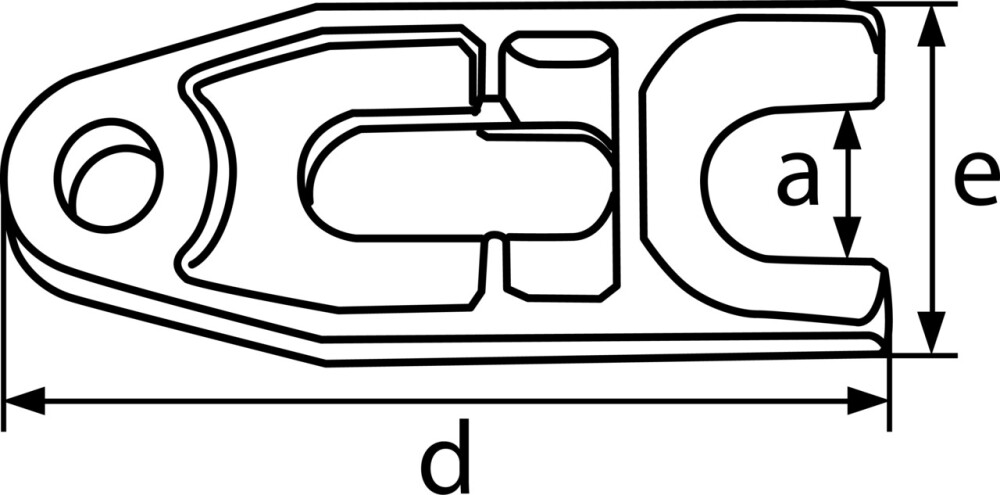

Fork opening
42 mm
Width across flats
24 mm
Fork width
80 mm
Weight
5,4 kg
Short text
Suitable for ball joints on the pitman arm on Mercedes-Benz or Setra buses, e.g. MB Travego RHD L (O 580) and Setra S 417 UL.

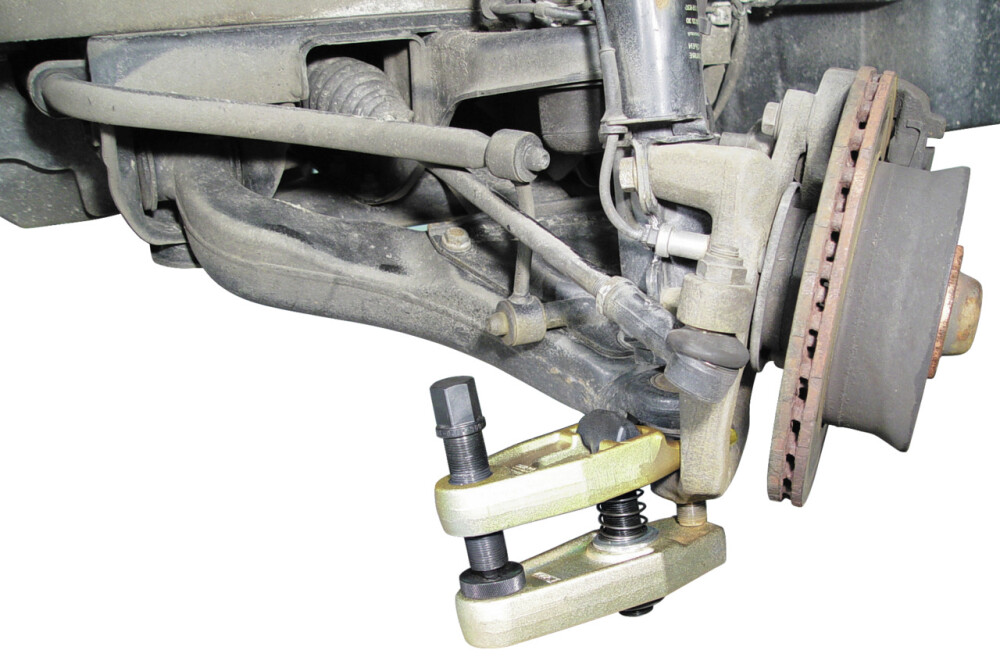

• For breaking ball joint connections on axle and steering systems
