Fits universally for vehicles with and without pilot / guide bearing in case of clutch discs with a hub diameter of 15 - 29 mm or a pilot / guide diameter of 12 - 16 mm.

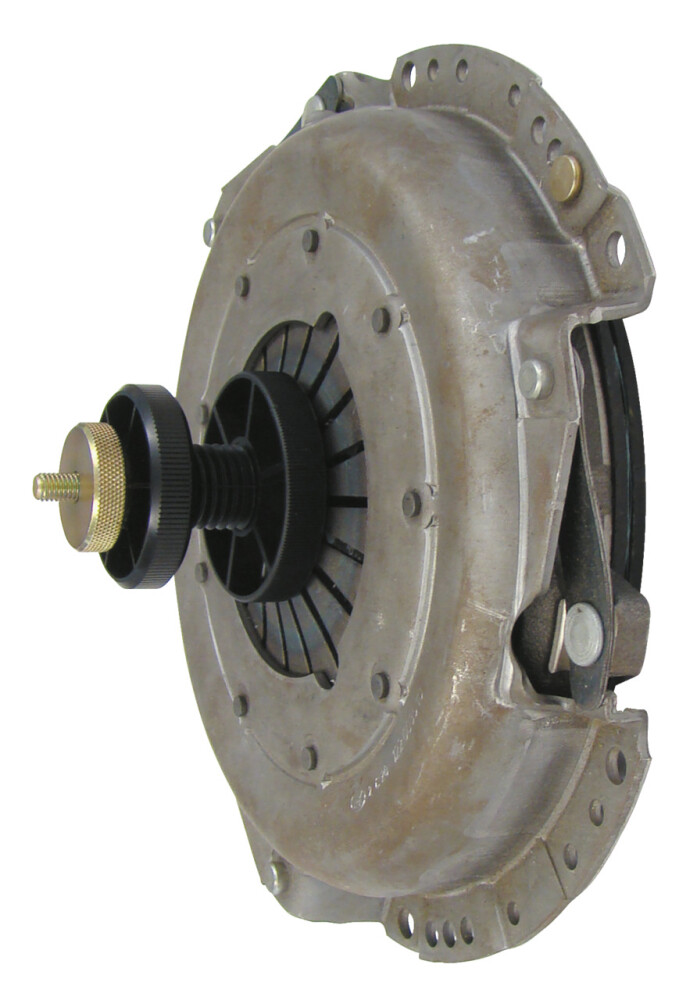

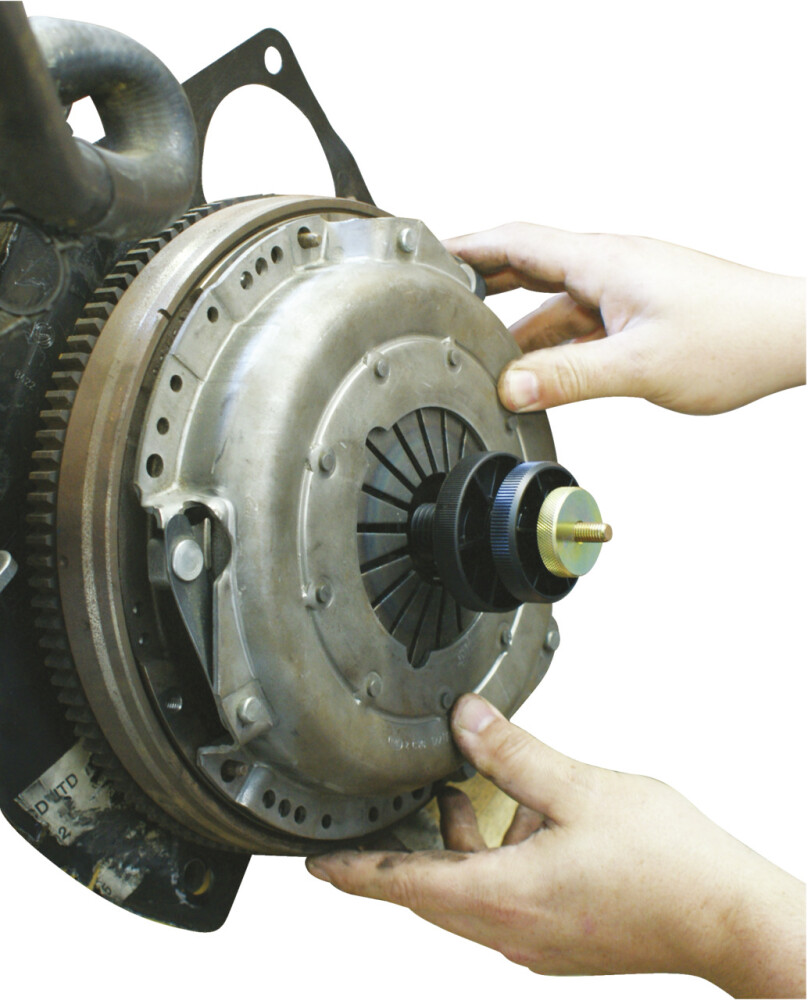

For the quick centric alignment of the clutch disc to the pressure plate, the flywheel respectively. The special design of the tool provides for the perfect centring of the clutch.
Technical data
Contents (Qty of pieces)
12
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Customs tariff number
82055980
Total depth
210 mm
Total width
255 mm
Total height
72 mm
Clamping range (max.)
29 mm
Clamping range (min.)
15 mm
Storage
in a case
Parts list (Text)

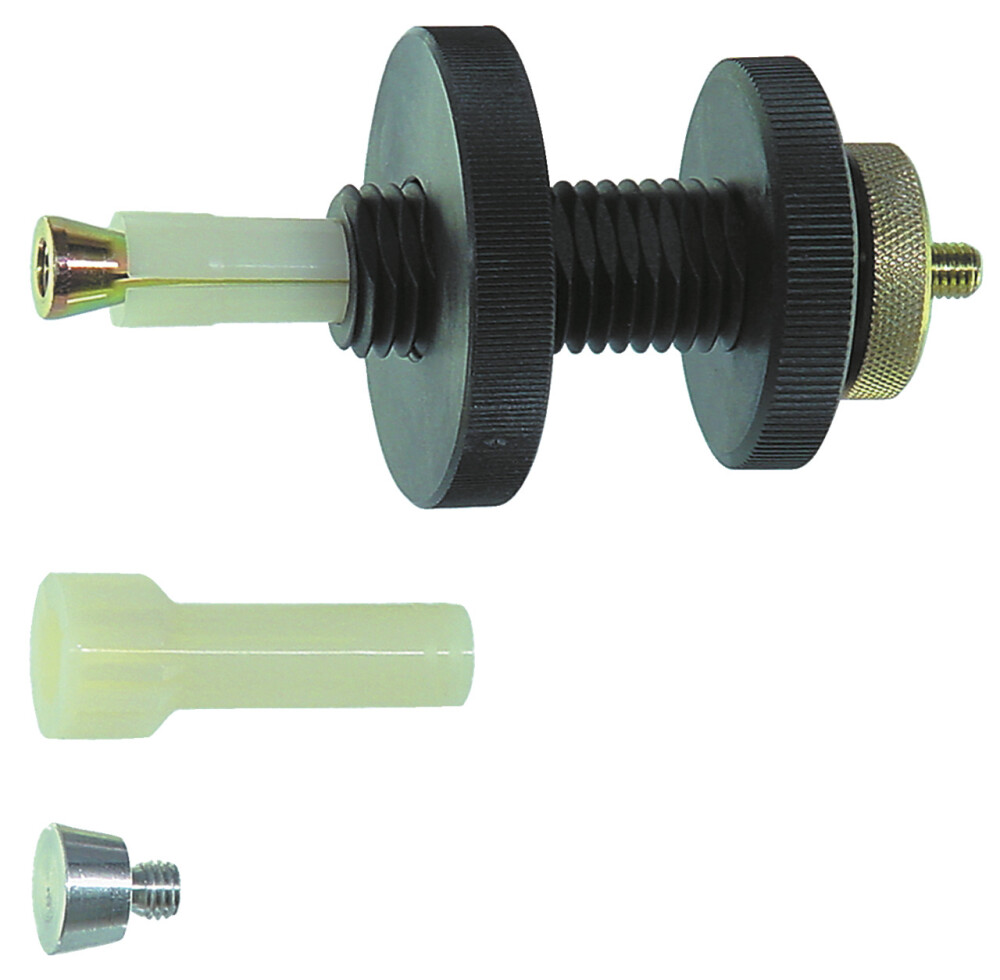

1x KL-0069 - Clutch centring tool

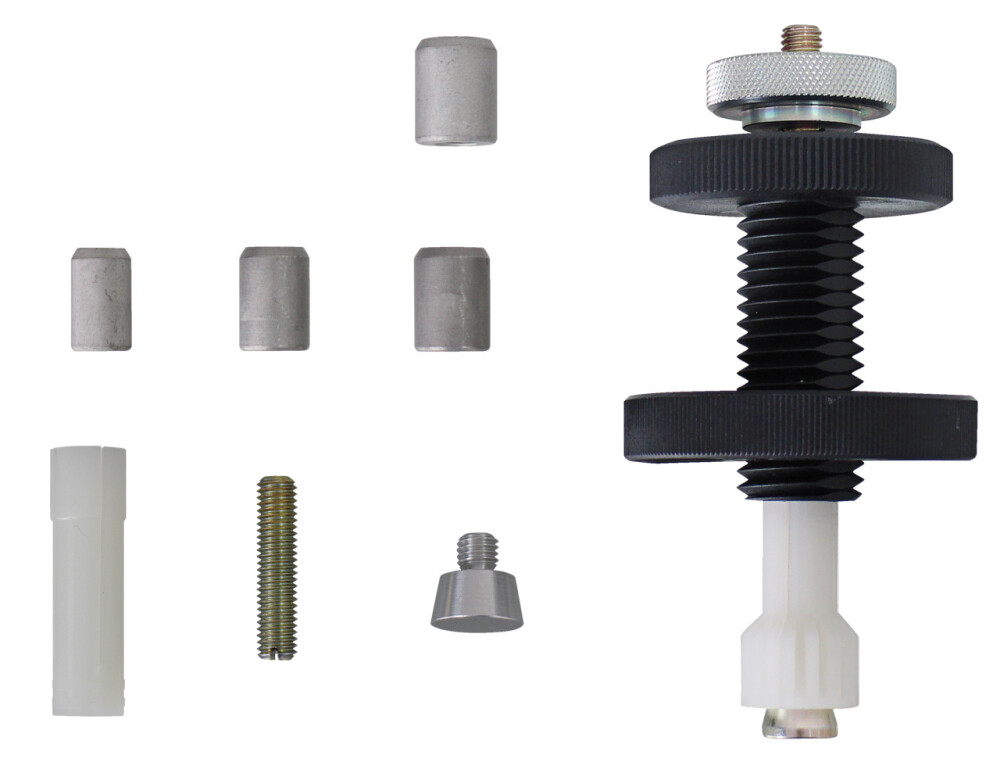

1x KL-0069-5010 A - Centring sleeve set

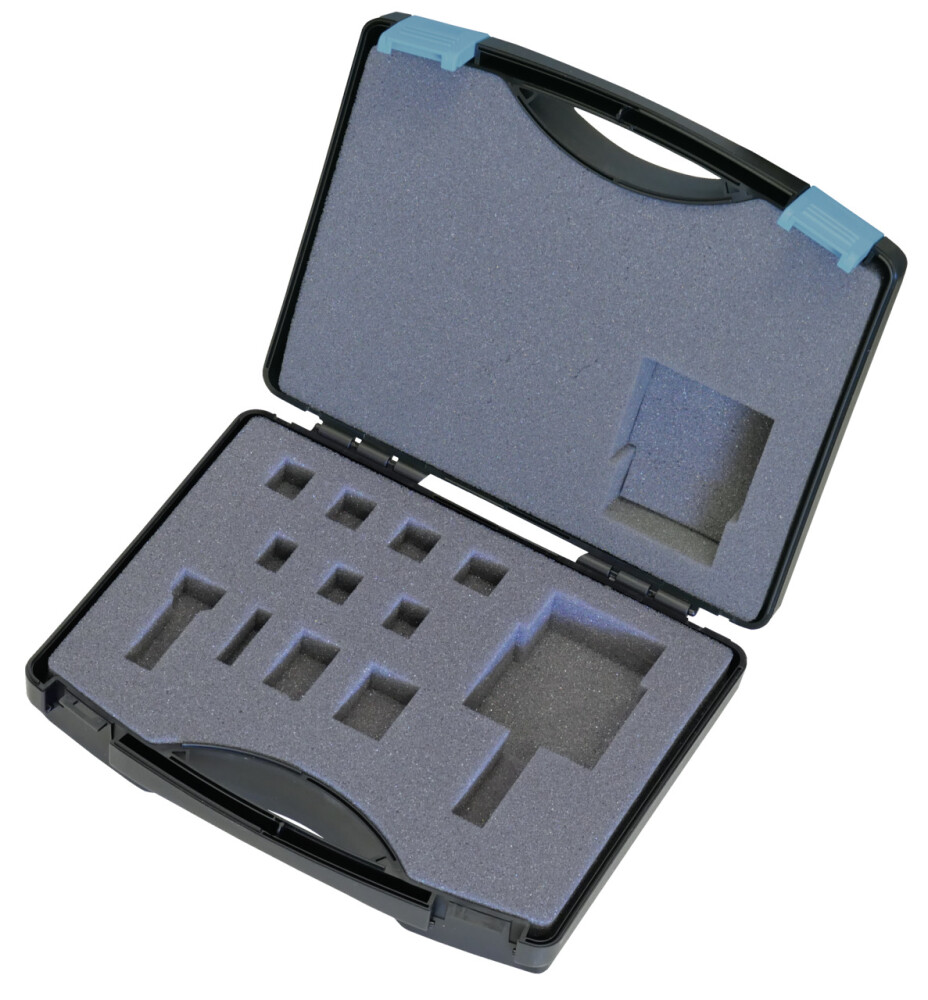

1x KL-0069-5030 - Plastic case
Short text
Fits with clutch discs with a hub diameter of 15 - 29 mm or a pilot / guide bearing diameter of 12 - 16 mm.
