Description

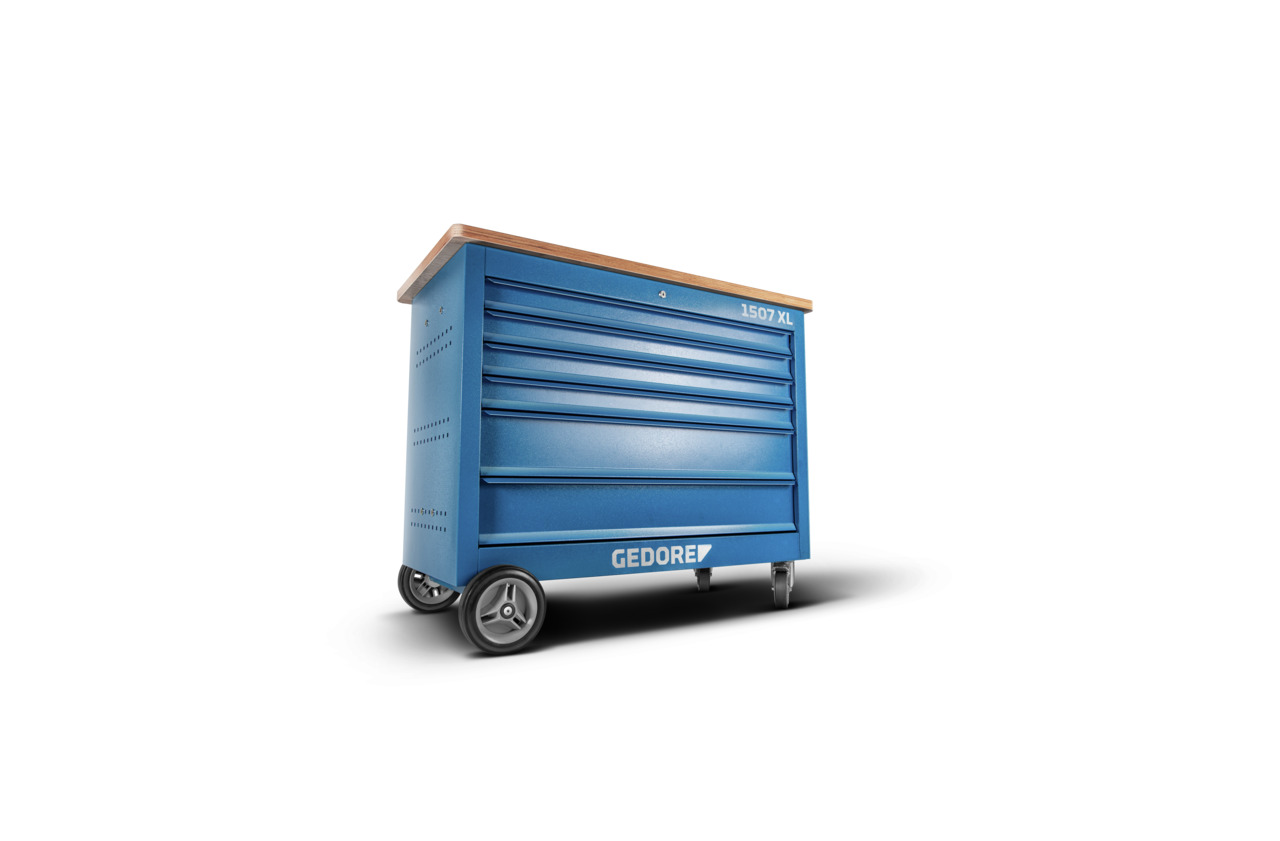

The robust MODULO tool/assembly trolley - KL-4999-121 A (GEDORE 1507 XL) with 5 extra-wide drawers as well as a 30 mm thick and solid beech multiplex worktop, combined for example with the universal glow plug, nozzle extractor, counterholding spanner and drive set inserts, offers a professional mobile workstation for professional and efficient maintenance on combustion engines directly on the vehicle.
The specially reinforced side wall on the tool/assembly trolley enables simple, quick, and reliable assembly of the stationary spring compressor - KL-5501 B , in conjunction with the MODULO fastening kit - KL-5501-211.
Body:
• Dimensions: H 985 x W 1200 x D 635 mm
• 30 mm thick multiplex laminated beech wood board, surface additionally protected by linseed oil varnish
• Worktop offset to the rear allows flush parking against the wall
• One drawer unit in trolley width
• Manoeuvrable and easy to steer with drive/steer handle
• Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools
• Sheet steel, corrosion and scratch-resistant, powder-coated, GEDORE blue
Drawers:
• Version with 5 drawers
• Central locking with cylinder clock
• Wide drawers (W 998 x D 474 mm) with full extension, removable
• Single pull-out stop prevents more than one drawer from being opened, one-hand operation
• Ball bearing guide rails with self-closing mechanism
• Load capacity per drawer 70 kg
• Sheet steel, corrosion and scratch-resistant, powder-coated, GEDORE blue
GEDORE High-performance chassis:
• Total load capacity 1000 kg, in mobile operation 750 kg
• 2 GEDORE heavy-duty wheels with roller bearings (fixed castors, 200 mm)
• 2 GEDORE easy-running wheels with ball bearings (swivel castors, 125 mm), both with total brake each
• The GEDORE trapezoidal axle design ensures even at maximum load: smooth running, manoeuvrability, and directional stability
Options:
• Can be optionally fitted with GEDORE tool modules (1500 ES/1500 CT), a max. of nine 1/3 modules are possible per drawer
• Further drawer versions upon request
• Special colours and designs on request
• Delivery without tools and accessories
