Description

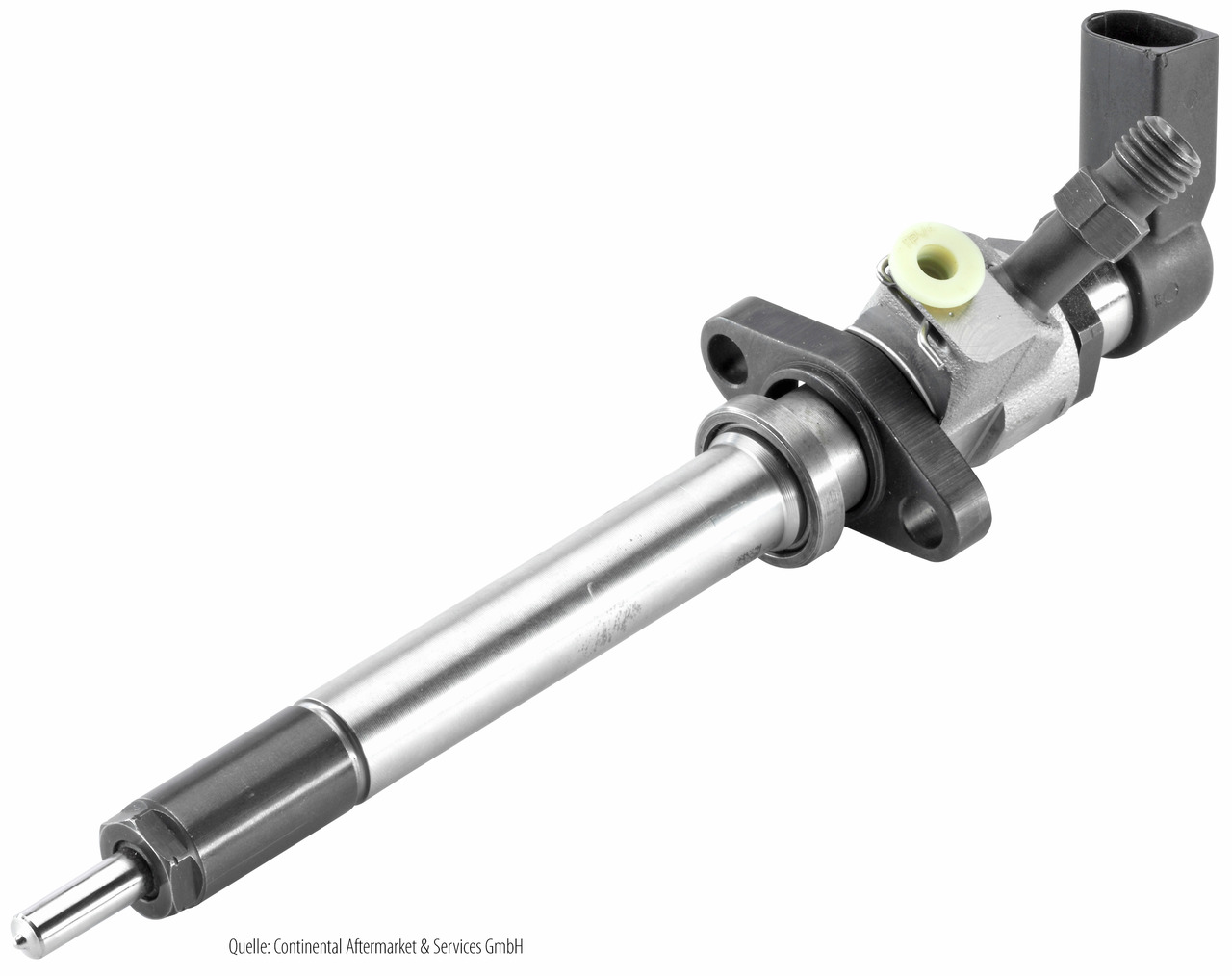

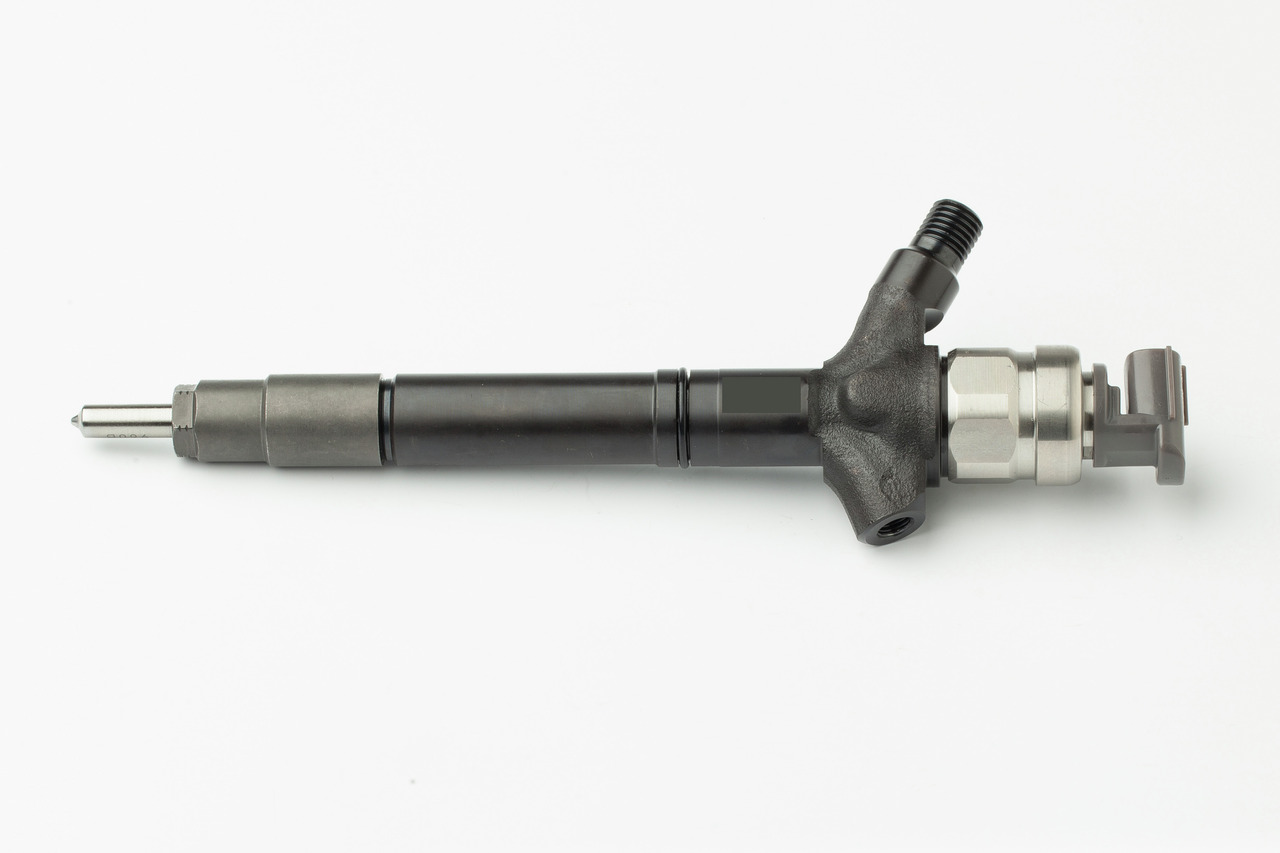

Fits universally for Denso injectors with a fuel connection with external thread M12x1.5 / 30° as well as for Bosch and Siemens/VDO injectors with a removable fuel connection with an internal thread M12x1 / 45°. For example, installed on VW-Audi, Seat, Škoda, BMW, Mercedes, Chrysler, Chevrolet, Citroën, Fiat, Hyundai, Iveco, Lancia, Opel, PSA, Peugeot, Renault, Saab, Suzuki, Toyota.

Especially suitable for VW-Audi, Seat, Škoda; BMW; Mercedes and PSA.

For quick and professional extraction of tight-fitting injectors.
Required, for example, when replacing the injectors or removing the valve cover.

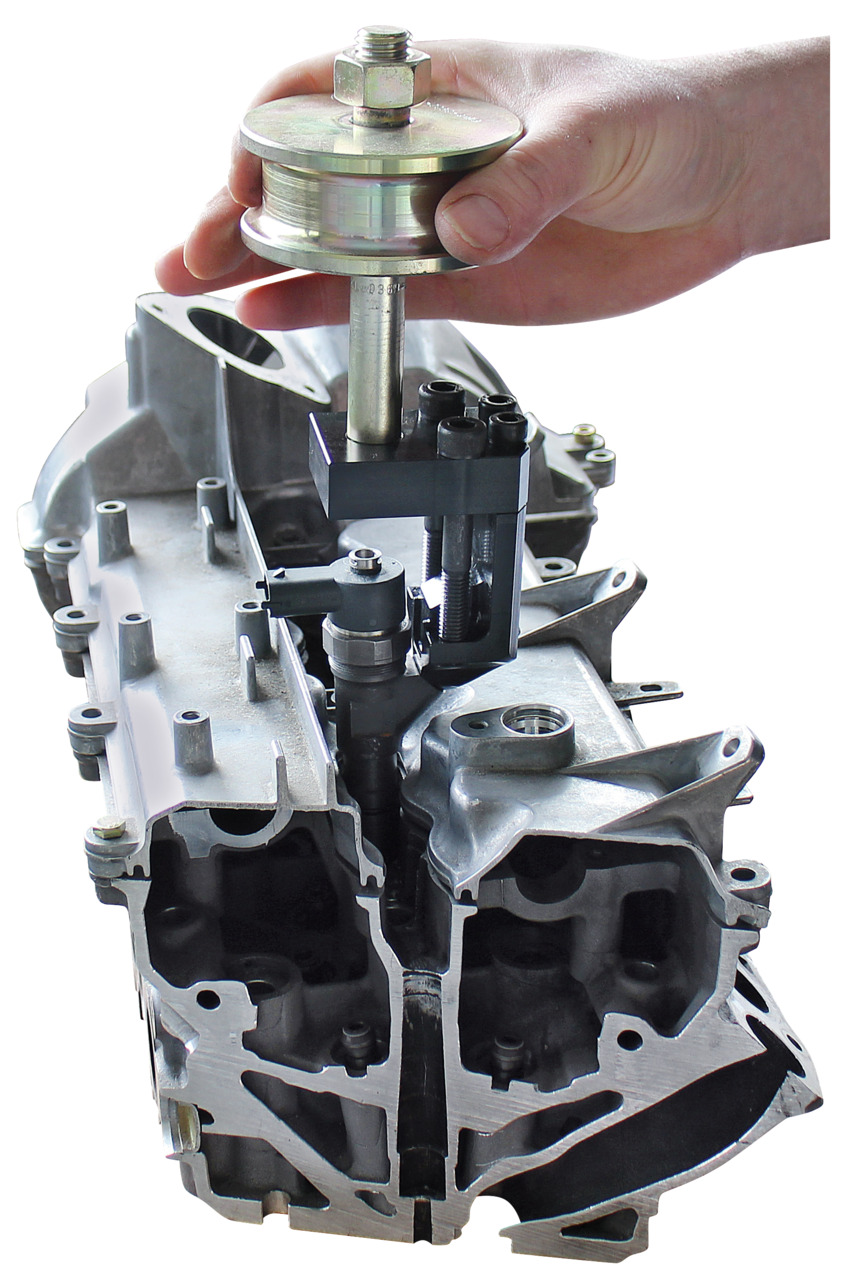

It is not necessary to open the injector for this purpose, as the injector extractor is fastened over the fuel connection by means of the special screws included in the set.
The special design of the adapters and the joint piece included in the scope of delivery ensure damage-free and straight-line power transmission to the injector.

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Drive type

manual

Required accessories

KL-0369-4100 (1.5 kg) or KL-0049-300 (4.8 kg) - Impact extractor

for internal thread

M12x1

for external thread

M12x1,5

for injectors from

Bosch

Denso

Continental

Siemens/VDO

for motor type

Diesel

Customs tariff number

82055980

suitable for vehicle component

Denso-Injektoren

Bosch-Injektoren

Continental-Injektoren

VDO-Injektoren

Siemens-Injektoren

Angle

30° / 45°

Total depth

159 mm

Total width

243 mm

Total height

53 mm

Storage

in a foam insert

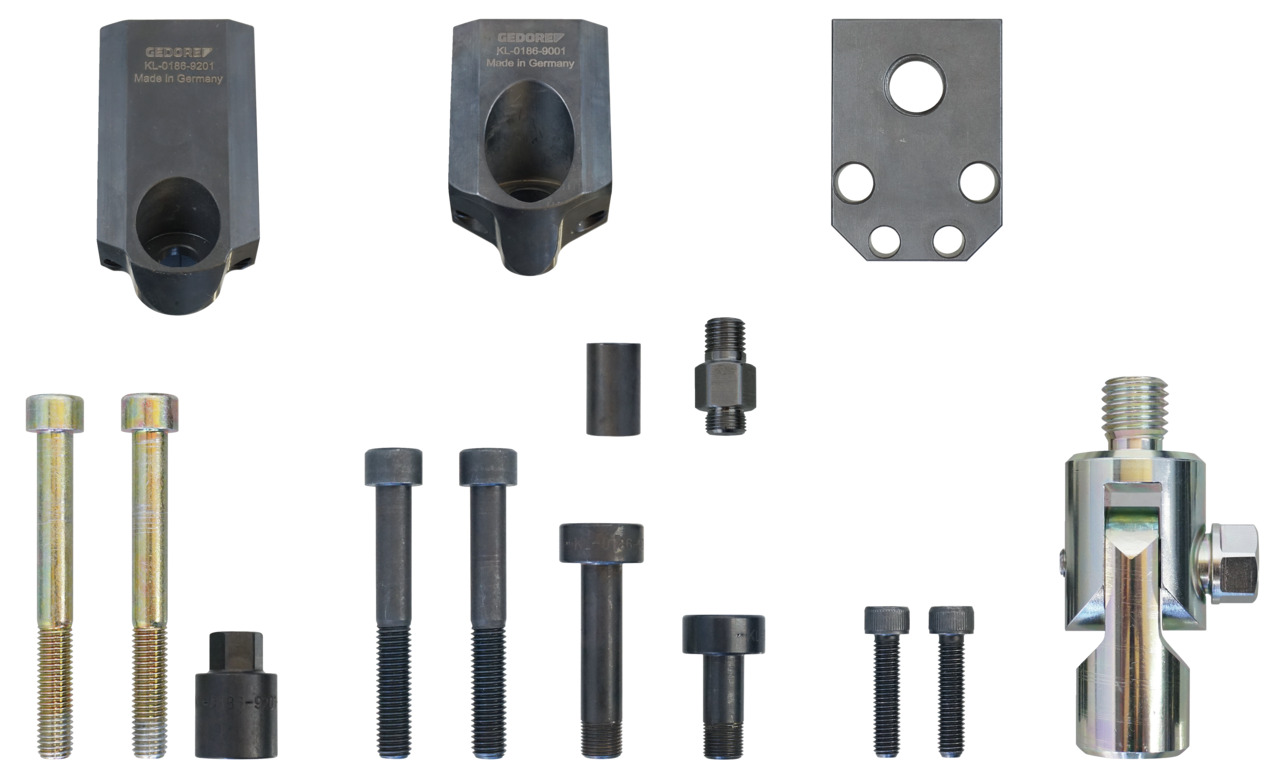

Parts list (Text)

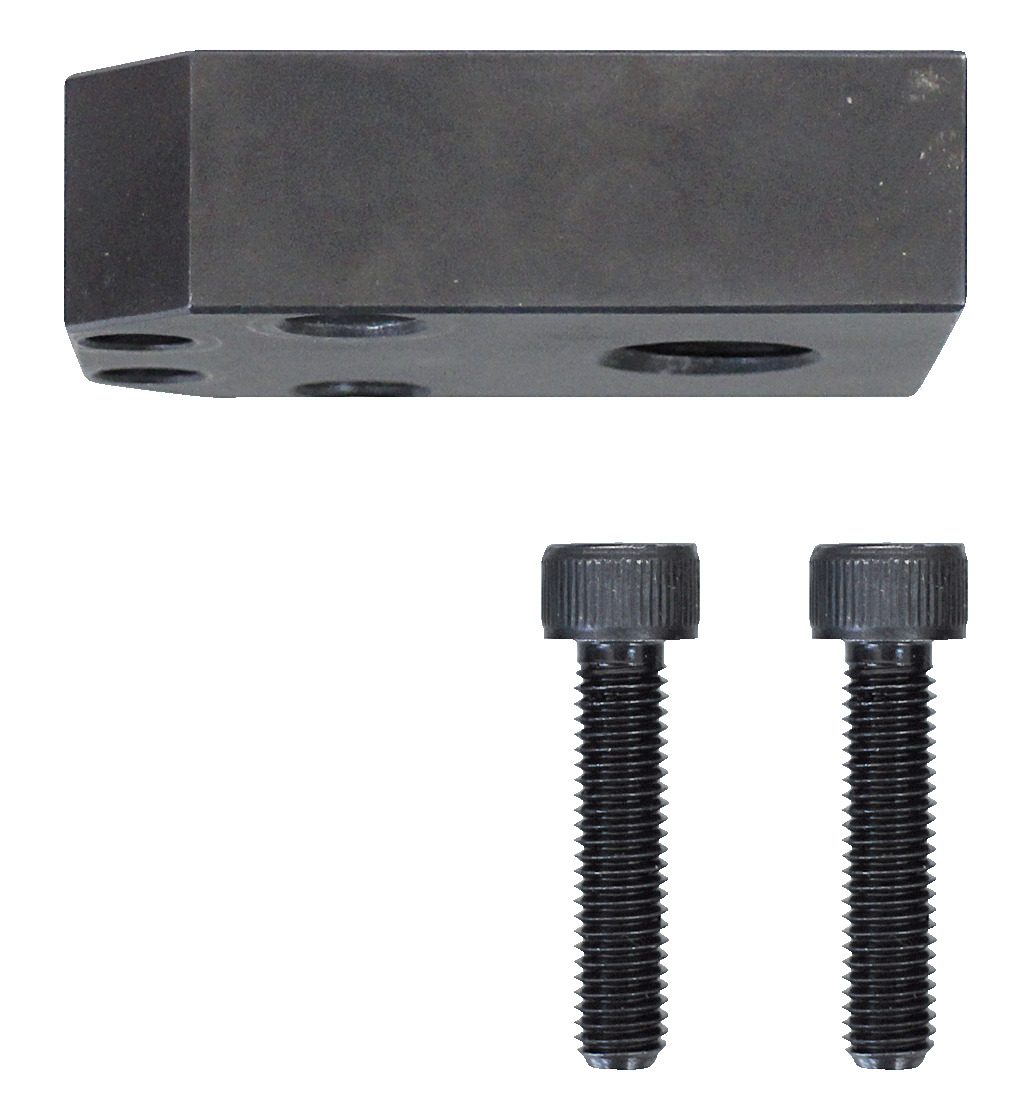

1x KL-0186-9000 A - Head plate with cylinder screws

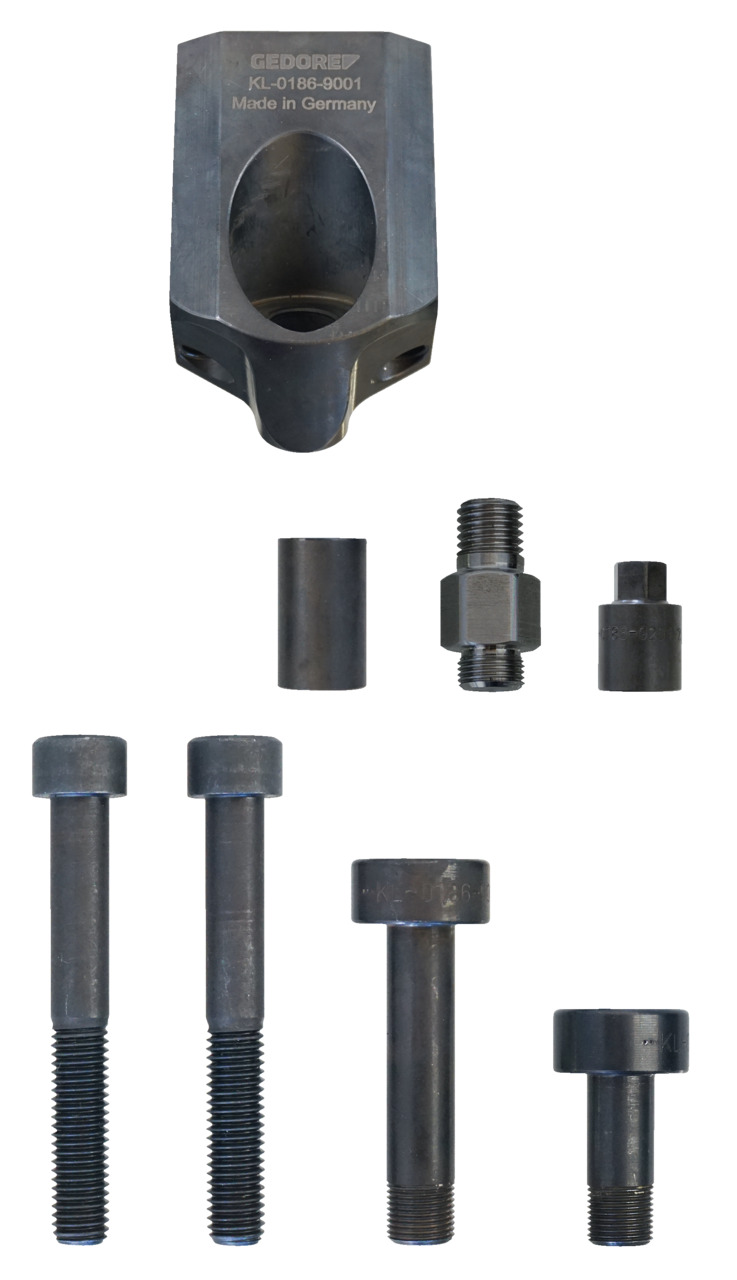

1x KL-0186-9001 A - Injector extractor M12x1 / 45°

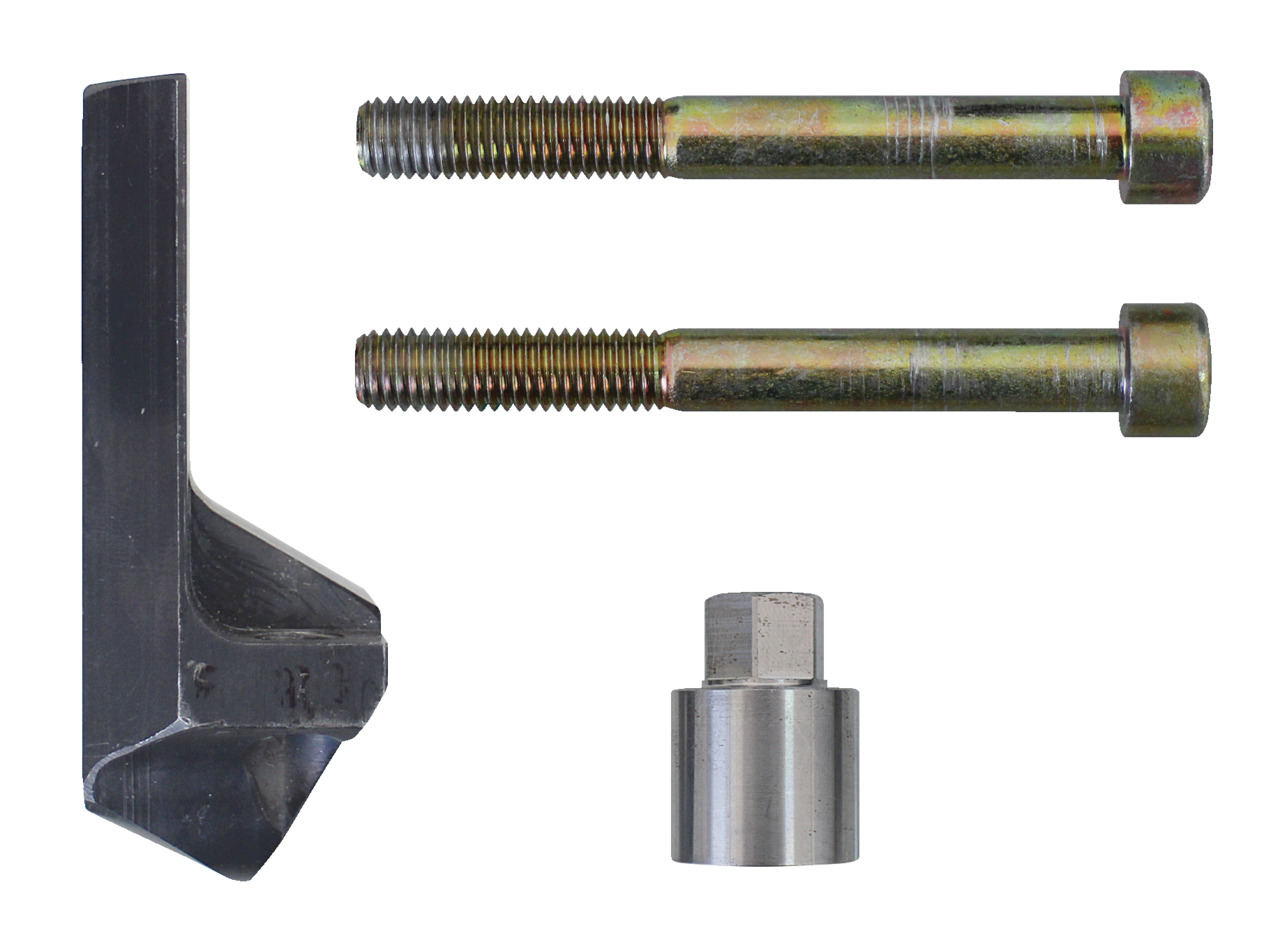

1x KL-0186-9201 A - Injector extractor M12x1,5 / 30°

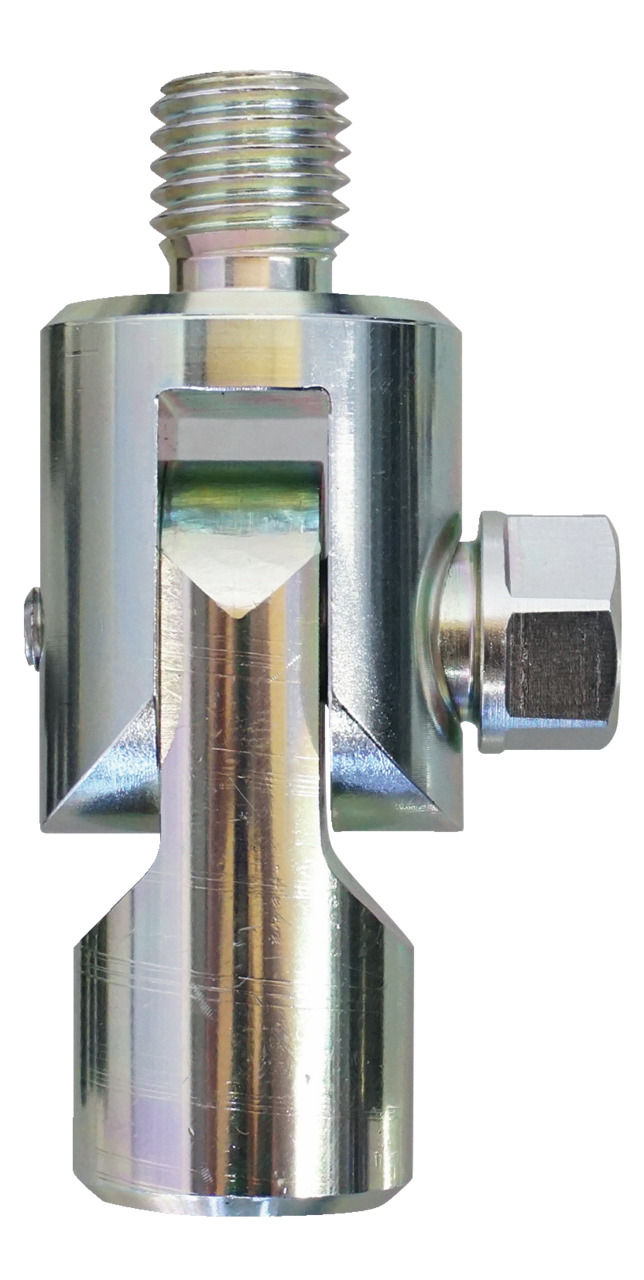

1x KL-0186-950 - Pull joint M18

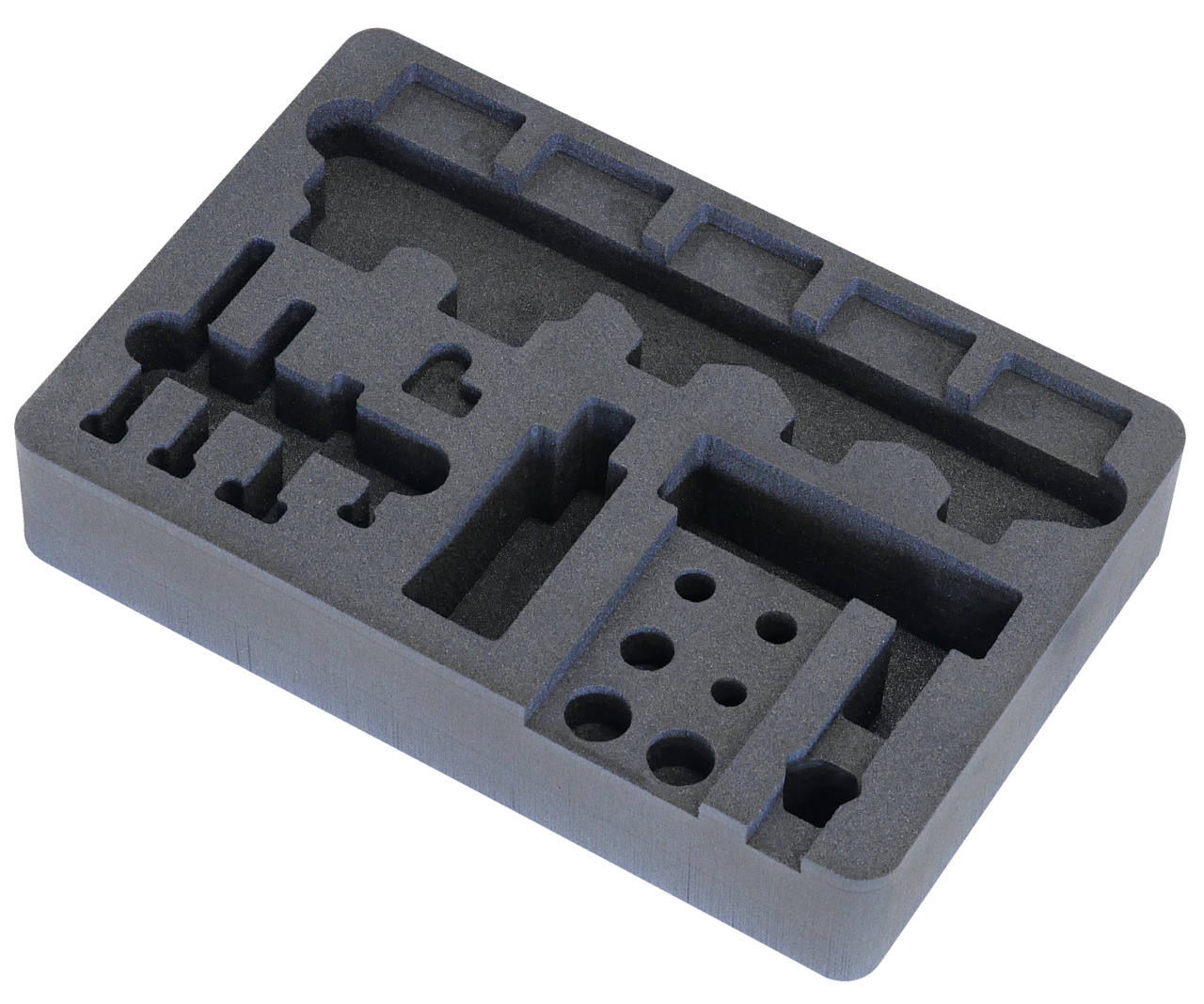

1x KL-0186-9090-2 A - Foam insert

Weight

2,6 kg

Short text

Universally suitable for Denso, Bosch and Siemens/VDO injectors with a fuel connection external thread of M12x1.5 / 30° or M12x1 / 45° internal thread.

Installed in many common car engines.

• Quick and professional extraction of stuck injectors

• No need to open the injector

• Due to the joint a straight line power transmission is possible

Motorcodes

VW-Audi: CFHA, CFJA, CFFB, CAYC.
BMW: M47, M57.
Mercedes: OM611, OM612, OM613, OM646, OM647, OM648.
PSA: DW10.

Predecessor article

KL-0186-91 K

3133362

to be used as (OEM)

T10402

T10415

EAN

4046459174097

Manual - Manual -

Injector Nozzle Puller Set, in a Foam InsertKL-0186-91 EA

3283992

Description

KL-0369-4100 Slide Hammer Puller (1.5kg)

KL-0049-300 Slide Hammer Puller (4.8kg)

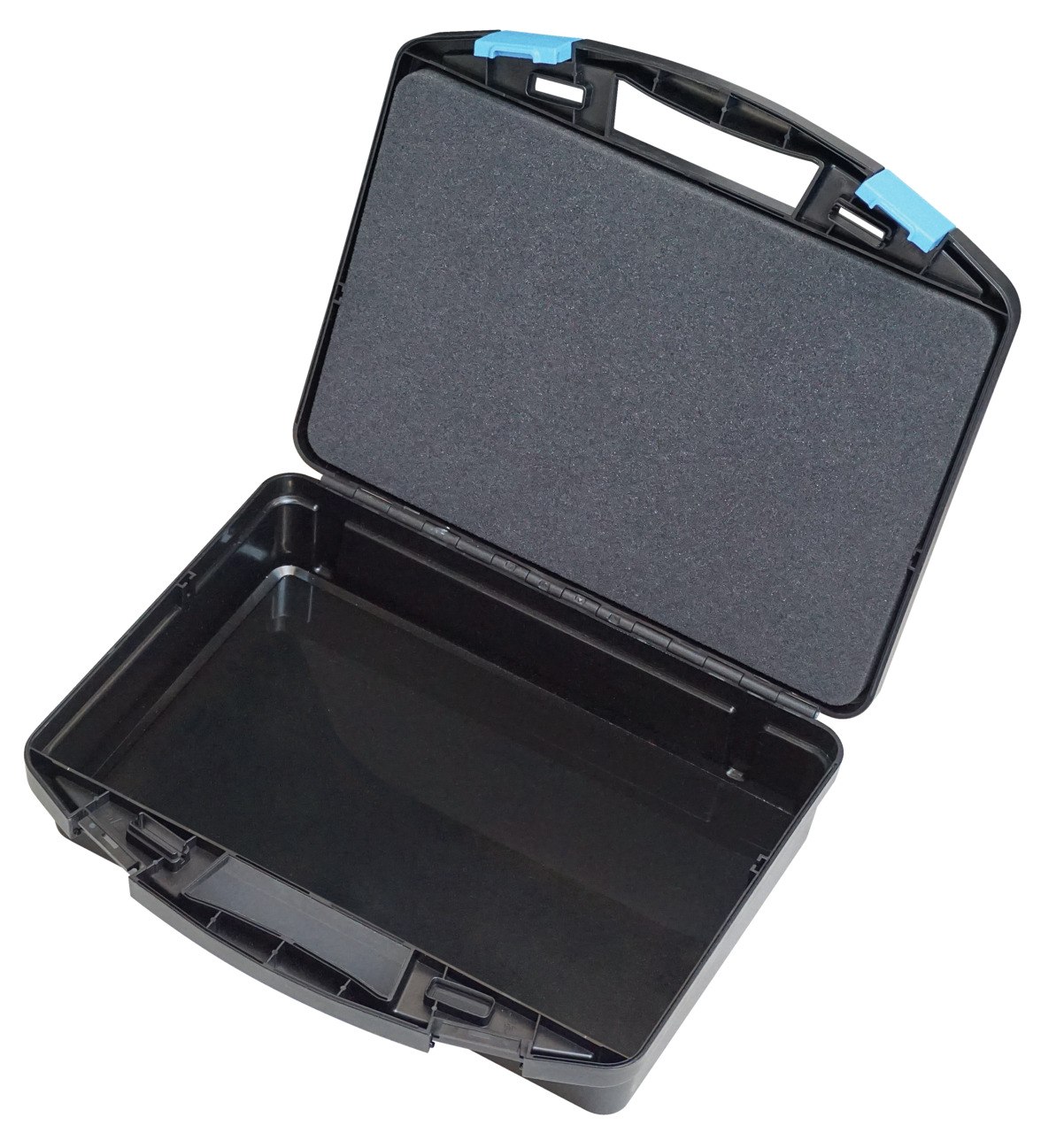

KL-4990-9324 Plastic Storage Case (empty)

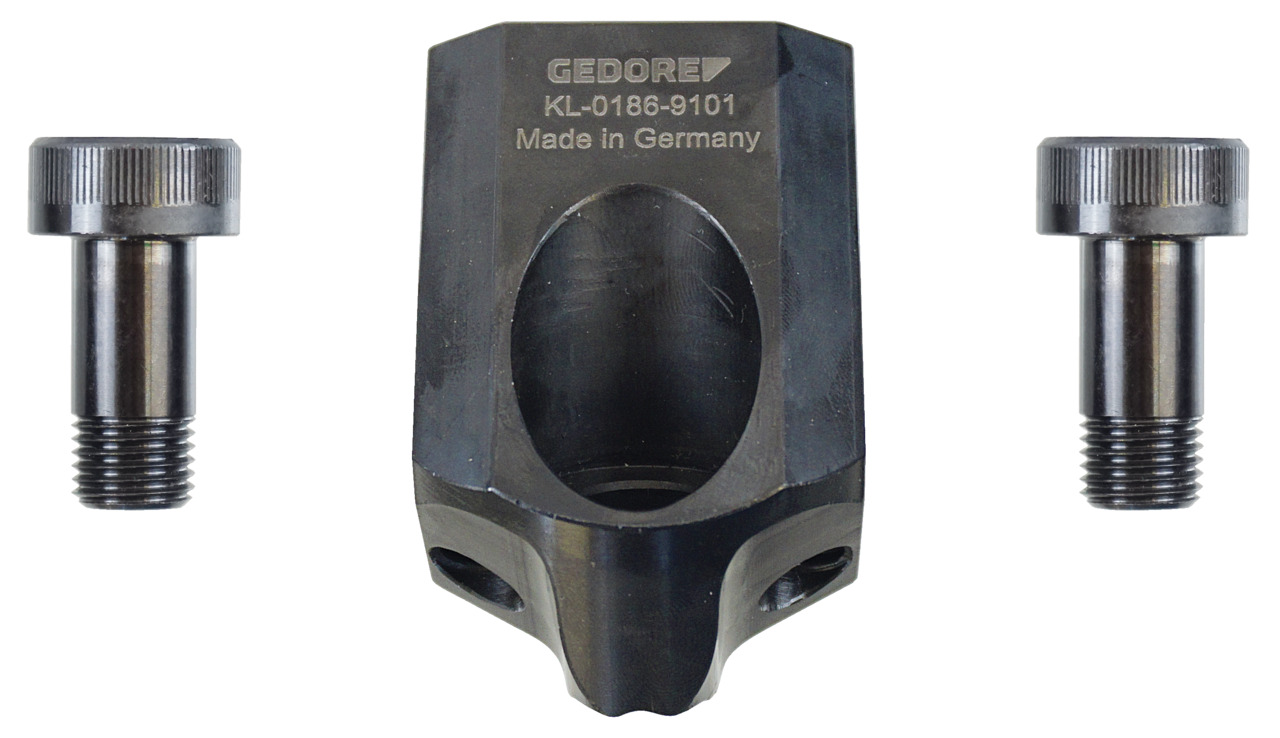

KL-0186-9101 A Upgrade Kit, M14, 45°

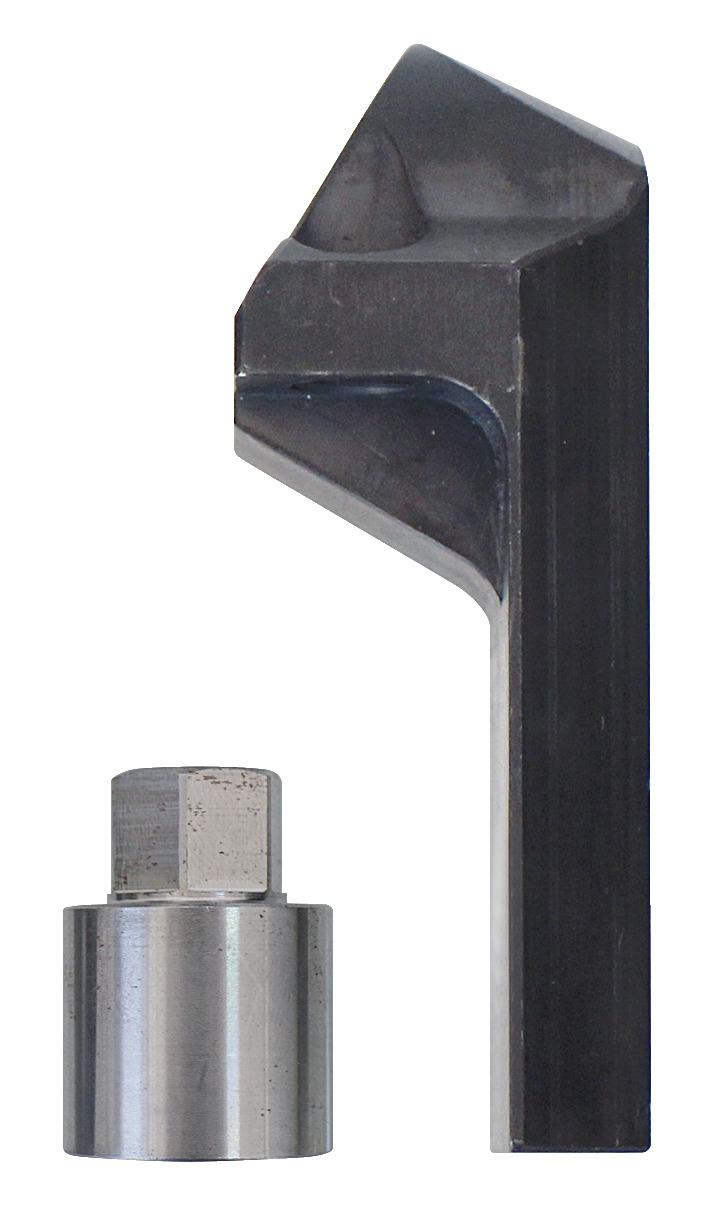

KL-0186-9301 Upgrade Kit, Denso M14x1.5

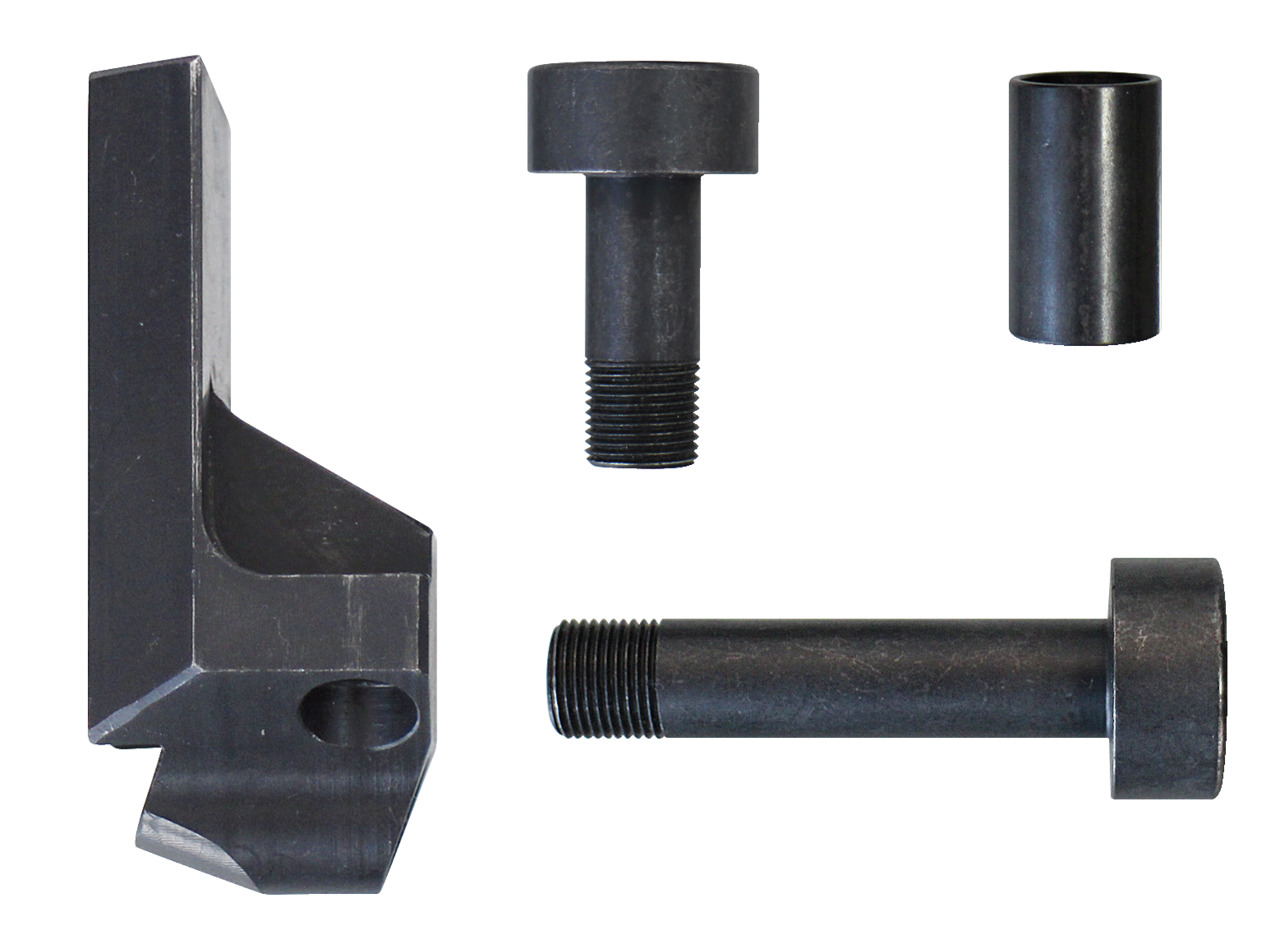

KL-0186-9401 Upgrade Kit, M12x1, 20°

Technical data

KL-0186-950 Pull joint, M18

KL-0186-9000 A Head Plate with Cylinder screwn

KL-0186-9001 A Upgrade Kit, M12x1, 45°

KL-0186-9201 A Upgrade Kit, M12x1,5, 30°

KL-0186-9090-2 A Foam Insert

KL-0186-80 K Pneumatic Injector Nozzle Puller, in a patented protective housing

KL-0186-14 KB Injector Nozzle Puller Set, Universal

KL-0121-75 Set of Vacuum Line Plugs, 48-pc

KL-0369-59 Puller for Sealing Ring

KL-0187-100 E Injector Extractor Kit for Direct Injection Petrol Engines

KL-0187-101 Injector Repair Kit for Direct Injection Petrol Engines

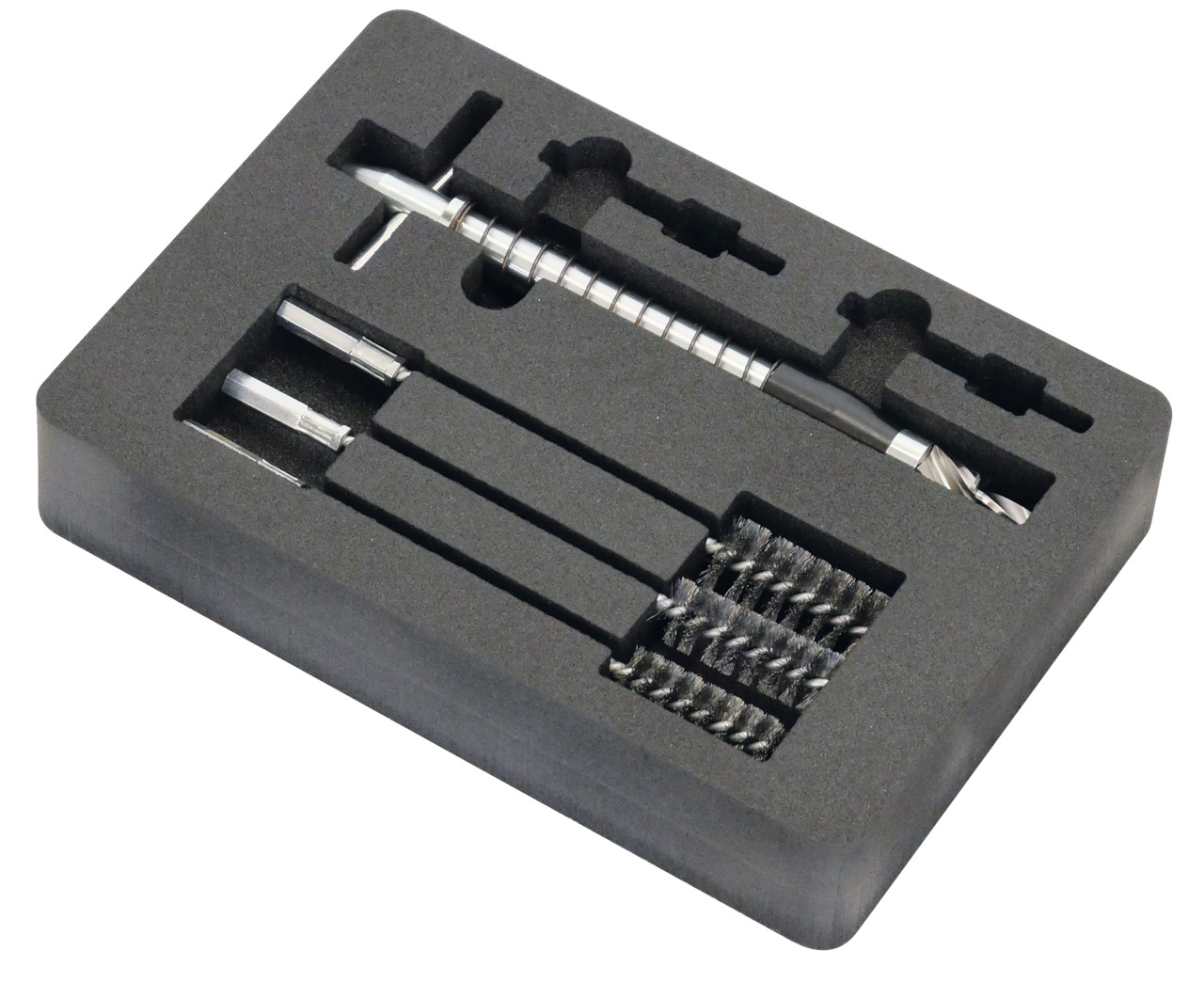

KL-0186-54 E Injector Bore Cleaning Kit
