Hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump KL-0039-1920-1 - Draw spindle KL-0039-2120-2 - Quick-clamping nut KL-0039-1003 - Mounting adapter

KL-1010-1010 - Drive sleeve set hydraulic drive (28 t): KL-0040-2800 - Hydraulic cylinder 28 t KL-0215-35 M28 - Hydraulic pump, KL-0040-2846-1 - Pull spindle, KL-0039-2120-2 - Quick-clamping nut KL-0039-1003 - Mounting adapter KL-1010-1010 - Drive sleeve set

Mercedes Actros

Mercedes Antos

Mercedes Arocs

Mercedes Axor I

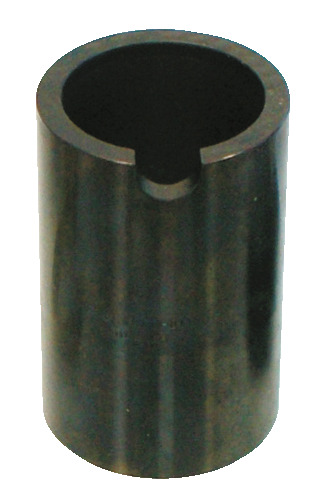

1x KL-1010-1401 - Conical sleeve 65 mm dia.

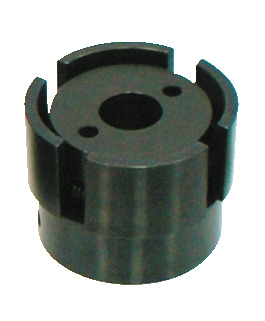

1x KL-1010-1402 A - Resilient thrust piece

1x KL-1010-1406 - Thrust piece, removal diameter of 65 mm

Works with slotted and closed silent blocks with an outside diameter of 65 mm (removed: 70 mm).

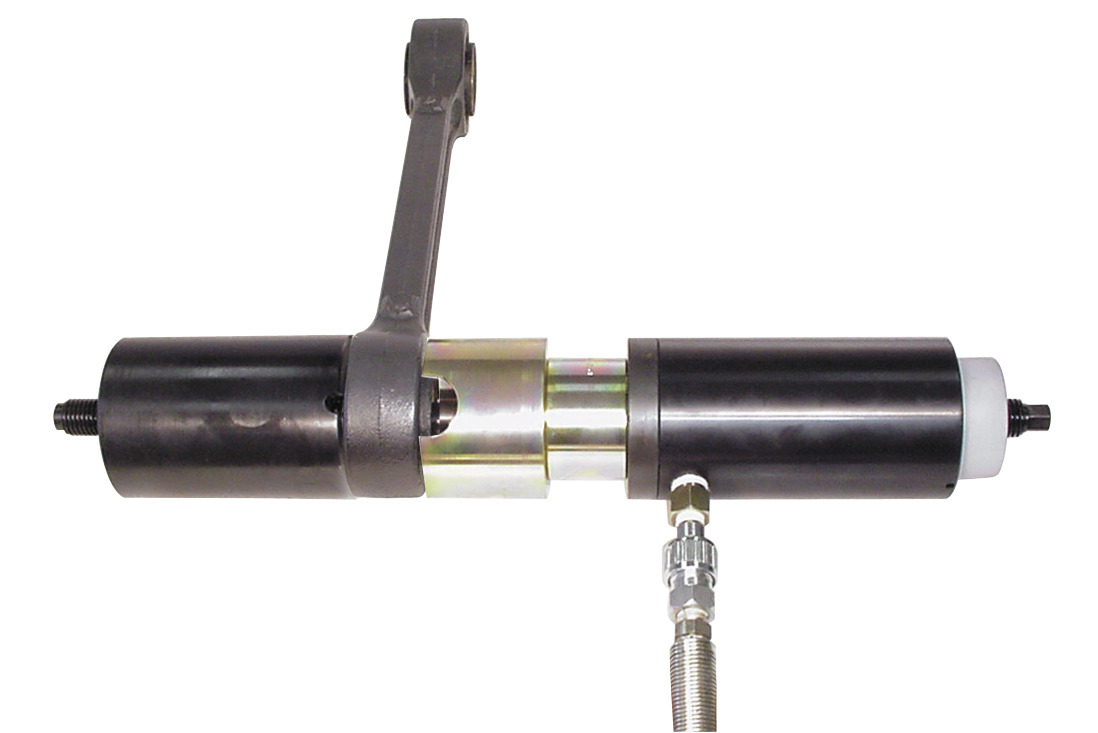

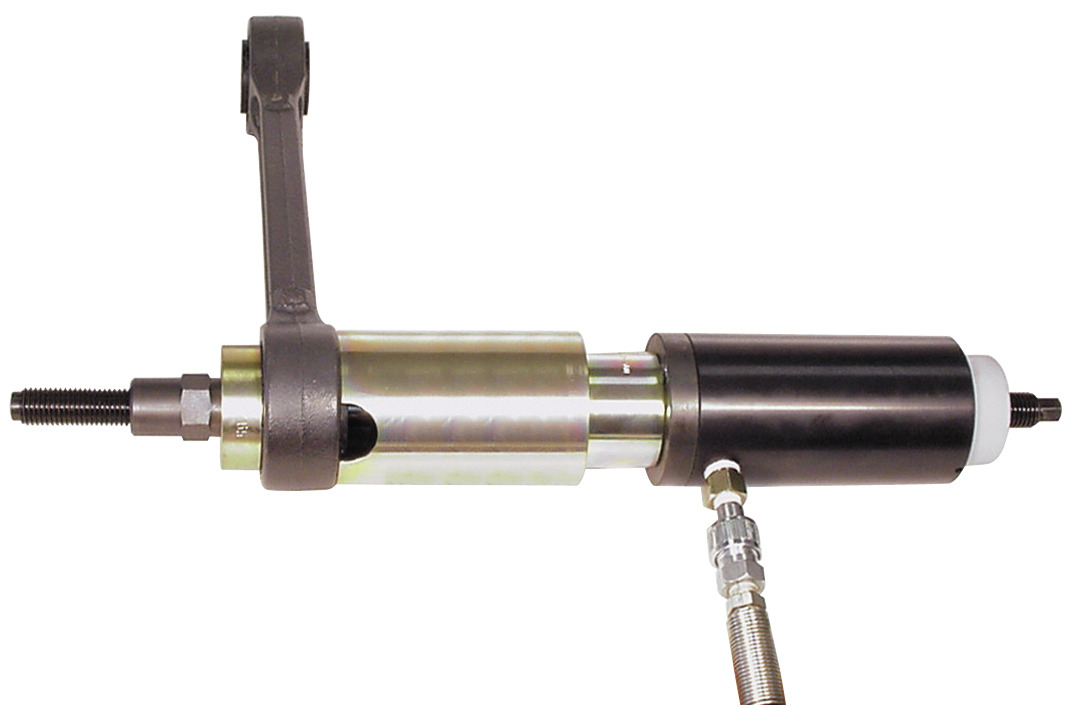

• For leaf springs, silent blocks, bearing brackets, etc.

• For a professional removal and installation directly on the vehicle

• Additional drive parts required!

Mercedes: A 000 323 74 85; A 000 323 75 85; A 000 323 79 85; A 375 323 05 85; A 960 323 10 85; A 960 323 34 85; A 960 323 37 85; A 960 323 51 85

KL-1010-140 A
