Description

Fits universally in combination with the vehicle-specific supplementary kit, for VW-Audi, Seat, Škoda, Renault and Ford passenger cars with dry double clutch systems, e.g. VW-Audi of the 1st generation 0AM (until 5/2011), second generation 0AM (from 6/2011); Renault DC4 and Ford DPS6, etc.

For a professional maintenance on double clutch systems, special tools are absolutely required, in order to avoid costly damage in advance.
The double clutch base tool set KL-0500-80 KA enables a professional maintenance of all currently available LuK* double clutch systems (dry clutch version), when used in combination with the vehicle-specific supplementary kits.
The modular and future-oriented construction of the double clutch basic tool kit KL-0500-80 KA can be also extended for future double clutch systems due to the vehicle-specific supplementary kits.
*LuK, an enterprise of the Schaeffler Group, is an internationally famous automotive supplier for clutch and gearbox systems, converters and dampers.

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Required accessories

KL-0500-81 KA - Double clutch supplement for VW-Audi

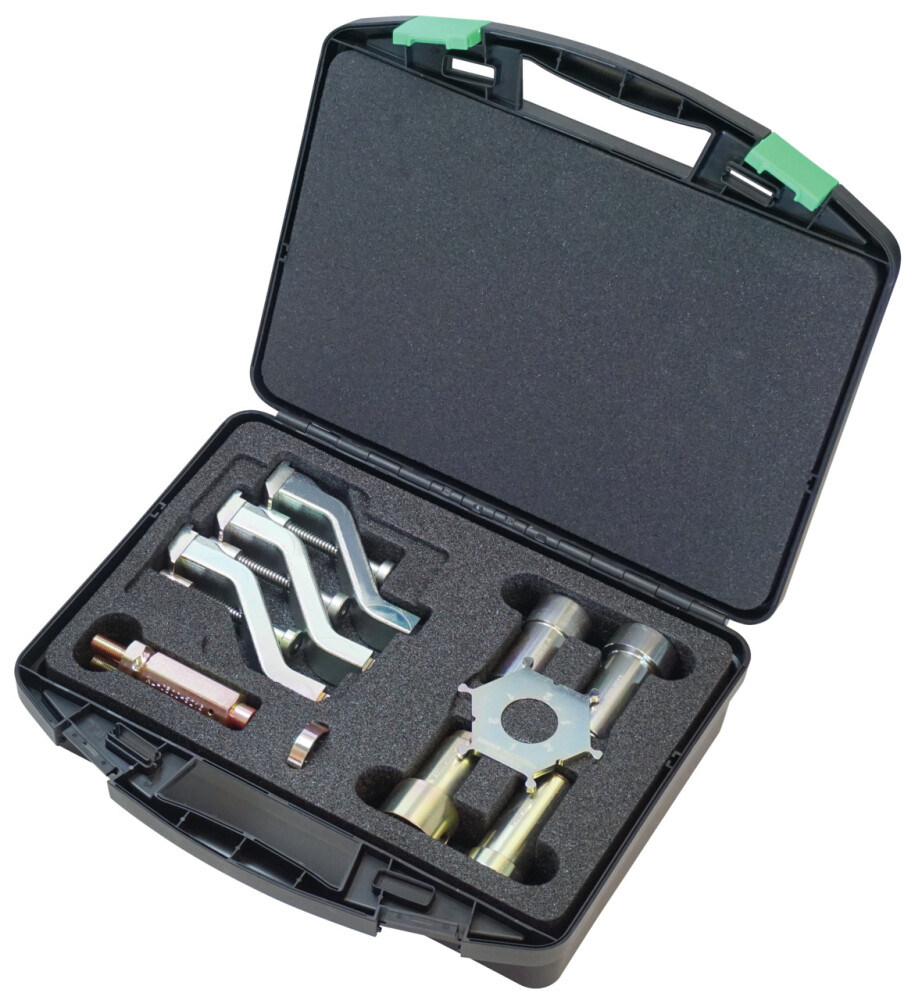

KL-0500-82 KA - Double clutch supplement for Renault

KL-0500-83 KA - Double clutch supplement for Ford

Customs tariff number

82055980

suitable for vehicle component

Doppelkupplungsgetriebe

Ford Doppelkupplungsgetriebe (DPS6)

Renault DC4-Getriebe

VW-Audi Doppelkupplungsgetriebe DSG (0AM)

Total depth

402 mm

Total width

494 mm

Total height

156 mm

Storage

in a case

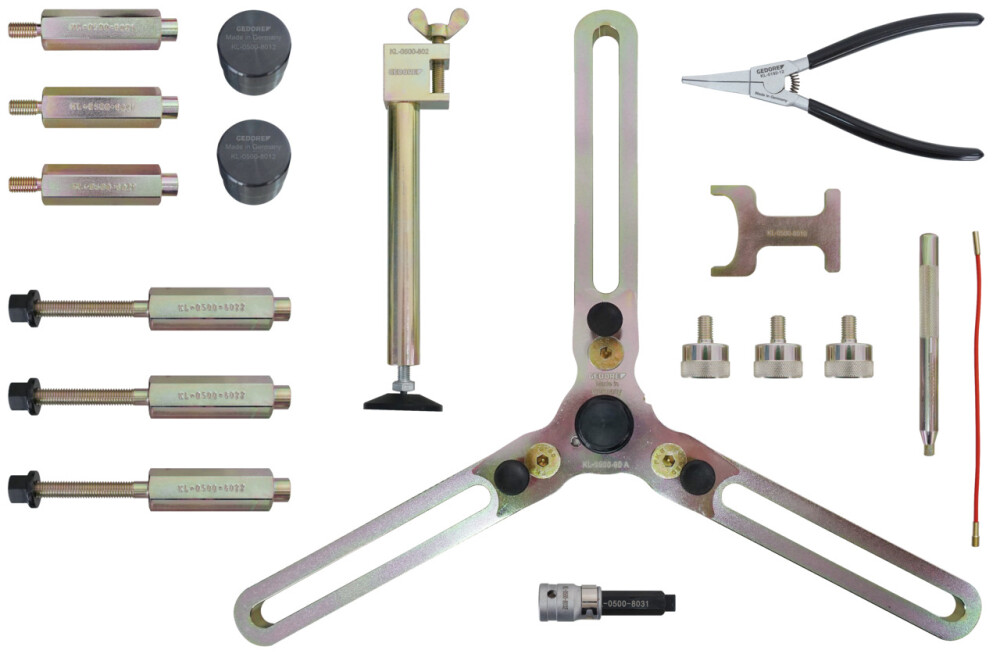

Parts list (Text)

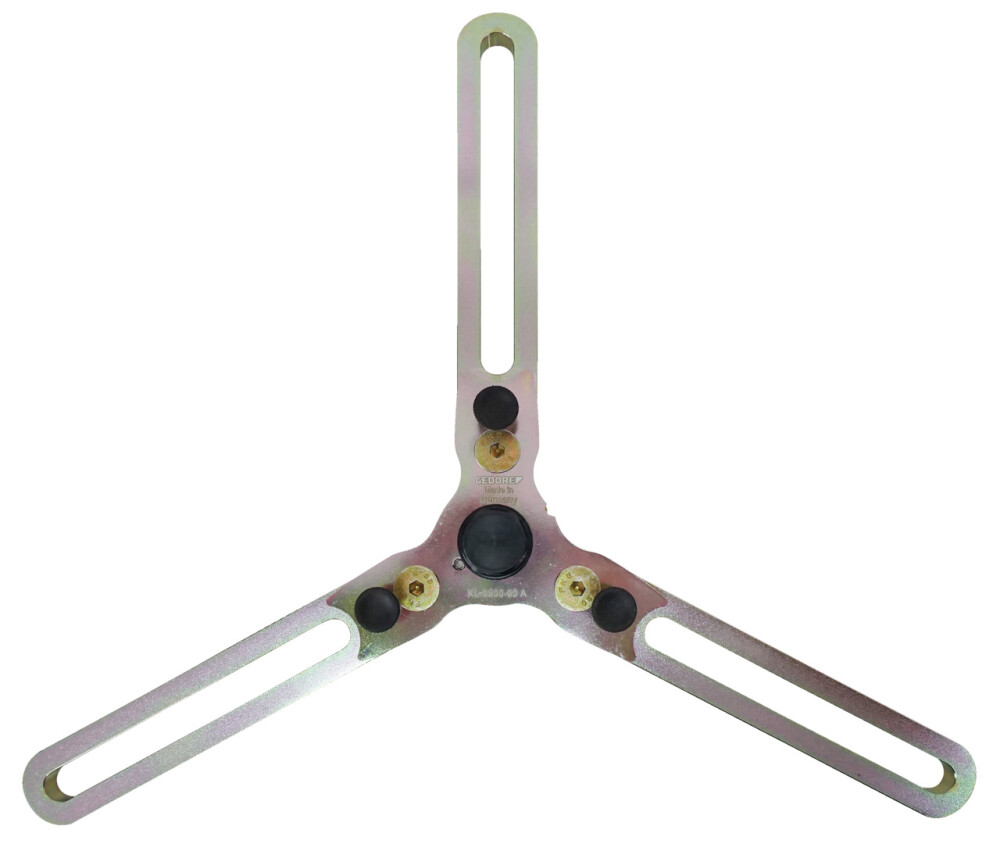

1x KL-0500-601 A - Base unit

1x KL-0500-802 - Gearbox support with height adjustment

3x KL-0350-0009 - Hexagon collar nut M10

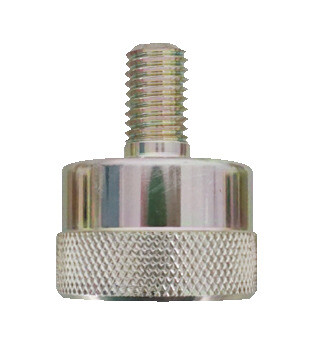

3x KL-0500-6020 - Knurled screw

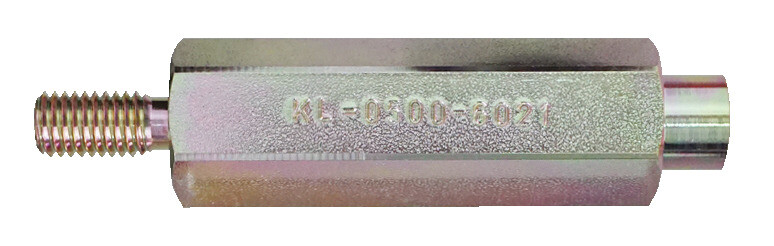

3x KL-0500-6021 - Threaded bolt M10, 100 mm long

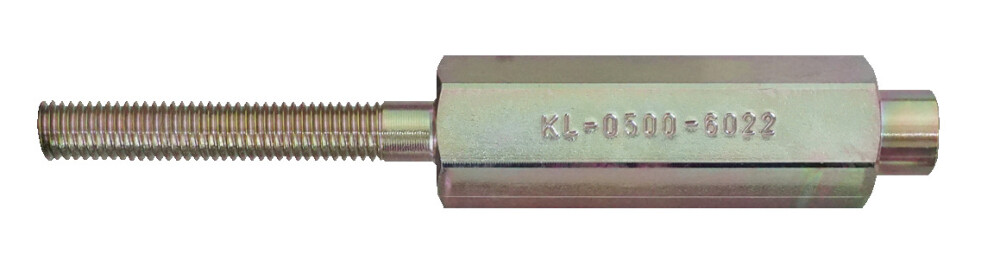

3x KL-0500-6022 - Threaded bolt M10, 160 mm long

1x KL-0500-8010 - Socket spanner 47 mm (waf)

1x KL-0500-8011 - 7-sided socket spanner

2x KL-0500-8012 - Closing plug differential gear

1x KL-0500-803 - ZMS reset tool

1x KL-0126-221 - Magnetic lifter, flexible

1x KL-0192-12 - Locking ring pliers angled

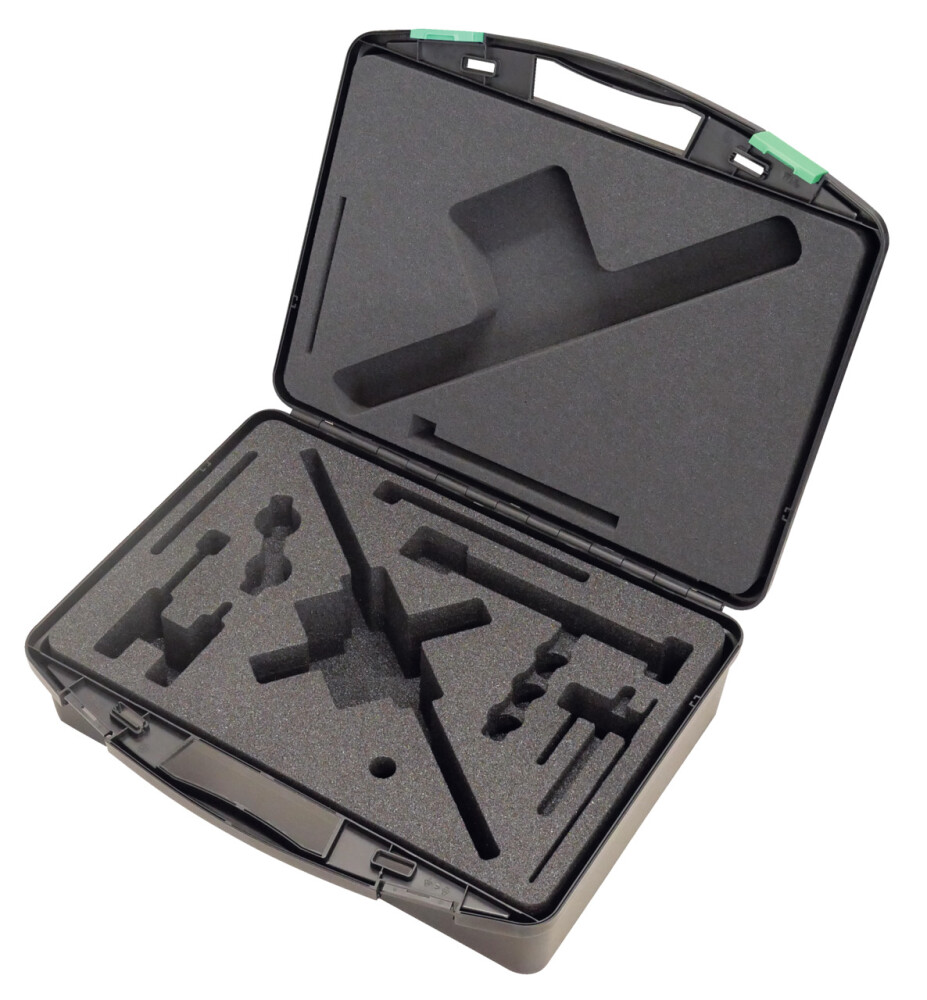

1x KL-0500-8090 A - Plastic case

Weight

8,7 kg

Short text

Universally suitable for VW-Audi, Seat, Škoda, Renault and Ford cars with dry double clutch systems.

• Enables the professional repair of LuK double clutch systems

• Only in conjunction with the vehiclespecific supplementary kits of the KL-0500 series

Predecessor article

KL-0500-80 K

3030881

to be used as (OEM)

400 0418 10

EAN

4046459178804
