Suitable for McPherson struts, especially for Ford vehicles. Installed e.g. on Ford Mondeo IV (BA7), S-Max (WA6) and Galaxy (WA6), Ford Kuga I and Kuga II (DM2).

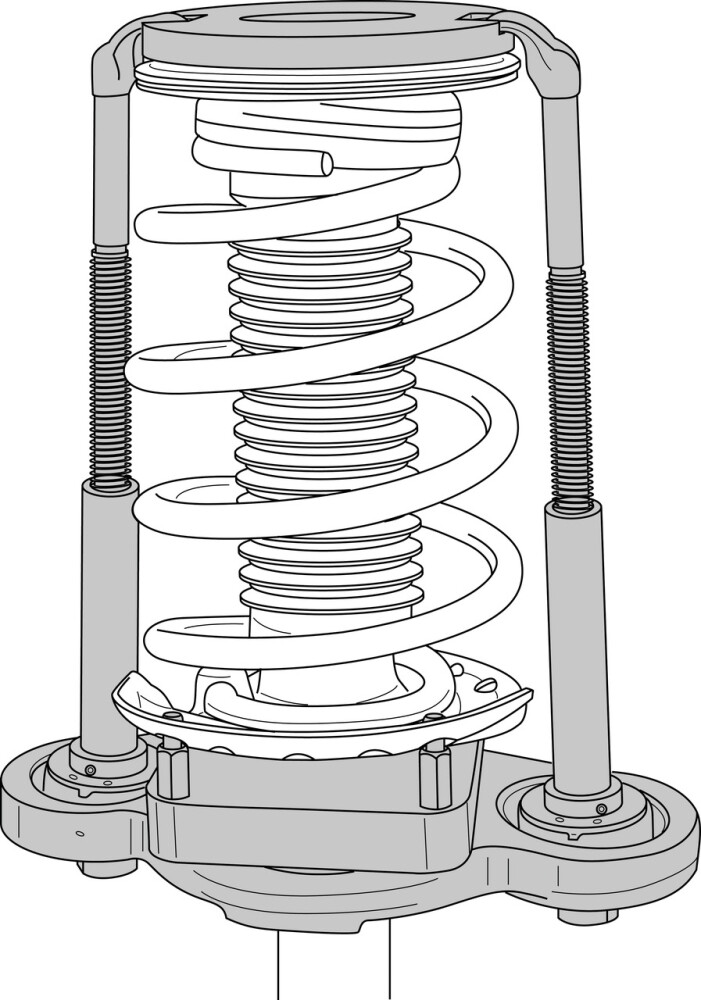

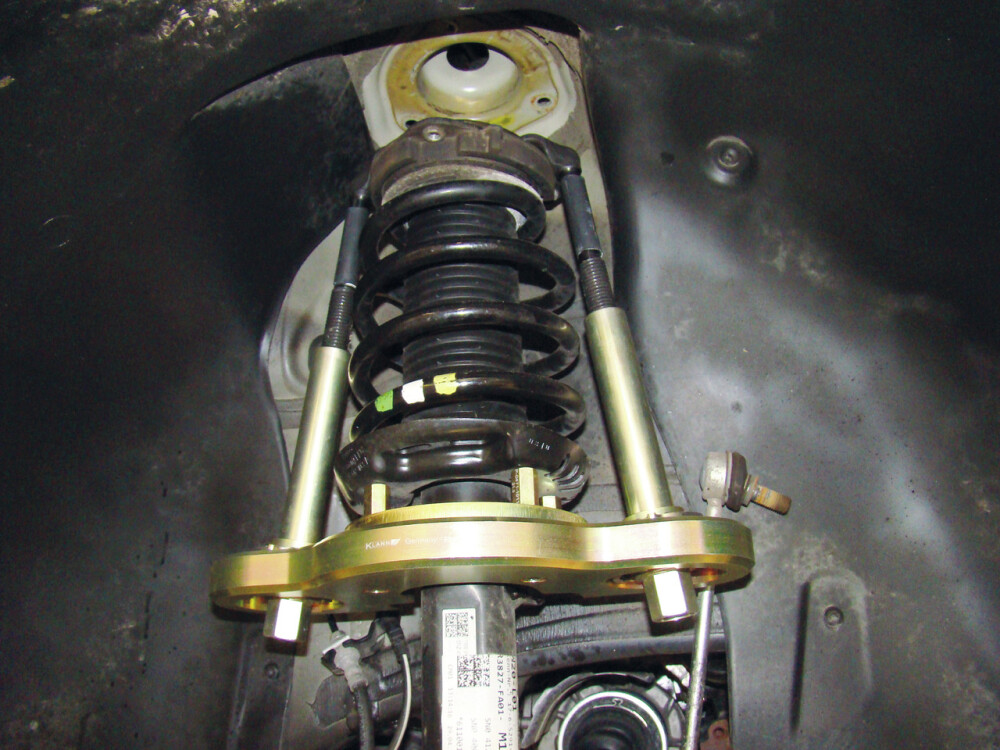

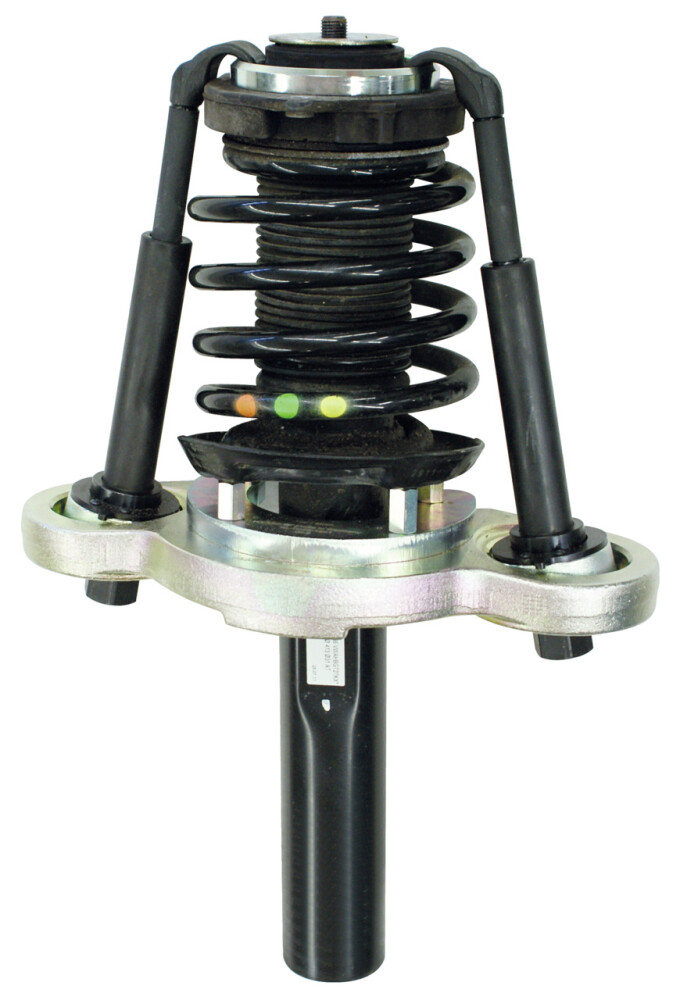

In conjunction with spring compressor KL-0029-100 / -200 for quick, time-saving removal and installation of McPherson spring struts, especially on vehicle axles with strut clamping holes.
Technical data
Contents (Qty of pieces)
4
Size
5 / 8
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Customs tariff number
82057000
suitable for vehicle model
Ford Galaxy II (WA6)
Ford Kuga I
Ford Kuga II (DM2)
Ford Mondeo IV (BA7)
Ford S-Max I (WA6)
Volvo S60 II (134)
Volvo S80 II (124)
Volvo V60 I (155 / 157)
Volvo V70 III (135)
Volvo XC70 II (136)
Parts list (Text)

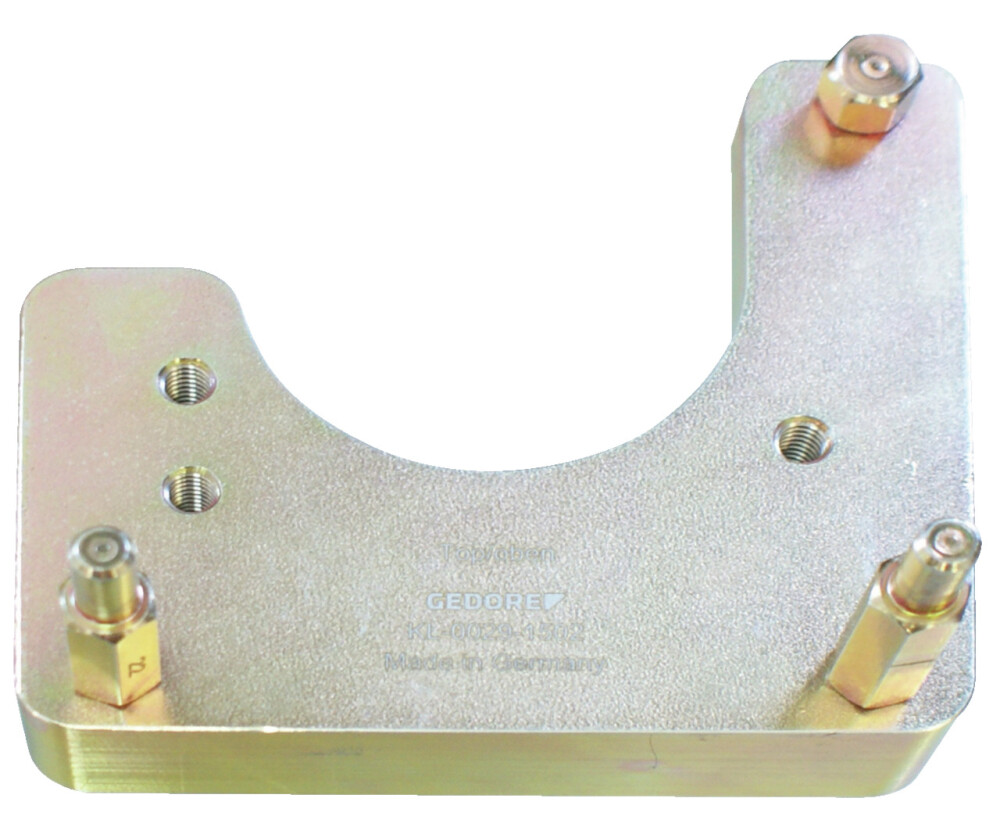

1x KL-0029-151 - Support plate size 5 with bolts 1x KL-0029-1501 - Support ring, size 5 1x KL-0029-1520 - Upgrade kit Ford, size 8
Weight
4,6 kg
Short text
Suitable for Ford front axle suspension struts on, for example, Ford Galaxy (WA6), Kuga I + II (DM2), Mondeo IV (BA7) and S-Max (WA6).
• For an easier removal and installation of the suspension strut
• Only in combination with the spring preloading base unit KL-0029-100 / -200
