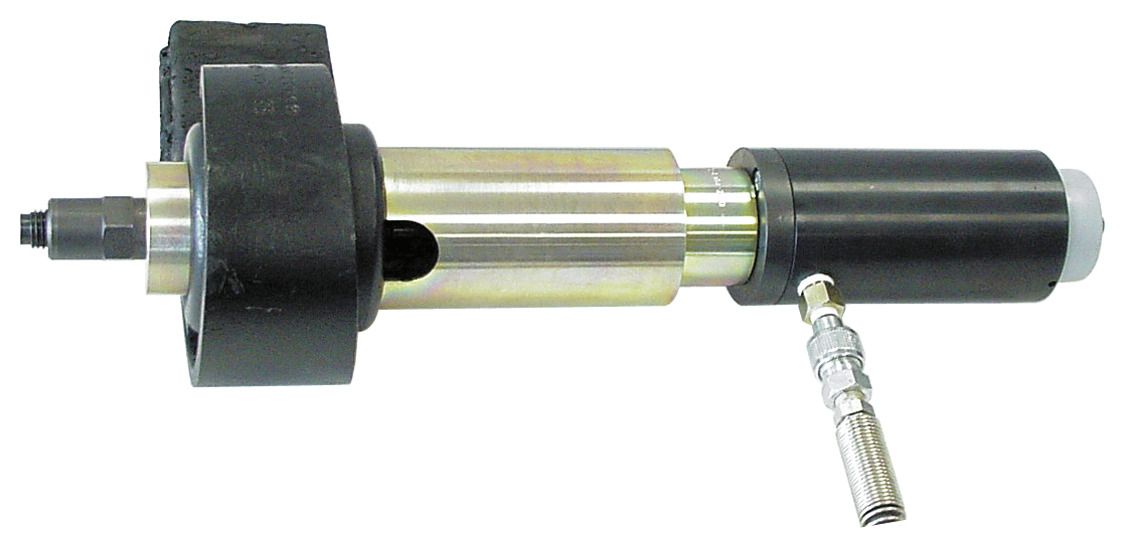

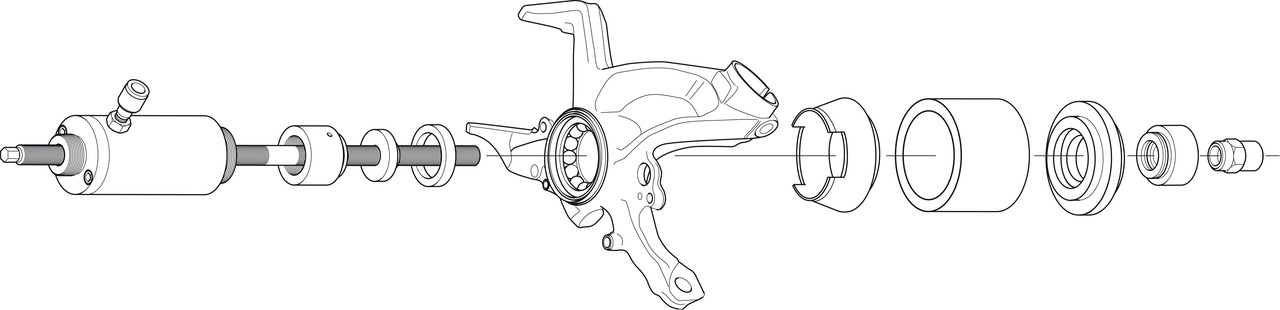

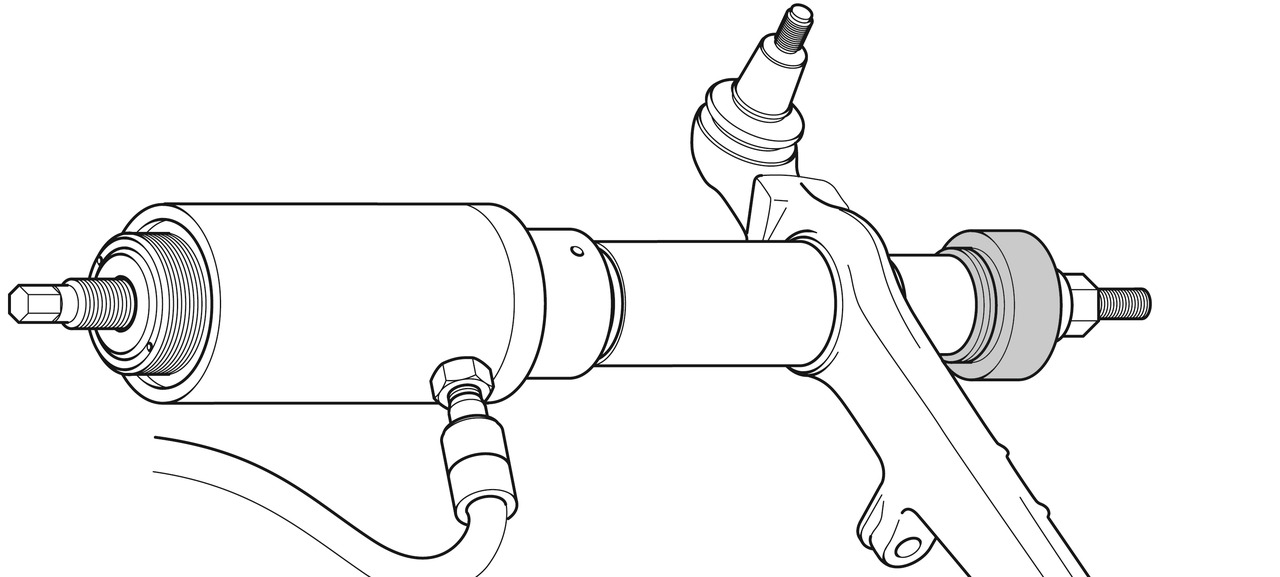

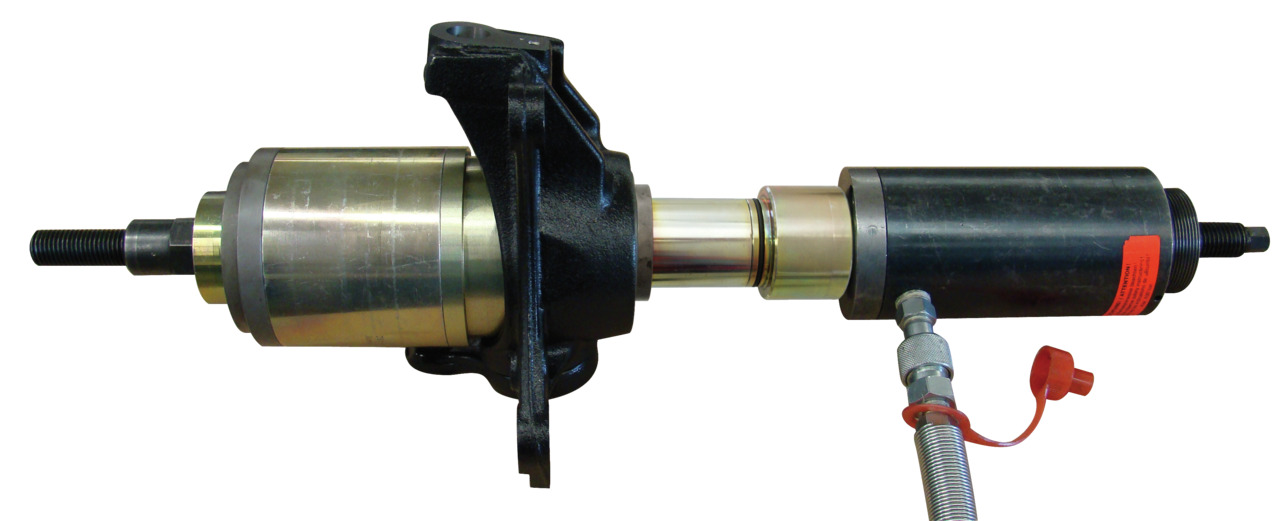

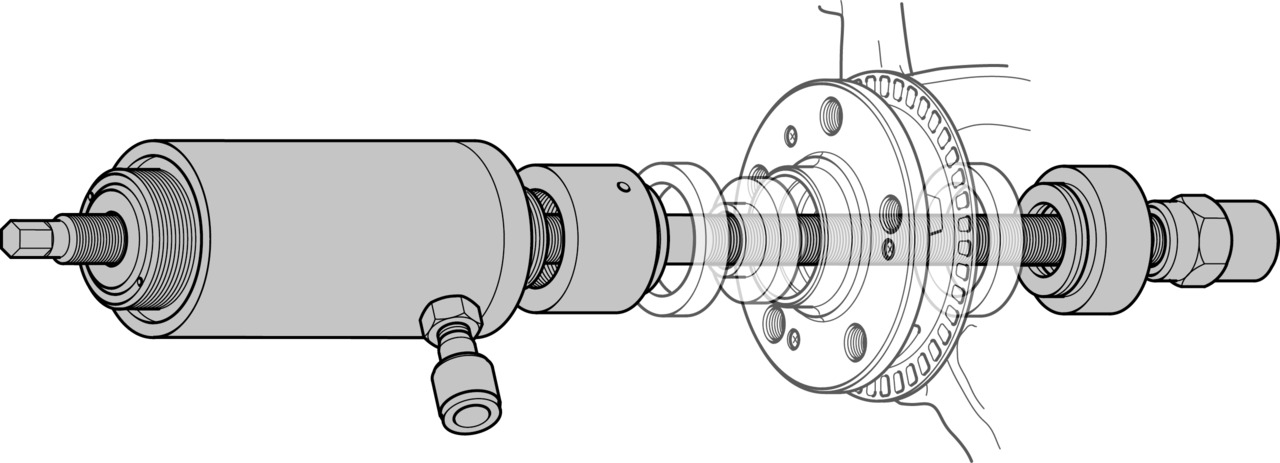

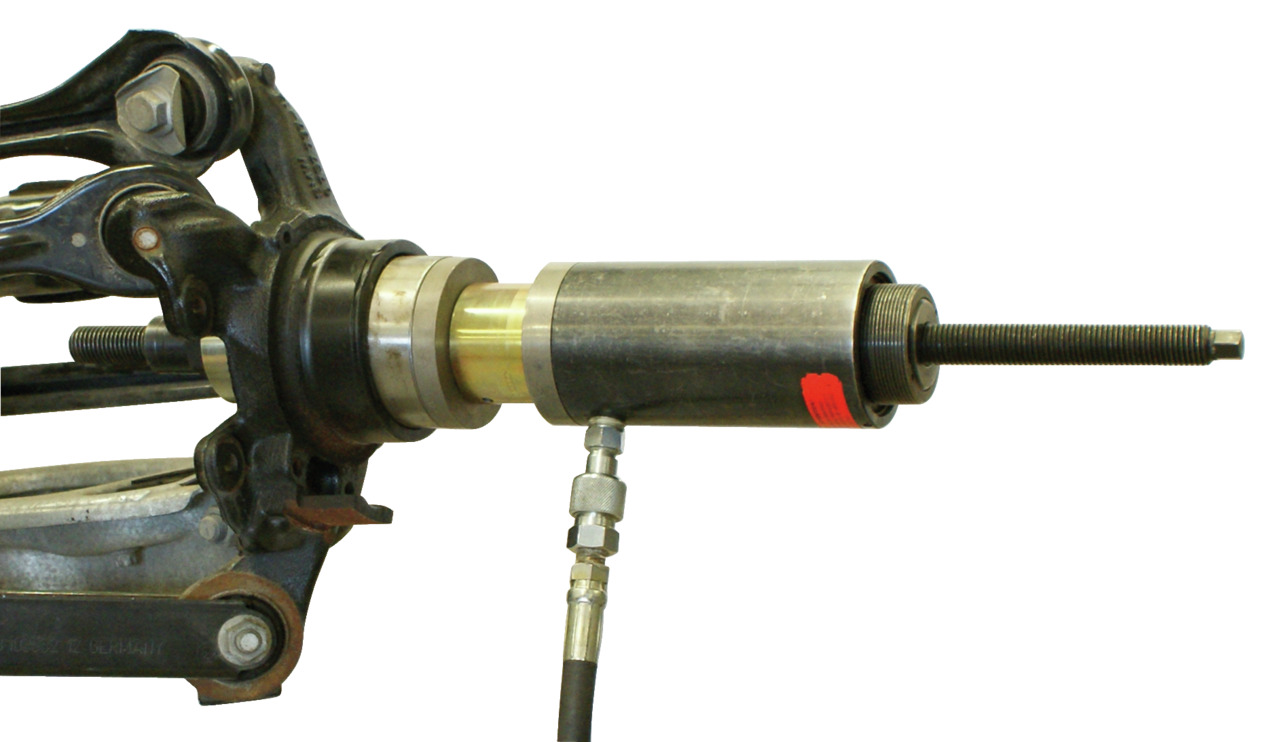

Pull Spindle, M16KL-0039-1916-1 2360918 FIND A DEALER Note Required Accessories Engine Code OE Tool OE Replacement Part No. Suitable for Vehicle Model Parts List (Text) Predecessor Successor Description Accessoires Technical data Manual Spare parts Spare parts Similar Eigenschappen Fabrikant Documenten Certificaten Videos Handleidingen Tekeningen Deeplink Extra informatie Cross selling Description For the hydraulic drive of the KL-0039 series, in combination with hydraulic cylinder KL-0040-2500.For removing and installing bearings, bushings, etc. We also recommend KL-0039-2116-2 Quick-Action Clamping Nut, M16 2915669 Technical data Contents (Qty of pieces) 1 VDE certified No 1000 V insulated No Target groups AutomotiveConstruction and commercial vehiclesAgriculture Drive type hydraulic Customs tariff number 82055980 Load (max.) 13 t Thread size 2 M20 Spindle thread length (usable) 2 300 mm Spindle total length 590 mm Thread dimension M16 Drive connector hexagon [metric] 13,0 mm Weight 1 kg Spindle Thread length (usable). 210 mm Short text • For the hydraulic drive of the KL-0039 series • Only in combination with hydraulic cylinder KL-0040-2500 EAN 4046459063476 We also recommend KL-0039-1910-1 Pull Spindle, M10x1.25 2201534 KL-0039-1912-1 Pull Spindle, M12 2201542 KL-0039-1914-1 Pull Spindle, M14 2360667 KL-0039-1920-1 A Pull Spindle, M20 3420787 We also recommend KL-0040-2500 Hydraulic Cylinder, 17 t 1751441 KL-0039-1601 Press/Support Sleeve Set, short, Ø 30-90mm 2355418 KL-0039-1701 Press/Support Sleeve Set, long, Ø 30-68mm 2357984 KL-0039-170 E Press/Support Sleeve Set, long, Ø 30-90mm 2840693 KL-0039-160 E Press/Support Sleeve Set, short, Ø 30-90mm 2840723
