Automotive

Construction and commercial vehicles

Agriculture

hydraulic

mechanical

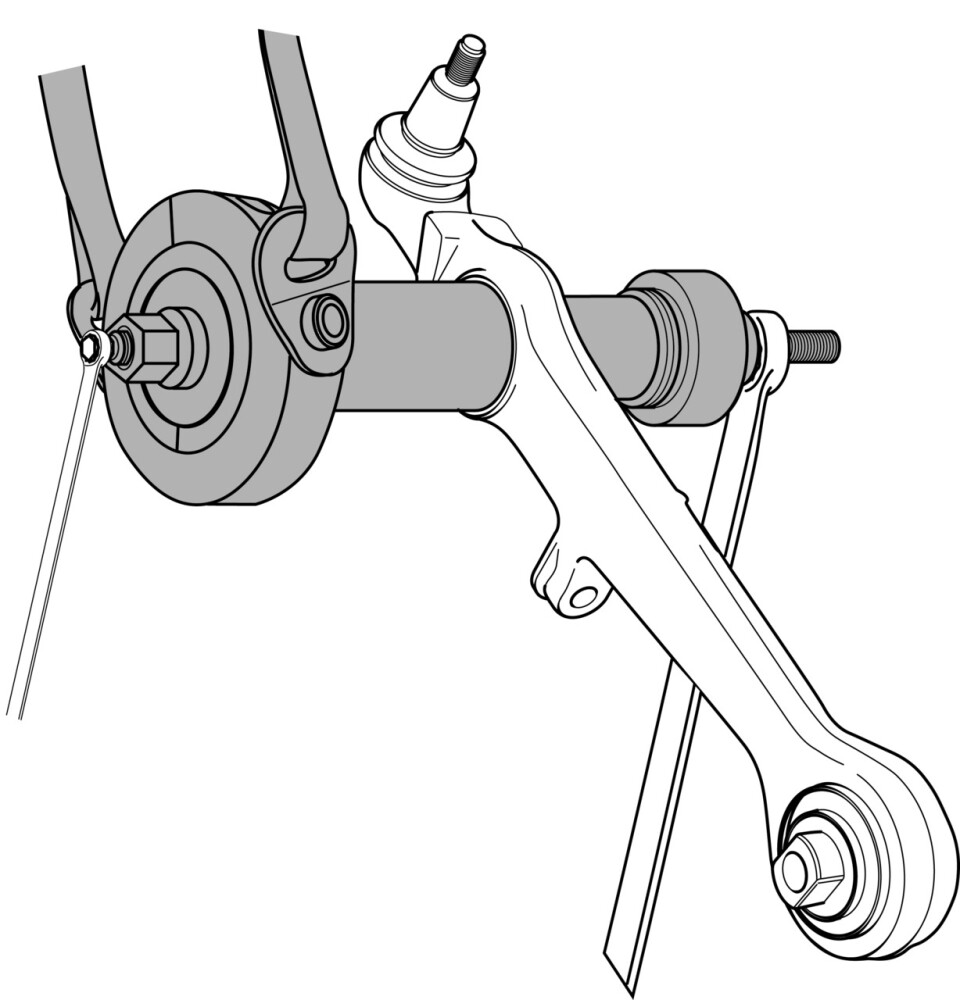

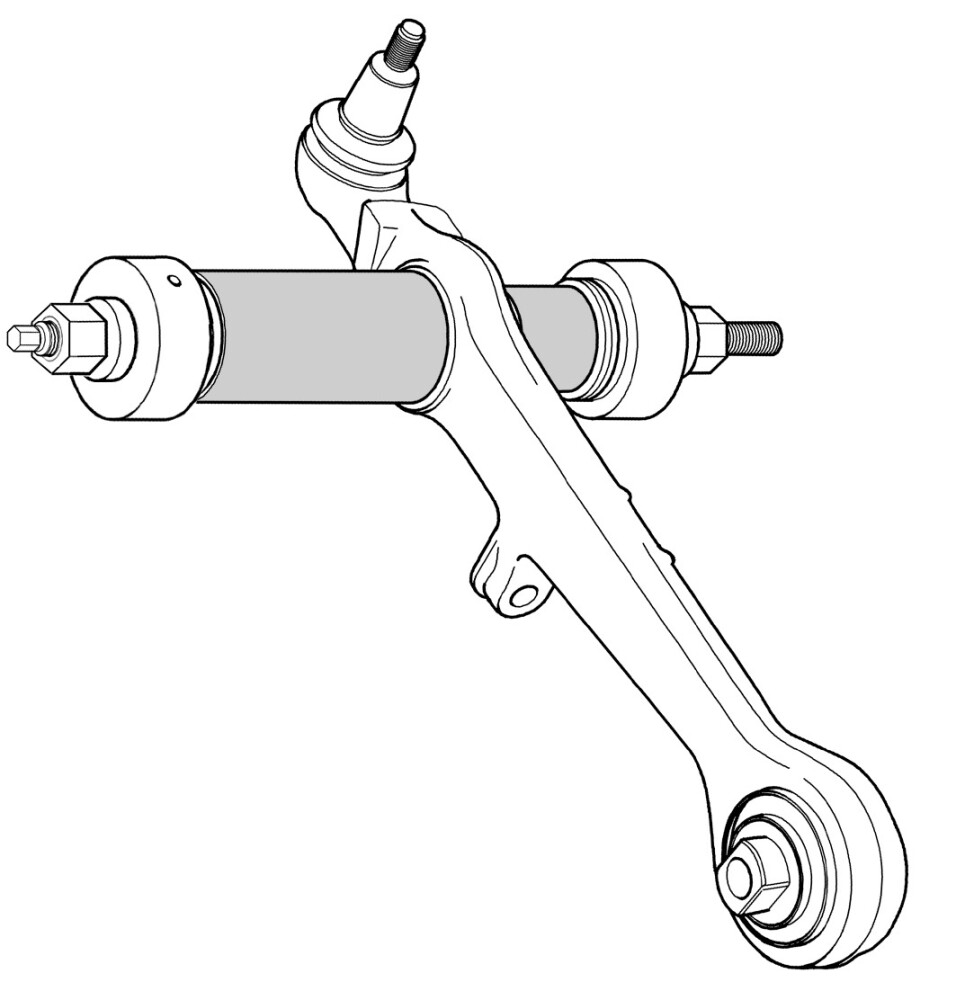

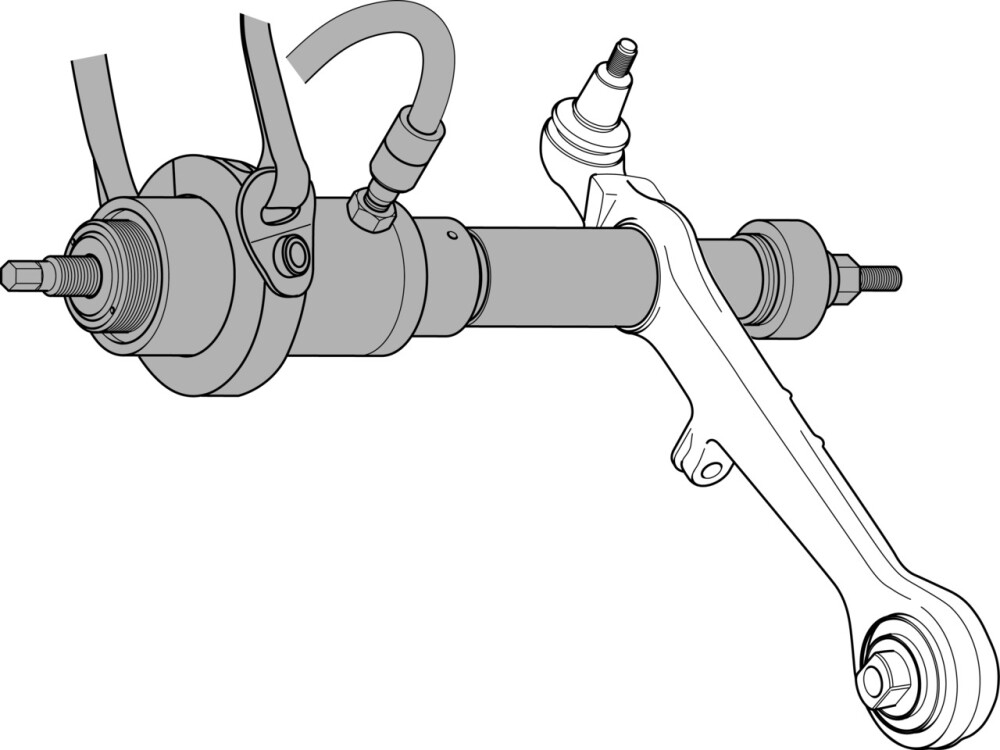

Hydraulic drive (17 t): KL-0215-35 M25 - Hydraulic pump KL-0040-2500 - Hydraulic cylinder 17t KL-0039-1002 - Mounting adapter KL-0039-1003 - Mounting adapter KL-0039-21.. - Pull spindle (depending on the required spindle diameter) Press frame, hydraulic (optional): KL-0039-1140 - Press frame KL-0039-1930 - Thrust spindle Mechanical drive: KL-0039-1011 Mounting adapter KL-0039-1002 - Mounting adapter KL-0039-22.. - Pull spindle (depending on the required spindle diameter) Press frame, mechanical (optional): KL-0039-1140 - Press frame KL-0174-831 - Mechanical drive kit

82055980

30 mm

68 mm

22 mm

60 mm

2 mm

short with guide bolts

45 mm

1x KL-0039-1610 - Guide bolt short 10 mm dia.

1x KL-0039-1612 - Guide bolt short 12 mm dia.

1x KL-0039-1614 - Guide bolt short 14 mm dia.

1x KL-0039-1616 - Guide bolt short 16 mm dia.

1x KL-0039-1630 - Pressure / support sleeve short 30 / 22 mm dia.

1x KL-0039-1632 - Pressure / support sleeve short 32 / 24 mm dia,

1x KL-0039-1634 - Pressure / support sleeve short 34 / 26 mm dia.

1x KL-0039-1636 - Pressure / support sleeve short 36 / 28 mm dia.

1x KL-0039-1638 - Pressure / support sleeve short 38 / 30 mm dia.

1x KL-0039-1640 - Pressure / support sleeve short 40 / 32 mm dia.

1x KL-0039-1642 -Pressure / support sleeve short 42 / 34 mm dia.

1x KL-0039-1644 - Pressure / support sleeve short 44 / 36 mm dia.

1x KL-0039-1646 - Pressure / support sleeve short 46 / 38 mm dia.

1x KL-0039-1648 - Pressure / support sleeve short 48 / 40 mm dia.

1x KL-0039-1650 - Pressure / support sleeve short 50 / 42 mm dia.

1x KL-0039-1652 - Pressure / support sleeve short 52 / 44 mm dia.

1x KL-0039-1654 - Pressure / support sleeve short 54 / 46 mm dia.

1x KL-0039-1656 - Pressure / support sleeve short 56 / 48 mm dia.

1x KL-0039-1658 - Pressure / support sleeve short 58 / 50 mm dia.

1x KL-0039-1660 - Pressure / support sleeve short 60 / 52 mm dia.

1x KL-0039-1662 - Pressure / support sleeve short 62 / 54 mm dia.

1x KL-0039-1664 - Pressure / support sleeve short 64 / 56 mm dia.

1x KL-0039-1666 - Pressure / support sleeve short 66 / 58 mm dia.

1x KL-0039-1668 - Pressure / support sleeve short 68 / 60 mm dia.

5,5 kg

Universally suitable.

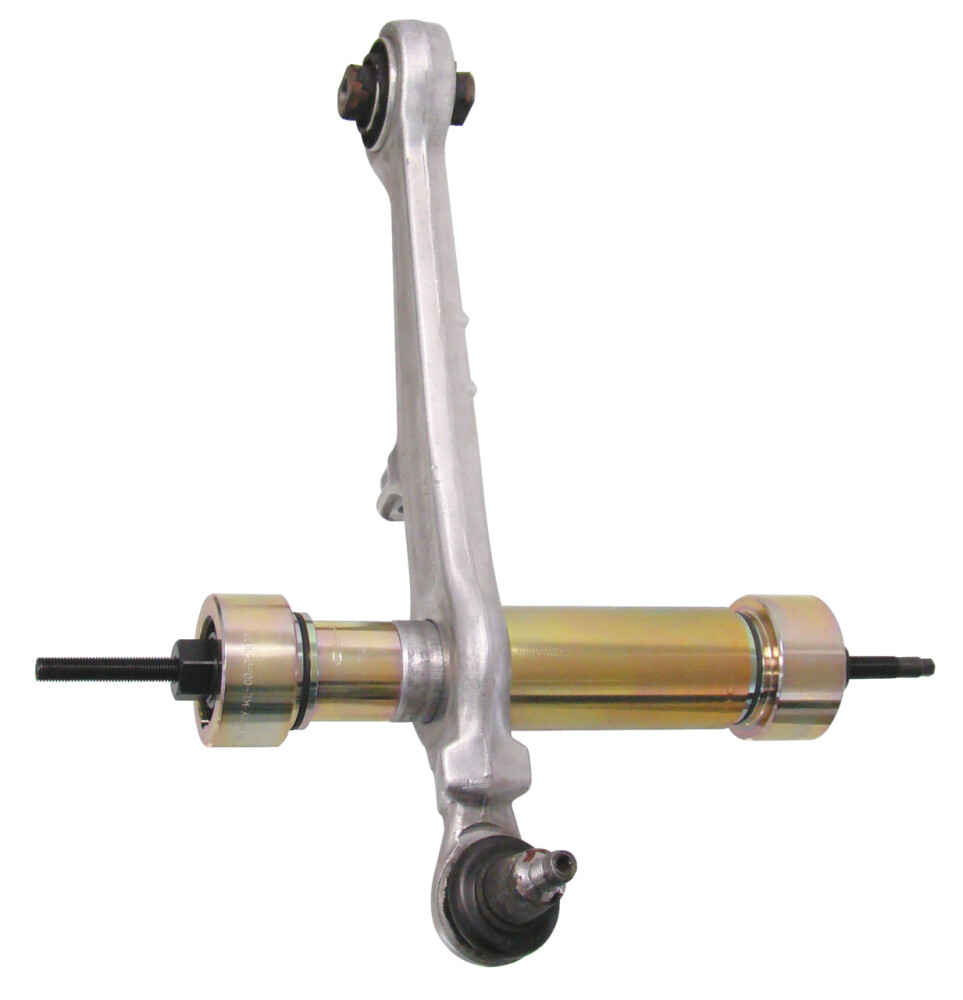

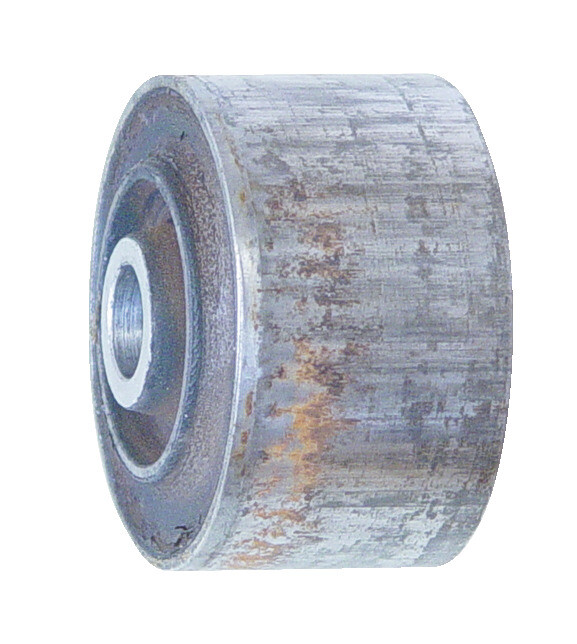

• For forcing out and forcing in of silent blocks, shafts, bushings, etc.

• Including guide bolts for proper fitting of silent blocks

• Additional drive parts required (mechanical or hydraulic)!

4046459102618
