24

No

No

Automotive

Construction and commercial vehicles

Agriculture

hydraulic

mechanical

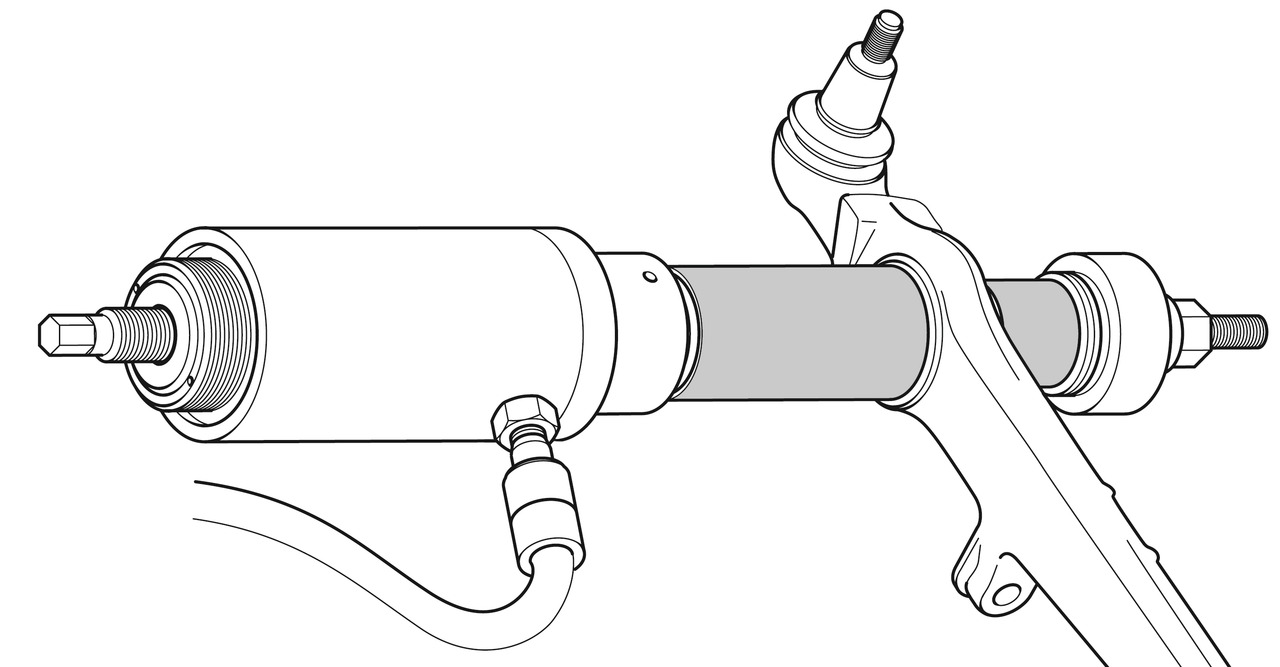

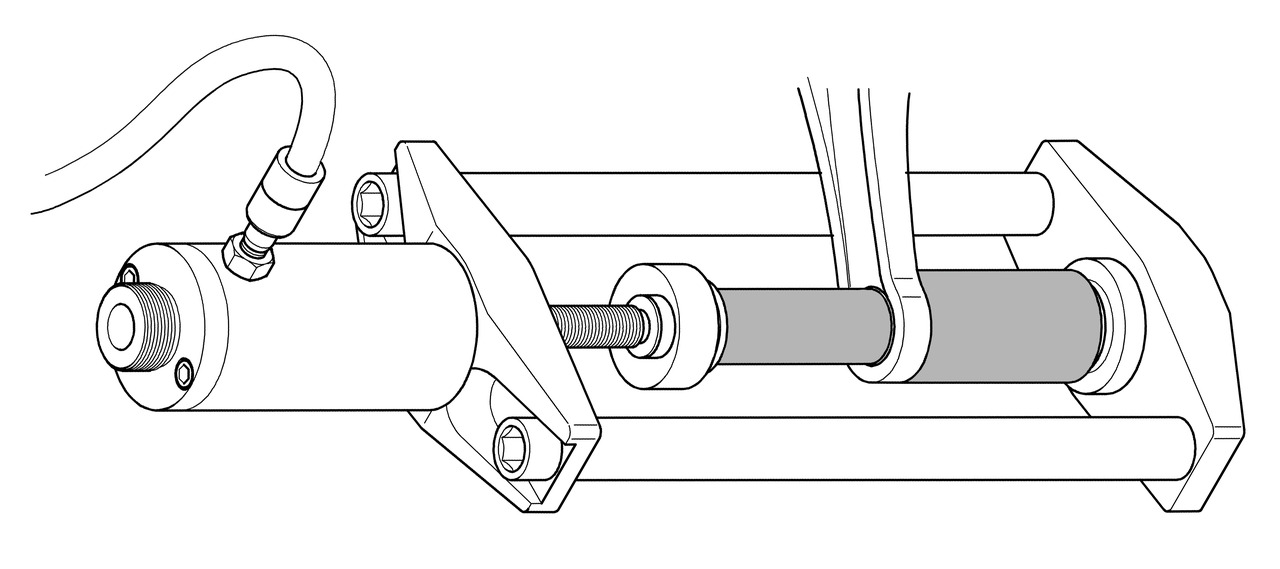

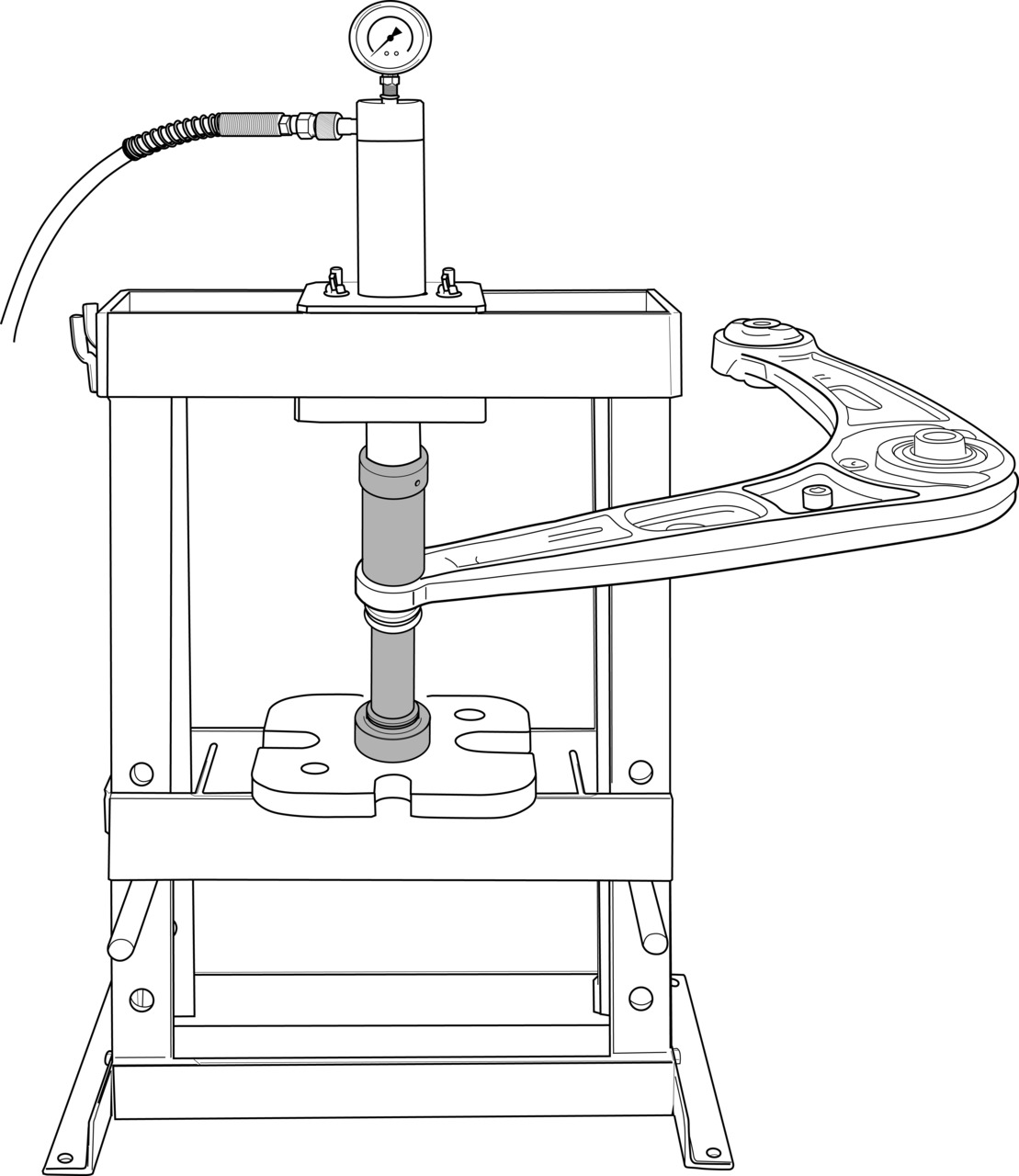

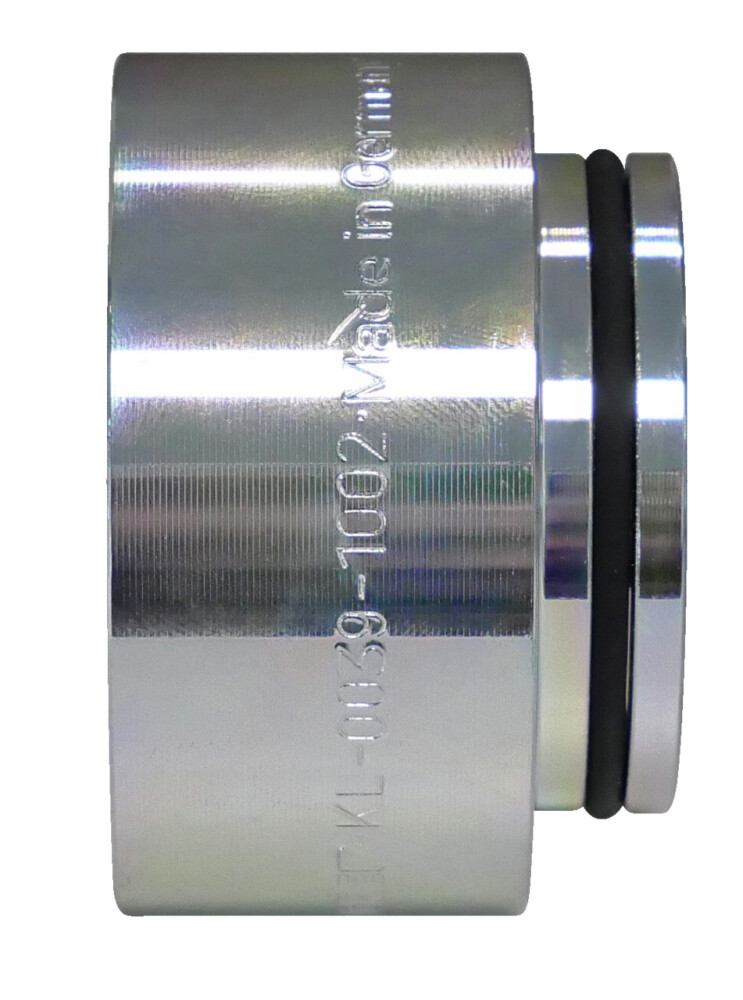

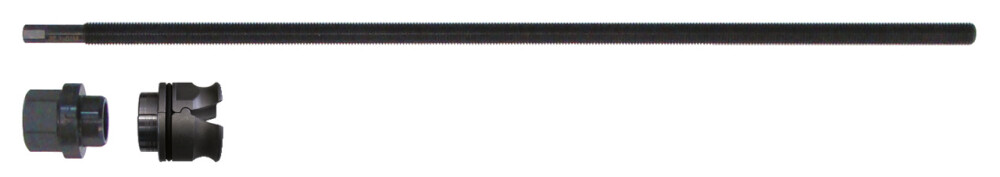

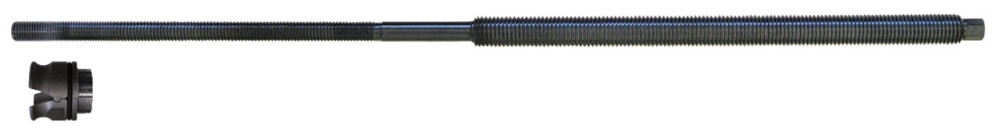

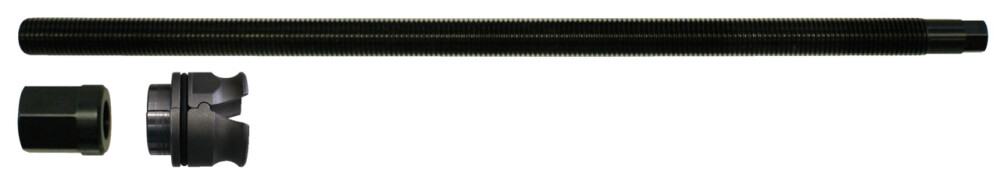

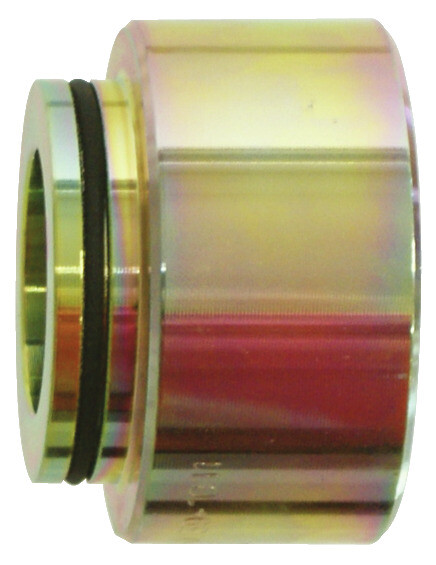

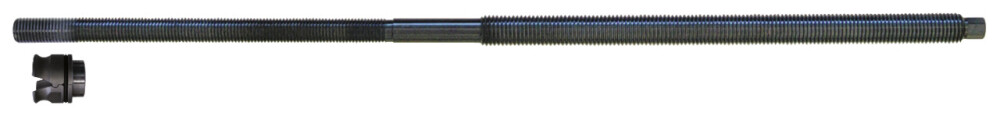

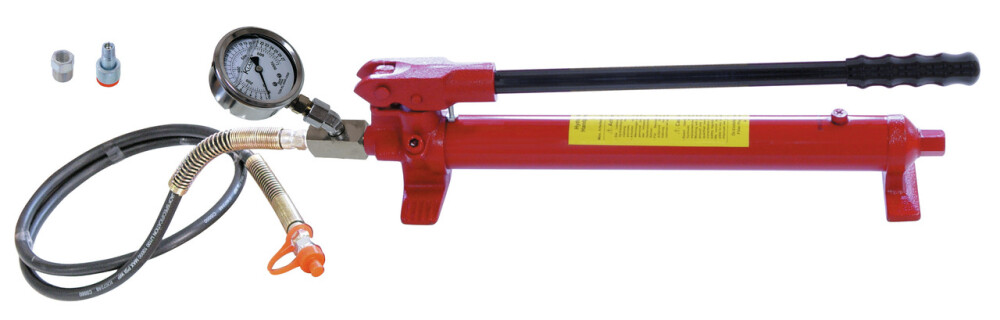

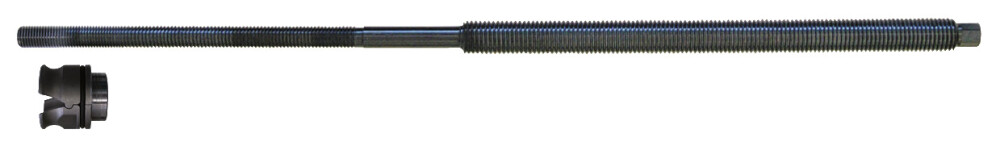

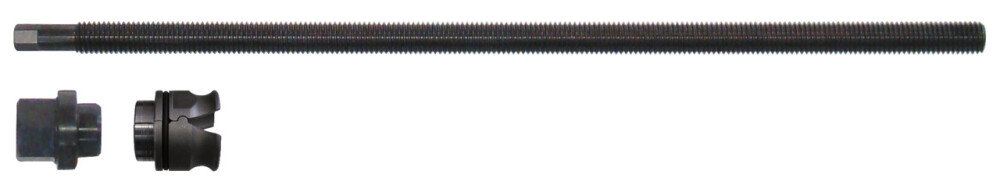

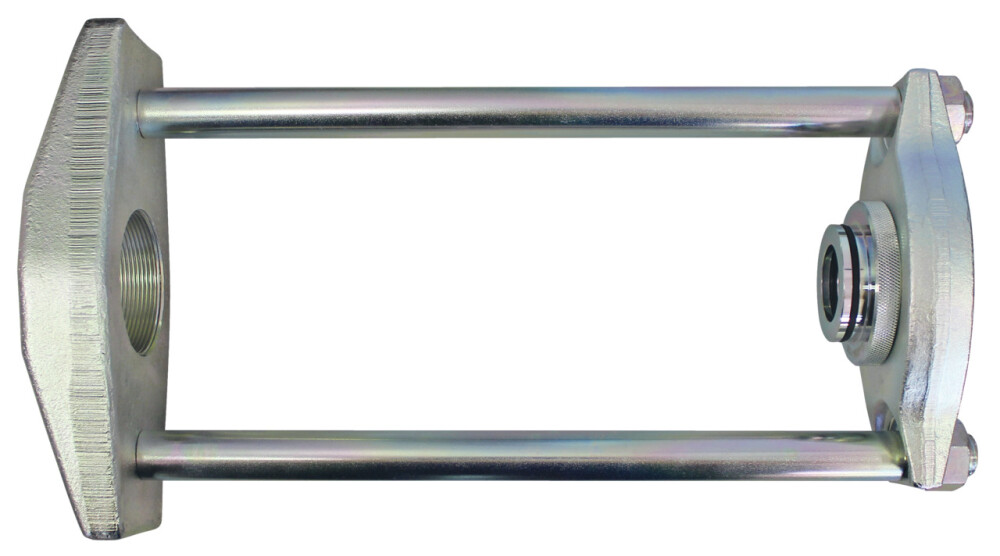

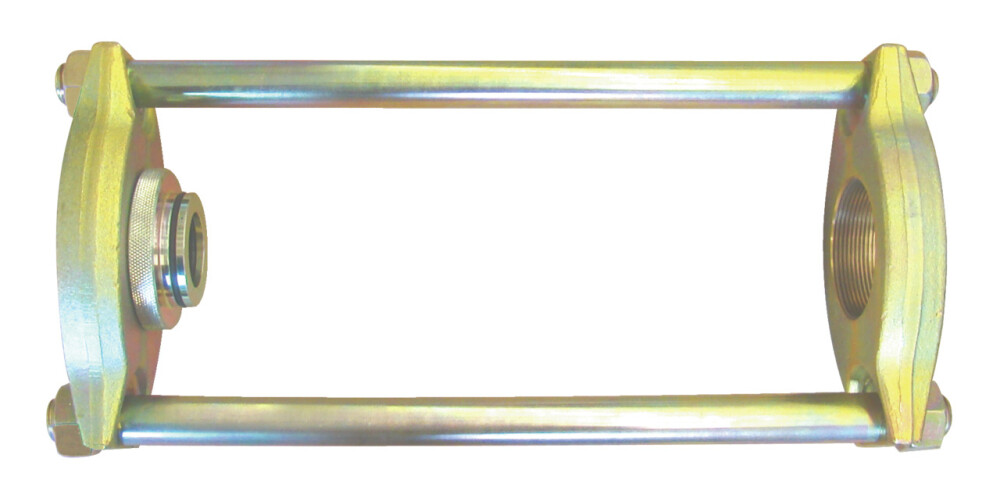

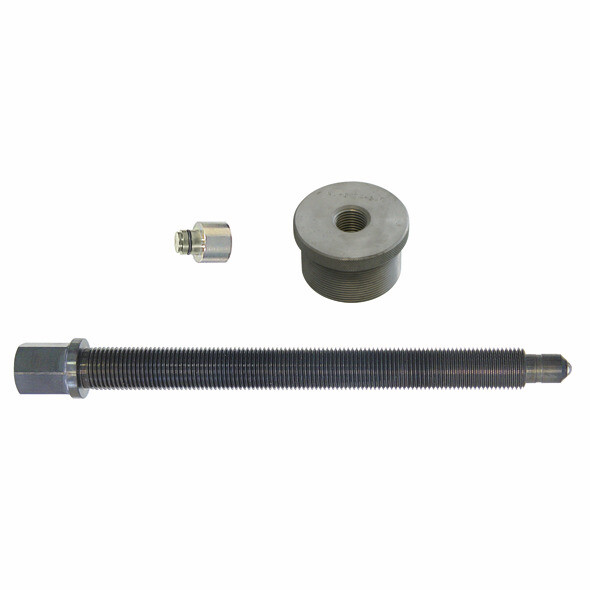

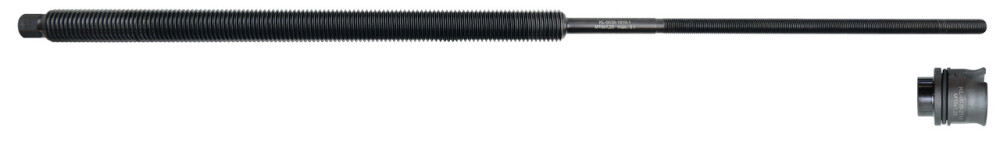

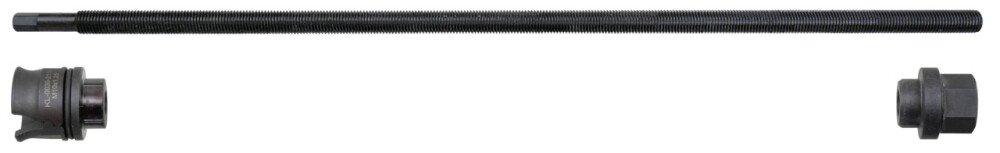

Hydraulic drive (17 t): KL-0215-35 M25 - Hydraulic pump KL-0040-2500 - Hydraulic cylinder 17 t KL-0039-1002 - Mounting adapter KL-0039-1003 - Mounting adapter KL-0039-21.. - Pull spindle (depending on the required spindle diameter) Press frame, hydraulic (optional): KL-0039-1140 - Press frame KL-0039-1930 - Thrust spindle Mechanical drive: KL-0039-1011 Mounting adapter KL-0039-1002 - Mounting adapter KL-0039-22.. - Pull spindle (depending on the required spindle diameter) Press frame, mechanical (optional): KL-0039-1140 - Press frame KL-0174-831 - Mechanical drive kit

82055980

30 mm

68 mm

22 mm

60 mm

2 mm

long with guide bolts

115 mm

1x KL-0039-1710 - Guide bolt long 10 mm dia.

1x KL-0039-1712 - Guide bolt long 12 mm dia.

1x KL-0039-1714 - Guide bolt short 14 mm dia.

1x KL-0039-1716 - Guide bolt long 16 mm dia.

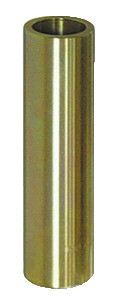

1x KL-0039-1730 - Pressure / support sleeve long 30 / 22 mm dia.

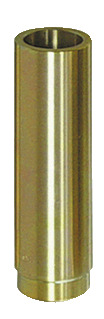

1x KL-0039-1732 - Pressure / support sleeve long 32 / 24 mm dia.

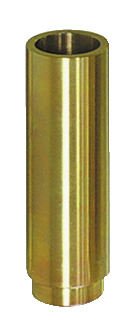

1x KL-0039-1734 - Pressure / support sleeve long 34 / 26 mm dia.

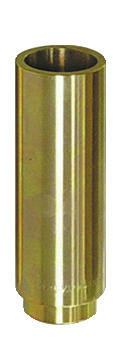

1x KL-0039-1736 - Pressure / support sleeve long 36 / 28 mm dia.

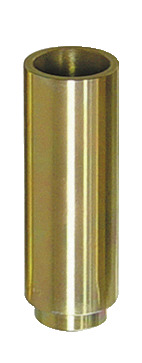

1x KL-0039-1738 - Pressure / support sleeve long 38 / 30 mm dia.

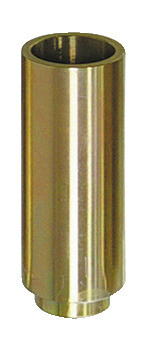

1x KL-0039-1740 - Pressure / support sleeve long 40 / 32 mm dia.

1x KL-0039-1742 -Pressure / support sleeve long 42 / 34 mm dia.

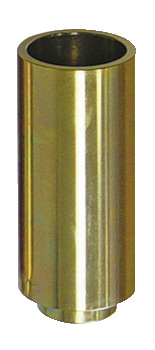

1x KL-0039-1744 - Pressure / support sleeve long 44 / 36 mm dia.

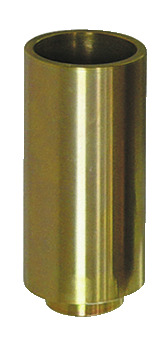

1x KL-0039-1746 - Pressure / support sleeve long 46 / 38 mm dia.

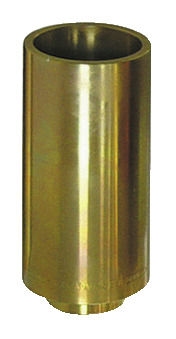

1x KL-0039-1748 - Pressure / support sleeve long 48 / 40 mm dia.

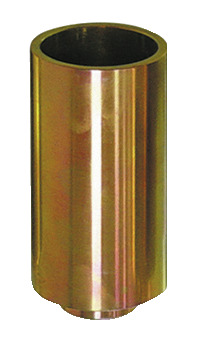

1x KL-0039-1750 - Pressure / support sleeve long 50 / 42 mm dia.

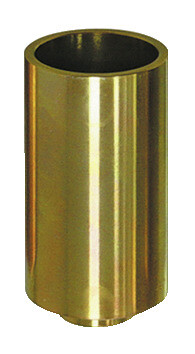

1x KL-0039-1752 - Pressure / support sleeve long 52 / 44 mm dia.

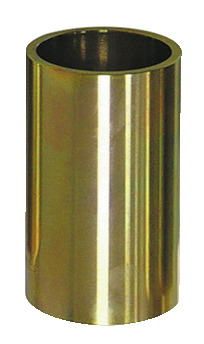

1x KL-0039-1754 - Pressure / support sleeve long 54 / 46 mm dia.

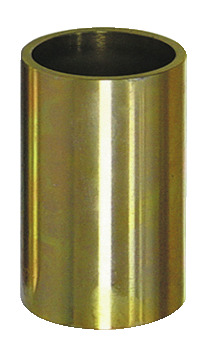

1x KL-0039-1756 - Pressure / support sleeve long 56 / 48 mm dia.

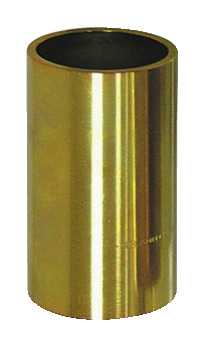

1x KL-0039-1758 - Pressure / support sleeve long 58 / 50 mm dia.

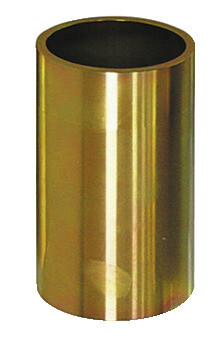

1x KL-0039-1760 - Pressure / support sleeve long 60 / 52 mm dia.

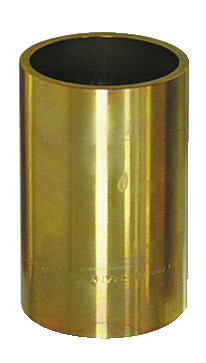

1x KL-0039-1762 - Pressure / support sleeve long 62 / 54 mm dia.

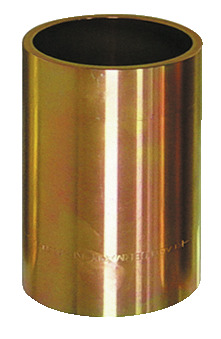

1x KL-0039-1764 - Pressure / support sleeve long 64 / 56 mm dia.

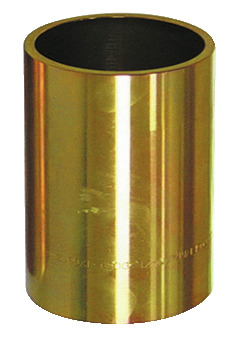

1x KL-0039-1766 - Pressure / support sleeve long 66 / 58 mm dia.

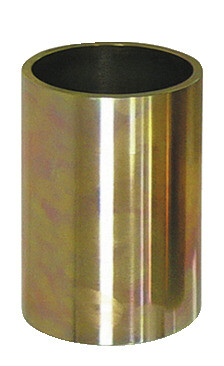

1x KL-0039-1768 - Pressure / support sleeve long 68 / 60 mm dia.

12,1 kg

Universally suitable.

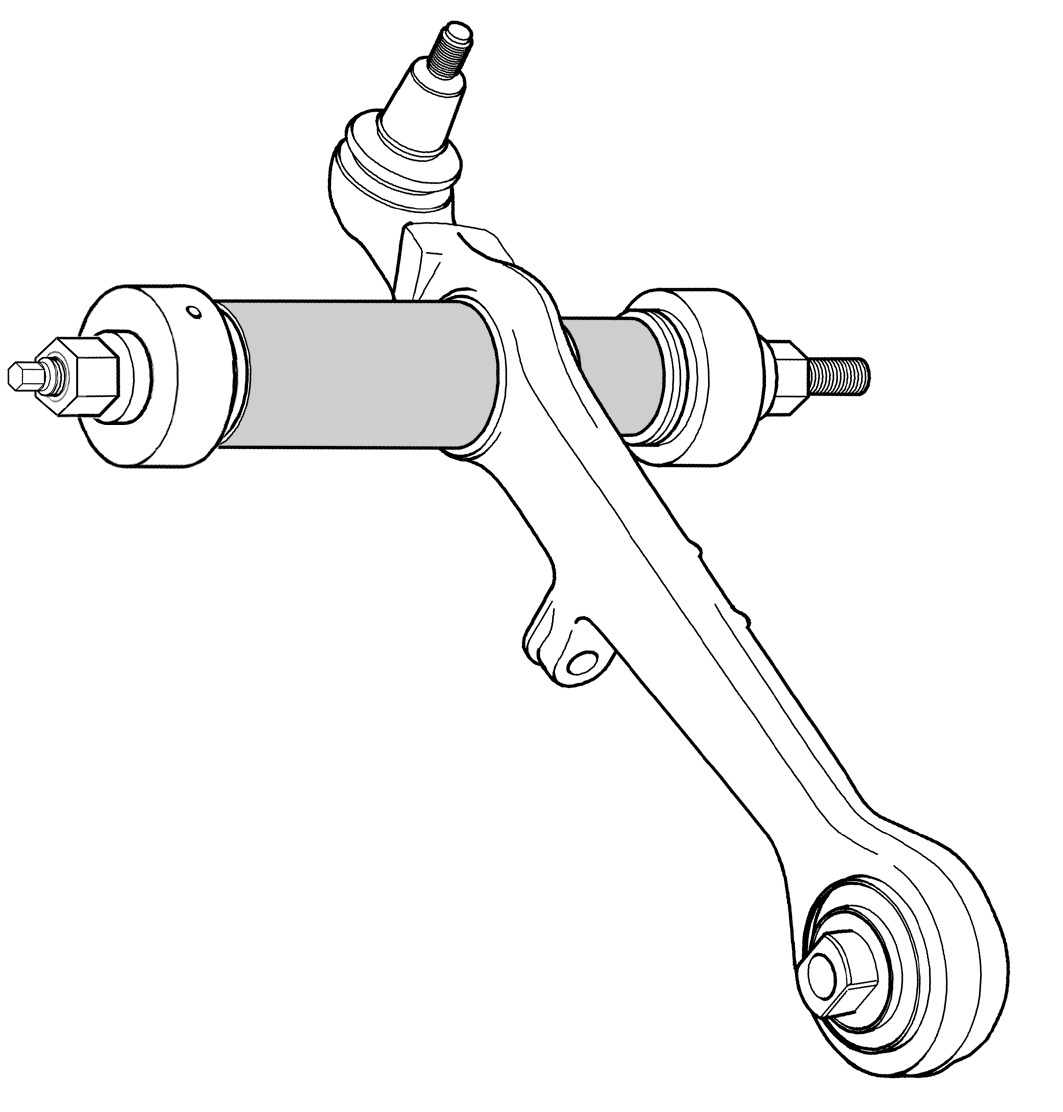

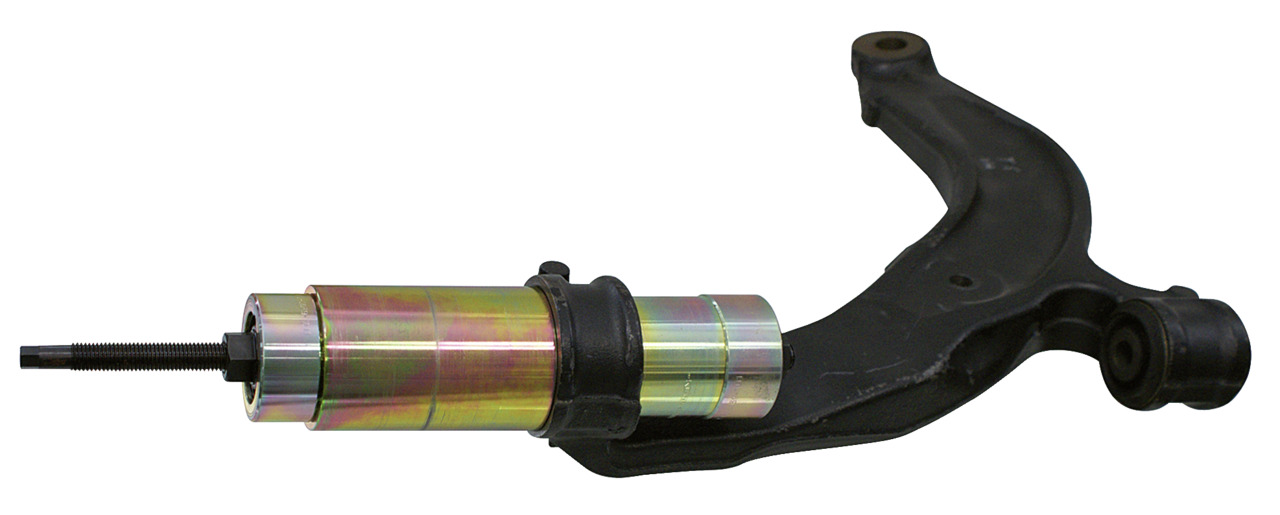

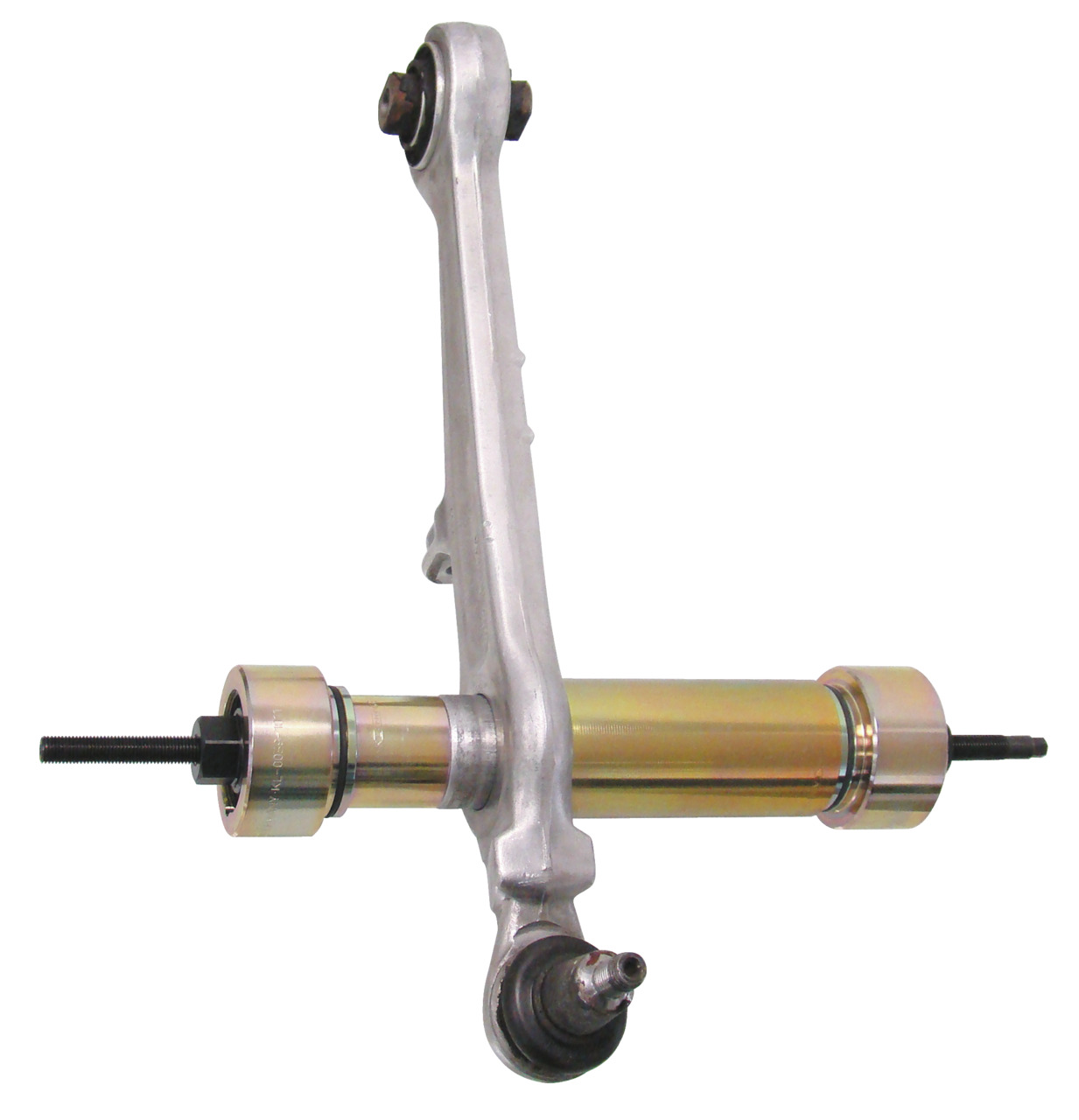

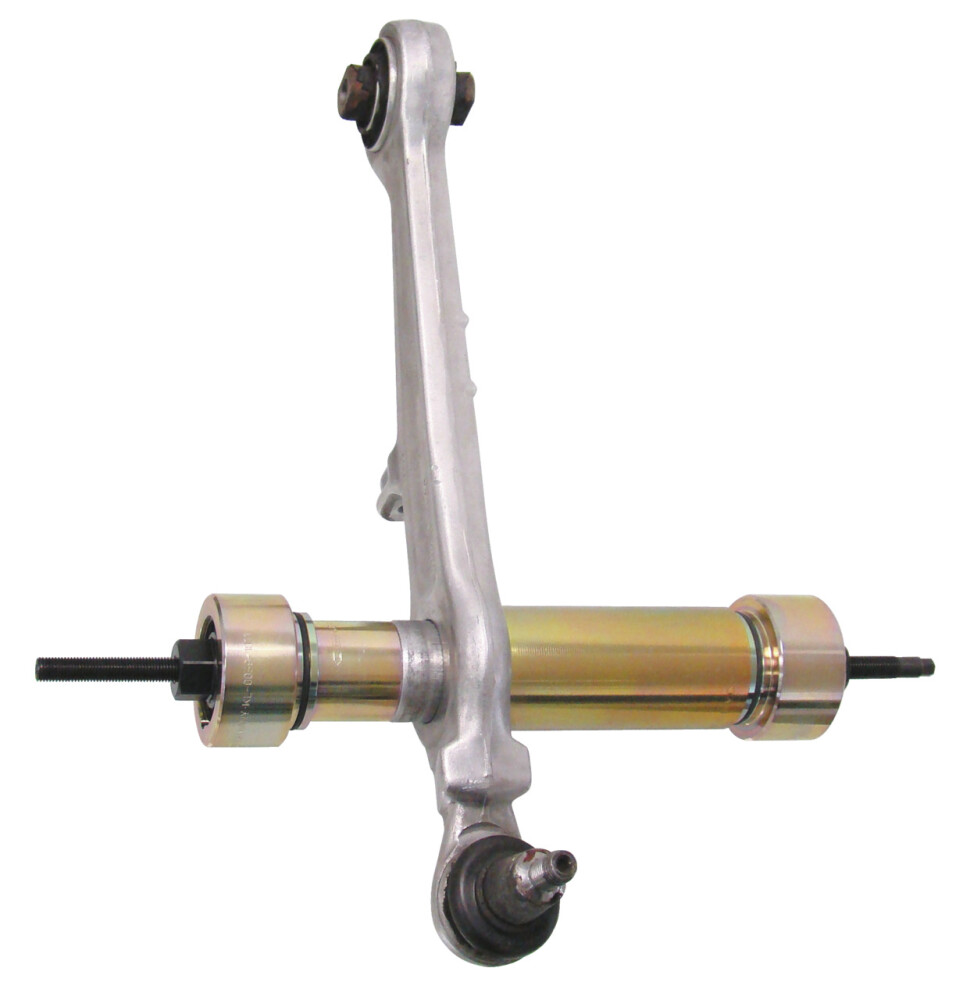

• For forcing out and forcing in of silent blocks, shafts, bushings, etc.

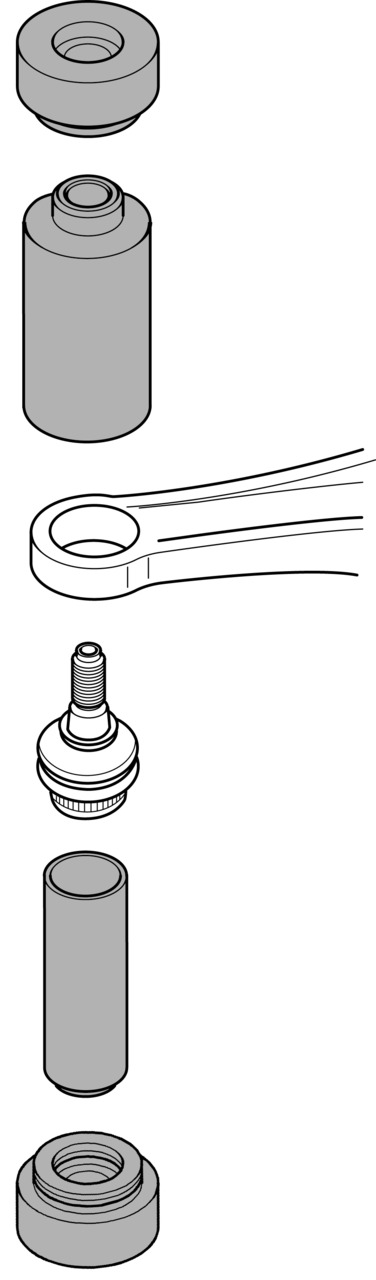

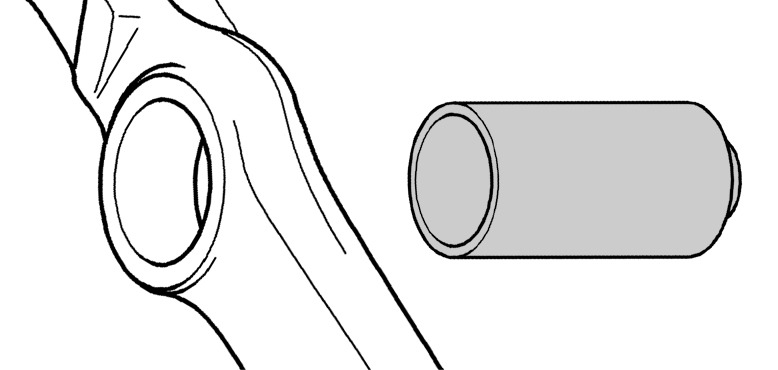

• Including guide bolts for proper fitting of silent blocks

• Additional drive parts required (mechanical or hydraulic)!

4046459102625
