The mechanical drive set KL-0174-831 enables GEDORE Automotive pressing devices, for example those consisting of press frame KL-0039-1140, KL-0326-1000 etc. and the sets of sleeves of the KL-0039 Series, to be driven mechanically.
Technical data
Contents (Qty of pieces)
3
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Agriculture
Drive type
mechanical
Customs tariff number
82055980
Thread size 2
2¼"-14 UNS
Spindle total length
260 mm
Thread dimension
M20x2
Drive connector hexagon [metric]
22,0 mm
Parts list (Text)

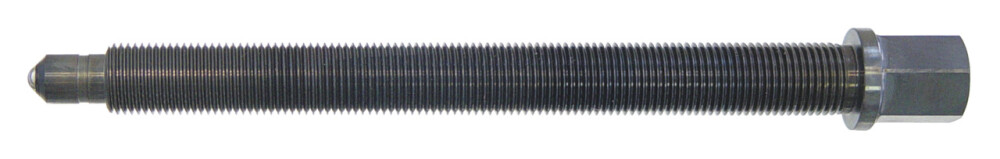

1x KL-0174-620 - Spindle M20x2 x 230

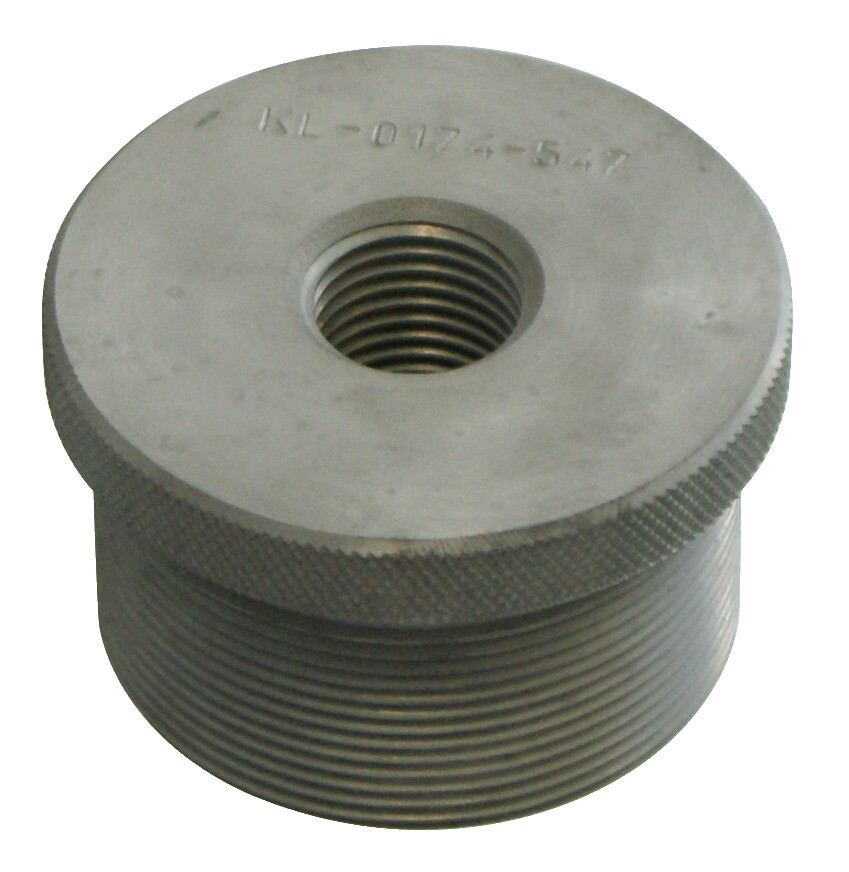

1x KL-0174-547 - Adapter 2¼“-14 UNS to M20x2
1x KL-0174-853 -Thrust piece for mechanical spindle
Weight
2 kg
Spindle Thread length (usable).
210 mm
Short text
Suitable for press frame KL-0039-1140 and KL-0326-1000.
• For a mechanical drive of the press frame in connection with the KL-0039 series
