Description

Universally suitable for 1st generation wheel bearings and wheel hubs as well as 2nd generation compact wheel bearings on cars and vans.

Also suitable for bolted compact wheel bearings (3rd generation) in conjunction with extension kit KL-0041-384.

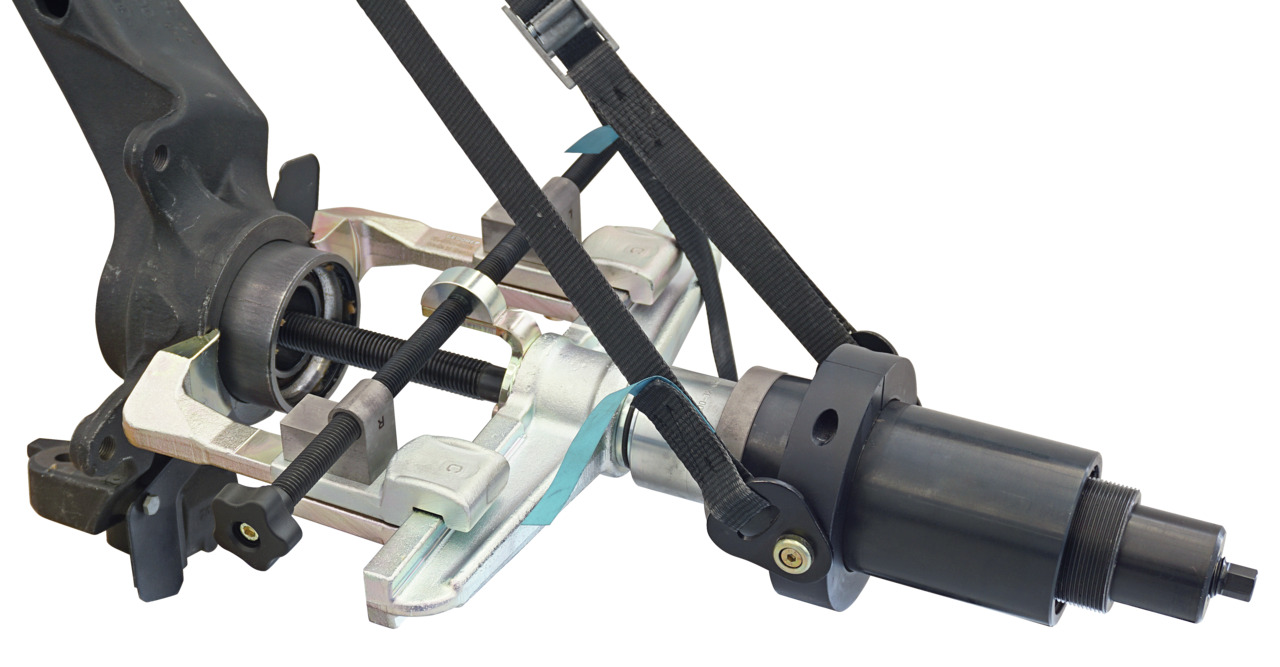

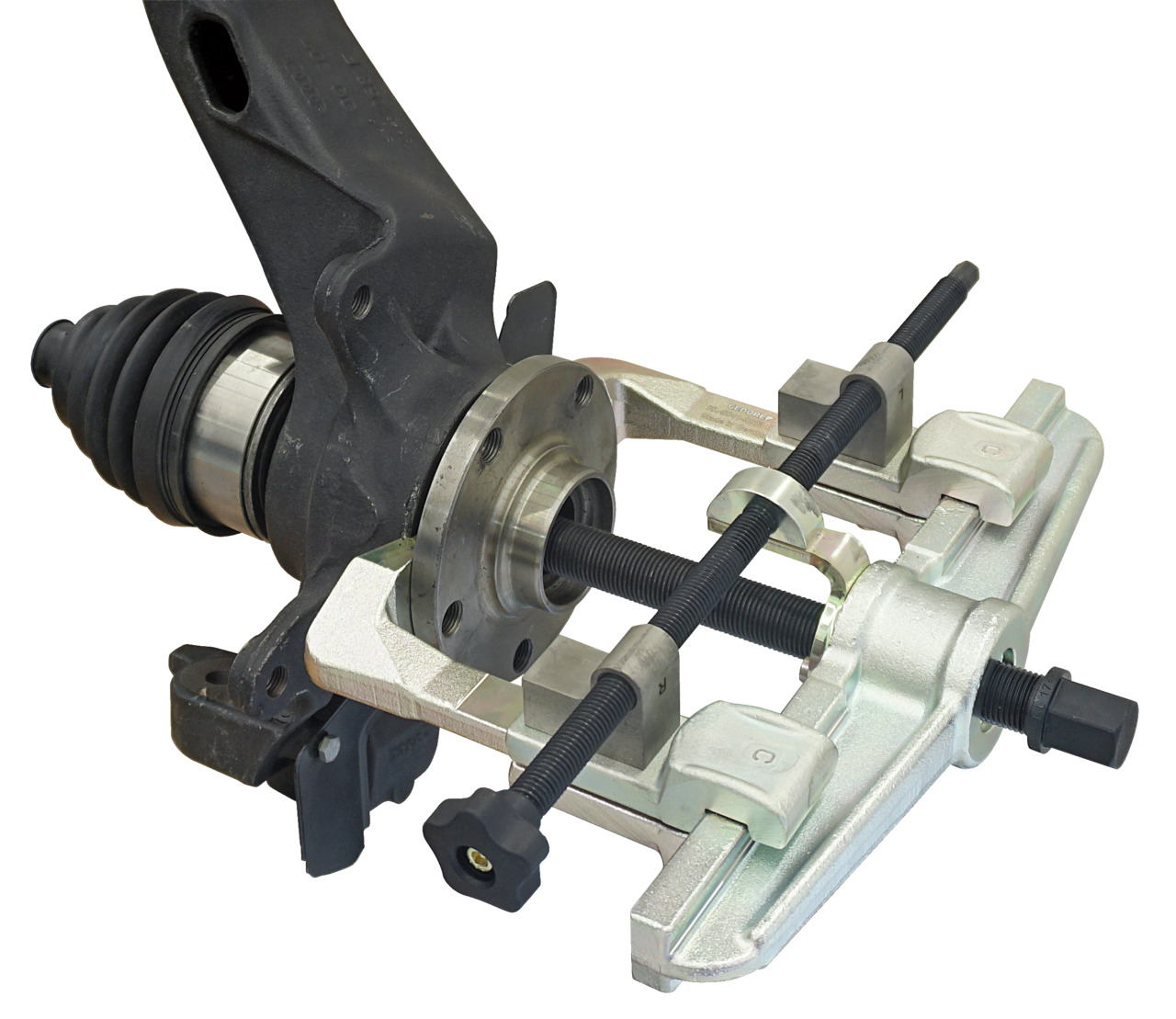

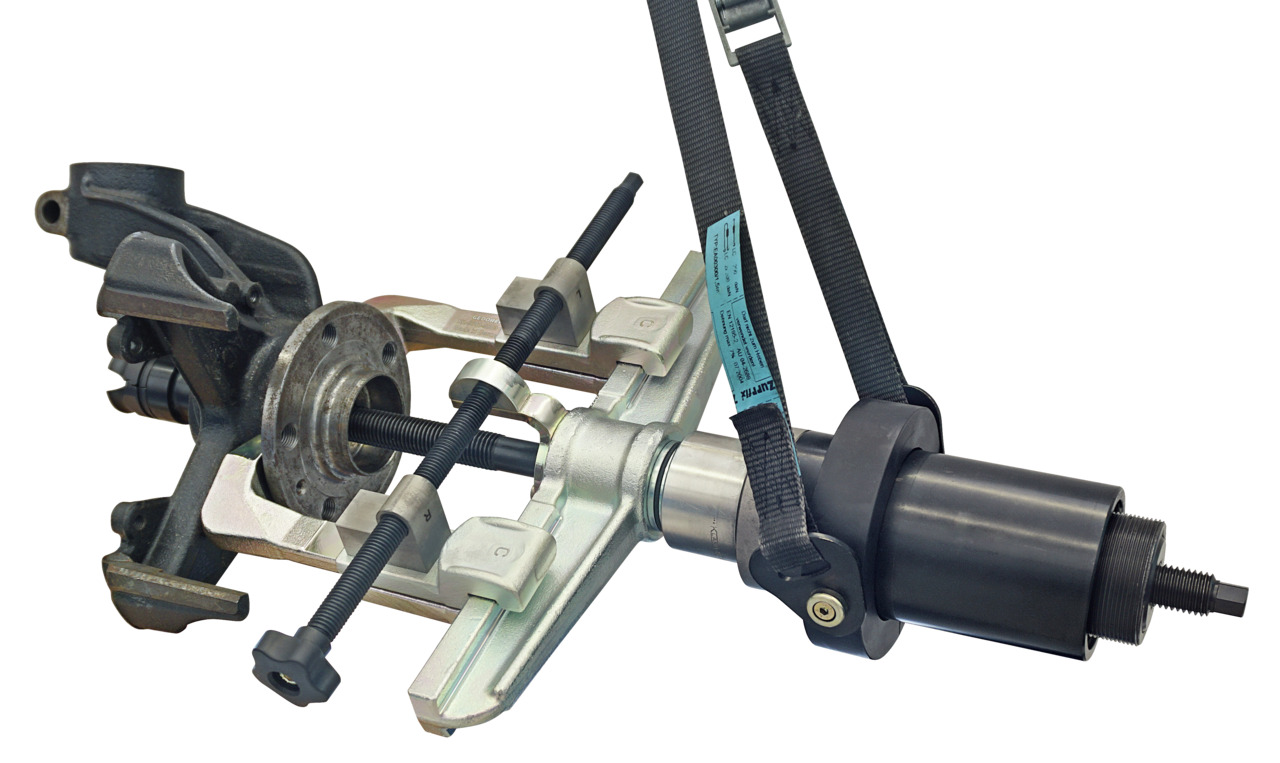

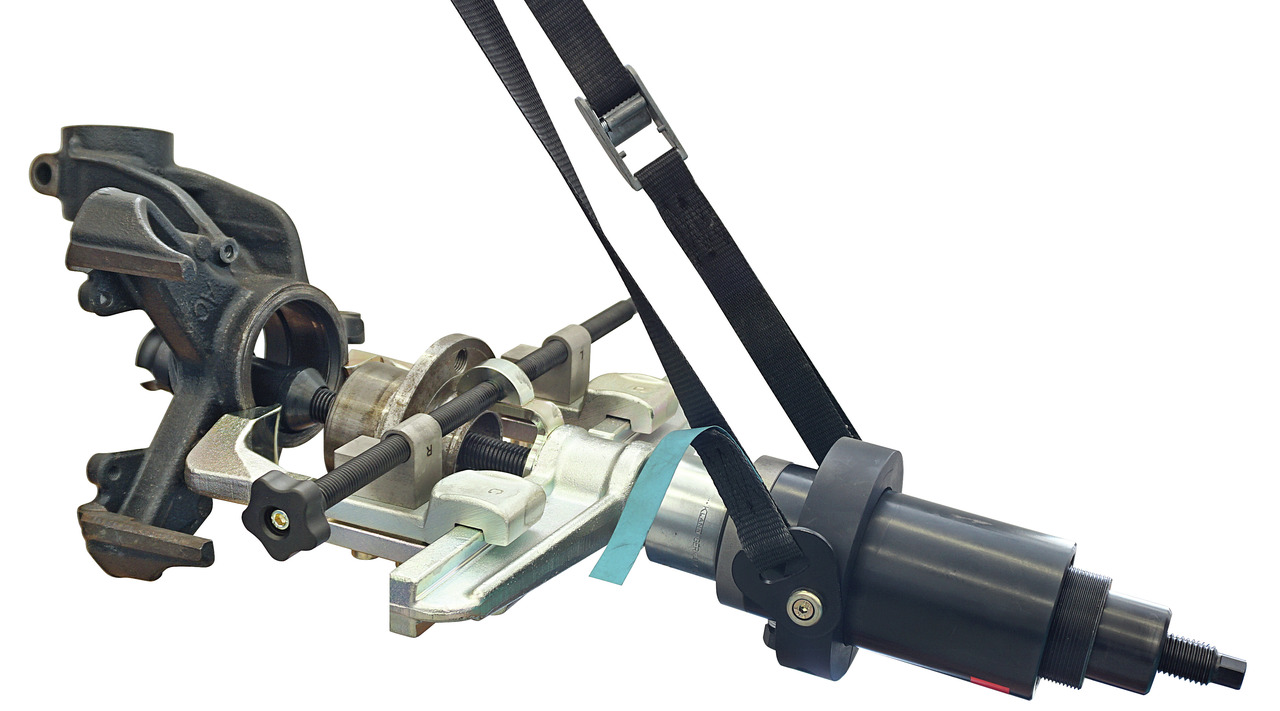

The wheel hub extractor enables wheel bearings, wheel hubs as well as wheel bearing units with a diameter of up to 250 mm to be pulled out of a wheel bearing housing quickly and easily directly on the vehicle.
For the construction, which can bear a load of up to 12 tonnes, it does not matter whether they are rusted, glued or fitted with a locking ring.
This tool can be also used for mechanically forcing out the cardan shaft.
The installation can be done e.g. with the wheel bearing tools from the KL-0039-.. or KL-0041-..series.

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Note

Accessorie for forcing off the cardan shaft, for wheel hubs with a flat contact surface at the rear: Pressure Spindle - 1.2606280KS (Code:1546910)

for Ø (max.)

250 mm

Drive type

hydraulic

mechanical

Required accessories

Hydraulic drive (17 t): KL-0215-35 M25 - Hydraulic pump KL-0040-2500 - Hydraulic cylinder 17 t KL-0039-1003 - Adapter KL-0039-1920-1 - Pull spindle mechanical drive: KL-0039-1011 Mounting adapter KL-0039-2030 - Pull spindle

Customs tariff number

82055980

Load (max.)

12 t

Total depth

305 mm

Total width

445 mm

Total height

105 mm

Storage

in a foam insert

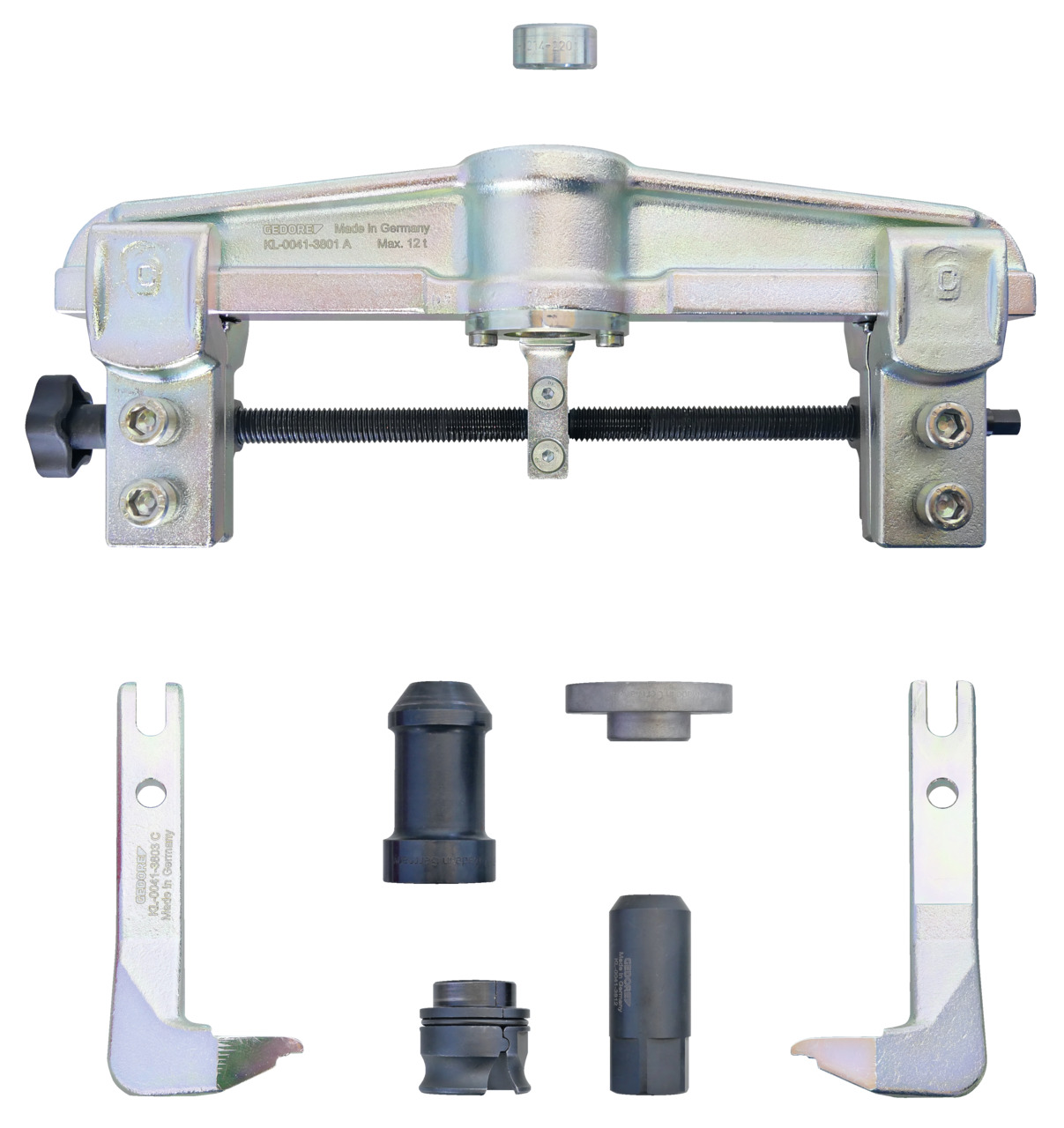

Parts list (Text)

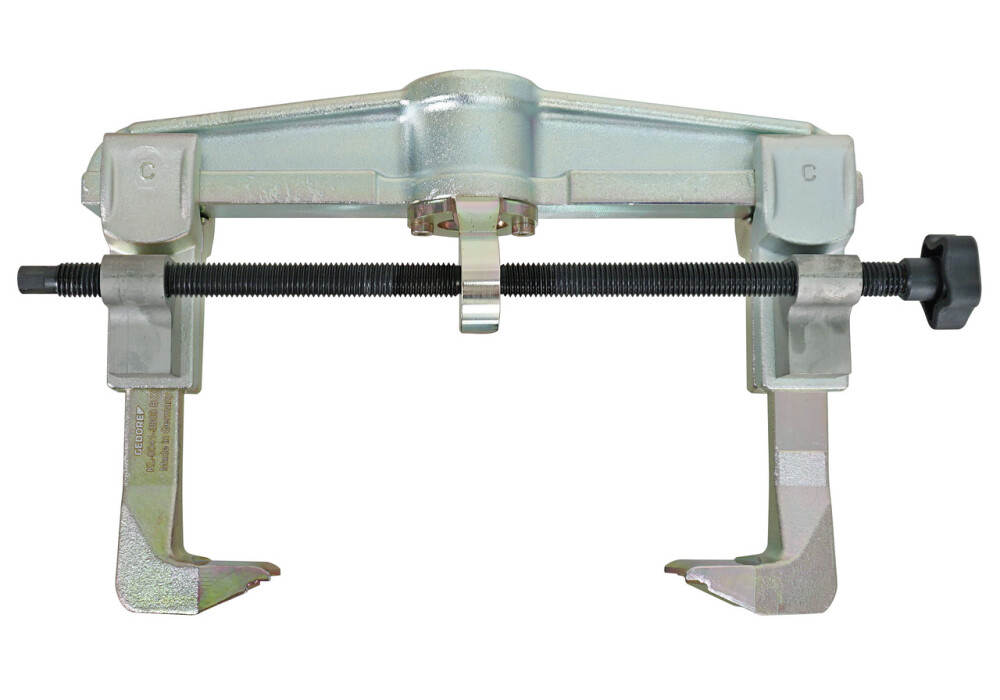

1x KL-0041-3800 A - Wheel hub puller basic device with adjusting spindle

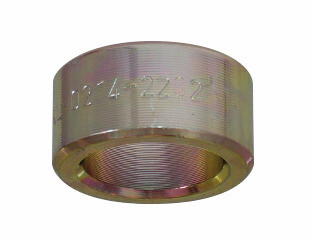

1x KL-0214-2202 - Spacer ring 30 mm dia.

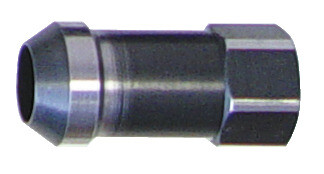

1x KL-0041-3812 - Clamping nut 30 mm dia.

1x KL-0039-2192 - Conical adapter 37 mm dia.

1x KL-0039-2120-2 - Quick-clamping nut M20

1x KL-0039-1506 - Thrust ring 60 mm dia.

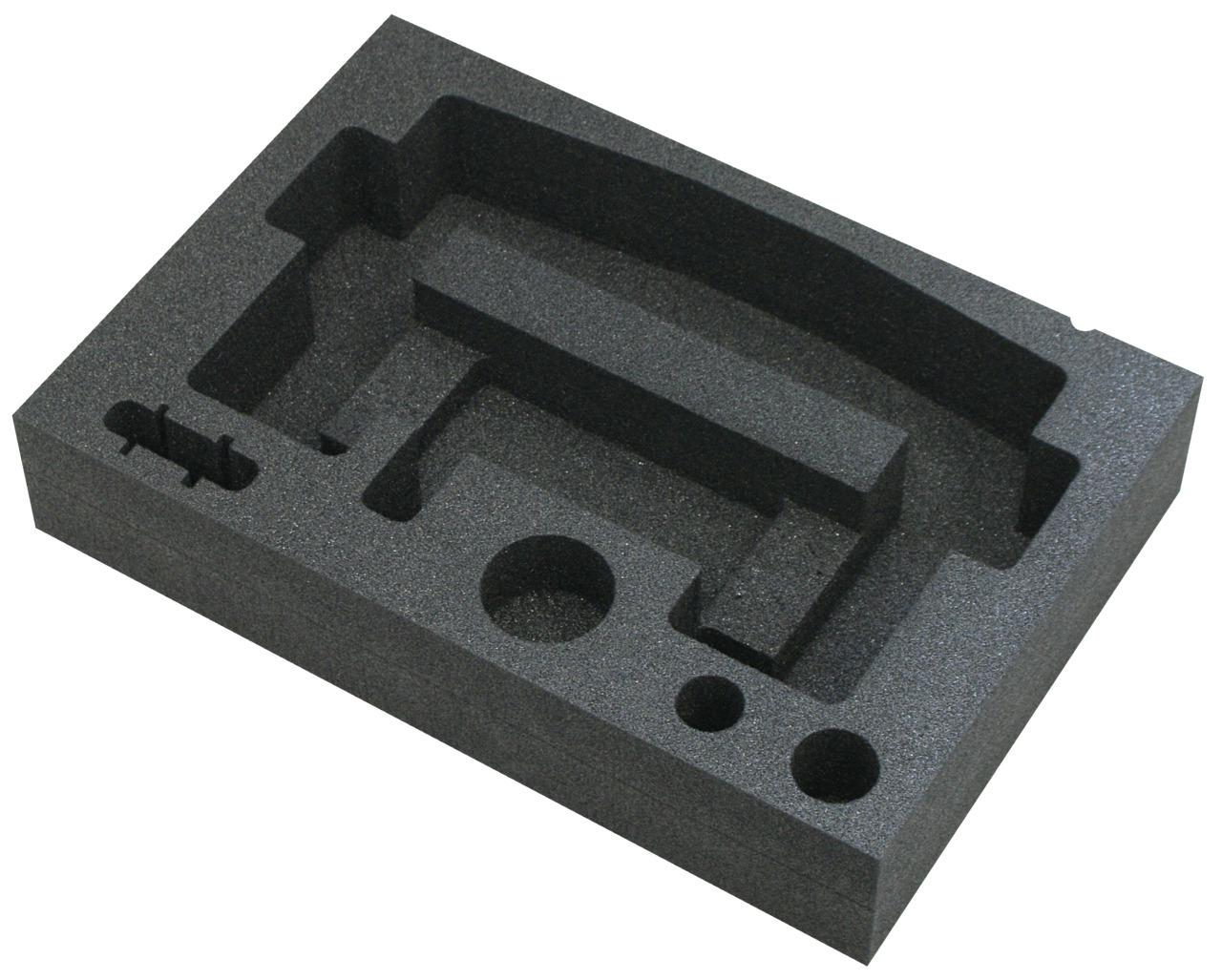

1x KL-4999-1315 - Foam insert

Weight

8 kg

Short text

Universally suitable for 1st generation wheel bearings and wheel hubs as well as 2nd generation compact wheel bearings with a diameter up to 250 mm.

• For quick and safe removal of wheel hubs / bearings

• Even glued, stuck or rusted wheel hubs / bearings are no problem

• Also for mechanical pressing out of the drive shaft

• In conjunction with KL-0041-384 also suitable for bolted compact wheel bearings (3rd gen.)

Manufacturer spare part number

Ford: 1 463 833; 1 496 721; 6G 91 2C300 GAB; 6G912C300GAB; 6G 91 2C300 GAC; 6G912C300GAC; 1437643; 6G 91 2C300 AAB; 6G912C300AAB; 1223640; 1230907; 1232245; 1254308; 1308716; 1326487; 1336139; 1471854; 2471709; 2472584; 3M51-2C300-CA; 3M512C300CA; 3M51-2C300-CB; 3M512C300CB; 3M51-2C300-CC; 3M512C300CC; 3M51-2C300-CD; 3M512C300CD; 3M51-2C300-CE; 3M512C300CE; 3M51-2C300-CF; 3M512C300CF; 3M51-2C300-CG; 3M512C300CG; 3M51-2C300-CH; 3M512C300CH; 3M5J-1K018-CJ; 3M5J1K018CJ; ME3M5J-2C300-CH; ME3M5J2C300CH

Land Rover: 6G91-2C300U-AB; 6G912C300UAB; LR0 03157; LR003157

Mazda: BN8B-33-15XB; BN8B3315XB; BP4K-33-15XA; BP4K3315XA; BP4K-33-15XB; BP4K3315XB

PSA: 98 190 747 80; 9819074780

Toyota: SU001-A6528; SU001A6528

Volvo: 30666130; 30666605; 30683161; 30714492; 30714730; 30730828; 30736653; 30741331; 31212698; 31262950; 31340604; 8623550; 30736501; 31360096; 31476395; 32246153

VW-Audi: 7H0 401 611 C; 7H0 401 611 D; 7H0 401 611 E; 7H0 401 611 H; 7H0 498 611; 7L0 498 611; 6C0 407 621; 6Q0 407 621 AH; 6Q0 407 621 AJ; 6R0 407 621 A; 6R0 407 621 E; 6C0 407 621 A; 6Q0 407 621 CB

Predecessor article

KL-0041-380 E

2840944

KL-0041-380

1961225

EAN

4046459173038

Manual - KL-0041-380A_DE240711.pdf Manual - KL-0041-380A_EN240711.pdf

Wheel Hub PullerKL-0041-380 EA

3277631

Description

KL-0040-2500 Hydraulic Cylinder, 17 t

KL-0039-1011 Retaining Adaptor for Mechanical Spindle

KL-0039-1003 Retaining Adaptor for Hydraulic Cylinder

KL-0039-2030 Pull Spindle, M20

KL-0215-35 M25 Hydraulic Hand Pump with Pressure Gauge, 17t

KL-4999-1391 Plastic Storage Case with Insert (empty)

KL-0039-1920-1 A Pull Spindle, M20

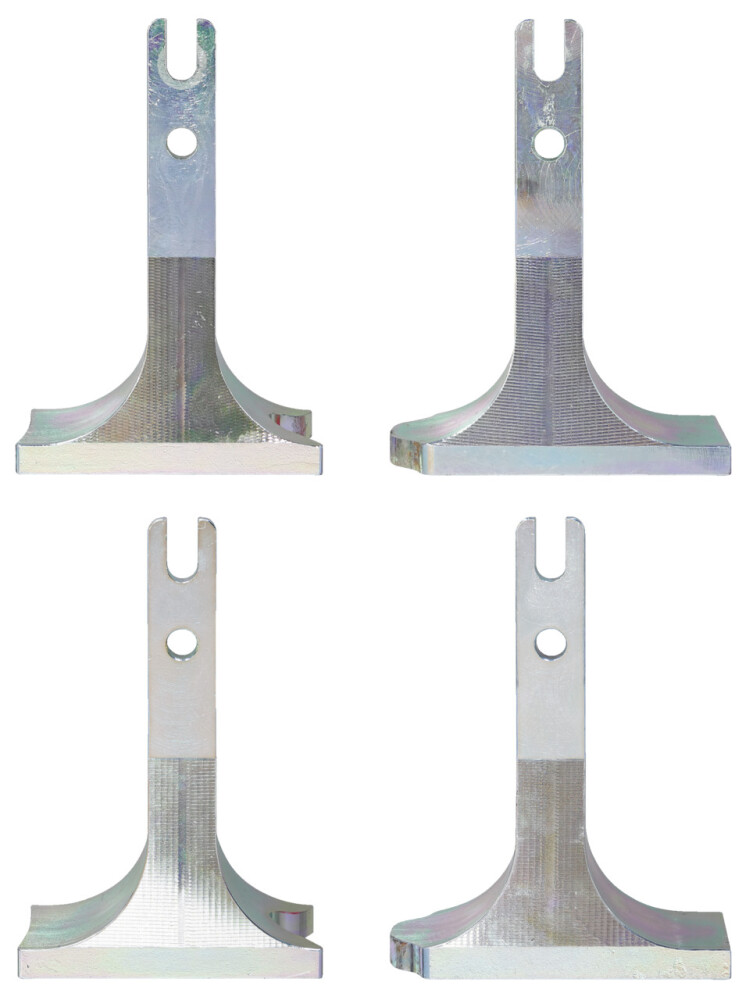

KL-0041-384 Bead Breaker Kit
