Wheel Bearing Tool Set
KL-0041-480 EA

3126404

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Suitable for vehicles with a bearing diameter of 72 mm: e.g. Audi A2 from YOM ’00, Seat Ibiza from YOM ’02, Škoda Fabia from YOM ’00, VW Polo from YOM ’02 and Fox, etc; bearing diameter of 78 mm: z.B. Ford Focus II, C-Max (from 10/03); Mazda 3 (from 10/03 to 06/09) Volvo C30, C70 II, S40 II, V50; bearing diameter 82 mm: e.g. Ford S-Max (from 2006), Galaxy (from 2006), Mondeo IV (from 2006); Volvo S60 II, S80 II, V60, V70 III (from 10/2007), XC60, XC70 II; bearing diameter 85 mm: e.g. VW T5 front and rear axle, VW Touareg / Porsche Cayenne front axle and bearing diameter 82 mm e.g. Ford S-Max (from 2006), Galaxy (from 2006), Mondeo IV (from 2006); Volvo S60 II, S80 II, V60, V70 III (from 10/2007), XC60, XC70 II.

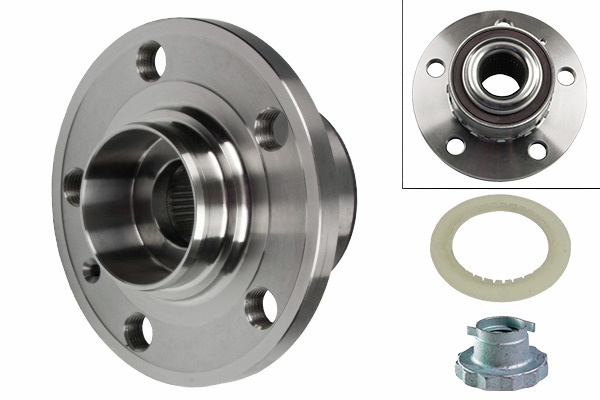

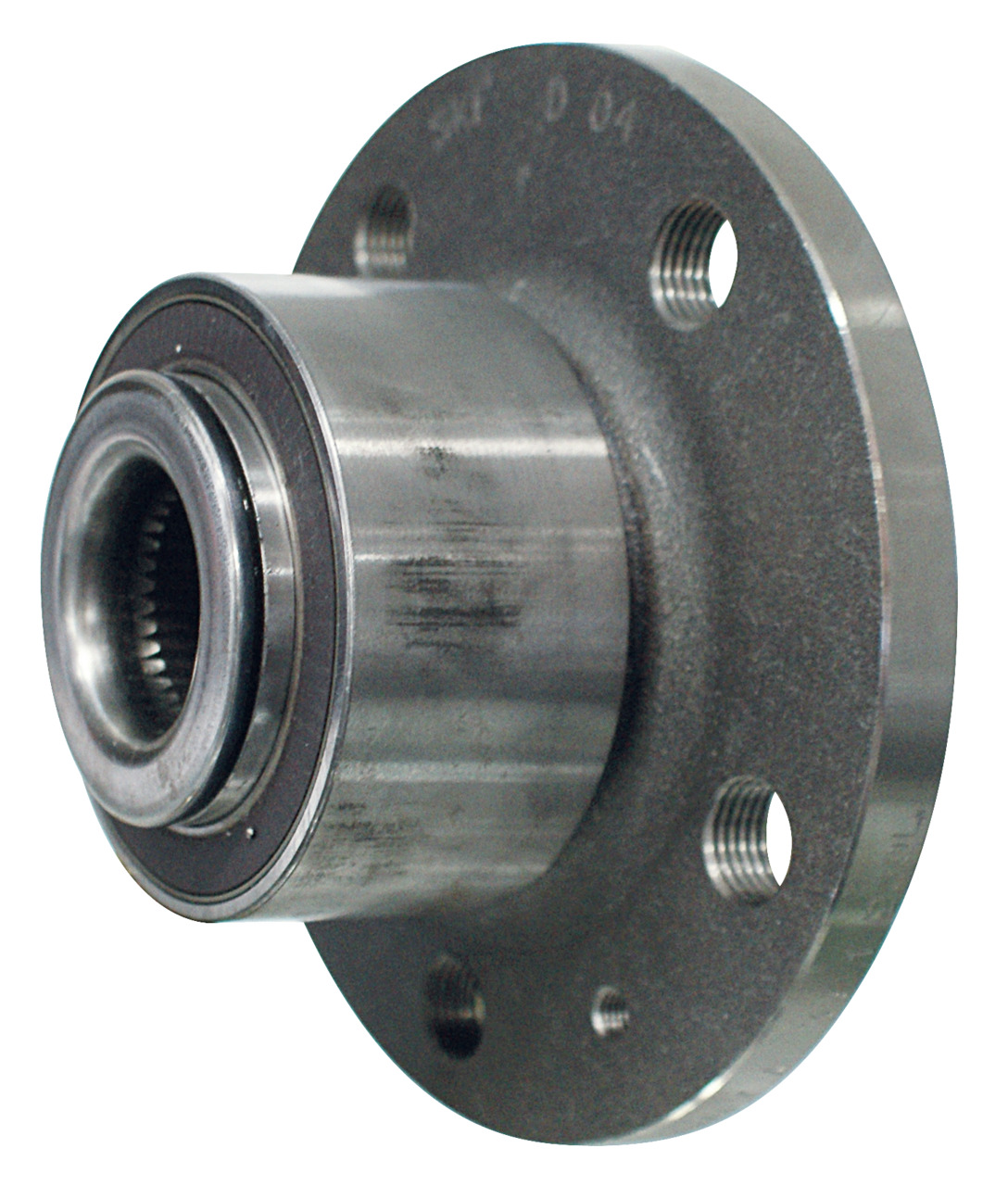

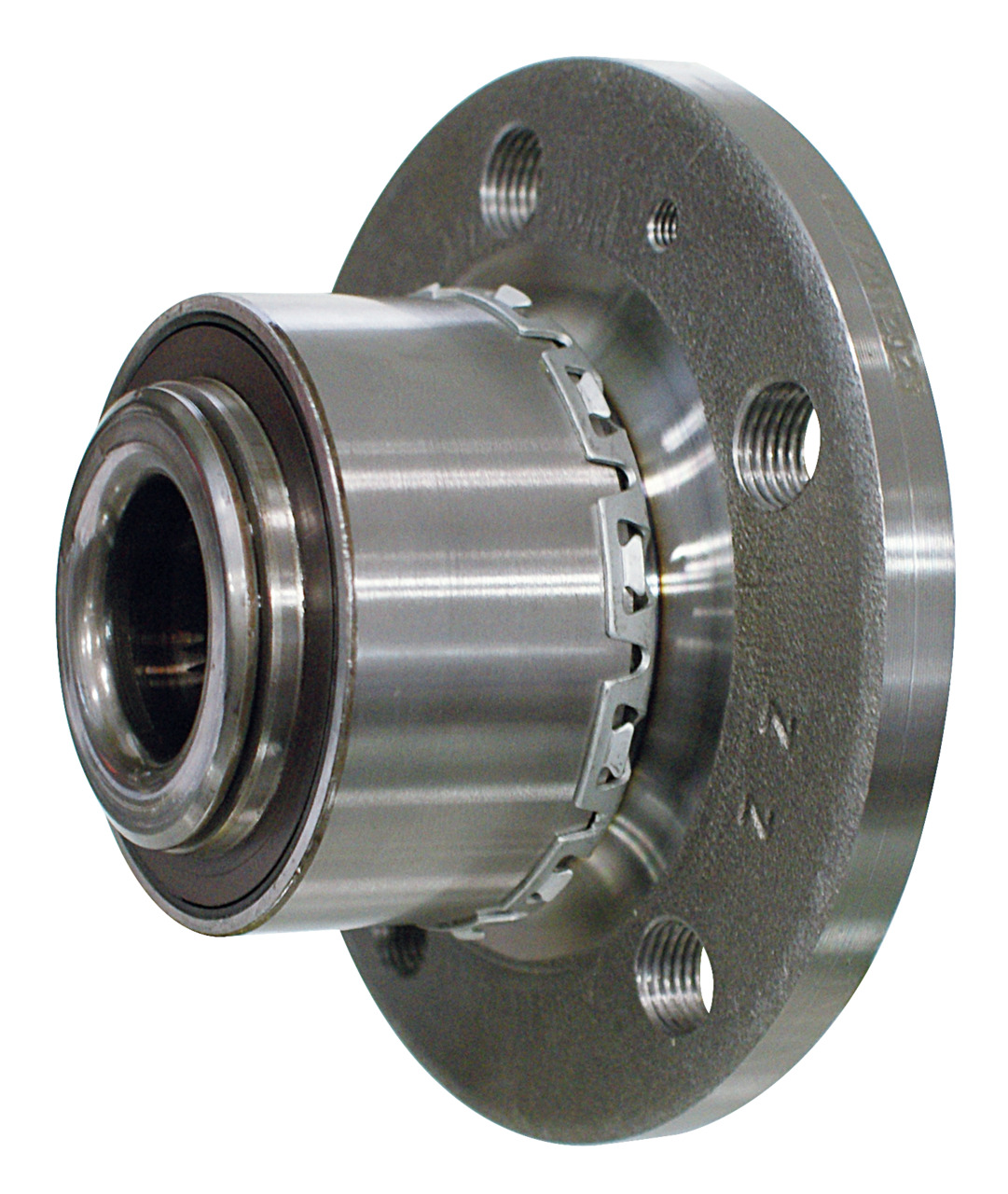

The wheel hub bearing unit (with or without locking ring) can be installed quickly, safe and precisely when using the wheel bearing tool.

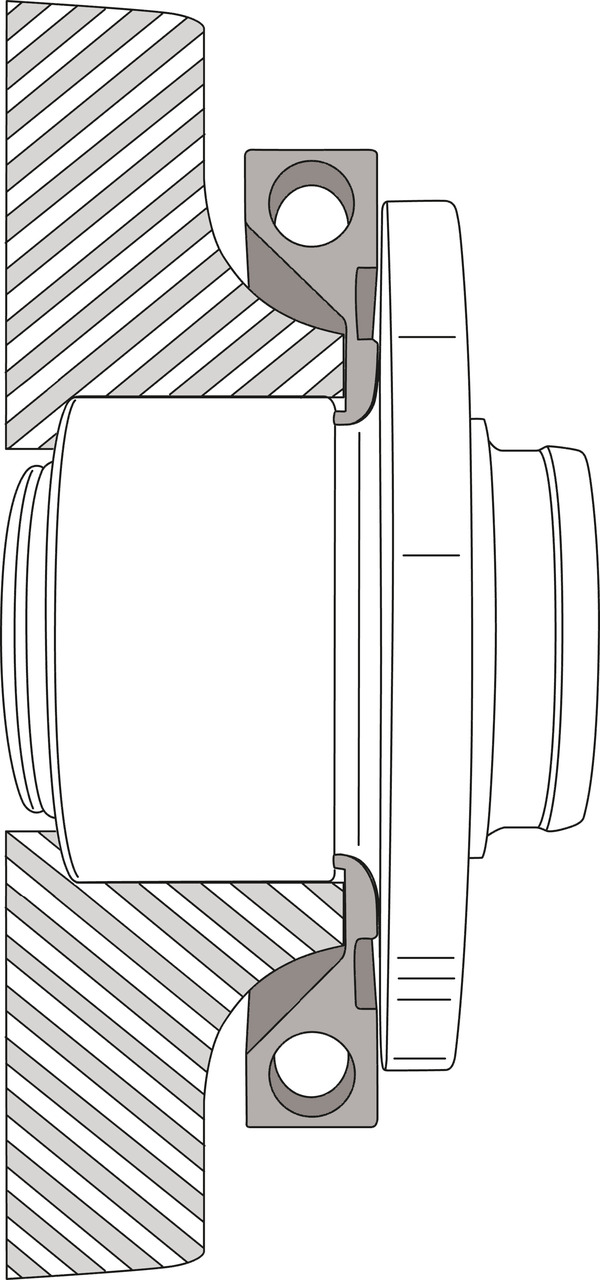

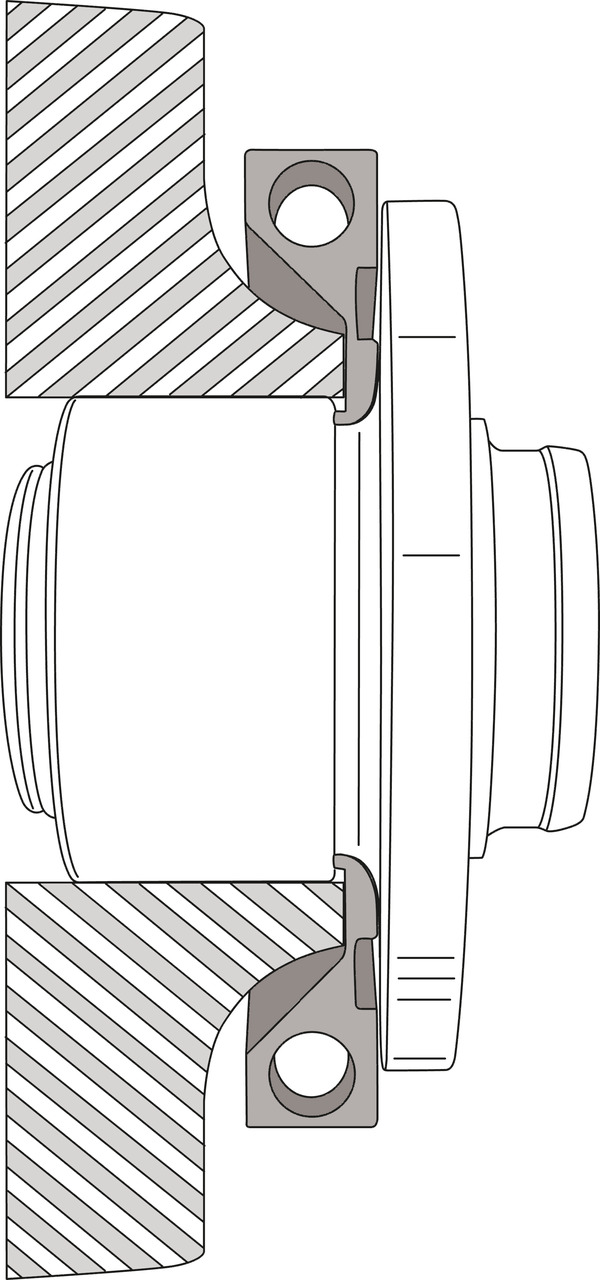

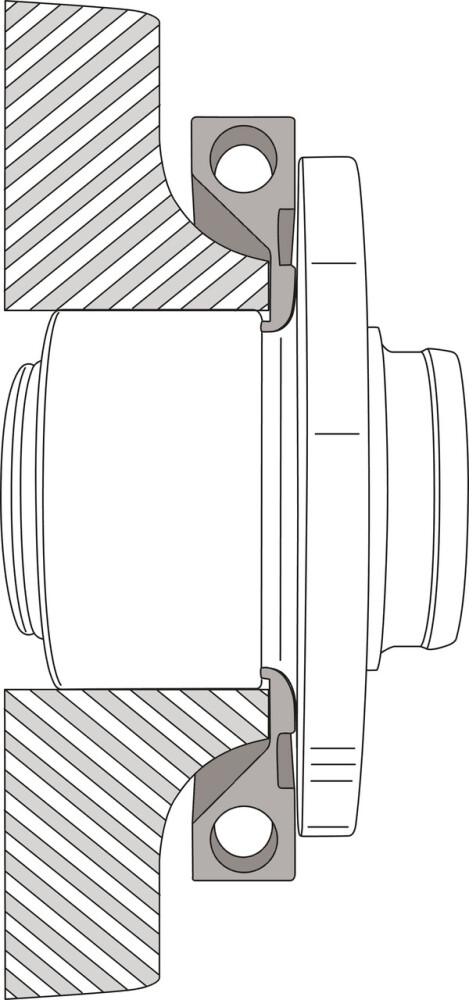

The special design of the tool ensures that during installation the applied press-in force only acts on the bearing outer ring and not on the wheel hub
This prevents the bearing from being damaged.
Without this tool kit, it is nearly impossible to professionally install the wheel hub bearing unit.

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Drive type

hydraulic

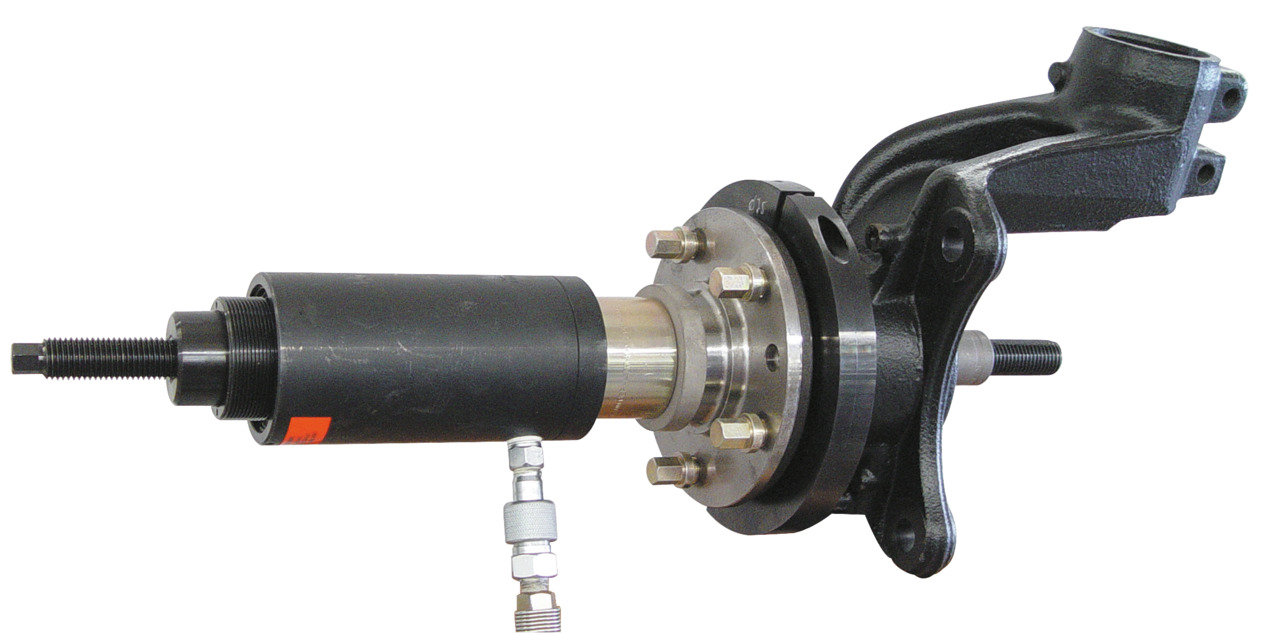

Required accessories

Hydraulic drive (17 t):

KL-0040-2500 - Hydraulic cylinder 17 t

KL-0215-35 M25 - Hydraulic pump

KL-0039-2120 - Pull spindle with quick-action clamping nut

Customs tariff number

82055980

for outside Ø (bearing)

72 mm / 78 mm / 82 mm / 85 mm

suitable for vehicle model

Audi A1 (8X)

Audi A1 (GB)

Audi A2 (8Z0)

Ford Grand C-Max / C-Max II (CB7 / CEU / DXA)

Ford Focus II (DA / DB / DH / DP / DS)

Ford Galaxy

Ford Mondeo IV (BA7)

Ford S-Max

Land Rover Freelander II (L359)

Mazda 3

Porsche Cayenne I (9PA)

Seat Arona (KJ)

Seat Cordoba II (6L)

Seat Ibiza III (6L)

Seat Ibiza IV (6J / 6P)

Seat Ibiza V (KJ)

Seat Toledo IV (KG)

Skoda Fabia I (6Y)

Skoda Fabia II (54)

Skoda Fabia III (NJ)

Skoda Fabia IV (PJ)

Skoda Kamiq (NW)

Skoda Rapid (NH / NK)

Skoda Roomster (5J)

Skoda Scala (NW)

Volvo C30 (533)

Volvo C70 II (542)

Volvo S40 II (544)

Volvo S60 II (134)

Volvo S80 II (124)

Volvo V50 (545)

Volvo V60 I (155 / 157)

Volvo V70 III (135)

Volvo XC60 I (156)

Volvo XC70 II (136)

VW Fox (5Z)

VW Polo IV (9N / 9A)

VW Polo V (60 / 61 / 6R / 6C)

VW Polo VI (AE / AW / BZ)

VW T5 (7E / 7H / 7J)

VW T6 (SG / SH / SF)

VW Touareg I (7L)

Total depth

305 mm

Total width

445 mm

Total height

125 mm

Storage

in a foam insert

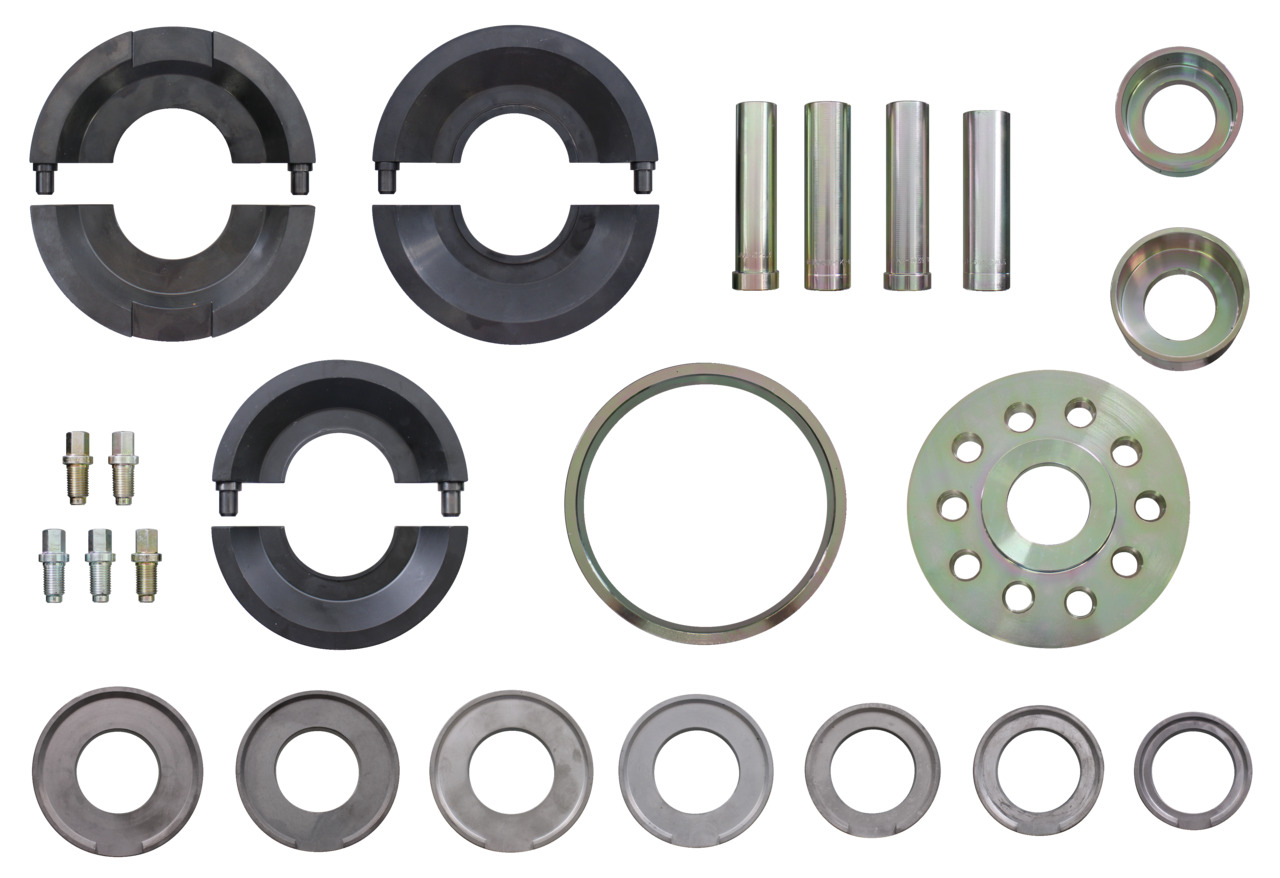

Parts list (Text)

1x KL-0039-1265 - Thrust ring 65 mm dia.

1x KL-0039-1272 - Thrust ring 72 mm dia.

1x KL-0039-1273 - Thrust ring 73 mm dia.

1x KL-0039-1283 - Thrust ring 83 mm dia.

1x KL-0039-1288 - Thrust ring 88 mm dia.

1x KL-0039-1289 - Thrust ring 89 mm dia.

1x KL-0039-1502 - Thrust ring 93 mm dia.

1x KL-0039-1674 - Pressure / support sleeve short 74 / 66 mm dia.

1x KL-0039-1682 - Pressure / support sleeve short 82 / 74 mm dia.

1x KL-0039-1802 - Centring sleeve long 27.4 mm

1x KL-0039-1803 - Centring sleeve long 29.7 mm

5x KL-0041-3931 - Thrust screw M14x1.5

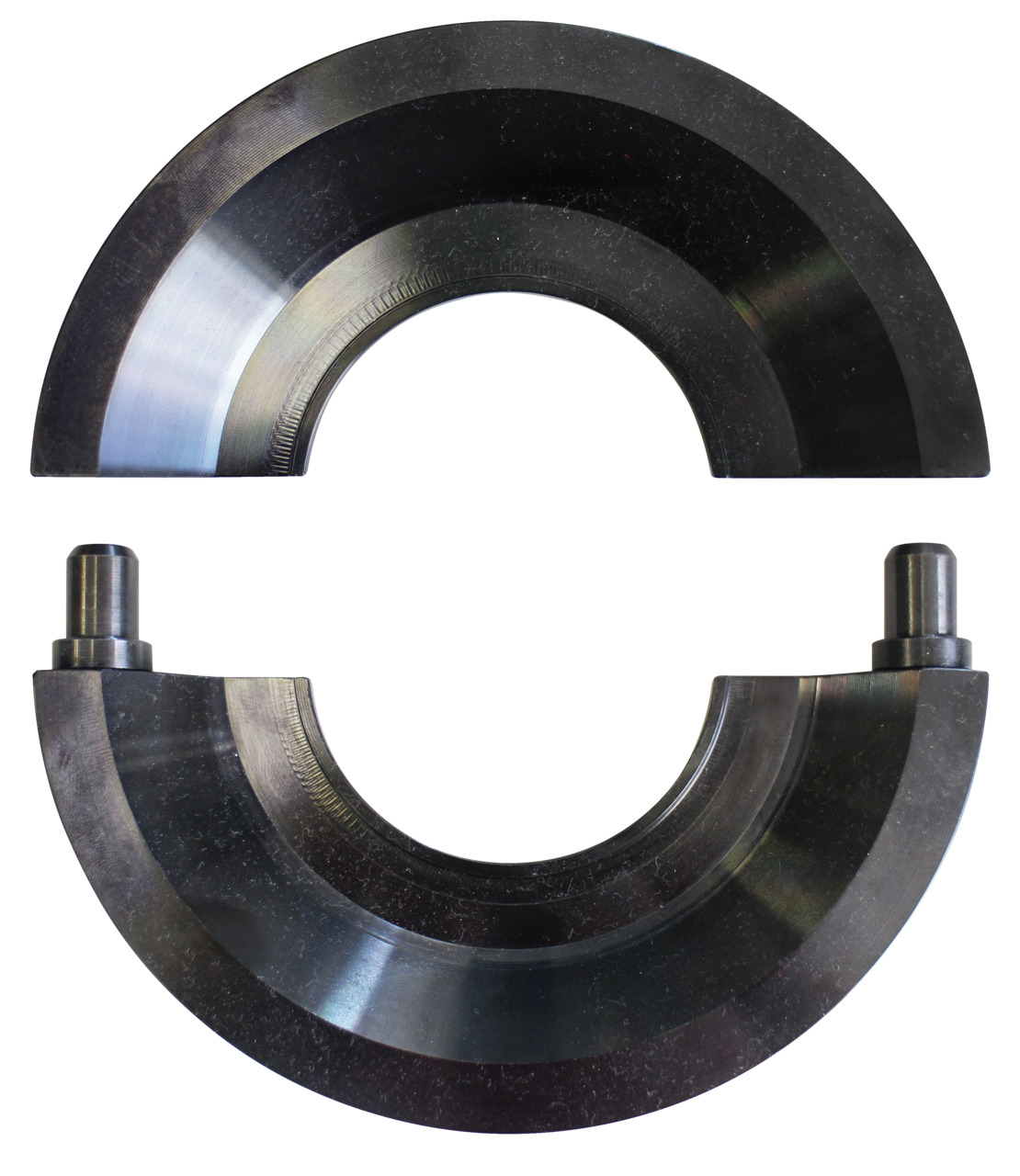

1x KL-0041-4400 C - Clamping jaw pair 72 mm dia.

1x KL-0041-4500 B - Clamping jaw pair 85 mm dia.

1x KL-0041-4600 D - Clamping jaw pair 78 mm dia.

1x KL-0041-4601 - Pressure / support sleeve long 30 / 22 mm dia.

1x KL-0041-4602 - Guide sleeve 26.3 mm dia.

1x KL-0041-4607 - Housing

1x KL-0041-4608 D - Cover

1x KL-4999-1317 A - Foam insert

Weight

14,5 kg

Short text

Suitable for vehicles with a bearing diameter of 72 mm, 78 mm, 82 mm, 85 mm (with or without locking ring).

e.g. VW, Audi, Seat, Škoda, Ford, Mazda, Volvo, Porsche, etc.

• Enables a quick and secure installation of wheel hub bearing units

• No damage to the bearing as pressure is only applied via the outer bearing ring

• Additional drive parts required!

Manufacturer spare part number

Ford: 1 463 833; 1 496 721; 6G 91 2C300 GAB; 6G912C300GAB; 6G 91 2C300 GAC; 6G912C300GAC; 1437643; 6G 91 2C300 AAB; 6G912C300AAB; 1223640; 1230907; 1232245; 1254308; 1308716; 1326487; 1336139; 1471854; 2471709; 2472584; 3M51-2C300-CA; 3M512C300CA; 3M51-2C300-CB; 3M512C300CB; 3M51-2C300-CC; 3M512C300CC; 3M51-2C300-CD; 3M512C300CD; 3M51-2C300-CE; 3M512C300CE; 3M51-2C300-CF; 3M512C300CF; 3M51-2C300-CG; 3M512C300CG; 3M51-2C300-CH; 3M512C300CH; 3M5J-1K018-CJ; 3M5J1K018CJ; ME3M5J-2C300-CH; ME3M5J2C300CH

Land Rover: 6G91-2C300U-AB; 6G912C300UAB; LR0 03157; LR003157

Mazda: BN8B-33-15XB; BN8B3315XB; BP4K-33-15XA; BP4K3315XA; BP4K-33-15XB; BP4K3315XB

Volvo: 30666130; 30666605; 30683161; 30714492; 30714730; 30730828; 30736653; 30741331; 31212698; 31262950; 31340604; 8623550; 30736501; 31360096; 31476395; 32246153

VW-Audi: 7H0 401 611 C; 7H0 401 611 D; 7H0 401 611 E; 7H0 401 611 H; 7H0 498 611; 7L0 498 611; 6C0 407 621; 6Q0 407 621 AH; 6Q0 407 621 AJ; 6R0 407 621 A; 6R0 407 621 E; 6C0 407 621 A; 6Q0 407 621 CB

Predecessor article

KL-0041-480 E

2841061

EAN

4046459160335

Manual - KL-0041-4..Serie_DE240603.pdf Manual - KL-0041-4..Serie_EN240603.pdf

Wheel Bearing Tool SetKL-0041-480 EA

3126404

Description

KL-0040-2500 Hydraulic Cylinder, 17 t

KL-0215-35 M25 Hydraulic Hand Pump with Pressure Gauge, 17t

KL-4999-1392 Plastic Storage Case with Insert (empty)

KL-0039-2120 Pull Spindle with Quick-Action Clamping Nut, hydraulic, M20

Technical data

KL-0039-1682 Press/Support Sleeve, short, Ø 82/74mm

KL-0039-1272 Pressure Ring, Ø 72mm

KL-0039-1273 Pressure Ring, Ø 73mm

KL-0039-1288 Pressure Ring, Ø 88mm

KL-0039-1289 Pressure Ring, Ø 89mm

KL-0039-1283 Pressure Ring, Ø 83mm

KL-0039-1674 Press/Support Sleeve, short, Ø 74/66mm

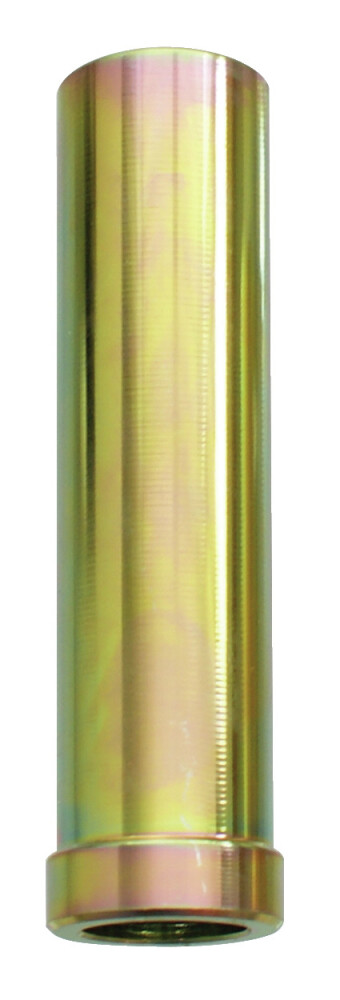

KL-0039-1802 Centring Sleeve, long, Ø 27.4mm

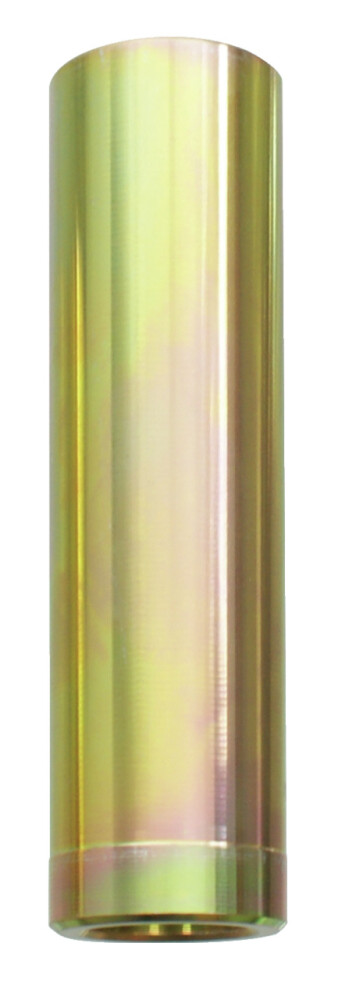

KL-0039-1803 Centring Sleeve, long, Ø 29.7mm

KL-0039-1502 Pressure Ring, Ø 93mm

KL-0039-1265 Pressure Ring, Ø 65mm

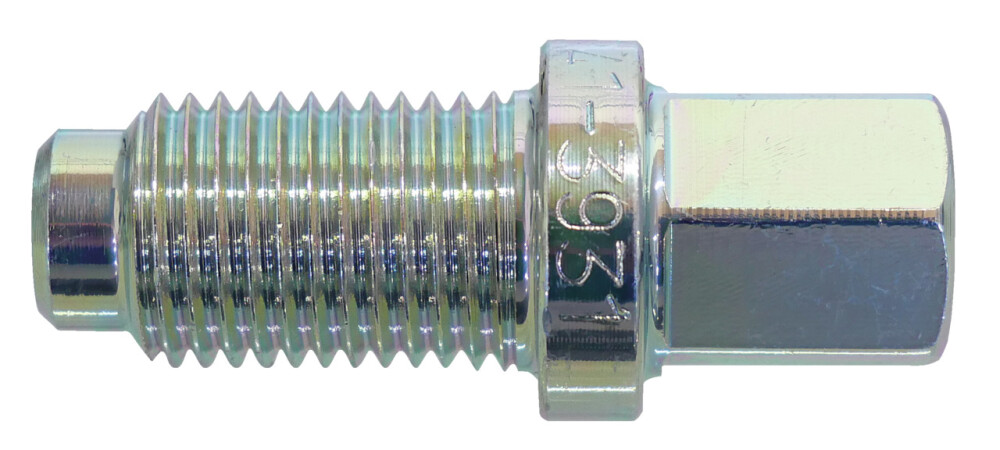

KL-0041-3931 Thrust Screw, M14x1.5

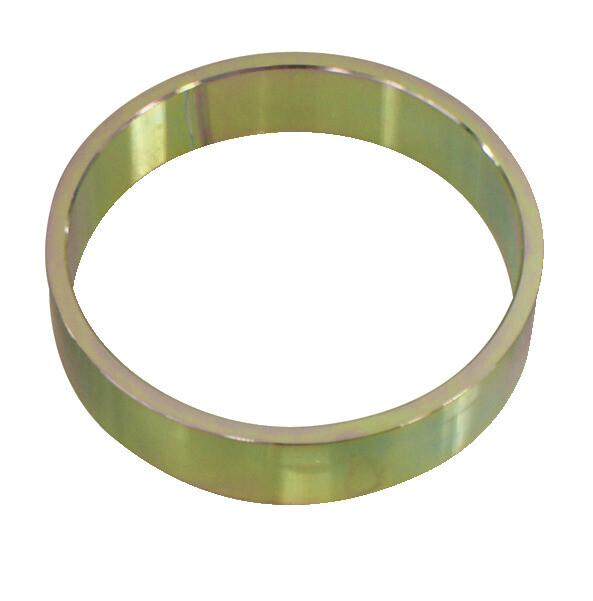

KL-0041-4607 Housing

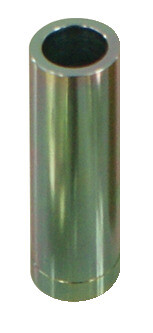

KL-0041-4601 Guide Sleeve, Ø 29.5mm

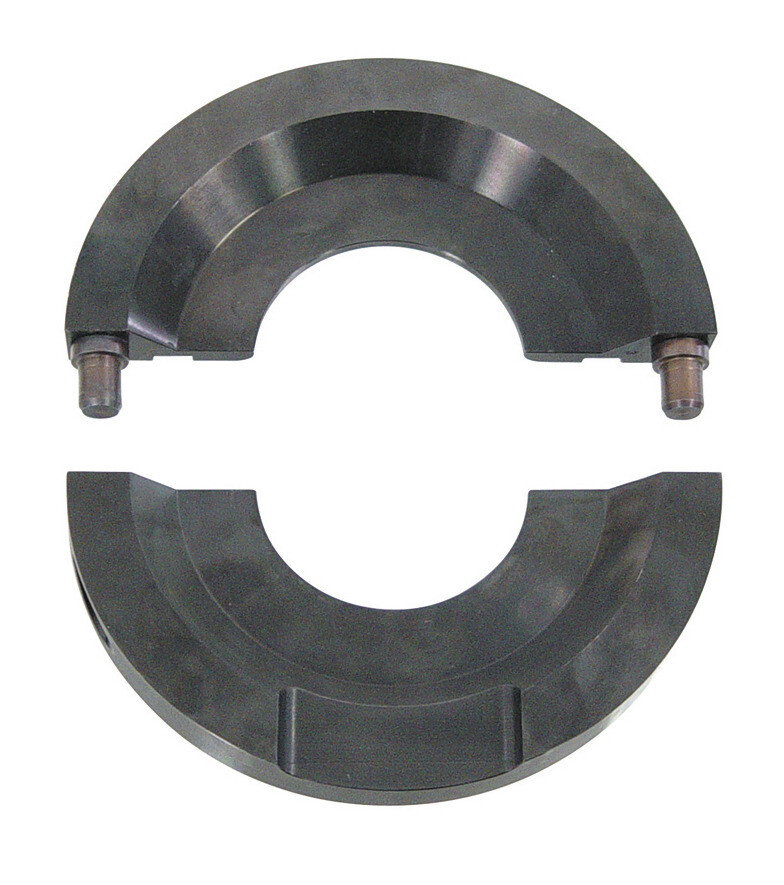

KL-0041-4500 B Clamping Jaw Pair, Ø 85/92mm

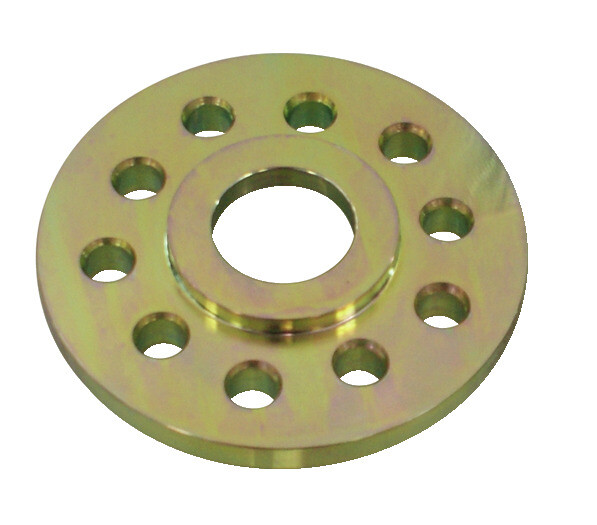

KL-0041-4608 D Cover

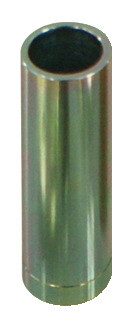

KL-0041-4602 Guide Sleeve, Ø 26.3mm

KL-0041-4400 C Clamping Jaw Pair, Ø 72mm

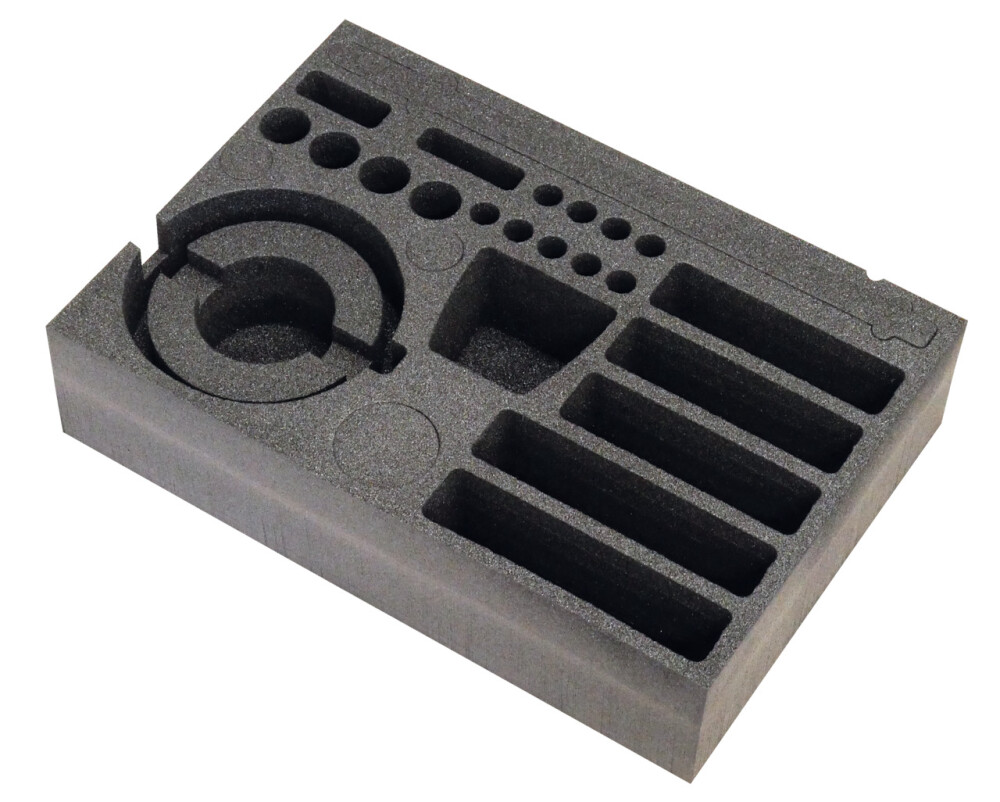

KL-4999-1317 A Foam Insert, KL-0041-Series

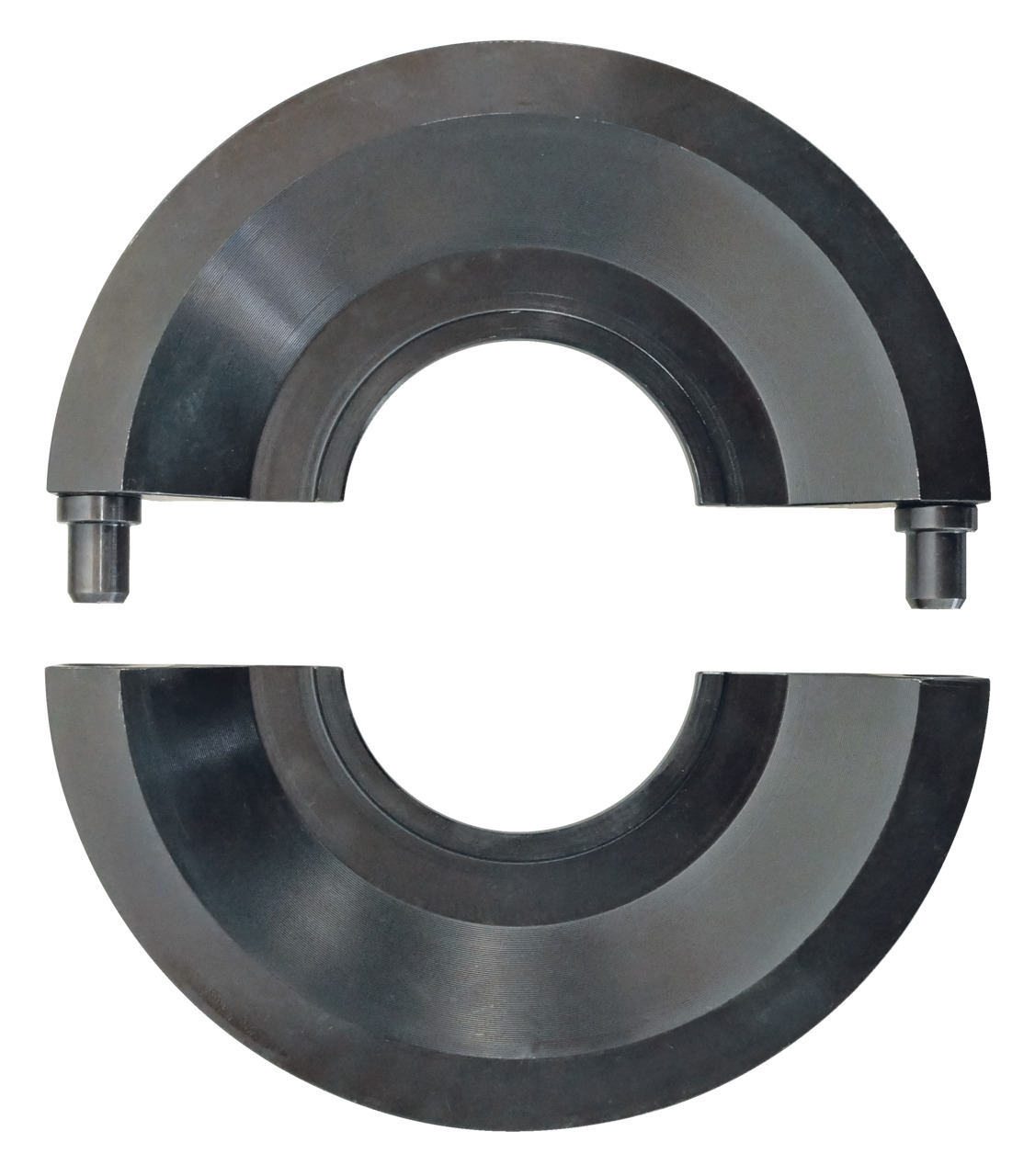

KL-0041-4600 E Clamping jaw pair, Ø 78mm

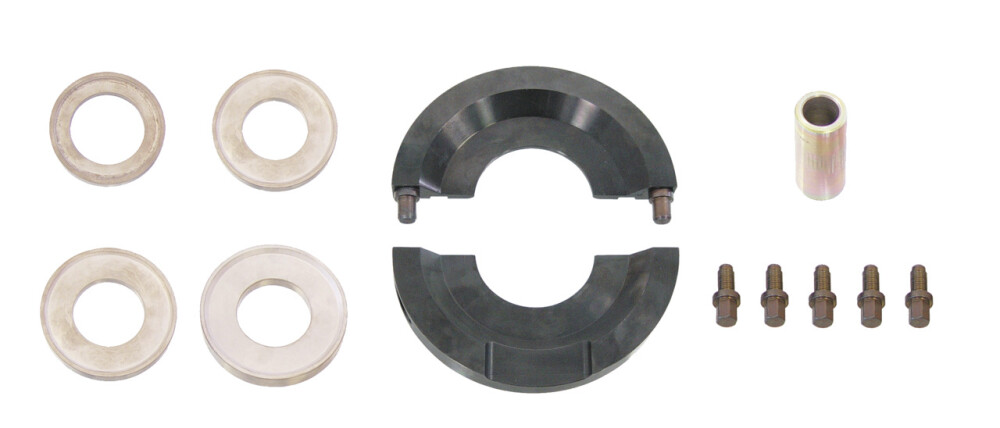

KL-0041-451 B Wheel Bearing Tool, VW T5, Ø 85 mm

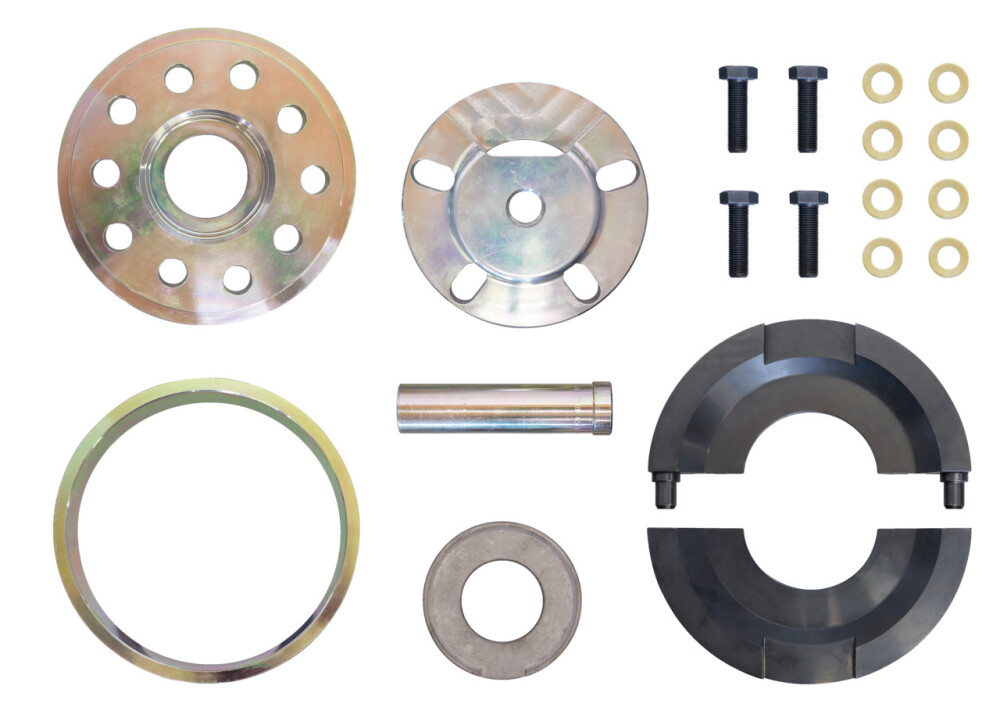

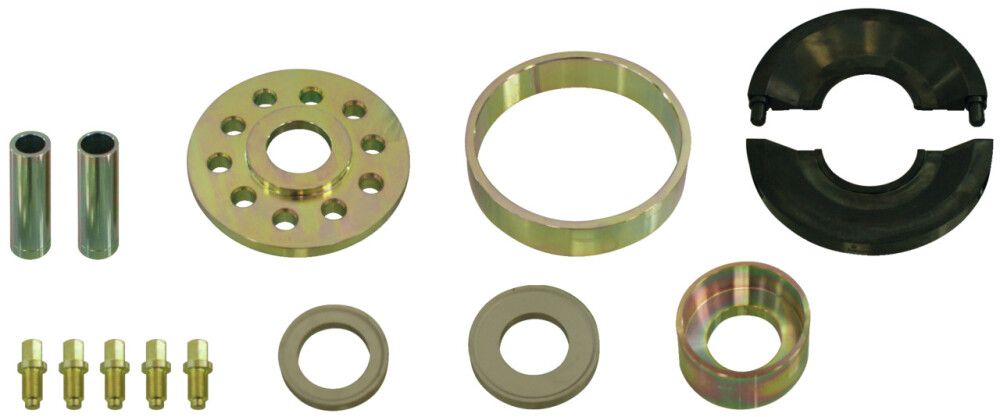

KL-0041-461 D Wheel Bearing Tool, Volvo, Ford, Ø 78 / 82 mm

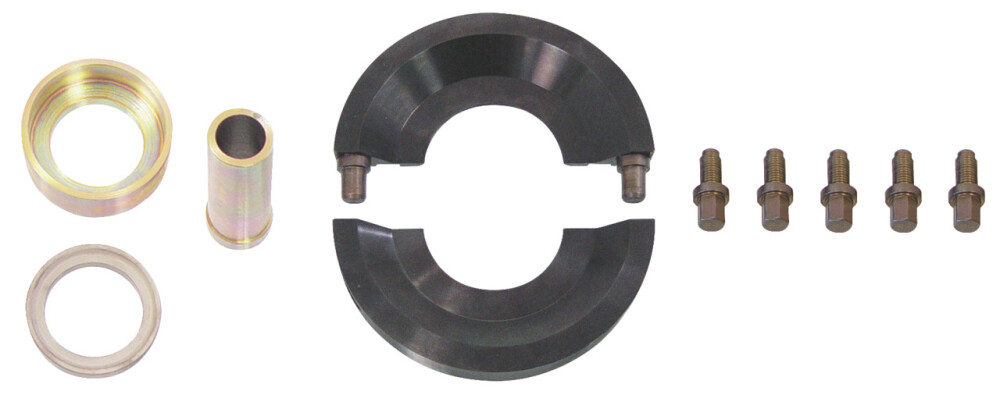

KL-0041-441 C Wheel Bearing Tool, VW-Audi, Ø 72 mm

KL-0174-110 Puller Set

KL-0041-380 EA Wheel Hub Puller
