As an example: Front axle: Audi Q7 (4L); Porsche Cayenne; VW Touareg I + II (LP_, 7P_), Amarok; etc.
Designed to compress and decompress front springs. Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged.
Technical data
Contents (Qty of pieces)
2
Size
1B
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Spring Ø, inner (min.)
90 mm
Spring Ø, outer (max.)
160 mm
Customs tariff number
82055980
suitable for vehicle model
Audi Q7 (4L)
VW Amarok I (2H)
Porsche Cayenne I (9PA)
VW Touareg I (7L)
VW Touareg II (7P)
Type
with Protective Insert
Parts list (Text)

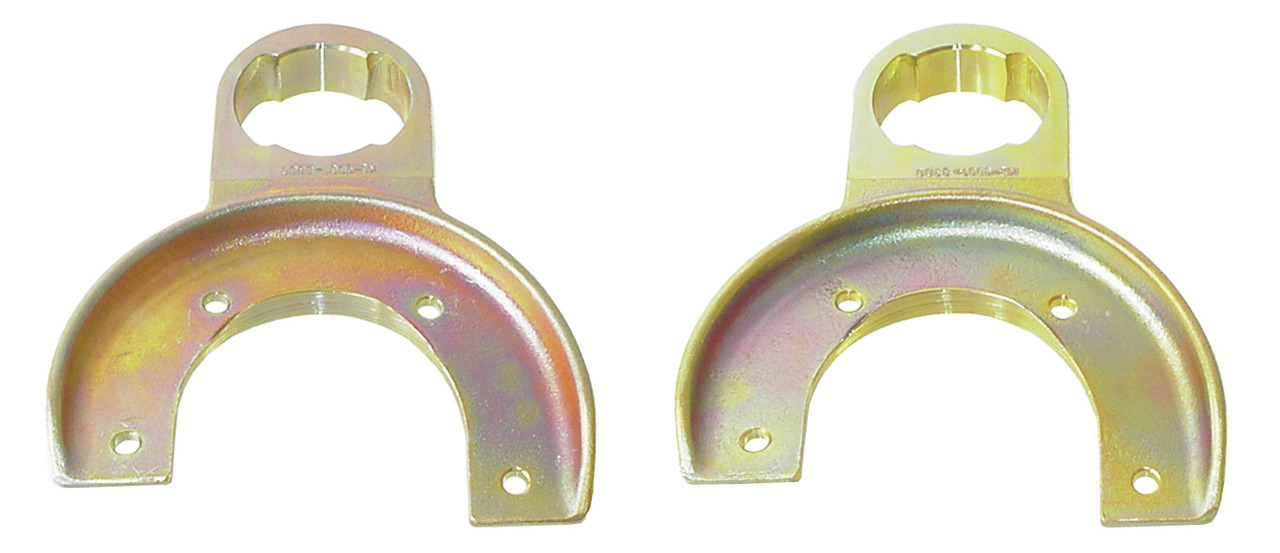

1x KL-9001-33 - Spring retainer pair size 1B

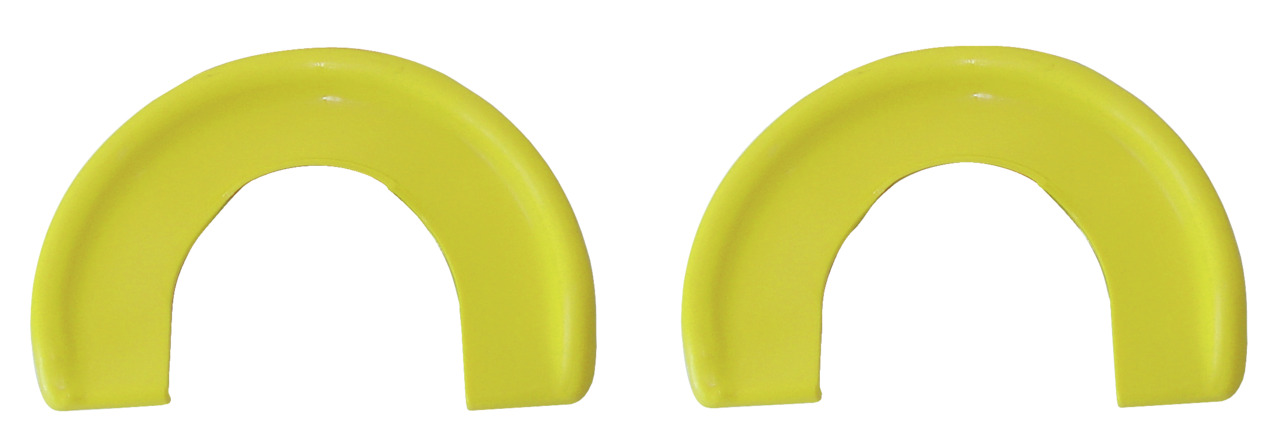

1x KL-9001-25 - Protective insert pair size 1B
Weight
3,6 kg
Short text
Universally suitable.
• With anti-slip and surface protecting protective inserts
• Only in combination with compressor cylinder KL-9002-100 (KL-9002 or KL-9002 SP)
