Pair of Jaws with Protective Insert, Size 1
KL-9001-11 SP

2480050

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Universal fit. Front axle as an example: Audi A1 (8X), A3 (8P), TT (8J), Q5 (8R); VW Golf (5G), Passat (357), up!, Scirocco (137), Arteon (3H), Sharan (7N), Touran (1T3); Seat Exeo (3R), Ibiza (6J); Škoda Superb (3T), Kodiaq (NS7); BMW 2 series (F45), 5 series (F10), X5 (E70); Mercedes B-Class (W245); Citroën C1 (PM/PN), C2 (JM); Fiat 500L (351), Bravo (198), Panda (169, 312); Ford Fiesta (VI), B-Max (JK); Mazda 2 (DE); Mini Cooper (R56); Opel Astra (J), Insignia (A), Mokka (J13); Peugeot 207 (WA/WC/WD), 208 (CA/CC); Renault Clio (IV), Twingo (II); Volvo V70 (135); etc. Rear axle: BMW 5 series (F10); Chrysler PT Cruiser; Mini Cooper (R56); Opel Astra (J), Mokka (J13); Peugeot 207 (WA/WC/WD); Renault Twingo (II); Volvo V70 (135); etc.

Special spring retaining pairs with closed retaining ring.
Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged.

Technical data

Contents (Qty of pieces)

Size

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Spring Ø, inner (min.)

85 mm

Spring Ø, outer (max.)

155 mm

Customs tariff number

82055980

suitable for vehicle model

Audi A4 B6 (8E / 8H)

Audi A4 B7 (8E / 8H)

Fiat 500L (351 / 352)

Fiat Bravo II (198)

Mercedes A-Klasse II (W169)

Mini II (R56 / R57 / R58 / R59)

Mini II Clubman (R55)

Peugeot 107 (PM / PN)

Seat Alhambra II (71)

Seat Altea / XL (5P)

Seat Ateca (KH)

Seat Leon II (1P)

Seat Leon III (5F)

Seat Mii (KF / KE)

Seat Tarraco (KN)

Seat Toledo III (5P)

Skoda Citigo (NF1)

Skoda Fabia III (NJ)

Skoda Octavia II (1Z)

Skoda Octavia III (5E / NL / NR)

Skoda Superb III (3V)

Skoda Yeti (5L)

Toyota Aygo I (B1)

Volvo S60 II (134)

Volvo S80 II (124)

Volvo V60 I (155 / 157)

VW Beetle II (5C)

VW Golf / Golf Plus V (1K / 5M / 52)

VW Golf VI (51 / 5K / AJ)

VW Golf VIII (CD / CG)

VW Jetta III (1K)

VW Jetta IV (16 / AV)

VW Passat / CC B6 (3C / 35)

VW Passat / CC B7 (35 / 36)

VW Passat B8 (3G / CB)

VW Tiguan II (AD / AX / BW / BJ)

VW Touran II (5T)

Type

with Protective Insert

Parts list (Text)

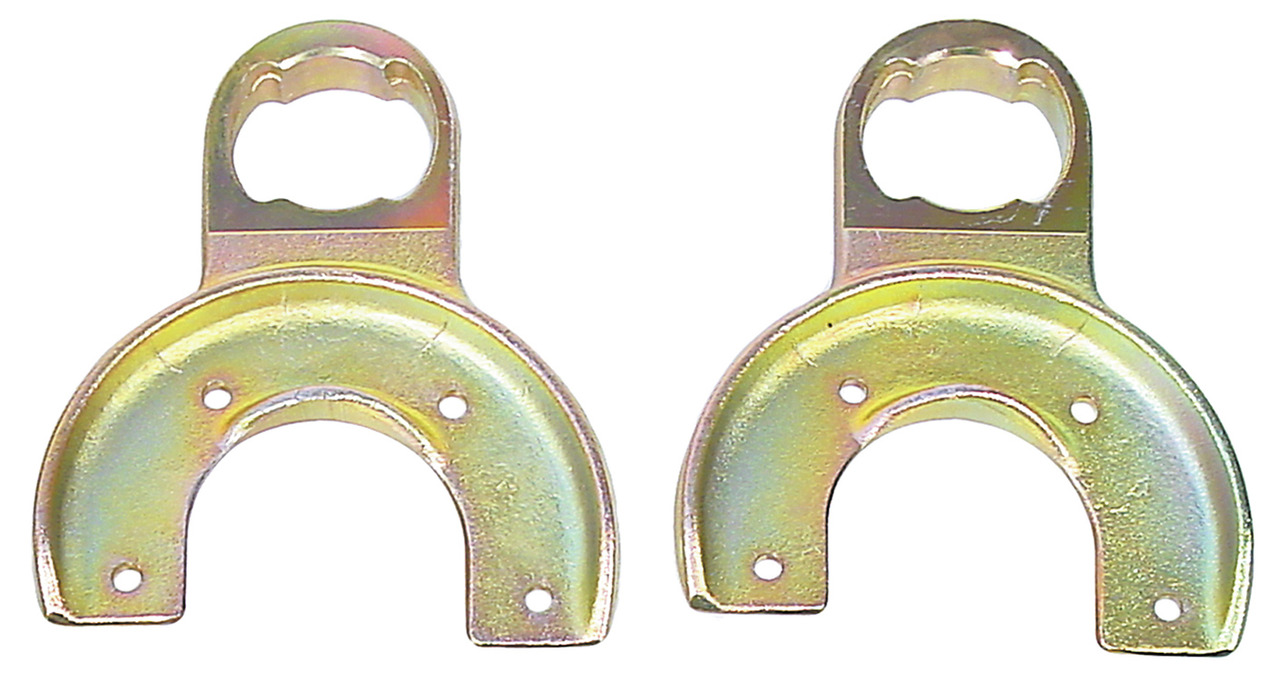

1x KL-9001-11 - Spring retainer pair size 1

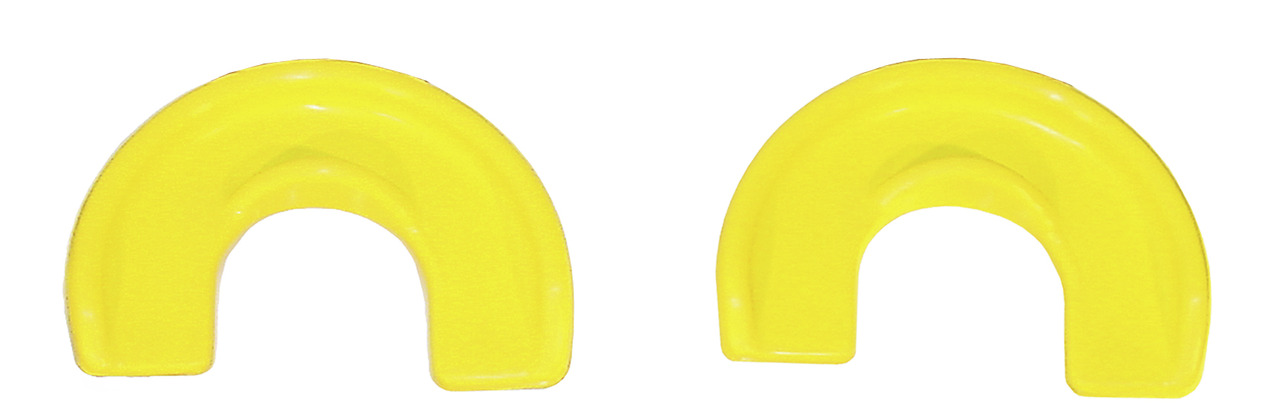

1x KL-9001-21 - Protective insert pair size 1

Weight

3,5 kg

Short text

Universally suitable.

• With anti-slip and surface protecting protective inserts

• Only in combination with compressor cylinder KL-9002-100

Manufacturer spare part number

BMW: 31 33 6 794 636; 6 794 636; 31 33 6 794 638; 6 794 638; 31 33 6 794 641; 6 794 641; 6 794 642; 31 33 6 794 642; 31 33 7 846 307; 7 846 307; 7 850 122; 31 33 7 850 122; 6 778 112; 31 33 6 778 112; 31 33 6 778 113; 6 778 113; 31 33 6 779 966; 6 779 968; 6 779 966; 31 33 6 779 968; 31 33 6 773 049; 6 773 049; 31 33 6 773 048; 6 773 048; 6 779 965; 31 33 6 779 965; 6 778 114; 31 33 6 778 114; 31 33 6 779 967; 6 779 967; 31 33 6 773 051; 31 33 6 773 050; 6 773 051; 6 773 050

Citroen: 48 131-0H 01; 5002 HN; 5002 HL; 48 131 -0H 02; 5002 EG; 5002 EP; 5002 LE; 5002 EN; 5002 LH; 5002 LG; 5002 RA; 5002 QS; 5002 LZ

Fiat: 51920934; 51943938; 51943933; 51920933; 51943936; 50707383; 50707384; 50707387; 50707397; 50707398; 51846540; 51930207; 51939622; 51939060; 52150017; 51893646; 51939064; 51846541; 51939061; 52150020; 51846543; 51932602; 52150018; 51939065; 51877224; 52150021; 51977775; 51846542; 51930209; 51939624; 51939062; 51977776; 51877225; 51939621; 50710622; 51856848; 50710623; 51856849; 51856850; 50710624; 51856840; 50703622; 51856843; 51856844; 50707559; 50703897; 51856841; 50703896; 50703898

Ford: C1BC-5310-ABB; 1766930; C1BC-5310-ACA; 1787711; C1BC-5310-AAA; 1766928; 1766929; C1BC-5310-ABA; 1787714; 1766934; C1BC-5310-BBA; C1BC-5310-BBB; 1528122; 8V51-5310-AB; 1518906; 1528123; 1547179; 8V51-5310-EC; 1514146; C1BC-5310-BCA; 1766935; 1787712; C1BC-5310-ADB; 1803492; 2002584; C1BC-5310-PAC; C1BC-5310-PAB; 1797584; C1BC-5310-PAA; 1514147; 8V51-5310-FC; 1528124; 1547180; 1547182; 1528126; 1514149; 8V51-5310-HC; 8V51-5310-GC; 1514148; 1528125; 1547181; 1776871; 1775674; AY11-5310-CC; AY11-5310-BC

Mazda: D656-34-011E; D656-34-011D; DR61-34-011B; DR61-34-011A; DR62-34-011A; DR62-34-011B; DH57-34-011E; DH57-34-011D; DR06-34-011; DL60-34-011; DL60-34-011B; DL60-34-011A

Mercedes: A 169 321 24 04; A 169 321 25 04; A 169 321 26 04; A 169 321 27 04; A 169 321 16 04; A 169 321 17 04; A 169 321 18 04; A 169 321 19 04; A 169 321 28 04; A 169 321 20 04

Mini: 6 777 186; 31 33 6 777 186; 31 33 6 777 185; 6 777 185; 6 795 141; 31 33 6 795 141; 6 795 144; 6 795 142; 6 795 143; 31 33 6 795 144; 31 33 6 795 143; 31 33 6 795 142; 6 782 727; 31 33 6 782 727; 31 33 6 782 728; 6 782 728; 6 777 191; 6 777 190; 31 33 6 777 190; 31 33 6 777 191; 6 782 730; 6 782 729; 31 33 6 782 729; 31 33 6 782 730; 6 777 189; 31 33 6 777 189; 33 53 6 785 864; 6 777 197; 6 785 864; 33 53 6 777 197; 33 53 6 777 199; 6 777 199; 33 53 6 777 192; 33 53 6 777 193; 6 777 192; 6 777 198; 6 777 193; 33 53 6 777 198; 6 772 779; 33 53 6 772 779; 33 53 6 772 780; 6 772 780; 6 772 781; 33 53 6 772 781; 6 782 732; 33 53 6 782 731; 33 53 6 782 732; 6 782 731

Opel: 13251753; 4 24 273; 4 24 284; 13299659; 4 24 399; 13333952; 4 24 408; 13340838; 13333951; 4 24 334; 13299657; 4 24 276; 13265250; 3 12 547; 13402589; 3 12 433; 13333961; 3 12 465; 3 12 464; 13333960; 13402585; 3 12 543; 13402586; 3 12 238; 3 12 544; 3 12 545; 13265247; 13402587; 13265248; 3 12 239; 13265249; 3 12 450; 13402590; 3 12 564; 13402604; 3 12 548; 3 12 434; 13265251; 3 12 435; 13283237; 3 12 538; 95104195; 95965583; 4 24 448; 4 24 465; 95107103; 95367342; 4 24 490; 95104196; 3 12 539; 4 24 466; 95107104; 495174969; 4 24 446; 95174969; 95090402; 3 12 537; 3 12 526; 95367568; 3 12 591; 95218481

Peugeot: 5002 HN; 5002 HL; 5002 JY; 5002 QP; 5002 QQ; 5102 P1; 5102 Q5; 5002 QR; 5102 P2; 5002 KF; 5002 RQ; 5002 RP; 5002 KE; 98 021 571 80; 98 021 572 80; 98 021 573 80; 98 021 569 80; 98 021 568 80; 98 021 565 80; 98 021 570 80; 98 021 566 80

Renault: 54 01 076 46R; 54 01 039 30R; 54 01 026 06R; 82 00 948 652; 82 00 681 415; 82 00 681 410; 82 00 681 407; 82 00 681 764; 82 00 750 095; 82 00 681 804; 82 00 750 101

Volvo: 31255515; 31304176; 30748220; 30681766; 31202534; 31360800; 30748153; 30748152

VW-Audi: 6R0 411 105 BL; 6R0 411 105 BM; 6R0 411 105 BN; 1K0 411 105 AJ; 1K0 411 105 AK; 1K0 411 105 EQ; 1K0 411 105 CC; 1K0 411 105 AP; 1K0 411 105 BA; 1K0 411 105 BB; 1K0 411 105 DT; 1K0 411 105 CD; 1K0 411 105 EN; 1K0 411 105 BT; 1K0 411 105 DC; 8J0 411 105 D; 8J0 411 105 B; 8J0 411 105 CB; 8J0 411 105 AN; 8J0 411 105 AP; 8J0 411 105 BQ; 8J0 411 105 BP; 8J0 411 105 F; 8J0 411 105 E; 8J0 411 105 G; 8J0 411 105 CM; 8J0 411 105 BB; 8J0 411 105 BA; 8J0 411 105 CN; 8J0 411 105; 8J0 411 105 A; 8J0 411 105 CJ; 8J0 411 105 CE; 8J0 411 105 CK; 8J0 411 105 CD; 8J0 411 105 C; 8J0 411 105 L; 8J0 411 105 H; 8R0 411 105 CF; 8R0 411 105 CG; 8R0 411 105 CH; 8R0 411 105 AR; 8R0 411 105 AQ; 8R0 411 105 CM; 8R0 411 105 CL; 8R0 411 105 CN; 8R0 411 105 CQ; 8R0 411 105 CP; 8R0 411 105 AS; 8R0 411 105 AT; 8R0 411 105 DF; 8R0 411 105 DG; 5Q0 411 105 HA; 5Q0 411 105 GG; 5Q0 411 105 GJ; 5Q0 411 105 GL; 5Q0 411 105 HE; 5Q0 411 105 GC; 5Q0 411 105 GD; 5Q0 411 105 JG; 5Q0 411 105 GN; 5Q0 411 105 GM; 3C0 411 105 N; 3C0 411 105 P; 3C0 411 105 AA; 3C0 411 105 S; 1S0 411 105 A; 1S0 411 105 AF; 1S0 411 105 H; 1K0 411 105 AT; 1K0 411 105 DA; 1K0 411 105 DB; 1K0 411 105 JA; 7N0 411 105 A; 7N0 411 105 B; 7N0 411 105 E; 7N0 411 105 F; 7N0 411 105 G; 7N0 411 105 L; 7N0 411 105 M; 7N0 411 105 R; 1K0 411 105 HJ; 1K0 411 105 DJ; 1K0 411 105 HN; 1K0 411 105 DE; 1K0 411 105 DN; 1K0 411 105 DM; 8E0 411 105 BD; 8E0 411 105 DD; 8E0 411 105 DG; 8E0 411 105 BG; 8E0 411 105 CF; 8E0 411 105 BH; 8E0 411 105 DH; 8E0 411 105 CE; 8E0 411 105 DJ; 8E0 411 105 BJ; 6R0 411 105 S; 6R0 411 105 L; 6R0 411 105 AD; 6R0 411 105 AG; 6R0 411 105 M; 6R0 411 105 AJ; 6R0 411 105 AE; 6R0 411 105 AF; 6R0 411 105 P; 6R0 411 105 AK; 3C0 411 105 A; 3C0 411 105 B; 3C0 411 105 C; 1K0 411 105 BP; 1K0 411 105 DL; 1K0 411 105 DK; 5Q0 411 105 DL; 5Q0 411 105 DP; 5Q0 411 105 DN

to be used as (OEM)

W 163 589 00 63 00

W 168 589 02 63 00

W 210 589 10 63 00

EAN

4046459055846

Manual - 9002SP_DE211103.pdf Manual - 9002SP_EN211103.pdf Manual - 9002SP_FR211103.pdf
