As an example: MAN TGE (van) Front axle: Mercedes V-Class (W447); VW-Crafter; Chrysler PT Cruiser; etc. Rear axle: Mercedes V-Class (W447); etc.
Special spring retaining pairs with closed retaining ring. Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged.
Technical data
Contents (Qty of pieces)
2
Size
3
VDE certified
No
1000 V insulated
No
Target groups
Automotive
Construction and commercial vehicles
Spring Ø, inner (min.)
125 mm
Spring Ø, outer (max.)
205 mm
Customs tariff number
82057000
suitable for vehicle model
Chrysler PT Cruiser (PT)
MAN TGE (UZ)
Mercedes Vito / V-Klasse III (W447)
VW Crafter II (SX / SY / SZ)
Type
with Protective Insert
Parts list (Text)

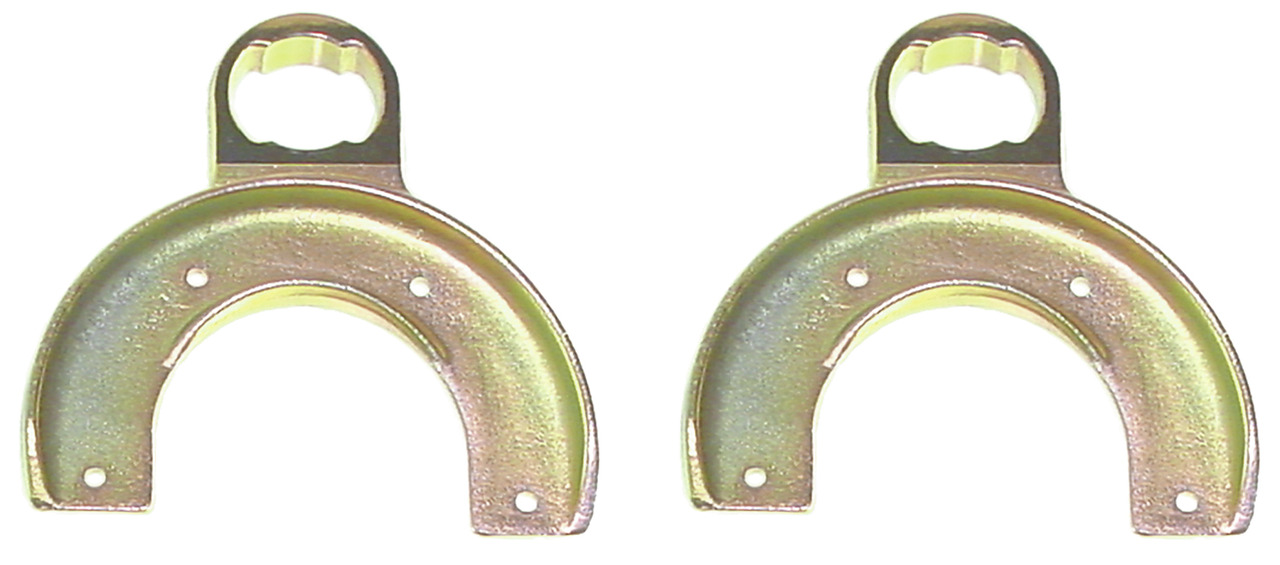

1x KL-9001-13 - Spring retainer pair size 3

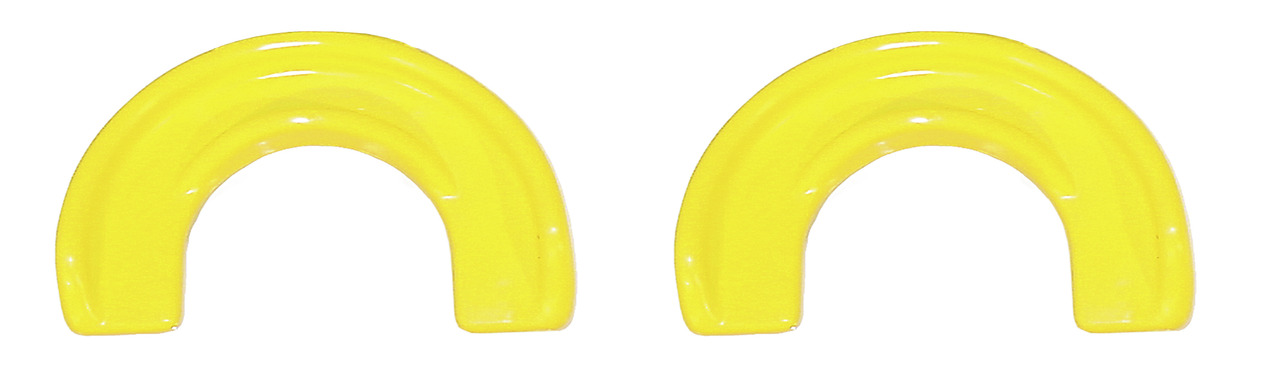

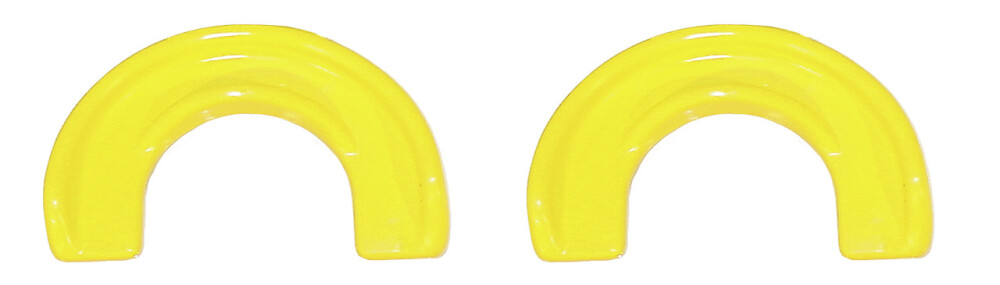

1x KL-9001-23 - Protective insert pair size 3
Weight
4,3 kg
Short text
Fits universally on, for example, VW Crafter, Mercedes V-Class, MAN TGE and TGL, etc.
• With anti-slip and surface protecting protective inserts
• Only in combination with compressor cylinder KL-9002-100 (KL-9002 or KL-9002 SP)
