Product

Pair of Jaws with Protective Insert, Size 2
KL-9001-12 SP

2480069

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Universal fit.

Front axle as an example: BMW 6 series (E63); Mercedes Citan (W415); Citroën Xsara (N1/N2); Fiat 500 (312), Croma (194), Punto (199), Ducato (250); Ford Ka (II), Focus (III), Mondeo (V), Galaxy (III); Hyundai i30 (GD); Mazda 3 (BL); Mini Cabrio (R57); Peugeot 508 (8D); etc. Rear axle: Mercedes Citan (W415); Fiat Punto (199); etc.

Special spring retaining pairs with closed retaining ring.
Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged.

Technical data

Contents (Qty of pieces)

Size

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Spring Ø, inner (min.)

105 mm

Spring Ø, outer (max.)

170 mm

Customs tariff number

82055980

suitable for vehicle model

BMW 6er (E63 / E64)

Citroen Berlingo / First I (MF / GJK / GFK)

Citroen C15 (VD)

Citroen Relay / Jumper II

Citroen Xsara (N0 / N1 / N2)

Citroen ZX (N2)

Fiat 500 / C (312)

Fiat Croma II (194)

Fiat Ducato (250)

Fiat Punto / Grande Punto (199)

Ford Focus III (DYB)

Ford Galaxy III (CK)

Ford Ka II (RU8)

Ford Mondeo V (CE / CD / CF)

Ford S-Max II (CJ / WA6)

Hyundai i30 II (GD)

Kia Cee’d II (JD)

Mazda 3 II (BL)

Mercedes Citan I (W415)

Mini II (R56 / R57 / R58 / R59)

Mini II Clubman (R55)

Opel Vectra C (Z02)

Peugeot 205 I (741 / 20D)

Peugeot 205 II (20A/C)

Peugeot 305 II (581)

Peugeot 309 I (10A / 10C)

Peugeot 309 II (3A / 3C)

Peugeot 405 I (15)

Peugeot 405 II (4B / 4E)

Peugeot 508 I (8D / 8E)

Peugeot Partner I (5 / G)

Type

with Protective Insert

Parts list (Text)

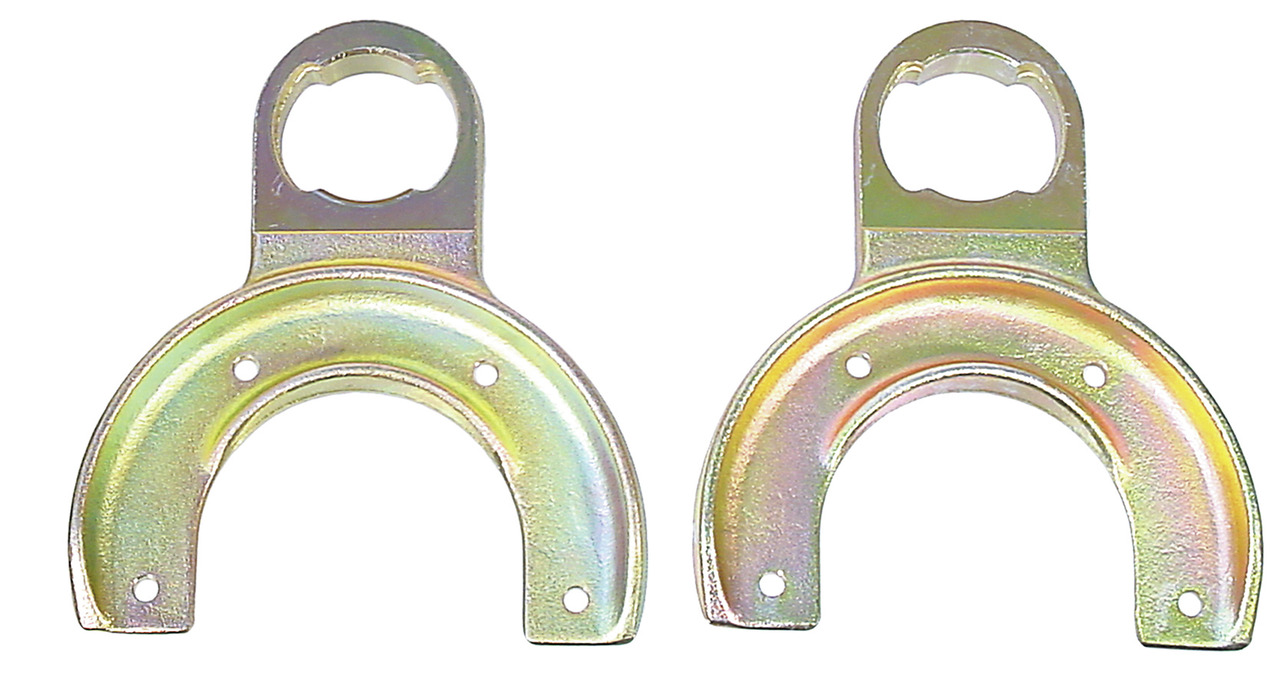

1x KL-9001-12 - Spring retainer pair size 2

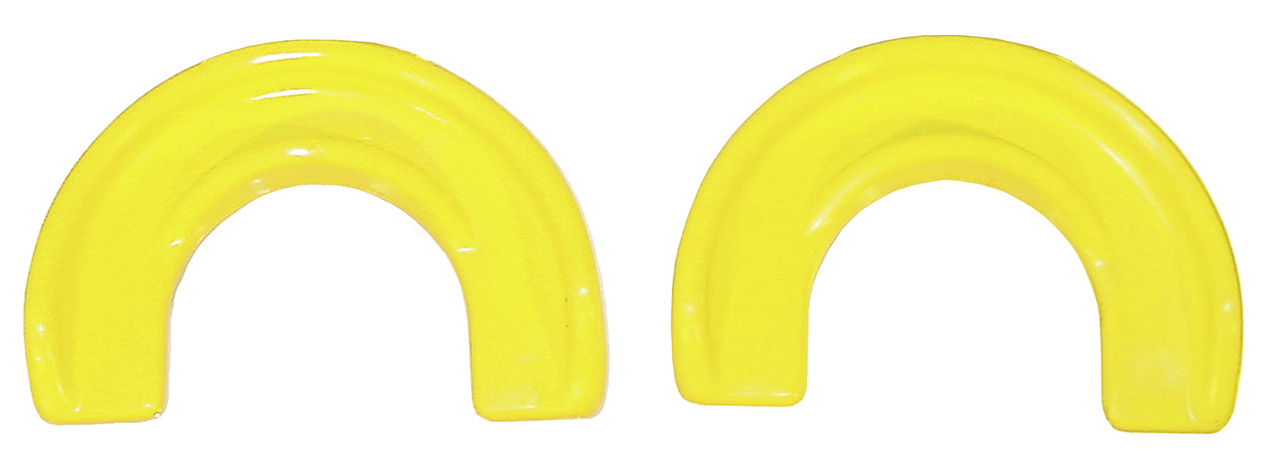

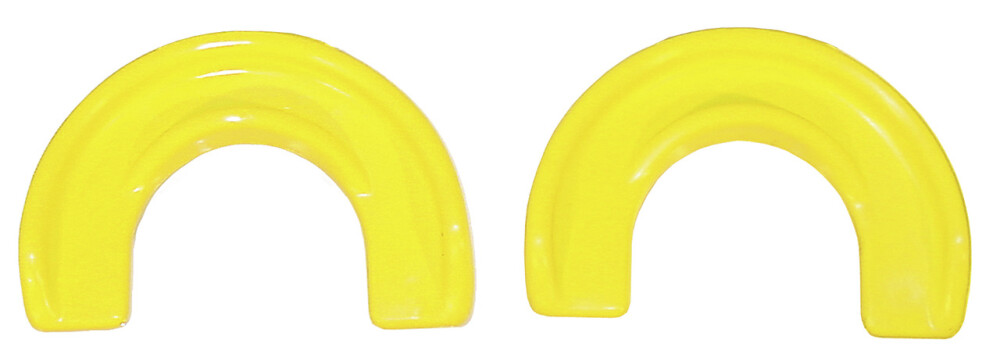

1x KL-9001-22 - Protective insert pair size 2

Weight

3,9 kg

Short text

Universally suitable.

• With anti-slip and surface protecting protective inserts

• Only in combination with compressor cylinder KL-9002-100

Manufacturer spare part number

BMW: 31336766602; 31336766600; 31336765107; 31336766603; 31336765110

Citroen: 5002 36; 5002 34; 91512564; 5002 A4; 5002 S6; 5002 S5; 5002 73; 5002 RY; 5002 71; 5002 QG; 5002 81; 5002 RZ; 5002 HY; 5002 SA; 5002 HX; 5002 82; 5002 S7

Fiat: 50710674; 51857853; 50708677; 51857012; 51857009; 50709604; 50709722; 50708675; 50709720; 51857010; 50710675; 51857854; 93190494; 93171981; 93171638; 51757484; 3 12 171; 3 12 343; 51754215; 312 356; 312 269; 51812161; 51812160; 55703709; 51833499; 55703711; 51812162; 51812165; 51787394; 50710432

Ford: 1639583; 1580523; 1713084; BV61-5310-AEE; 1713085; 1708146; 1702959; 1702986; BV61-5310-ADD; BV61-5310-DEA; 1872104; BV61-5310-SEA; 1872112; 1779782; BV61-5310-TDB; BV61-5310-TRA; 1874962; BV61-5310-AGE; 1708147; 1713087; 1702976; 1872107; BV61-5310-DGA; 2112280; 2187030; 1801059; 1801058; 2112278; 1846561; 1846562; 1801062; 1846563; 1859472; 2112284; 1801061; 2112282; 1801068; 2187056; 2187066; 1846565; 2043948; 1801063; 2112286; 1859473; E1GC-5310-AGB; 1946169; 1877593; 1946170; 2306527; E1GC-5310-ASB; E1GC-5310-BGB; E1GC-5310-BSB; E1GC-5310-CGB; 1884276; E1GC-5310-CSB; 1877594; 1877596

Hyundai: 54630-A6000; 54630-A6004; 54630-A6024; 54630-A6020; 54630-A6001; 54630-A6021; 54630-A6010; 54630-A6014; 54630-A6011; 54630-A6110; 54630-A6111; 54630-A6114; 54630-A6154; 54630-A2614; 54630-A6100; 54630-A6101; 54630-A6104; 54630-A6150; 54630-A6151; 54630-A6304; 54630-A6314; 54630-A6354; 54630-A6454; 54630-A2314

Mazda: BBM3-34-011A; BBM3-34-011C; BBM3-34-011B; BBM3-34-011; BBT9-34-011; BBT9-34-011B; BBT9-34-011C; BBM2-34-011; BBT9-34-011A; BDB1-34-011C; BCW8-34-011B; BBM2-34-011A; BBM2-34-011C; BCW8-34-011C; BCW8-34-011A; BCW8-34-011; BBP8-34-011A; BBP8-34-011; BBP8-34-011C; BBS1-34-011A; BBS1-34-011C

Mercedes: A 415 321 04 04; A 415 321 09 04; A 415 321 07 04; A 415 321 06 04; A 415 321 01 04; A 415 321 08 04; A 415 324 15 04; A 415 324 14 04; A 415 324 19 04; A 415 324 20 04

Mini: 6 785 865; 31 33 6 785 865; 6 795 671; 31 33 6 795 671; 31 33 6 785 866; 6 785 866; 6 795 138; 31 33 6 795 138; 31 33 6 795 137; 6 795 137; 6 785 867; 31 33 6 785 867; 6 795 139; 31 33 6 795 139; 31 33 6 777 200; 6 777 200; 31 33 6 777 187; 6 777 188; 31 33 6 777 188; 6 777 187; 6 795 136; 31 33 6 795 136

Peugeot: 5004 10; 5004 09; 5004 39; 5004 40; 5004 38; 96 752 869 80; 98 017 271 80; 5004 36

EAN

4046459055877

Manual - 9002SP_DE211103.pdf Manual - 9002SP_EN211103.pdf Manual - 9002SP_FR211103.pdf
