Product

Press Frame, 17t
KL-0039-1140 V

3413314

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Universal fit.

Enables an easy, quick and secure forcing out and forcing in of bushings, bearings, suspension joints, etc.
Due to its use with the extensive pressure / support sleeve assortment of the KL-0039 series, the press frame is universally applicable.

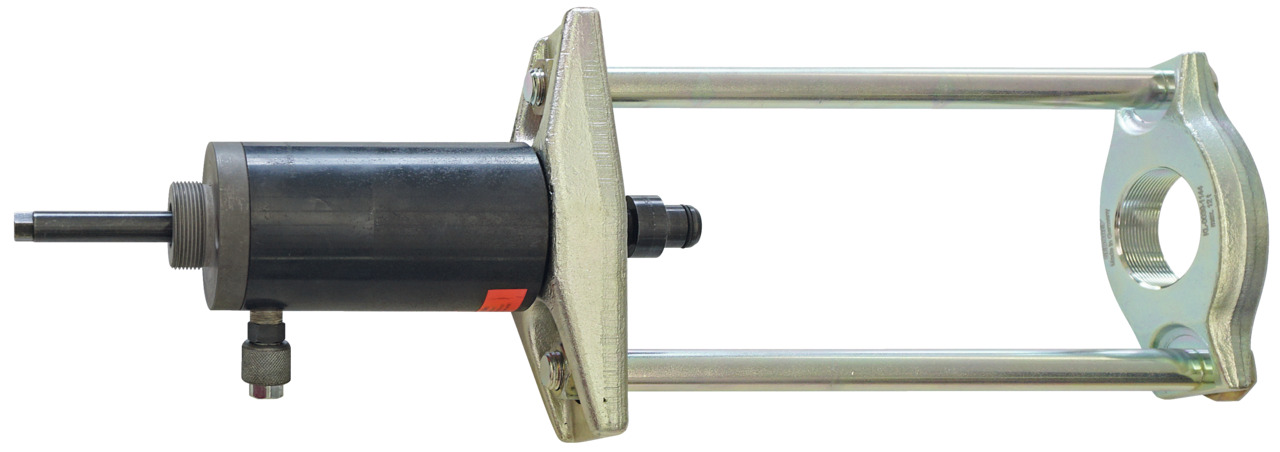

The press frame is suitable for a mechanical as well as for a hydraulic use.

KL-0174-831
Mechanical Drive Set

2723190

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Agriculture

Drive type

hydraulic

mechanical

Customs tariff number

82055980

Load (max.)

17 t

Total length

367 mm

Width, inside (press frame)

115 mm

Length, inside (press frame)

275 mm

Cylinder mounting thread

2¼"-14 UNS

Total width

200 mm

Parts list (Text)

1x KL-0039-114 - Tie rod pair 275 mm long, with hexagon nuts

1x KL-0039-1144 - Base plate 2¼"-14 UNS

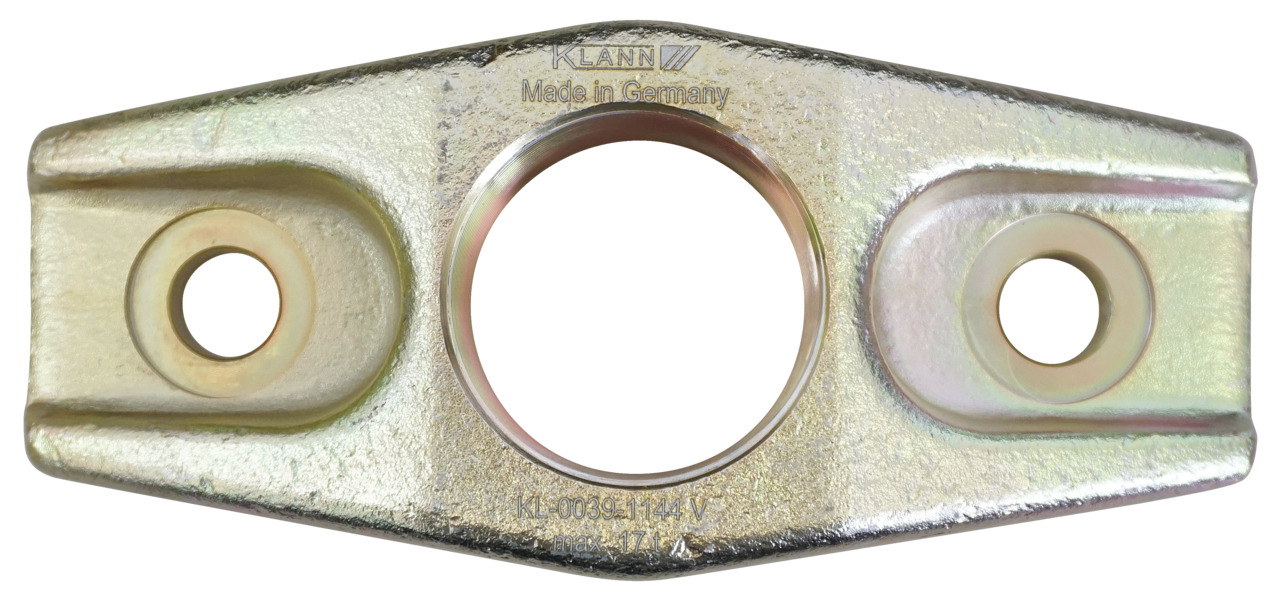

1x KL-0039-1144 V - Base plate 2¼"-14 UNS, reinforced

1x KL-0039-1105 - Adapter 2¼"-14 UNS to a 30 mm diameter with O-ring

Weight

6,4 kg

Short text

• Universally applicable with pressure / support sleeves of the KL-0039 series

• For forcing out and forcing in of bushings, bearings, suspension joints, etc.

• Can be used mechanically or hydraulically

• Reinforced version

EAN

4046459179177

Manual - KL-0039-..Silentlager_DE240306.pdf Manual - KL-0039-..Silentlager_EN240306.pdf
