Pulling Device for Silentbloc, mechanical

Pulling Device for Silentbloc, mechanical
KL-0039-413 K

2828286

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

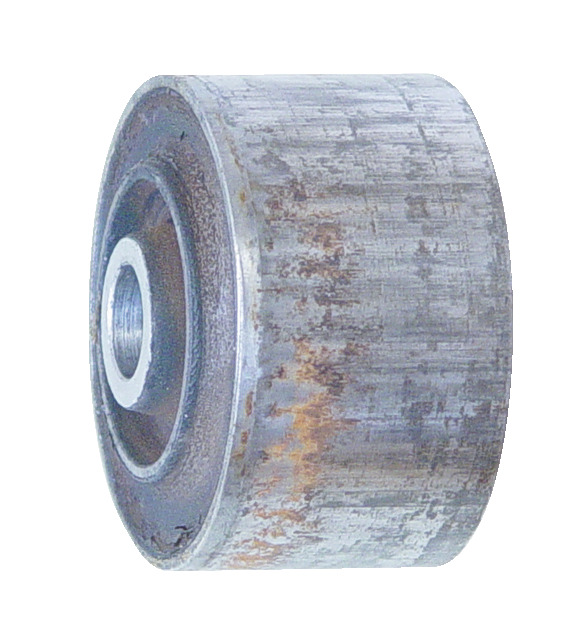

Universal fit for silent blocks or joint bearings of 30 to 73 mm dia.

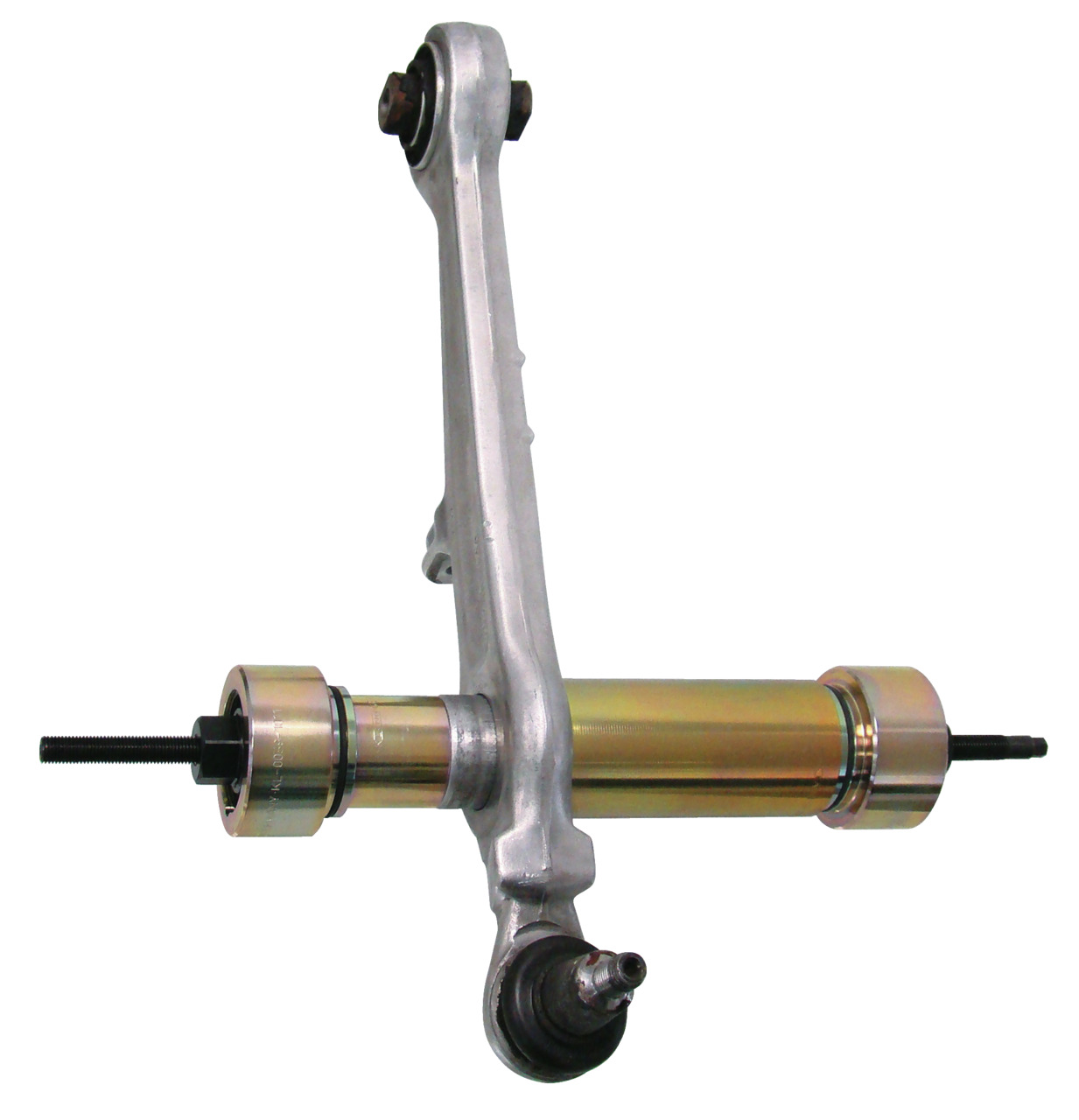

The pulling device enables quick, safe and professional removal and installation of silent blocks or joint bearings.

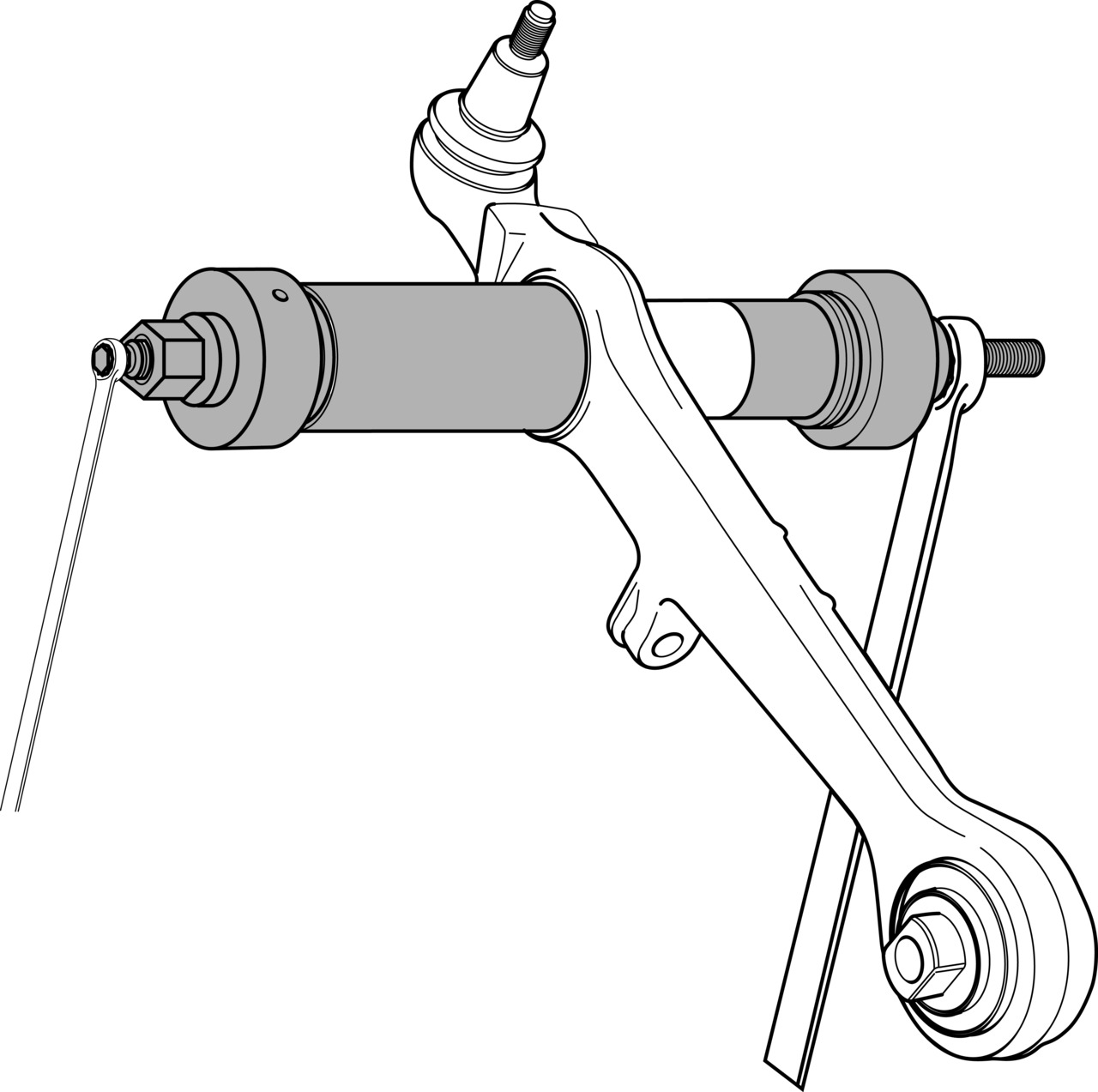

The mechanical drive included in the set ensures the extraction of silent or spherical bearings from an inner bore diameter of 10 mm.

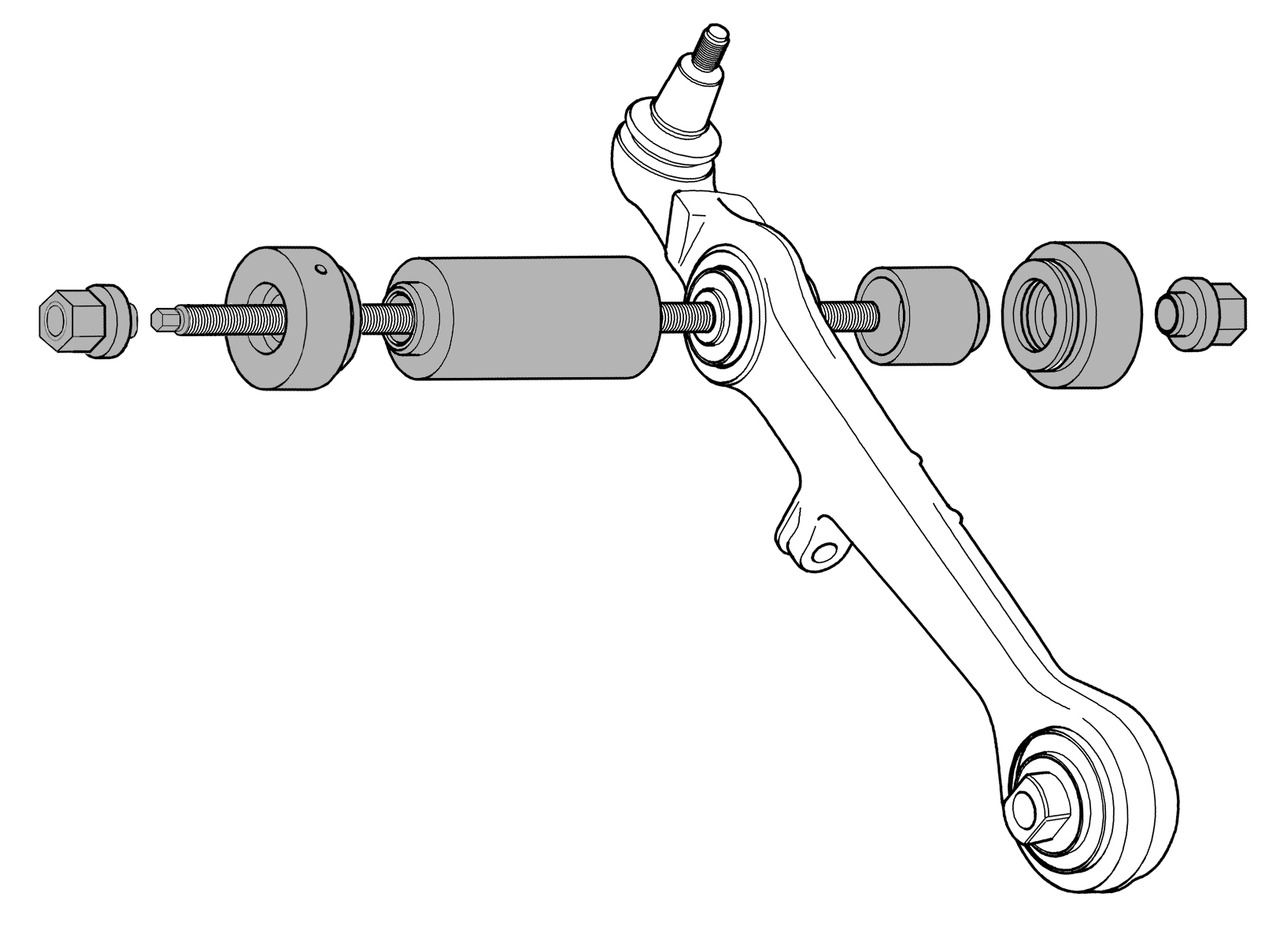

Due to the easy extension of the tool kit with individual parts of the KL-0039 series, such as centring and thrust rings or pressure / support sleeves, the pulling device can be used almost universally, e.g. also for changing wheel bearings.
For very tight or corroded silent blocks, a hydraulic drive from GEDORE Automotive can also be used as an option.
The additional use of a press frame also enables the removal and installation of support joints, for example, and others.

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Agriculture

Note

Drive parts for hydraulic drive: KL-0039-2112 - Pull spindle with nut, M12; KL-0039-1002 - Mounting adapter; KL-0039-1003 - Mounting adapter; KL-0040-2500 - Hydraulic cylinder 17t; KL-0215-35 M25 - Hydraulic pump

Drive type

mechanical

Customs tariff number

82055980

Outer Ø, sleeve (min.)

30 mm

Outer Ø, sleeve (max.)

84 mm

Inner Ø, sleeve (min.)

22 mm

Inner Ø, sleeve (max.)

76 mm

Type

long + short

Length (sleeve)

45 mm

115 mm

Total depth

420 mm

Total width

500 mm

Total height

175 mm

Storage

in a case

Parts list (Text)

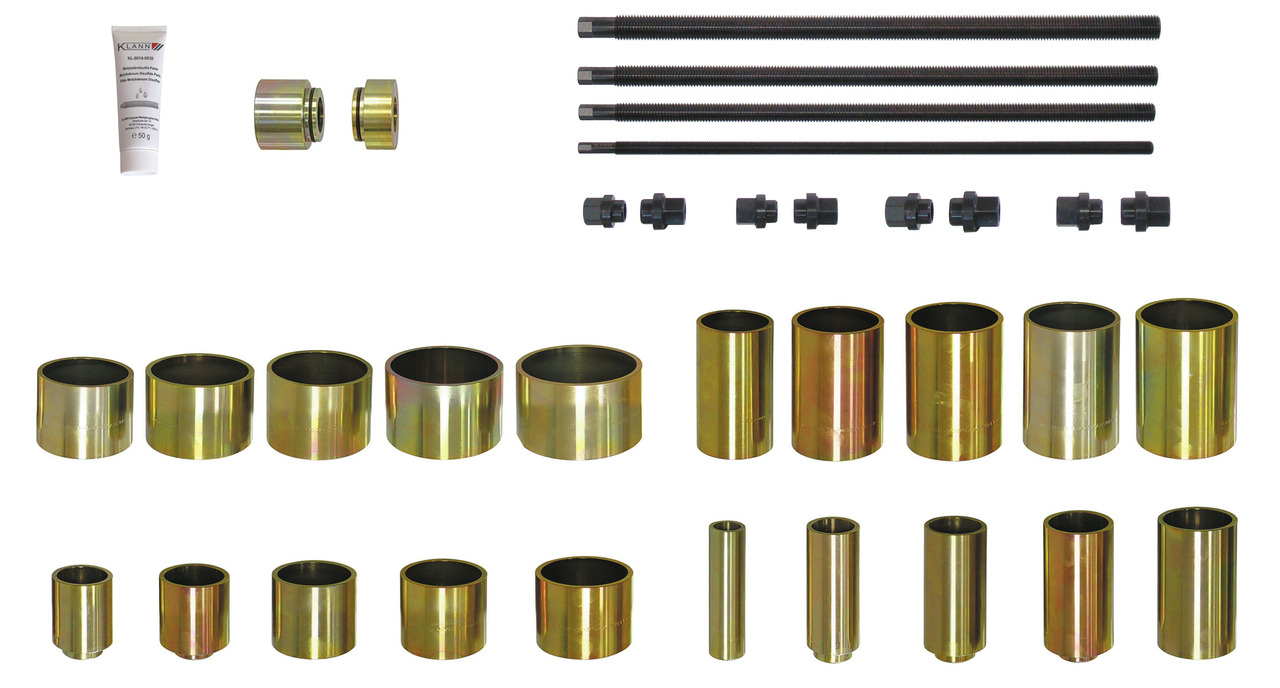

1x KL-0039-1002 - Mounting adapter for clamping nut M20 with O-ring

1x KL-0039-1011 - Mounting adapter for mechanic spindle

2x KL-0039-1910-2 - Collar nut M10x1.25

2x KL-0039-1912-2 - Collar nut M12

2x KL-0039-1914-2 - Collar nut M14

2x KL-0039-1916-2 - Collar nut M16

1x KL-0039-2010-1 - Pull spindle M10x1.25

1x KL-0039-2012-1 - Pull spindle M12

1x KL-0039-2014-1 - Pull spindle M14

1x KL-0039-2016-1 - Pull spindle M16

1x KL-0039-1630 - Pressure / support sleeve short 30 / 22 mm dia.

1x KL-0039-1640 - Pressure / support sleeve short 40 / 32 mm dia.

1x KL-0039-1646 - Pressure / support sleeve short 46 / 38 mm dia.

1x KL-0039-1650 - Pressure / support sleeve short 50 / 42 mm dia.

1x KL-0039-1654 - Pressure / support sleeve short 54 / 46 mm dia.

1x KL-0039-1658 - Pressure / support sleeve short 58 / 50 mm dia.

1x KL-0039-1664 - Pressure / support sleeve short 64 / 56 mm dia.

1x KL-0039-1666 - Pressure / support sleeve short 66 / 58 mm dia.

1x KL-0039-1670 - Pressure / support sleeve short 70 / 62 mm dia.

1x KL-0039-1672 - Pressure / support sleeve short 72 / 64 mm dia.

1x KL-0039-1744 - Pressure / support sleeve short 44 / 36 mm dia.

1x KL-0039-1750 - Pressure / support sleeve long 50 / 42 mm dia.

1x KL-0039-1756 - Pressure / support sleeve long 56 / 48 mm dia.

1x KL-0039-1762 - Pressure / support sleeve long 62 / 54 mm dia.

1x KL-0039-1766 - Pressure / support sleeve long 66 / 58 mm dia.

1x KL-0039-1770 - Pressure / support sleeve long 70 / 62 mm dia.

1x KL-0039-1774 - Pressure / support sleeve long 74 / 66 mm dia.

1x KL-0039-1778 - Pressure / support sleeve long 78 / 70 mm dia.

1x KL-0039-1782 - Pressure / support sleeve long 82 / 74 mm dia.

1x KL-0039-1784 - Pressure / support sleeve long 84 / 76 mm dia.

1x KL-0014-0030 - Molybdenum disulphide paste

1x KL-0039-4139 - Plastic case

Weight

18,4 kg

Short text

Universal fit for silent blocks or joint bearings of 30 to 73 mm dia.

• For a quick and safe removal and installation of silent blocks or joint bearings

• Due to the extension with centring / thrust rings, bushings and press frames of the KL-0039 series, also suitable for wheel bearings, suspension joints, etc.

• Can also be driven hydraulically with the corresponding accessories

EAN

4046459132868

Manual - KL-0039-..Silentlager_DE240306.pdf Manual - KL-0039-..Silentlager_EN240306.pdf
