Wheel Bearing Tool, Volvo, Ford, Ø 78 / 82 mm

Wheel Bearing Tool, Volvo, Ford, Ø 78 / 82 mm
KL-0041-461 D

2756544

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Suitable for vehicles with bearing diameter 78 mm, e.g. Ford Focus II, C-Max (from 10/03); Mazda 3 (from 10/03 to 06/09) Volvo C30, C70 II, S40 II, V50 and bearing dia. 82 mm, e.g. Ford S-Max (from 2006), Galaxy (from 2006), Mondeo IV (from 2006); Volvo S60 II, S80 II, V60, V70 III (from 10/2007), XC60, XC70 II.

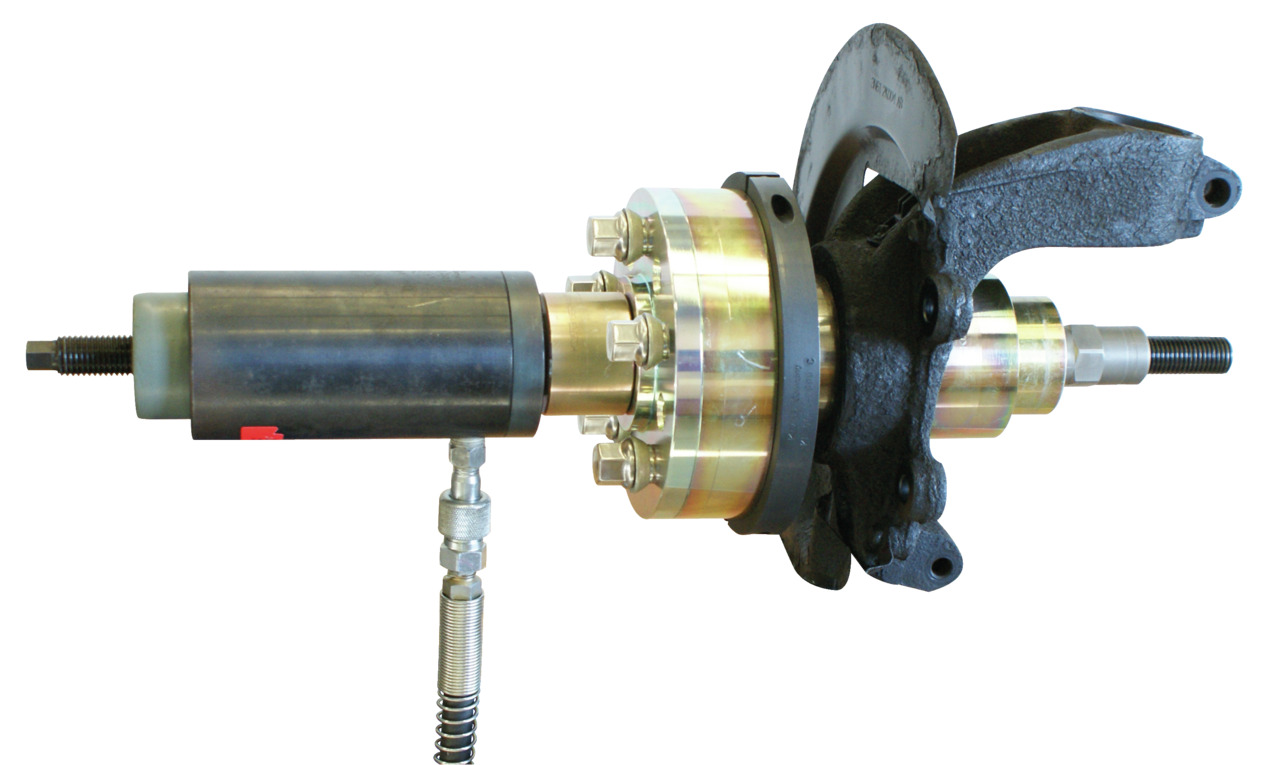

The wheel bearing mounting tool enables a quick and secure installation of wheel hub bearing units without damaging them.

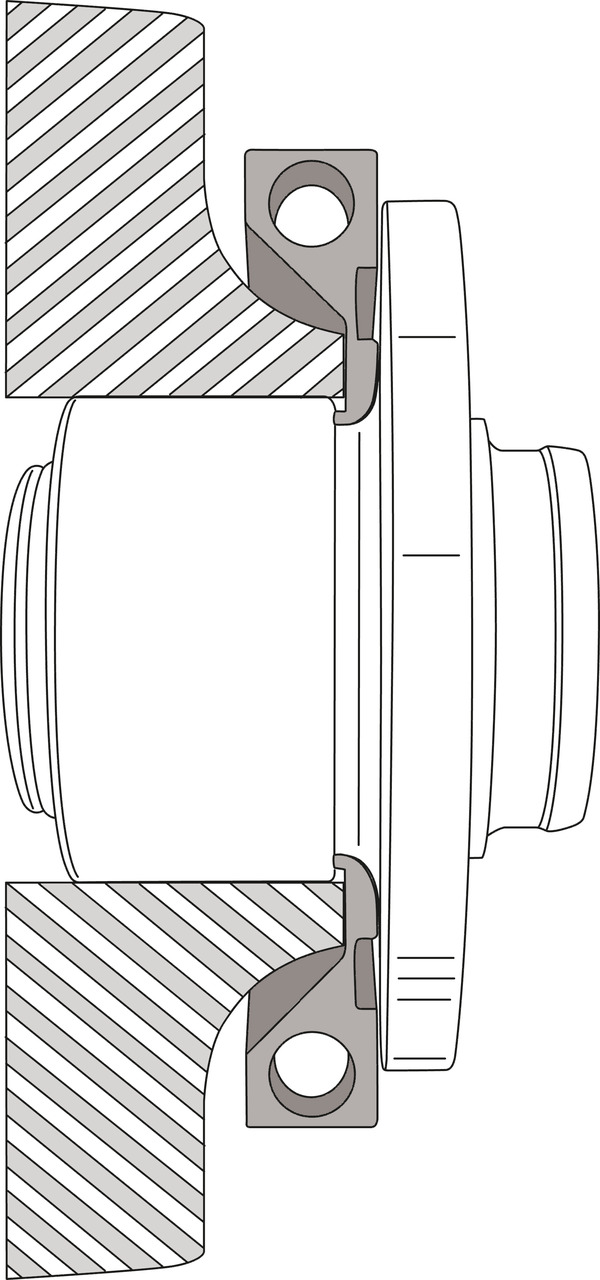

The special design of the tool ensures that during installation the applied press-in force only acts on the bearing outer ring and not on the wheel hub
This prevents the bearing from being damaged.
Without this tool kit, it is nearly impossible to professionally install the wheel hub bearing unit.

Technical data

Diameter milled slot of piston rod

69 mm

Contents (Qty of pieces)

Outside diameter.

177 mm

VDE certified

1000 V insulated

Target groups

Automotive

Drive type

hydraulic

Required accessories

Hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump KL-0039-2120 - Pull spindle with quick-clamping nut KL-0039-1002 - Mounting adapter KL-0039-1003 - Mounting adapter

Customs tariff number

82055980

for outside Ø (bearing)

78 mm / 82 mm

suitable for vehicle model

Ford Grand C-Max / C-Max II (CB7 / CEU / DXA)

Ford Focus II (DA / DB / DH / DP / DS)

Ford Galaxy

Ford Mondeo IV (BA7)

Ford S-Max

Land Rover Freelander II (L359)

Mazda 3

Volvo C30 (533)

Volvo C70 II (542)

Volvo S40 II (544)

Volvo S60 II (134)

Volvo S80 II (124)

Volvo V50 (545)

Volvo V60 I (155 / 157)

Volvo V70 III (135)

Volvo XC60 I (156)

Volvo XC70 II (136)

Parts list (Text)

1x KL-0041-4600 D - Clamping jaw pair 78 mm dia.

1x KL-0041-4607 - Housing

1x KL-0041-4608 D - Cover

1x KL-0039-1288 - Thrust ring 88 mm dia.

5x KL-0041-3931 - Thrust screw M14x1.5

1x KL-0041-4601 - Guide sleeve 29.5 mm dia.

1x KL-0039-1272 - Thrust ring 72 mm

1x KL-0041-4602 - Guide sleeve 26.3 mm

1x KL-0039-1682 - Pressure / support sleeve short 82 mm dia.

Weight

7,2 kg

Short text

• Enables a quick and secure installation of wheel hub bearing units

• No damage to the bearing as pressure is only applied via the outer bearing ring

• Additional drive parts required!

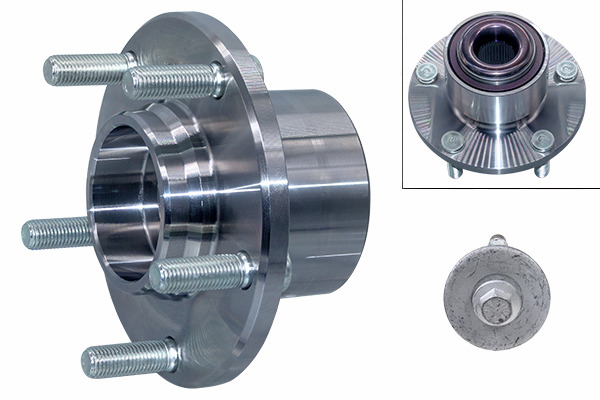

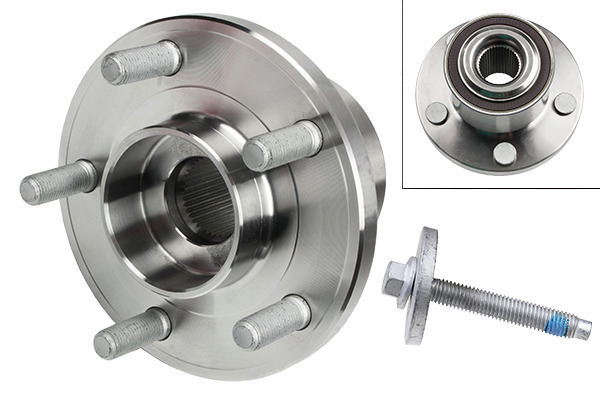

Manufacturer spare part number

Ford: 1 463 833; 1 496 721; 6G 91 2C300 GAB; 6G912C300GAB; 6G 91 2C300 GAC; 6G912C300GAC; 1437643; 6G 91 2C300 AAB; 6G912C300AAB; 1223640; 1230907; 1232245; 1254308; 1308716; 1326487; 1336139; 1471854; 2471709; 2472584; 3M51-2C300-CA; 3M512C300CA; 3M51-2C300-CB; 3M512C300CB; 3M51-2C300-CC; 3M512C300CC; 3M51-2C300-CD; 3M512C300CD; 3M51-2C300-CE; 3M512C300CE; 3M51-2C300-CF; 3M512C300CF; 3M51-2C300-CG; 3M512C300CG; 3M51-2C300-CH; 3M512C300CH; 3M5J-1K018-CJ; 3M5J1K018CJ; ME3M5J-2C300-CH; ME3M5J2C300CH

Land Rover: 6G91-2C300U-AB; 6G912C300UAB; LR0 03157; LR003157

Mazda: BN8B-33-15XB; BN8B3315XB; BP4K-33-15XA; BP4K3315XA; BP4K-33-15XB; BP4K3315XB

Volvo: 30666130; 30666605; 30683161; 30714492; 30714730; 30730828; 30736653; 30741331; 31212698; 31262950; 31340604; 8623550; 30736501; 31360096; 31476395; 32246153

Predecessor article

KL-0041-461 C

2373882

EAN

4046459127826

Manual - KL-0041-4..Serie_DE240603.pdf Manual - KL-0041-4..Serie_EN240603.pdf
