Audi A1 (8X)

Audi A1 (GB)

Audi A2 (8Z0)

Seat Arona (KJ)

Seat Cordoba II (6L)

Seat Ibiza III (6L)

Seat Ibiza IV (6J / 6P)

Seat Ibiza V (KJ)

Seat Toledo IV (KG)

Skoda Fabia I (6Y)

Skoda Fabia II (54)

Skoda Fabia III (NJ)

Skoda Fabia IV (PJ)

Skoda Kamiq (NW)

Skoda Rapid (NH / NK)

Skoda Roomster (5J)

Skoda Scala (NW)

VW Fox (5Z)

VW Polo IV (9N / 9A)

VW Polo V (60 / 61 / 6R / 6C)

VW Polo VI (AE / AW / BZ)

1x KL-0041-4400 C - Clamping jaws 72 mm dia.

5x KL-0041-3931 - Thrust screw M14x1.5

1x KL-0039-1802 - Centring sleeve long 27.4 mm dia.

1x KL-0039-1265 - Thrust ring 65 mm dia.

1x KL-0039-1674 - Pressure / support sleeve short 74 mm dia.

Suitable for vehicles with a bearing diameter of 72 mm (with and without locking ring [e.g. SKF bearing]) on e.g. Audi A2 (8Z0),Seat Ibiza III (6L1); Škoda Fabia I (6Y_); VW Polo IV (9N), Fox (5Z_); etc.

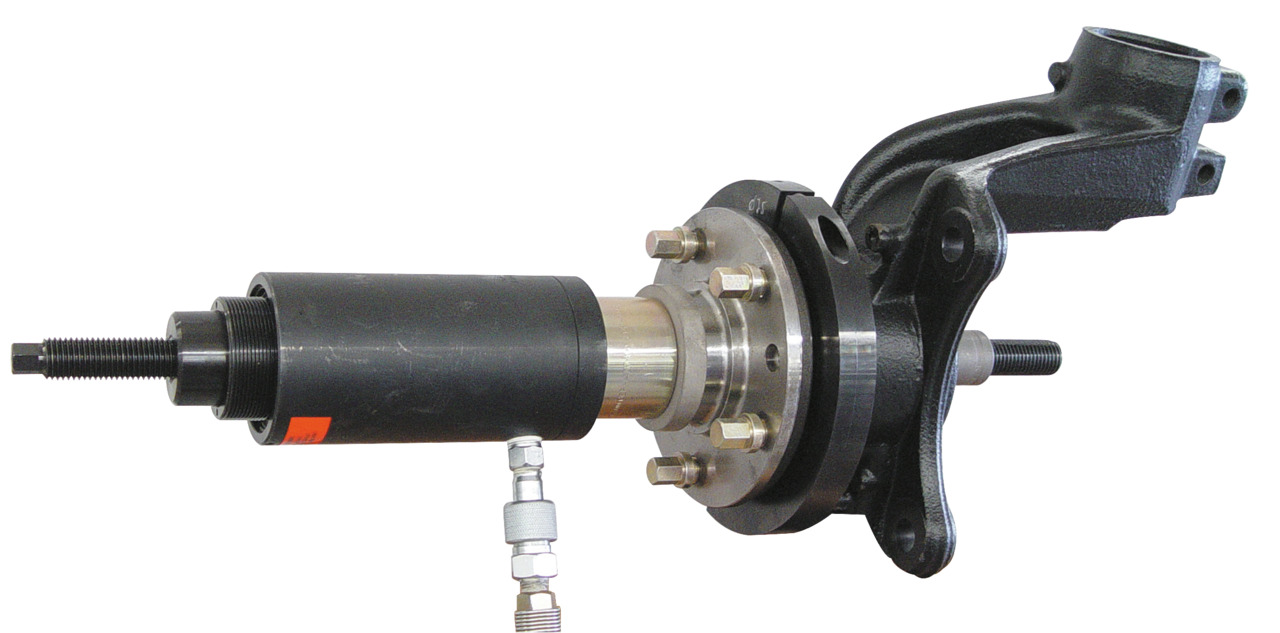

• Enables a quick and secure installation of wheel hub bearing units

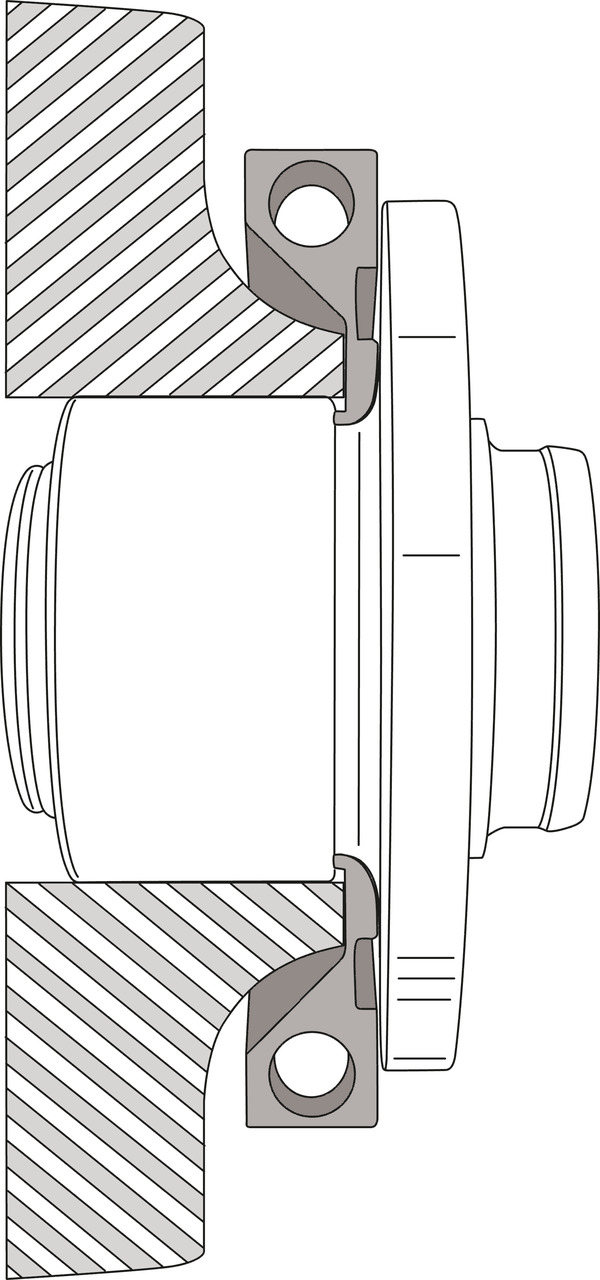

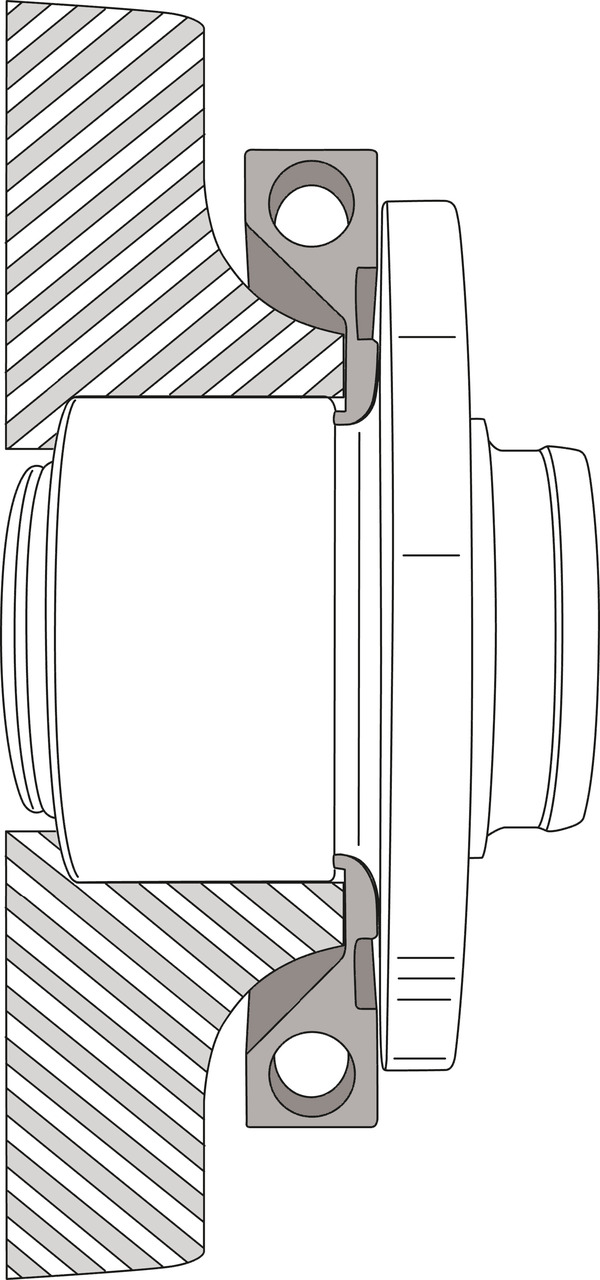

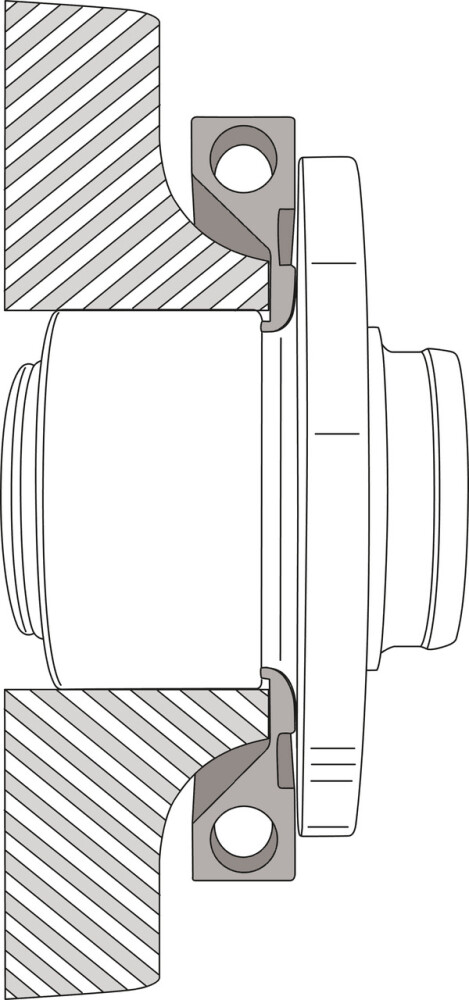

• No damage to the bearing as pressure is only applied via the outer bearing ring

• Additional drive parts required!

VW-Audi: 6C0 407 621; 6Q0 407 621 AH; 6Q0 407 621 AJ; 6R0 407 621 A; 6R0 407 621 E; 6C0 407 621 A; 6Q0 407 621 CB

KL-0041-441 B

2082683
