Description

Universal fit for commercial vehicles, construction machines, agricultural machines, trailers and semi-trailers.

The large and massive commercial vehicle press frame enables the pressing out and pressing in of various bushings, bearings or bolts directly on the vehicle.
For example, on boom arms, tippers, skip loaders, lifting arms, hook lift systems, chassis parts and much more.
With additional pressure/support sleeves from the KL-0039-series this can easily be supplemented with further diameters..
The base included in the scope of delivery also allows the mobile commercial vehicle press frame to be placed on a workbench, for example, as well as for stationary use as a light-weight standing press when on the road, e.g. in commercial vehicle service or repair vehicles.
The length and width of the NFZ press frame can also be quickly adjusted using the extension rods and the holes in the base plates.

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Construction and commercial vehicles

Agriculture

Drive type

hydraulic

mechanical

Required accessories

Hydraulic drive (28 t): KL-0215-35 M28 - Hydraulic pump KL-0040-2800 - Hydraulic cylinder 17 t KL-0040-2812-1 - Pull / thrust spindle KL-0039-1002 - Mounting adapter KL-0040-2812-5 - Thrust nut mechanical drive: KL-1005-800 - Mechanical drive kit for commercial vehicles

Customs tariff number

82055980

Load (max.)

28 t

Width, inside (press frame) 3

320 mm

Width, inside (press frame) 2

250 mm

Length, inside (press frame) 2

700 mm

Width, inside (press frame)

180 mm

Length, inside (press frame)

500 mm

Cylinder mounting thread

2¾"-16 UN

Parts list (Text)

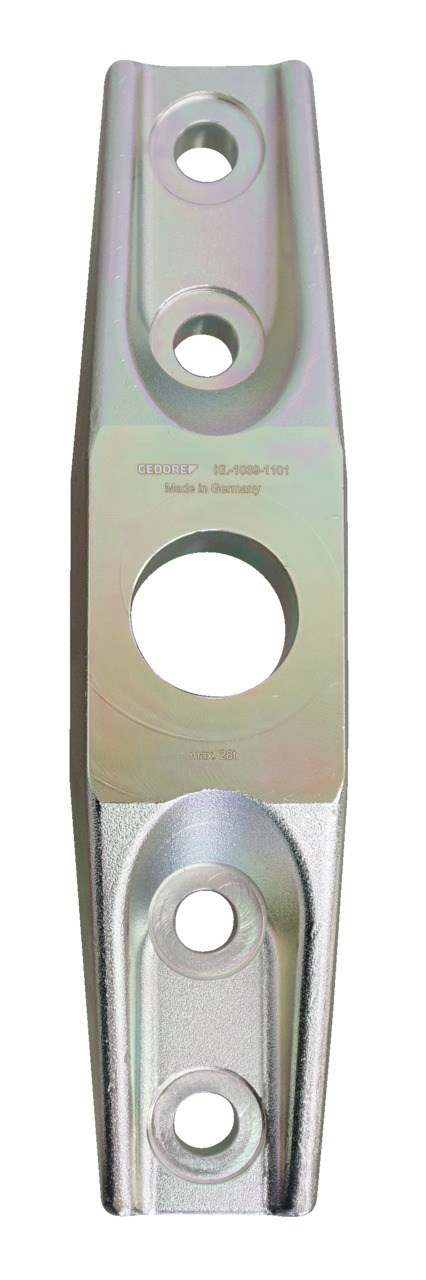

1x KL-1039-1101 - Base plate 2¾"-16 UN

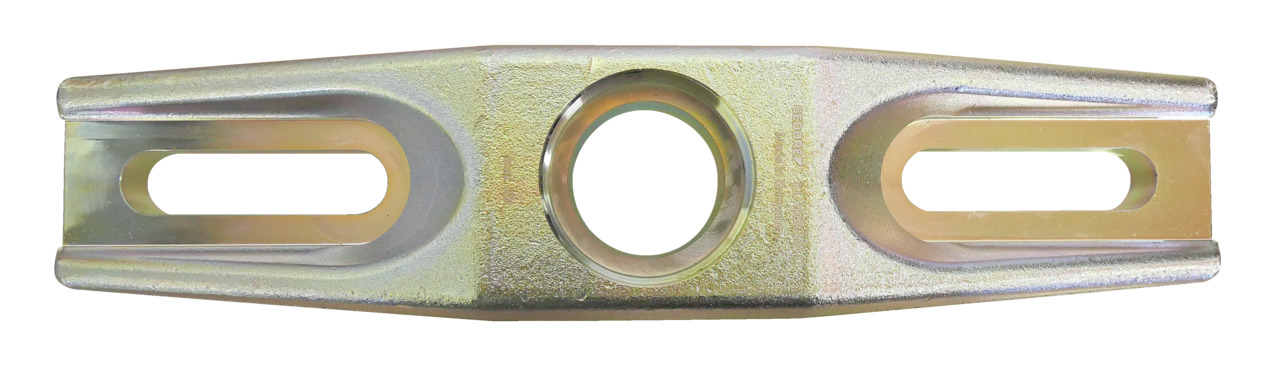

1x KL-1005-1011 - Base plate 2¾"-16 UN

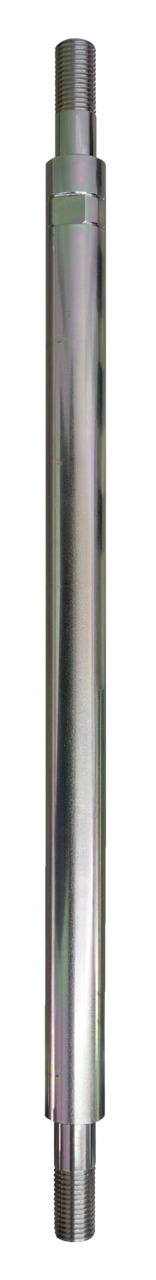

2x KL-1039-1102 - Pull rod M22

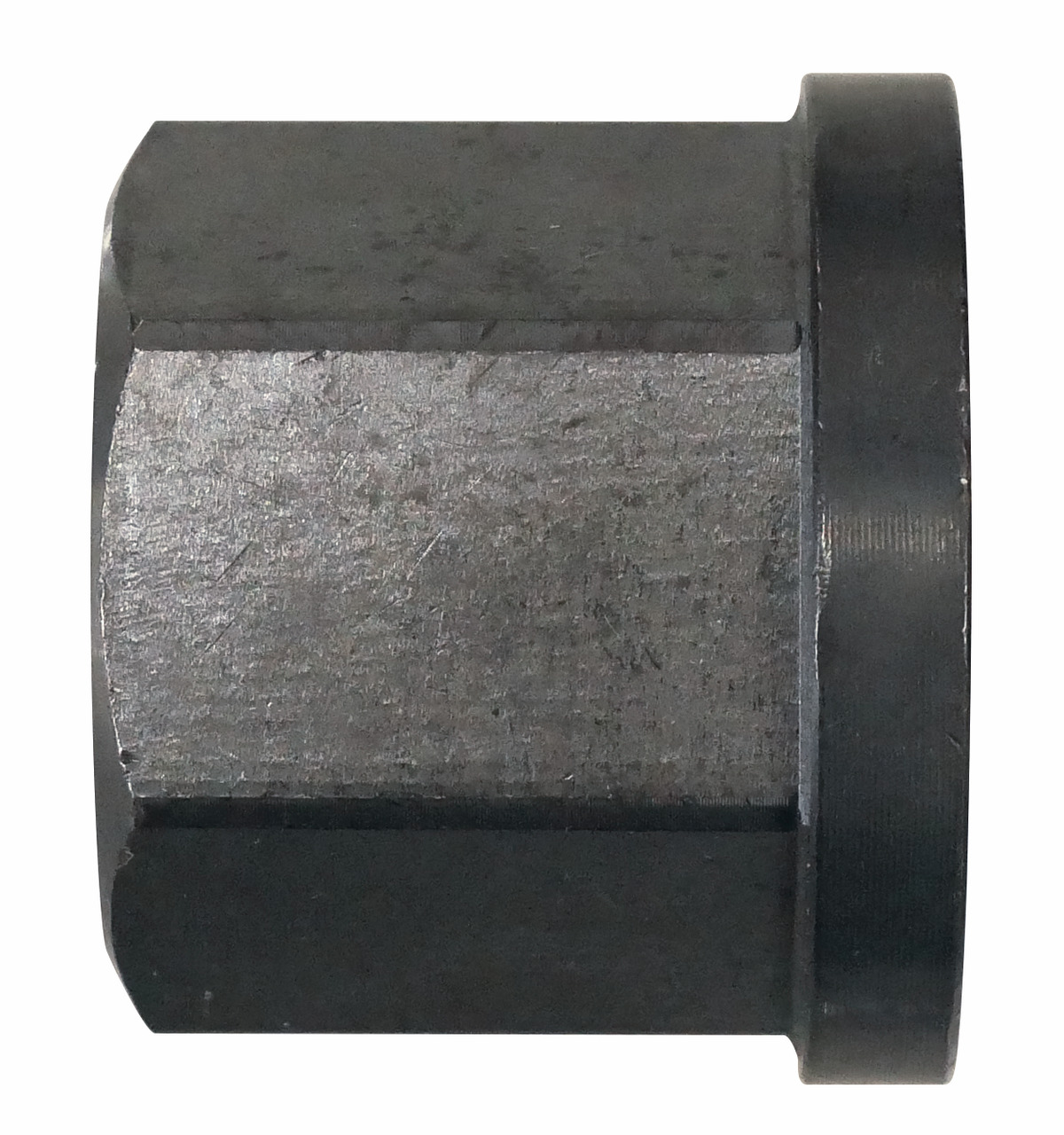

4x KL-1005-1014 - Collar nut M22

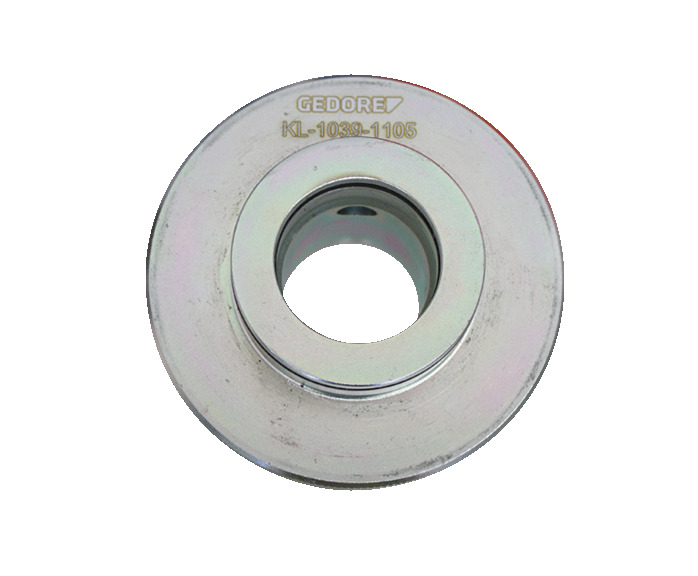

1x KL-1039-1105 - Adapter 2¾"-16 UNS to Ø 30 mm

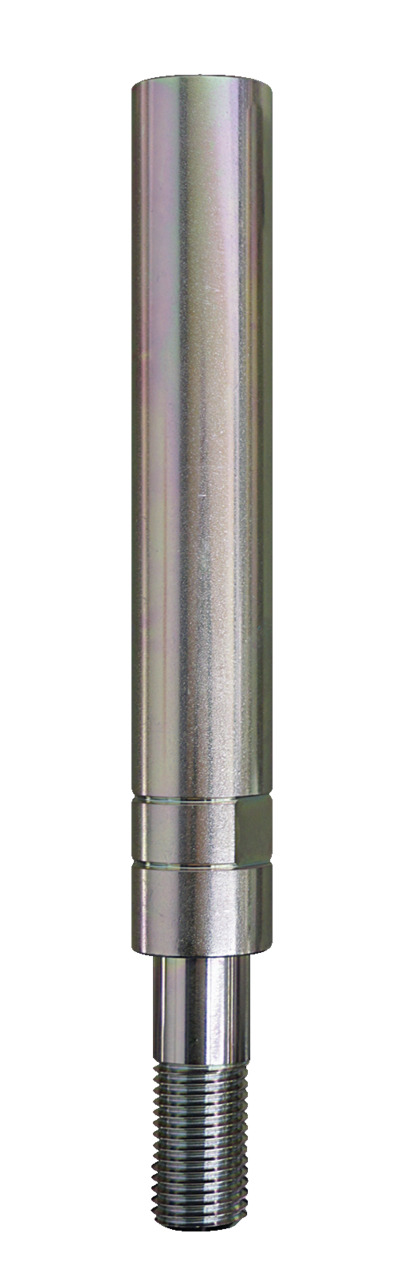

2x KL-1039-1103 - Pull rod M22 extension

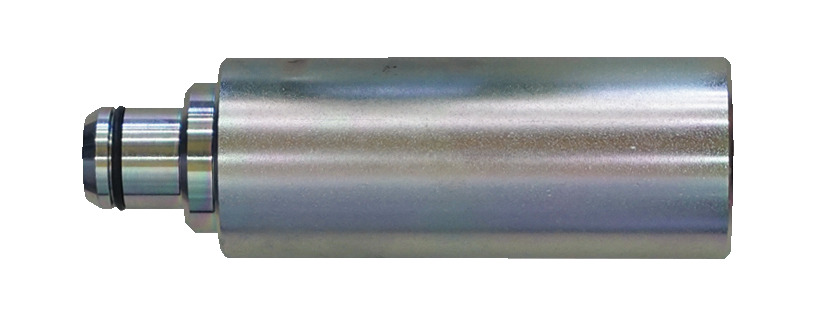

1x KL-1039-1106 - M24 pressure nut extension

1x KL-1039-1107 - Mounting foot

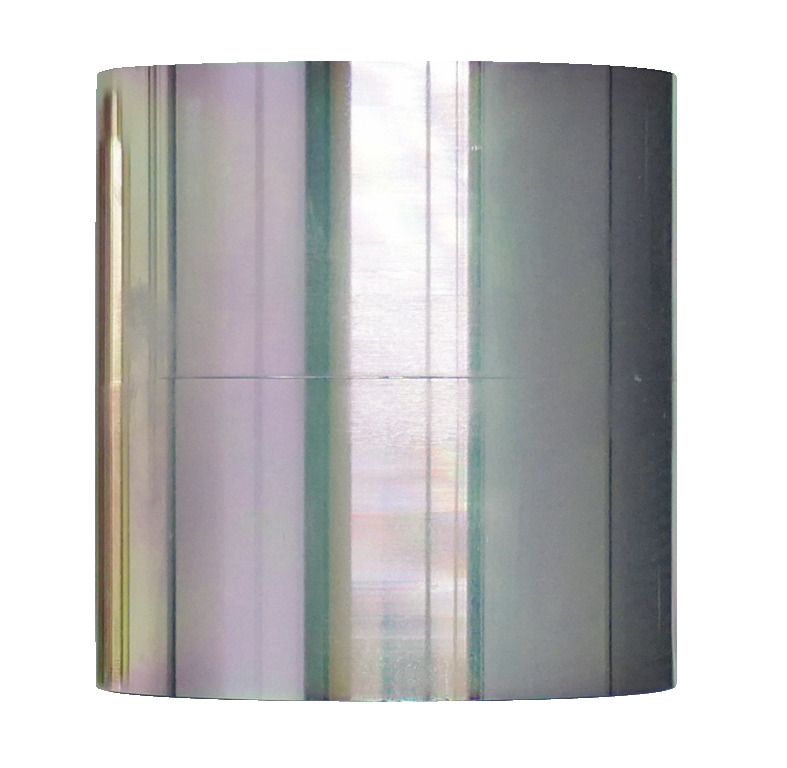

1x KL-1039-7110 - Pressure/Support sleeve, long, Ø 110/102 mm

1x KL-0039-1790 - Pressure/Support sleeve, long, Ø 90/82 mm

1x KL-0039-1770 - Pressure/Support sleeve, long, Ø 70/62 mm

1x KL-0039-1750 - Pressure/Support sleeve, long, Ø 50/42 mm

1x KL-0039-1740 - Pressure/Support sleeve, long, Ø 40/32 mm

1x KL-0039-1730 - Pressure/Support sleeve, long, Ø 30/22 mm

Weight

49 kg

Short text

Universal fit for commercial vehicles, construction machines, agricultural machines, trailers and semi-trailers.

• For forcing out and forcing in bushings, bearings or bolts directly on the vehicle

• Can be extended with pressure / support sleeves of the KL-0039 series

• Can also be used stationary due to the mounting base

• Adjustable length and width

• Additional drive parts required!

EAN

4046459172468

Manual - 1039-111_DE201002.pdf Manual - 1039-111_EN201002.pdf
