Wheel Hub Puller Set, HGV
KL-1005-100 A

3283666

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Universal fit suitable for wheel hubs of commercial vehicles (as well as wheel hubs with integrated compact wheel bearing) with removable hub caps on the axle systems with a hole circle Ø of 8x275 mm and 10x335 mm for BPW, SAF and ZF front and rear axle. Installed for example in Merces Benz (Actros [only rear axle]) (Citaro bus [ZF axle]), MAN (TGA [only rear axle]), Renault, Volvo, Iveco, Scania, DAF etc.

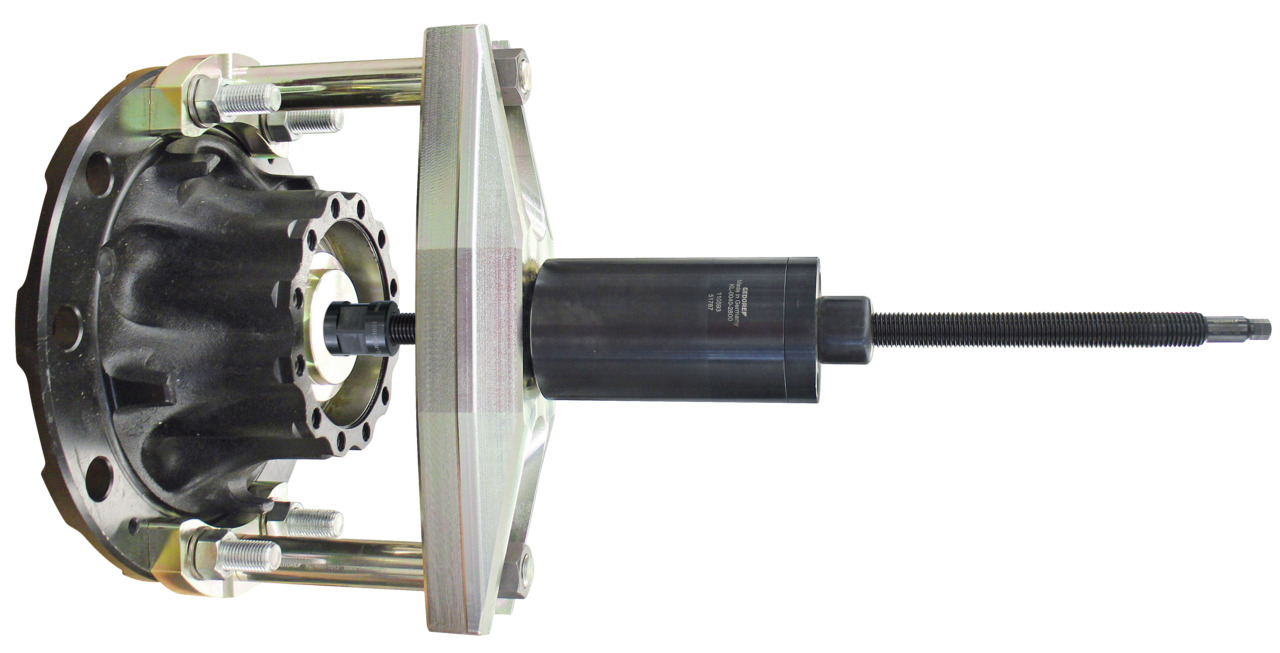

The wheel hub puller permits quick and professional removing of wheel hub with removable hub caps.

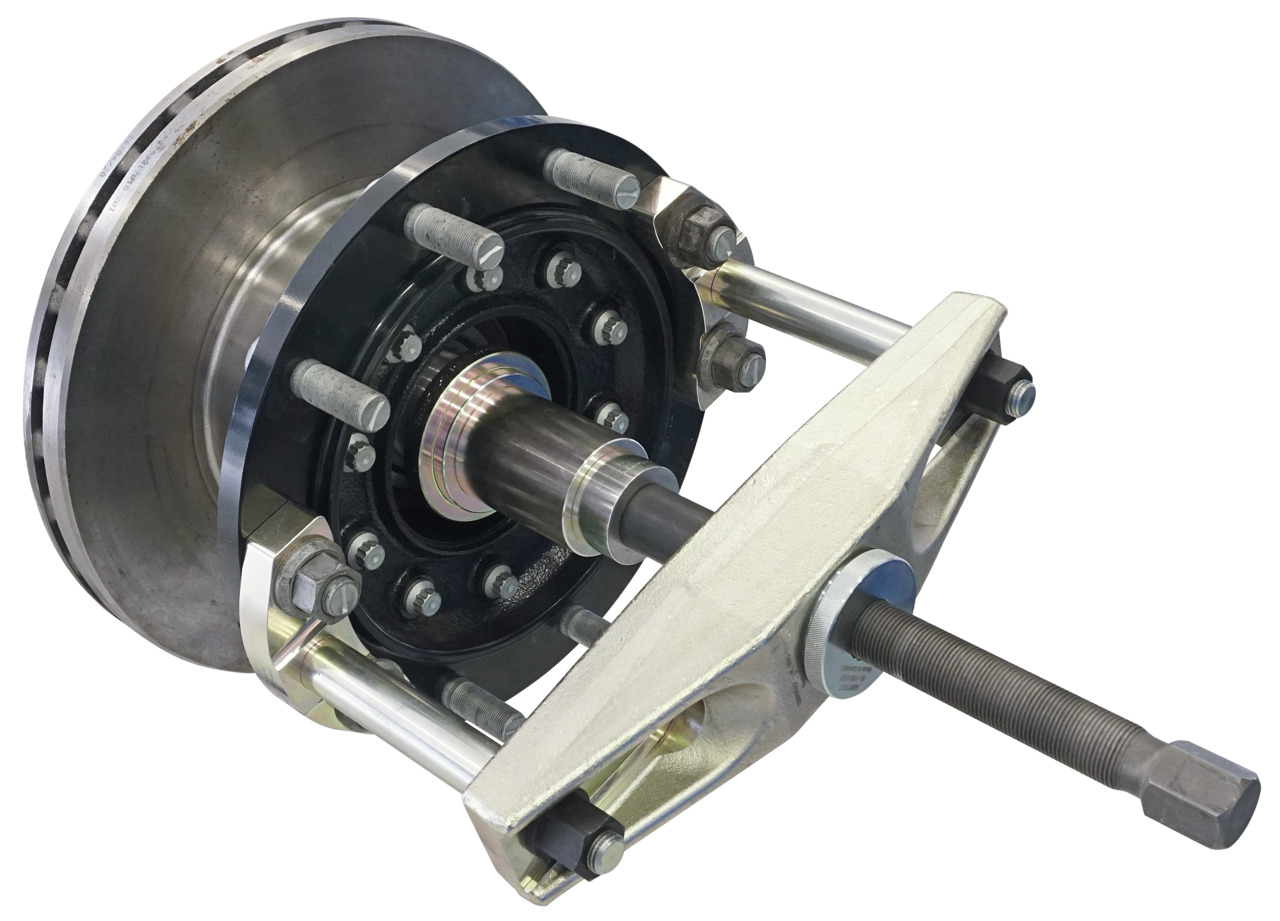

The wheel hub is pulled off via the wheel studs.
The various thrust pieces ensure a central support over the axle tube.
In connection with the 28t hydraulic cylinder with hand pump (accessories) tightly stuck wheel hubs may be pulled easily.

Technical data

Wheel stud circles

8x275 mm

10x335 mm

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Construction and commercial vehicles

Agriculture

Drive type

hydraulic

mechanical

Required accessories

Hydraulic drive (28 t): KL-0040-2800 - Hydraulic cylinder 28 t KL-0215-35 M28 - Hydraulic pump KL-0040-2812-1 - Thrust spindle M24 KL-0040-2812-5 Thrust nut M24 KL-0039-1002 - Mounting adapter mechanical drive: KL-1005-800 - Mechanical drive kit for commercial vehicles

Customs tariff number

82055980

Load (max.)

28 t

suitable for axle type

BPW

SAF

suitable for vehicle model

DAF CF

DAF CF 65

DAF CF 75

DAF CF 85

DAF LF

DAF LF 45

DAF LF 55

DAF XF I

DAF XF II

DAF XF 105

DAF XG

DAF XG+

Iveco Eurocargo I-III

Iveco Eurofire

Iveco Eurotrakker

Iveco Trakker I

Iveco Trakker II

MAN E2000

MAN F90

MAN F2000

MAN TGA

MAN TGM I

MAN TGS I

MAN TGS II

MAN TGX I

MAN TGX II

Mercedes Actros (MP1)

Mercedes Actros (MP2 / MP3)

Mercedes Actros (MP4 / MP5)

Mercedes Antos

Mercedes Arocs

Mercedes Atego I

Mercedes Atego II

Mercedes Axor I

Mercedes Axor II

Mercedes Citaro I (O 530)

Mercedes Citaro II

Mercedes Econic I

Mercedes Econic II

Renault C

Renault D

Renault K

Renault Magnum

Renault Midlum

Renault T

Scania 4 – series

Scania F – series

Scania K – series

Scania N - series

Scania P,G,R,T – series

Volvo FE I

Volvo FE II

Volvo FH I

Volvo FH II

Volvo FH III

Volvo FH 12

Volvo FH 16 I

Volvo FH 16 II

Volvo FH 16 III

Volvo FL I

Volvo FL6

Volvo FL7

Volvo FM I

Volvo FM II

Volvo FM III

Volvo FM9

Volvo FM12

Volvo FMX I

Volvo FMX II

Volvo FMX III

Width, inside (press frame)

178 mm bis 320 mm

Length, inside (press frame)

152 mm

Parts list (Text)

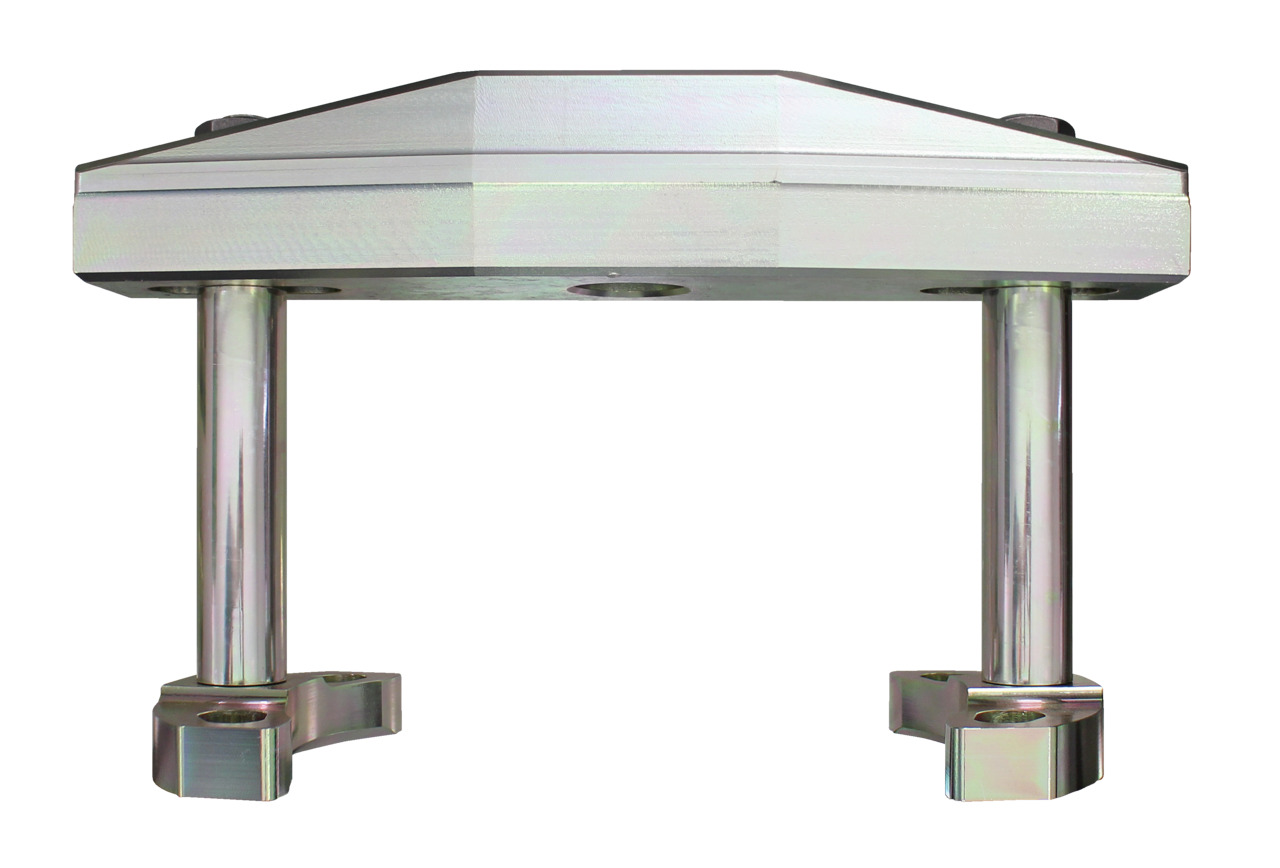

1x KL-1005-101 A - Base frame

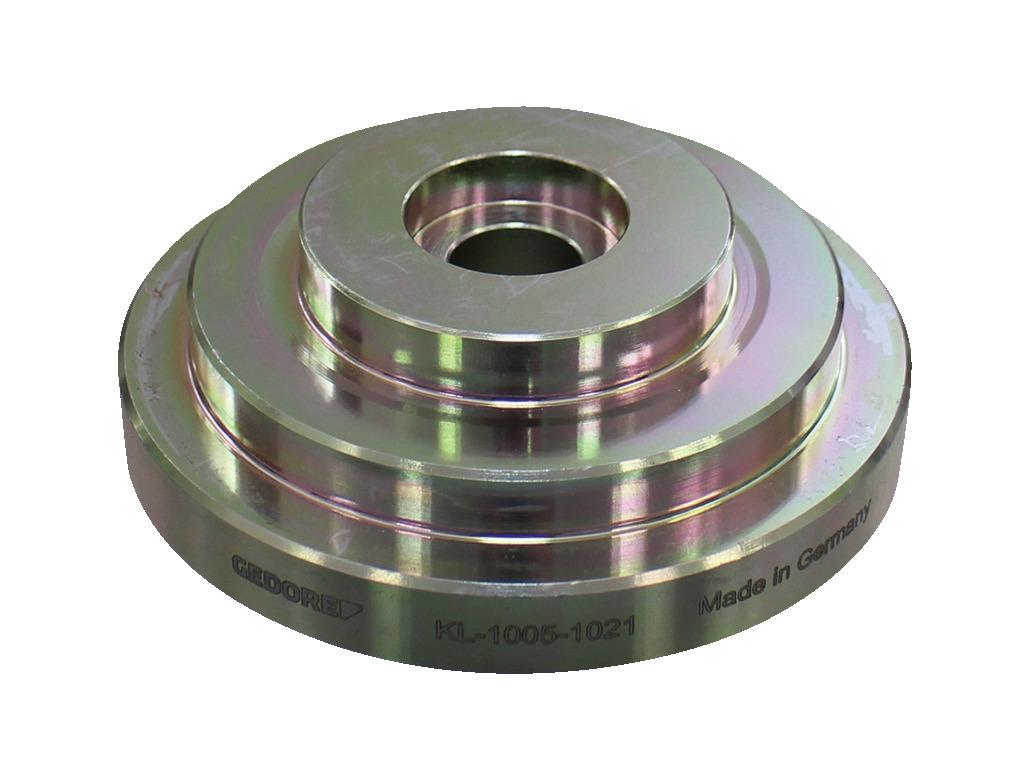

1x KL-1005-1021 - Thrust piece (universell)

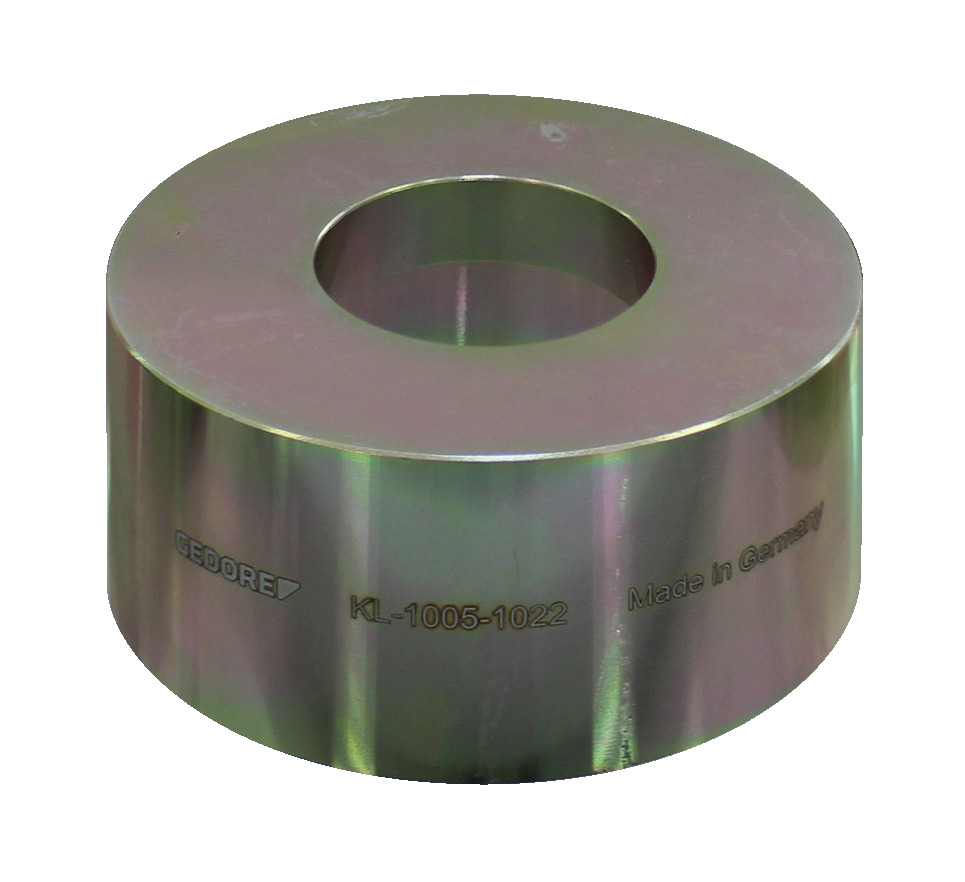

1x KL-1005-1022 - Thrust / support sleeve short 103 / 90 mm dia.

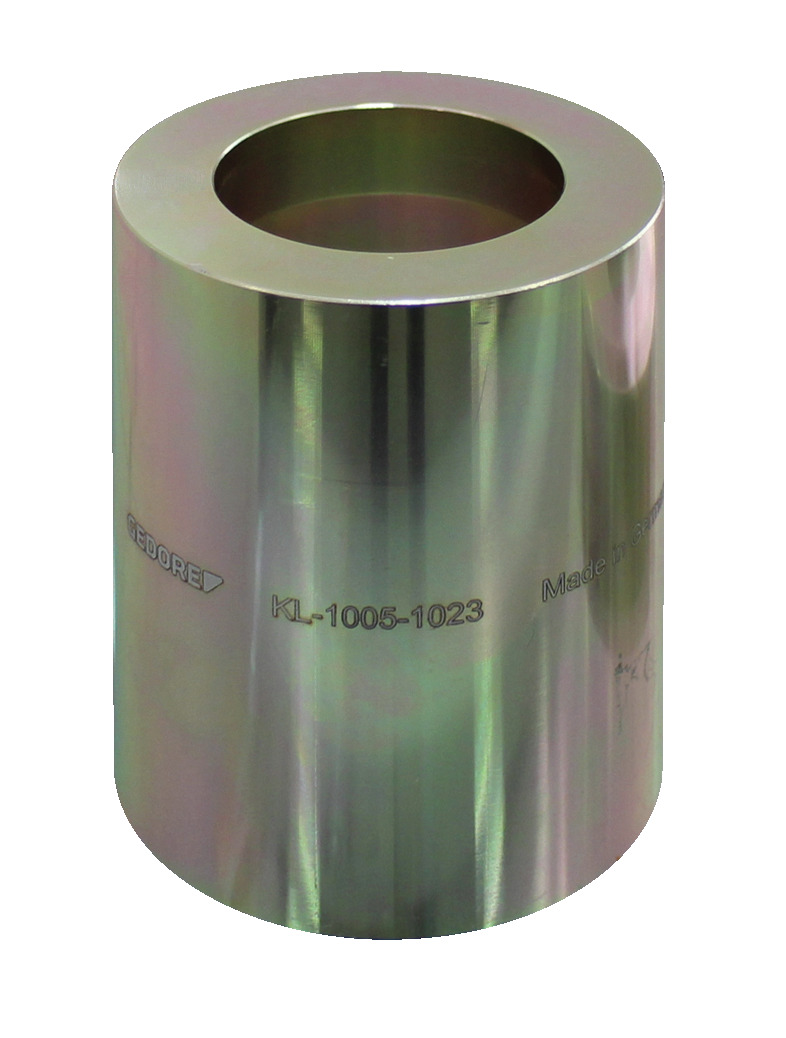

1x KL-1005-1023 - Thrust / support sleeve long 73 / 59 mm dia.

Weight

22 kg

Short text

Universal fit for commercial vehicles (as well as wheel hubs with integrated compact wheel bearing) with removable hub cap.

For axle systems with a pitch hole diameter of 8x275 mm and 10x335 mm for BPW, SAF, and ZF.

• For a quick and professional pulling of the wheel hub directly on the vehicle

• Especially powerful in combination with the 28 t hydraulic cylinder

• Additional drive parts required!

Manufacturer spare part number

Mercedes-Radnabe: A 946 356 07 01; A 942 356 09 01; A 942 356 18 01; A 946 356 02 01; A 960 356 18 01

Mercedes-Radlager: A 003 981 31 05; A 004 981 98 05; A 004 981 99 05; A 005 981 00 05; A 012 981 32 05; A 940 350 07 35; A 942 350 39 35; A 015 981 47 05; A 015 981 48 05; A 940 350 10 35; A 000 720 032 017; A 005 981 14 05; A 005 981 15 05; A 005 981 16 05; A 003 981 39 05; A 003 981 72 05; A 004 981 68 05; A 006 981 62 05; A 008 981 75 05; A 000 981 74 05; A 000 981 84 05; A 327 981 03 05; A 942 981 02 05; A 004 981 07 05; A 004 981 09 05; A 005 981 21 05; A 008 981 35 05; A 018 981 71 05; A 020 981 49 05; A 958 981 06 05; A 001 981 64 05; A 001 981 72 05; A 004 981 74 05; A 006 981 04 05; A 017 981 79 05; A 005 981 55 05; A 005 981 69 05; A 006 981 76 05; A 009 981 43 05; A 011 981 23 05; A 011 981 36 05; A 019 981 35 05

MAN-Radnabe: 81.35114.0135; 81.35700.6136; 81.35700.6150; 81.35701.0141; 81.36501.0055; 81.36501.0069; 81.36501.0091; 81.36501.0107

MAN-Radlager: 06.32499.0153; 06.32499.0154; 81.93420.0233; 06.32485.0095; 06.32489.0032; 64.93420.0023; 64.93420.0024; 64.93420.0065; 81.93420.0090; 06.32480.1200; 06.32481.1200; 06.32489.0060; 06.32489.0091; 81.93420.0150; 06.32480.1500; 06.32489.0119; 06.32489.0121; 06.32489.0122; 06.32499.0109; 06.32499.0110; 81.93420.6016; 06.32499.0040; 06.32499.0131; 06.32499.0189; 81.93420.0270; 06.32499.0039; 06.32499.0073; 06.32499.0108; 06.32499.0116; 06.32489.0009; 06.32489.0030; 81.93420.0089; 06.32499.0035; 06.32499.0041; 06.32499.0042; 06.32499.0071; 06.32490.5900; 06.32499.0022; 06.32499.0088; 64.93420.0028; 64.93420.0032; 81.93420.0097; 87.52350.0900; 06.32499.0019; 06.32499.0095

Renault-Radnabe: 74 20 535 264; 74 85 107 753; 74 21 116 569; 74 85 114 470; 74 85 109 244; 74 20 516 957; 74 20 535 263; 74 20 535 264; 74 21 892 569; 74 85 107 753

Volvo-Radnabe: 20819826; 85109244; 20535263; 20535264; 20567389; 20567394; 21881346; 85107753; 20 516 957; 20535263; 20535264; 20567394; 21881346; 7420516957; 7421892569; 85 107 753; 20517952; 8156 332

Iveco-Radnabe: 000717 2551; 00717 2551; 0717 2551; 004210 4691

Scania-Radnabe: 1 382 884; 1 864 428; 2 085 471; 2 290 532; 2 743 252; 1 800 283; 2 290 542

DAF-Radnabe: 1428 396; 1613 331; 1812 160; 2019 833; 1691 621; 1699 327; 1818 004; 2019 789; 1291 213; 1348 434; 1657 637; 1812 161; 2019 802; 2104 395; 1697 346; 1391 615; 1388 905; 1391 515; 2015 330; 1827 751; 2019 853; 1818 003; 2042 794; 2033 821; 1391 617; 1391 517; 1389 061; 1692 506; 1881 800

Predecessor article

KL-1005-100

3036278

EAN

4046459173823

Manual - 1005-100A_DE230403.pdf Manual - 1005-100A_EN230403.pdf

Wheel Hub Puller Set, HGVKL-1005-100 A
