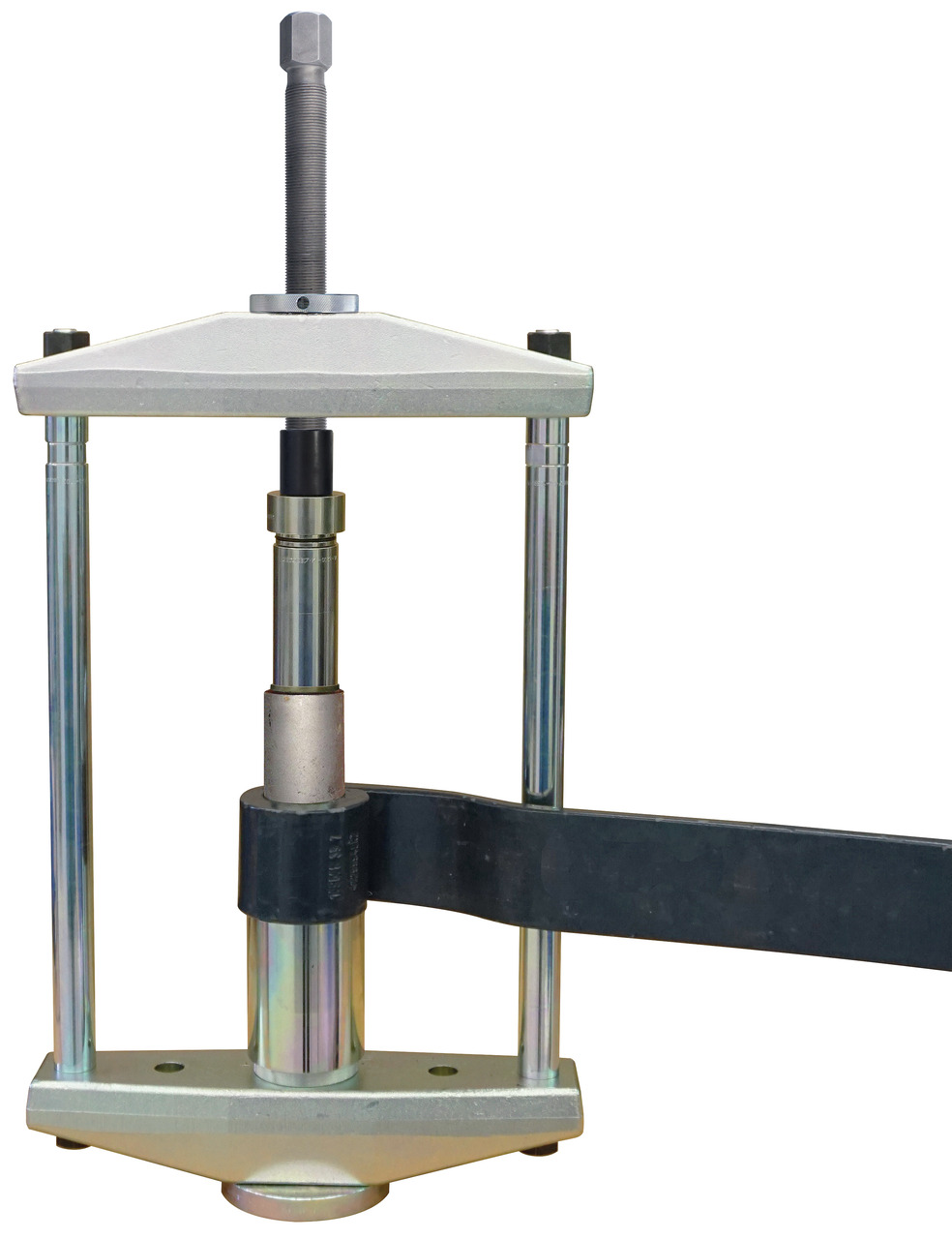

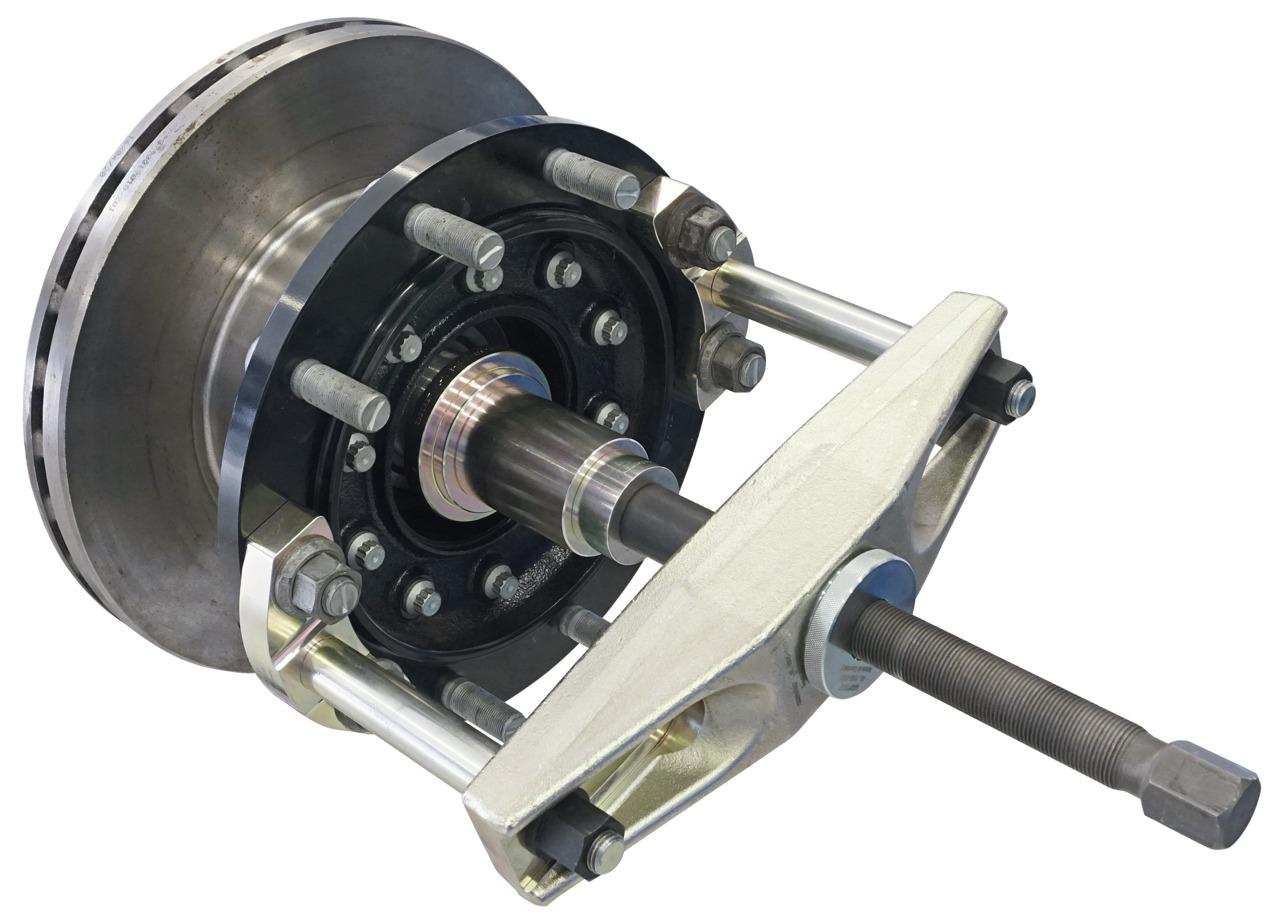

The drive set enables the simple mechanical drive of the NFZ wheel hub puller sets KL-1005-100 A as well as KL-1005-111. In combination with the pressure spindle 1.3306500, available as an accessory, it can also be used on the NFZ press frame KL-1039-111.
Technical data
Contents (Qty of pieces)
3
VDE certified
No
1000 V insulated
No
Target groups
Construction and commercial vehicles
Agriculture
Drive type
mechanical
Customs tariff number
82055980
Spindle total length
400 mm
Drive connector hexagon [metric]
36,0 mm
Parts list (Text)
1x KL-1005-8002 Pressure piece with O-ring
1x KL-1005-8001 Adapter 2 3/4"-16 US to G1
1x 13306310 - pressure spindle G1" x 310 mm
Weight
3,5 kg
Spindle Thread length (usable).
310 mm
Short text
• For simple mechanical drive of the NFZ wheel hub puller sets KL-1005-1...
• With pressure spindle 1.3306500 (accessory) can also be used on press frame KL-1039-111.
