Automotive

Construction and commercial vehicles

Mercedes Sprinter II (B906)

Mercedes Vito / Viano II (W639)

VW Crafter I (2E / 2F)

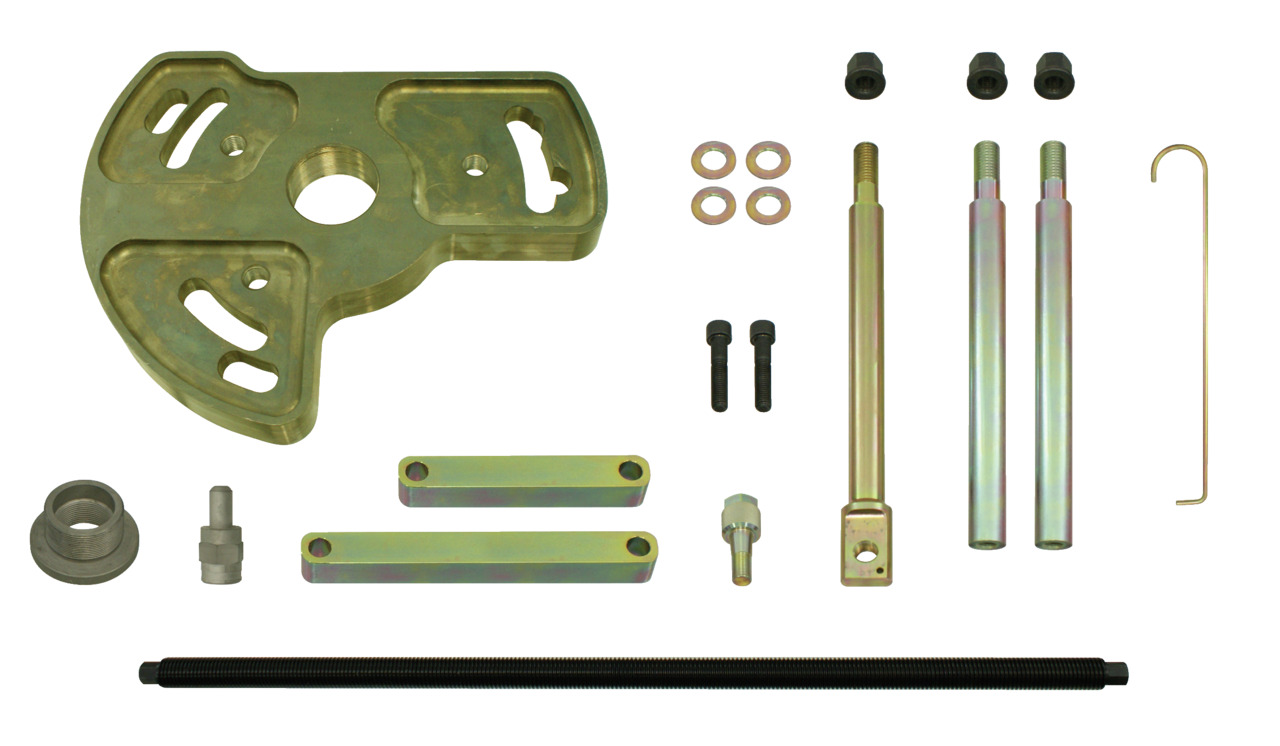

1x KL-0041-501 - Basic tool

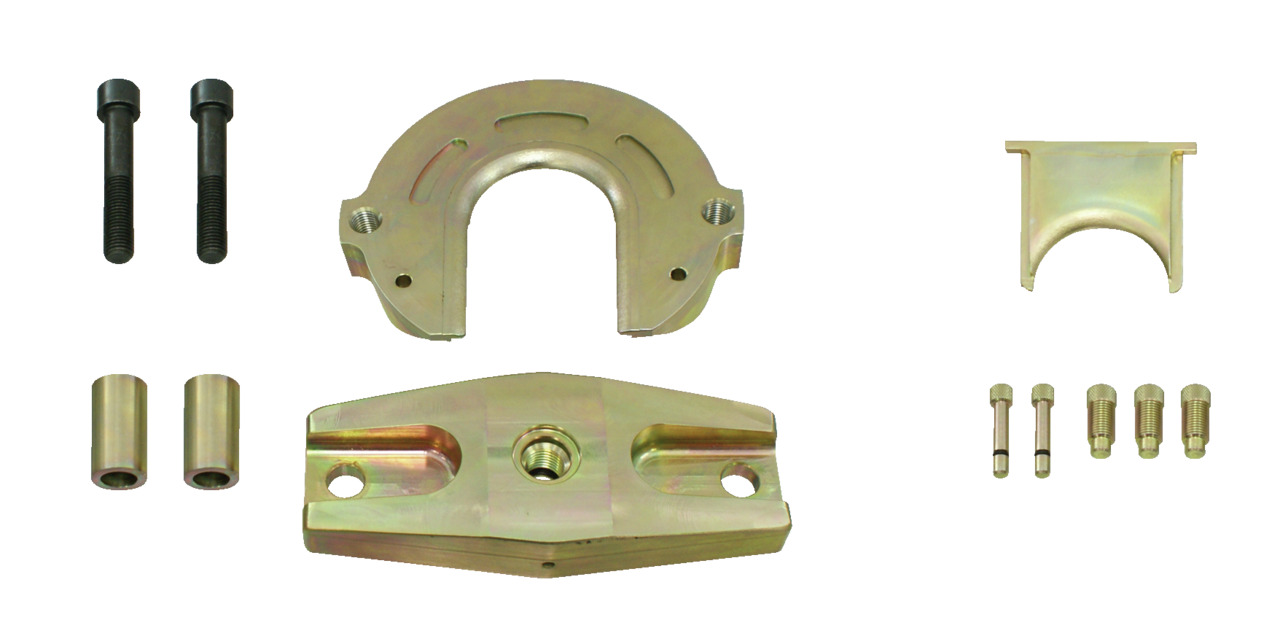

1x KL-0041-502 - Pull / pressure plate for bearing diameter of 96 mm with bridge

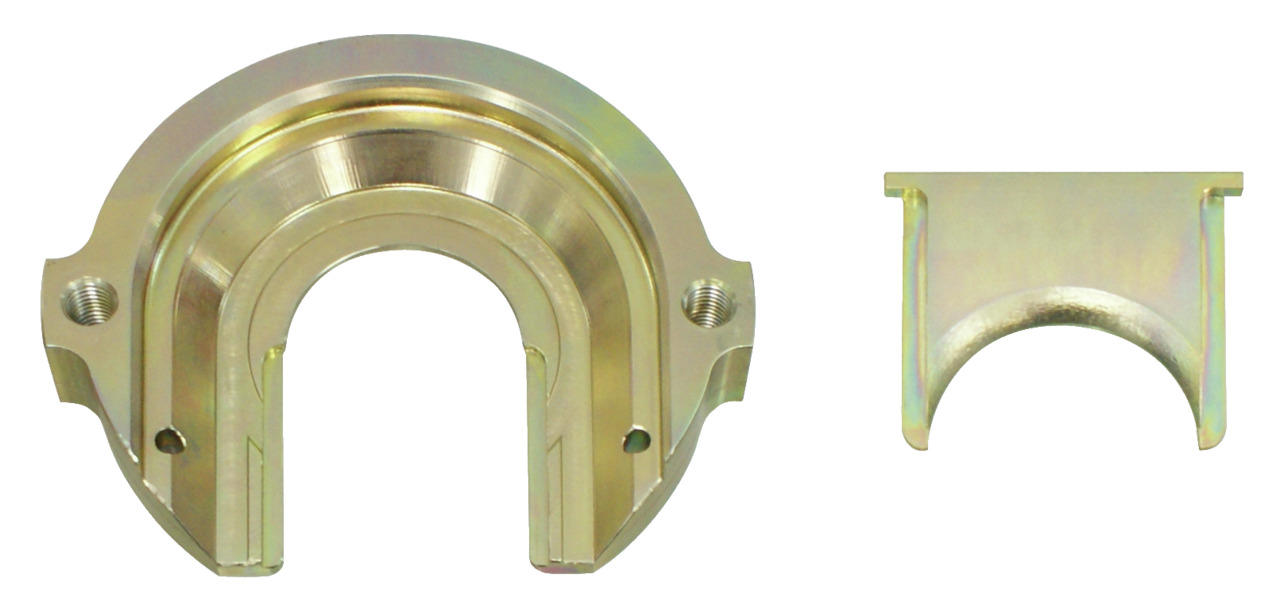

1x KL-0041-5030 - Supplementary kit pull / pressure plate for bearing diameter 92 mm

Suitable for the front axle of Mercedes Vito / Viano /W639), Sprinter (906) and VW Crafter (2E/2F) with rear drive.

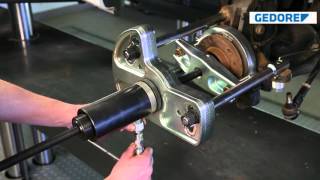

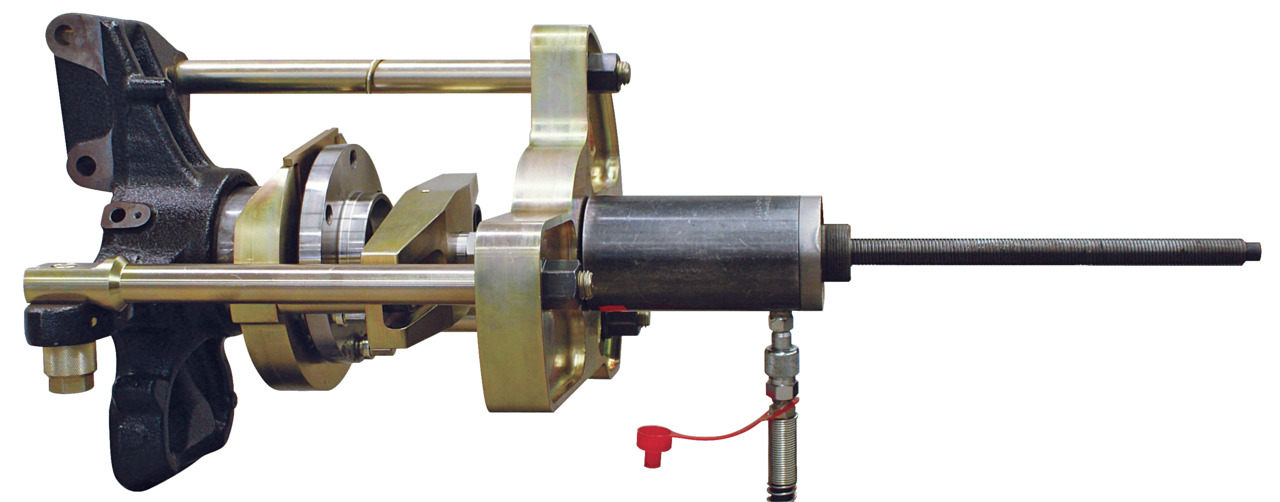

• For removing and installing the wheel hub bearing unit directly on the vehicle

• Required as the wheel hub is not equipped with a centre bore and covers the outer bearing ring

• No damage to the bearing as pressure is only applied via the outer bearing ring during installation

Mercedes: A 639 330 04 20; A 639 330 05 20; A 639 330 06 32; A 639 330 07 32; A 639 330 12 32; A 639 330 13 32; A 906 330 24 20; A 906 330 25 20; A 906 330 28 20; A 906 330 29 20; A 906 330 31 20; A 906 330 34 20; A 906 330 35 20; A 906 330 36 20; A 906 330 37 20; A 906 330 38 20; A 906 330 40 20; A 906 330 41 20; A 906 330 43 20; A 906 330 49 20; A 906 330 50 20

VW: 2E0 407 303 AA; 2E0 407 303 P; 2E0 407 303 Q; 2E0 407 303 R; 2E0 407 304 M; 2E0 407 304 N; 2E0 407 304 P; 2E0 407 304 Q; 2E0 407 304 S
