Product

Upgrade Kit Siemens-Injector, M25x1
KL-0186-1281 A

3420132

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

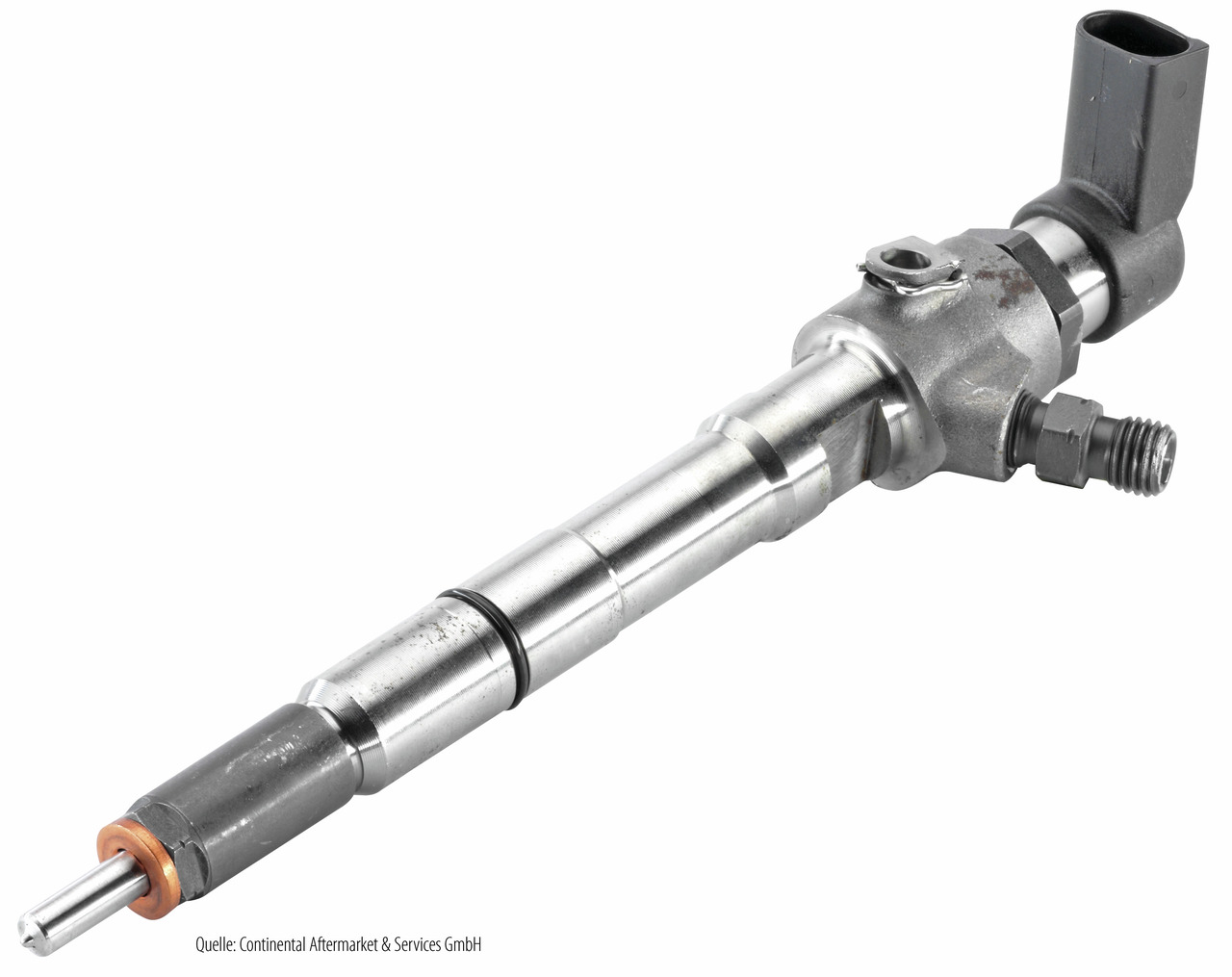

Suitable for Siemens injectors with a female thread M25x1 and a spanner size of 25 mm.

For example, fits particularly with VW, Audi, Seat, Škoda 1.6 TDI (CAYA, CAYB, CAYC, CAYD, CLNA) and PSA 2.0 HDI (DW10), etc.

By using the supplementary kit, the injector extractor KL-0186-14 KB resp. KL-0186-80 K also fits the above-mentioned injectors and engines.
Alternatively the kit can be also used with an impact extractor.

Technical data

Drive connector square [inch]

1/2"

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Drive type

hydraulic

mechanical

manual

Required accessories

KL-0186-14 KB - Injector extractor kit, if necessary motor specific support pin kit - KL-0186-12.. / -13... may be required.

for internal thread

M25x1

for injectors from

Continental

Siemens/VDO

for motor type

Diesel

Customs tariff number

82055980

suitable for vehicle component

Continental-Injektoren

Siemens-Injektoren

suitable for motor

PSA 2.0 HDI

VW-Audi 1.6 TDI

Profile

Hexagon

Width across flats 1

25 mm

Parts list (Text)

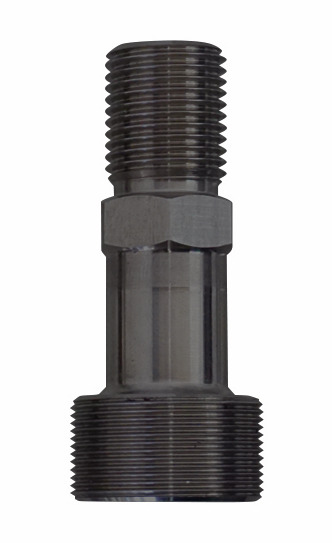

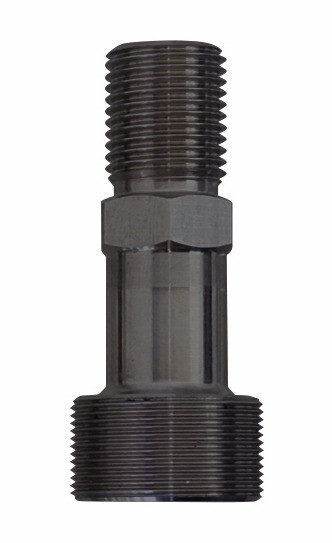

1x KL-1383-1021 A - Pull adapter M25x1

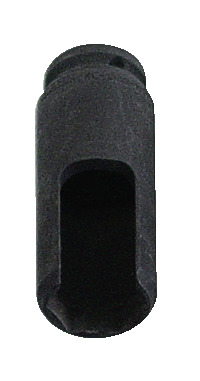

1x KL-1383-1022 - Special socket spanner 25 mm (waf)

Short text

Suitable for Siemens injectors with an internal thread of M25x1 (size 25mm waf).

• Supplement to the injector puller KL-0186-14 KB or KL-0186-80 K

• Depending on the motor specific support bolt kit KL-0186-12 if necessary. / -13.. Required (for KL-0186-14 KB)

• Alternative drive with impact extractor possible

Motorcodes

VW-Audi: CAYA, CAYB, CAYC, CAYD, CAYE, CLNA.

PSA: DW10.

Predecessor article

KL-0186-1281

3293823

EAN

4046459181101
