Description

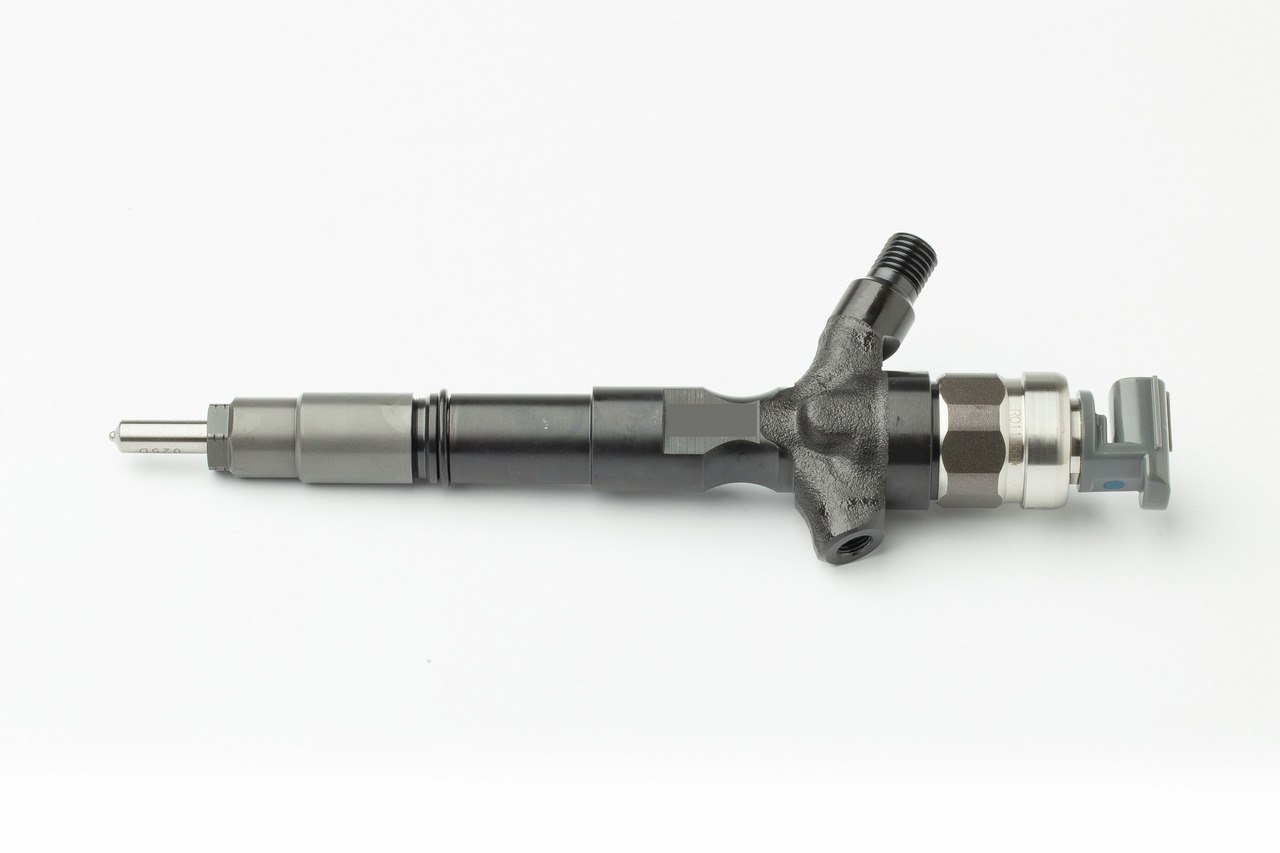

Suitable for Denso injectors with a female thread M16x1 and a spanner size of 17 mm.

Particularly suitable, for example, for Toyota and Lexus 2.2, 2.5 and 3.0 common rail diesel engines (1KD-FTV, 2AD-FHV, 2AD-FTV, 2KD-FTV H, 2KD-FTV L), etc.

By using the supplementary kit, the injector extractor KL-0186-14 KB resp. KL-0186-80 K also fits the above-mentioned injectors and engines.
Alternatively the kit can be also used with an impact extractor.

Technical data

Drive connector square [inch]

3/8"

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Drive type

hydraulic

mechanical

manual

Required accessories

KL-0186-14 KB - Injector extractor kit, if necessary motor specific support pin kit - KL-0186-12.. / -13... may be required.

for internal thread

M16x1

for injectors from

Denso

for motor type

Diesel

Customs tariff number

82055980

suitable for vehicle component

Denso-Injektoren

suitable for motor

Toyota/Lexus 2.2 Common-Rail Diesel

Toyota/Lexus 2.5 Common-Rail Diesel

Toyota/Lexus 3.0 Common-Rail Diesel

Profile

Hexagon

Width across flats 1

17 mm

Parts list (Text)

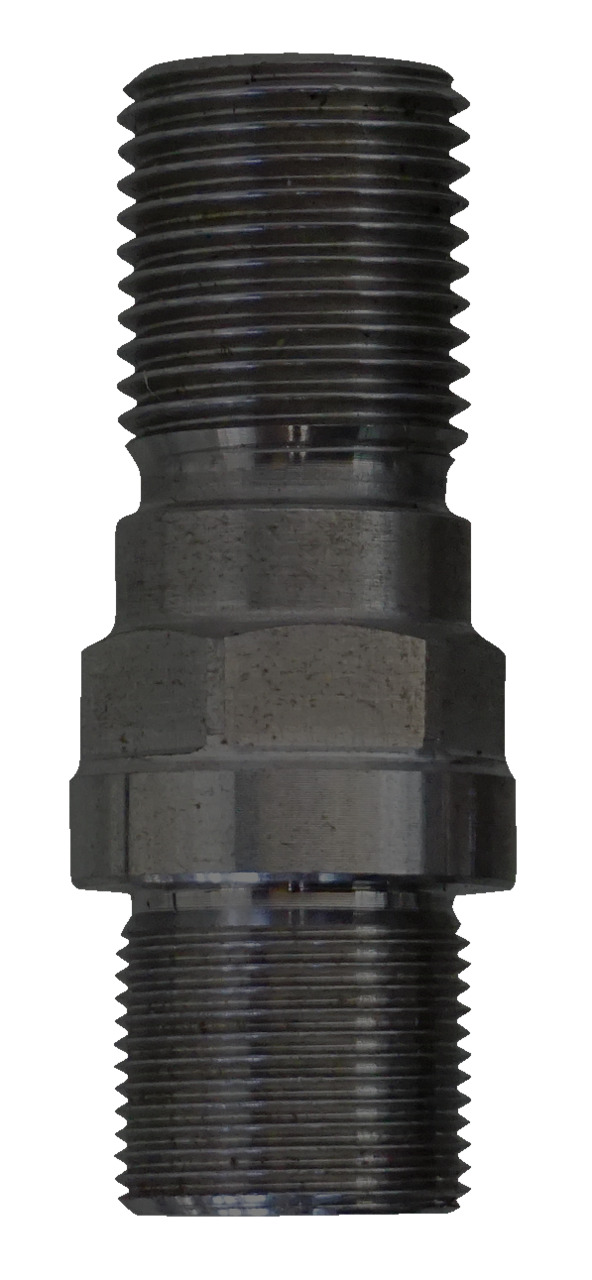

1x KL-0186-1612 A - Pull adapter M16x1

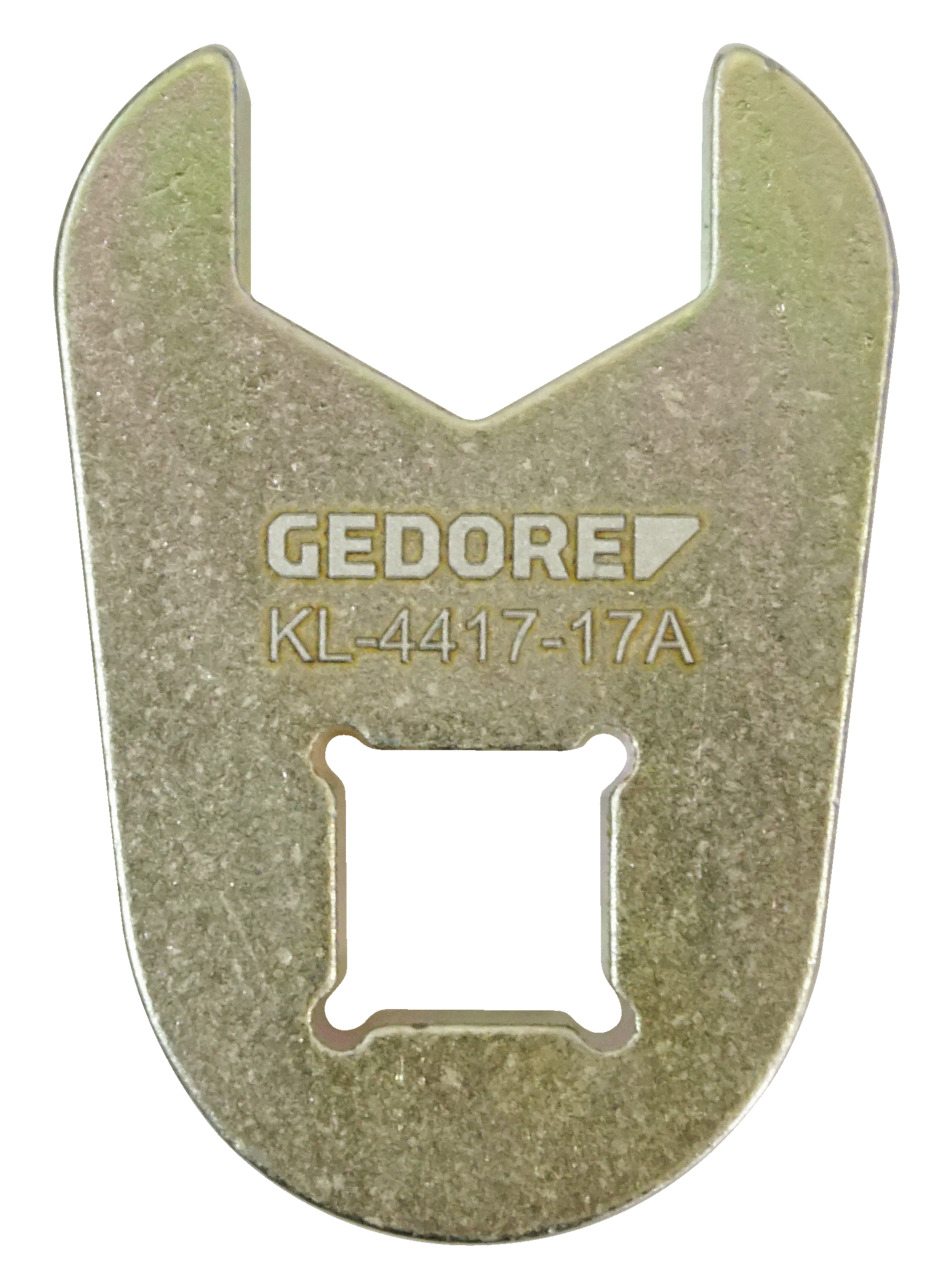

1x KL-4417-17 A - Open-end spanner 17 mm (waf)

Short text

Suitable for Denso injectors with an internal thread M16x1 (17 mm).

• Supplement to the injector puller KL-0186-14 KB or KL-0186-80 K

• Depending on the motor specific support bolt kit KL-0186-12 if necessary. / -13.. Required (for KL-0186-14 KB)

• Alternative drive with impact extractor possible

Motorcodes

Toyota/Lexus: 1KD-FTV, 2AD-FHV, 2AD-FTV, 2KD-FTV H, 2KD-FTV L.

Predecessor article

KL-0186-1283

3293858

EAN

4046459181125
