Upgrade Kit Delphi/Bosch-Injector, 90°
KL-0186-1285 A

3420183

FIND A DEALER

Description
Accessoires
Technical data
Manual
Spare parts
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

Suitable for Delphi and Bosch injectors with lateral fuel connection (90° angle to the injector). Particularly suitable, for example, for Mercedes-Benz 1.8 and 2.1 Common Rail diesel engines (OM651), etc.

By using the supplementary kit, the injector extractor KL-0186-14 KB resp. KL-0186-80 K also fits the above-mentioned injectors and engines.
Alternatively the kit can be also used with an impact extractor.

Technical data

Contents (Qty of pieces)

VDE certified

1000 V insulated

Target groups

Automotive

Drive type

hydraulic

mechanical

manual

Required accessories

KL-0186-14 KB - Injector extractor kit, if necessary motor specific support sleeve kit - KL-0186-12.. / -13... may be required.

for injectors from

Delphi

Bosch

for motor type

Diesel

Customs tariff number

82055980

suitable for vehicle component

Bosch-Injektoren

Delphi-Injektoren

suitable for motor

Mercedes 1.8 CDI

Mercedes 2.1 CDI

Parts list (Text)

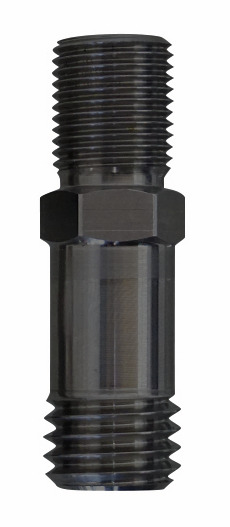

1x KL-0186-1711 A - Pull spindle M18x2.5

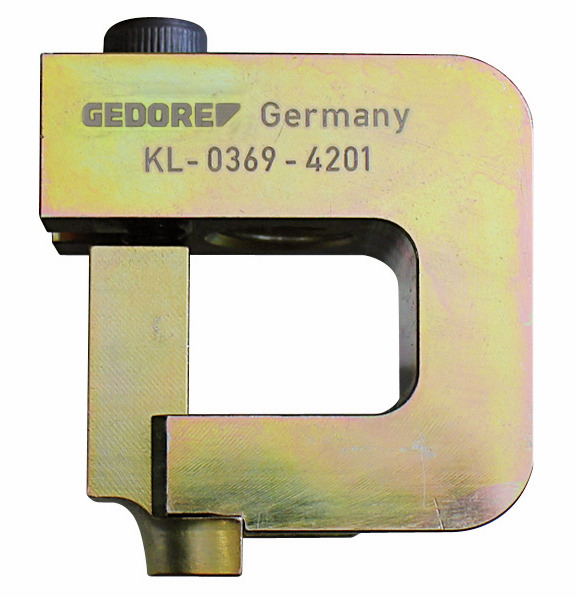

KL-0369-420 A - Nozzle extractor

Short text

Suitable for Delphi -/ Bosch injectors with lateral fuel connection (90° angle to the injector).

• Supplement to the injector puller KL-0186-14 KB or KL-0186-80 K

• Depending on the motor specific support bolt kit KL-0186-12 if necessary. / -13.. Required (for KL-0186-14 KB)

• Alternative drive with impact extractor possible

Motorcodes

Mercedes: OM651.

Predecessor article

KL-0186-1285

3293866

EAN

4046459181194

Manual - Manual - Manual - Manual -

Upgrade Kit Delphi/Bosch-Injector, 90°KL-0186-1285 A

3420183

Description

KL-0369-4111 Adaptor, Injector Nozzle Puller (M18 to M16x1,5)

KL-0369-4100 Slide Hammer Puller (1.5kg)

KL-0049-300 Slide Hammer Puller (4.8kg)

Technical data

KL-0369-420 Injector Nozzle Puller without Slide Hammer Puller

KL-0186-1711 A Pull Spindle Adapter, M18

KL-0186-1281 A Upgrade Kit Siemens-Injector, M25x1

KL-0186-1282 A Upgrade Kit Siemens-Injector, M27x1

KL-0186-1283 A Upgrade Kit Denso-Injector, M16x1

KL-0186-1284 A Upgrade Kit Denso-Injector, M20x1

KL-0369-4111 Adaptor, Injector Nozzle Puller (M18 to M16x1,5)

KL-0369-4100 Slide Hammer Puller (1.5kg)

KL-0049-300 Slide Hammer Puller (4.8kg)

KL-0186-1233 Set of Support Bolts, M6, 145mm

KL-0186-14 KB Injector Nozzle Puller Set, Universal

KL-0186-80 K Pneumatic Injector Nozzle Puller, in a patented protective housing

KL-0040-175 C Hydraulic Cylinder, short, 17t
