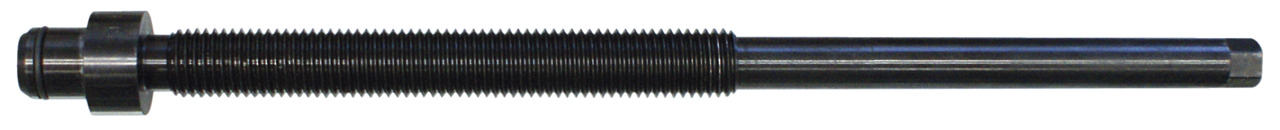

Pressure Spindle, M20x405mmKL-0039-1931 2088223 FIND A DEALER Note Required Accessories Engine Code OE Tool OE Replacement Part No. Suitable for Vehicle Model Parts List (Text) Predecessor Successor Description Accessoires Technical data Manual Spare parts Spare parts Similar Eigenschappen Fabrikant Documenten Certificaten Videos Handleidingen Tekeningen Deeplink Extra informatie Cross selling Description For the hydraulic drive of the KL-0039 series, in combination with hydraulic cylinder KL-0040-2500 and a press frame.For removing and installing bearings, bushings, etc. KL-0039-1935 Thrust Piece 2178990 Technical data Contents (Qty of pieces) 1 VDE certified No 1000 V insulated No Target groups AutomotiveConstruction and commercial vehiclesAgriculture Drive type hydraulic Customs tariff number 82055980 Load (max.) 20 t Outer diameter 30 mm Spindle total length 405 mm Mounting diameter 20.5 mm Thread M20 Drive connector hexagon [metric] 13,0 mm Spindle Thread length (usable). 180 mm Short text • For the hydraulic drive of the KL-0039 series • Only in combination with hydraulic cylinder KL-0040-2500 and a press frame EAN 4046459069669 Manual - KL-0039-..Silentlager_DE240306.pdf Manual - KL-0039-..Silentlager_EN240306.pdf KL-0039-1930 Pressure Spindle, M20x350mm 2088185 KL-0040-2500 Hydraulic Cylinder, 17 t 1751441 KL-0039-1140 Press Frame, 12t 2178923 KL-0039-1601 Press/Support Sleeve Set, short, Ø 30-90mm 2355418 KL-0039-1701 Press/Support Sleeve Set, long, Ø 30-68mm 2357984 KL-0039-160 E Press/Support Sleeve Set, short, Ø 30-90mm 2840723 KL-0039-1161 E Press Frame Kit 2842777 KL-0039-170 E Press/Support Sleeve Set, long, Ø 30-90mm 2840693 KL-0039-1140 V Press Frame, 17t 3413314
